Lutron GRX-CBL-46L Long-Distance Control Link Cable (Non-Plenum)
The Lutron GRX-CBL-46L is an industrial-grade, multi-conductor cable engineered for the physical layer of the Lutron control link. Designed for GRAFIK Eye 4000, 6000, and HomeWorks systems, this "Long-Distance" (L) variant solves the problem of voltage drop on extended wire runs by utilizing heavy-duty 12 AWG power and common conductors.

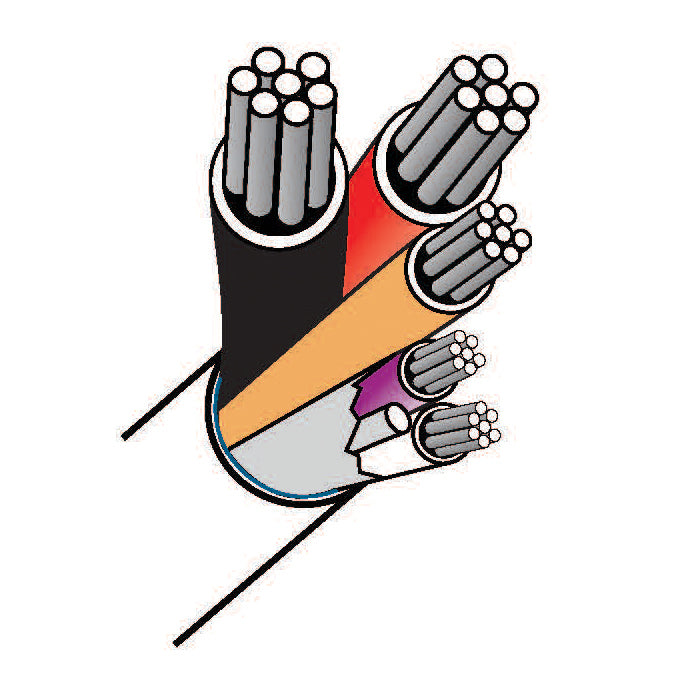

This 5-conductor composite cable includes a shielded, twisted 22 AWG pair for reliable Mux Data transmission and an 18 AWG sense line. This non-plenum version features a durable PVC jacket (CL3R/CMG rated), making it perfect for standard residential or commercial installations where the cable is pulled through conduit or non-plenum wall cavities.
Key Features
- High-Capacity Long Runs: 12 AWG conductors allow for the maximum possible distance between Lutron power panels and control units.
- Superior Signal Integrity: Shielded 22 AWG twisted data pair prevents EMI/RFI from disrupting communication.
- One-Cable Pull: Consolidates power (12 AWG), sense (18 AWG), and data (22 AWG) into a single jacket to reduce labor time.
- Safety Rated: UL/CSA listed with a 300V rating and 75°C temperature rating.
- Non-Plenum (CL3R/CMG): Durable PVC sheath designed for standard architectural wiring (FT4 rated).
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | GRX-CBL-46L-250 (250ft) / GRX-CBL-46L-500 (500ft) |
| Conductor Composition | (2) 12 AWG, (1) 18 AWG, (2) 22 AWG Shielded Pair |
| Drain Wire | 24 AWG |
| Jacket Rating | Non-Plenum (CL3R or CMG), FT4 Rated |
| Outer Diameter | 0.325 in (8.25 mm) |
| Voltage / Temp | 300V / 75°C |
| Capacitance (22 AWG) | 25 pf/ft (cond-to-cond) / 48 pf/ft (cond-to-shield) |
Applications
- GRAFIK Eye 4000 & 6000 Series Control Units
- HomeWorks Interactive and QS Wiring
- Long-Distance Low-Voltage Communication Links
- Commercial High-Capacity Lighting Control
