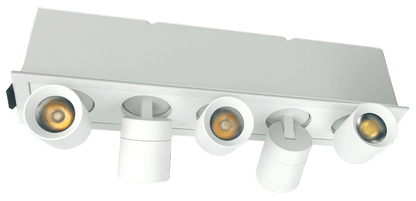

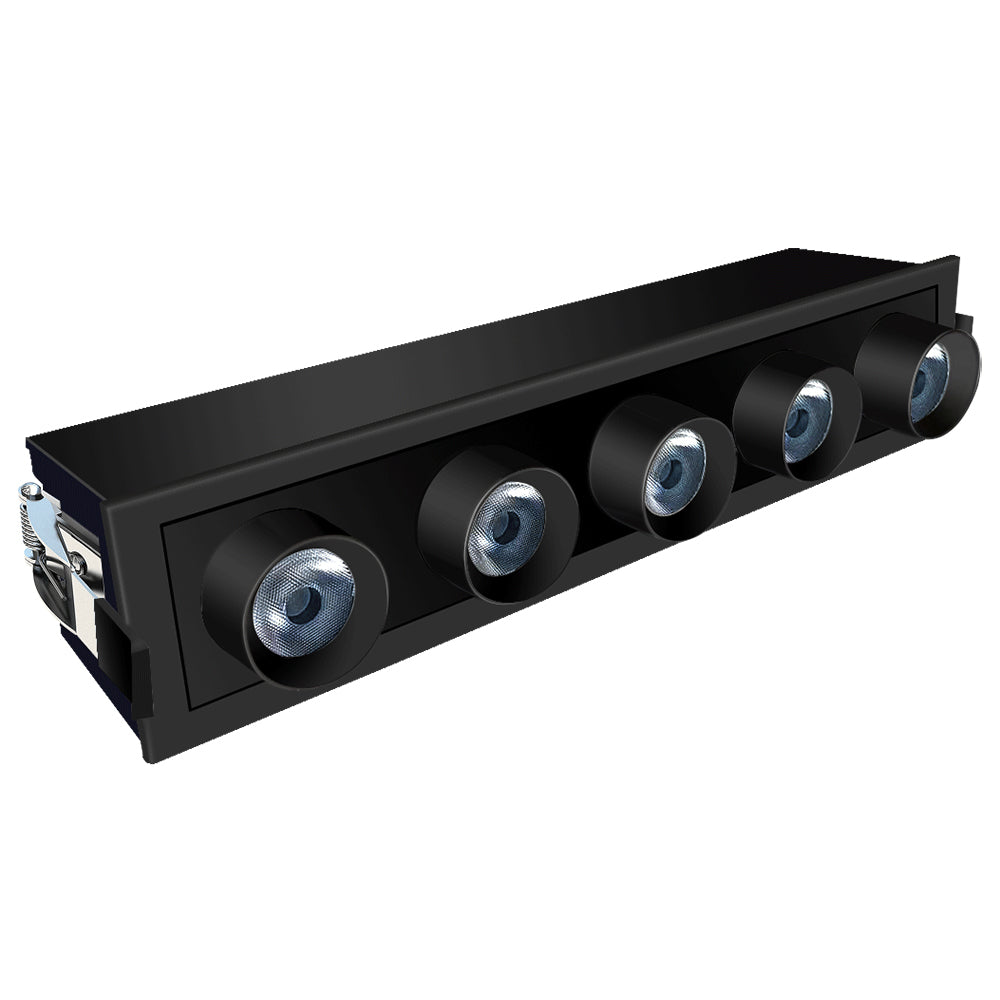

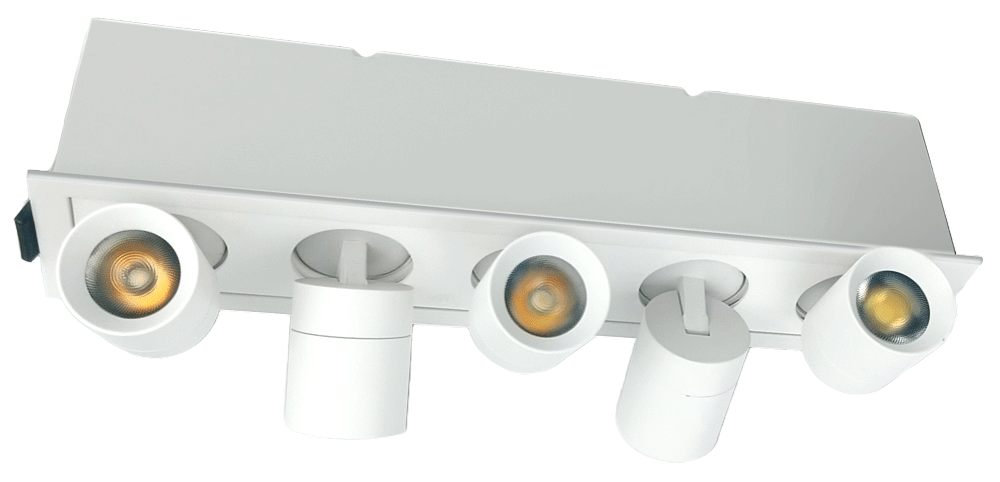

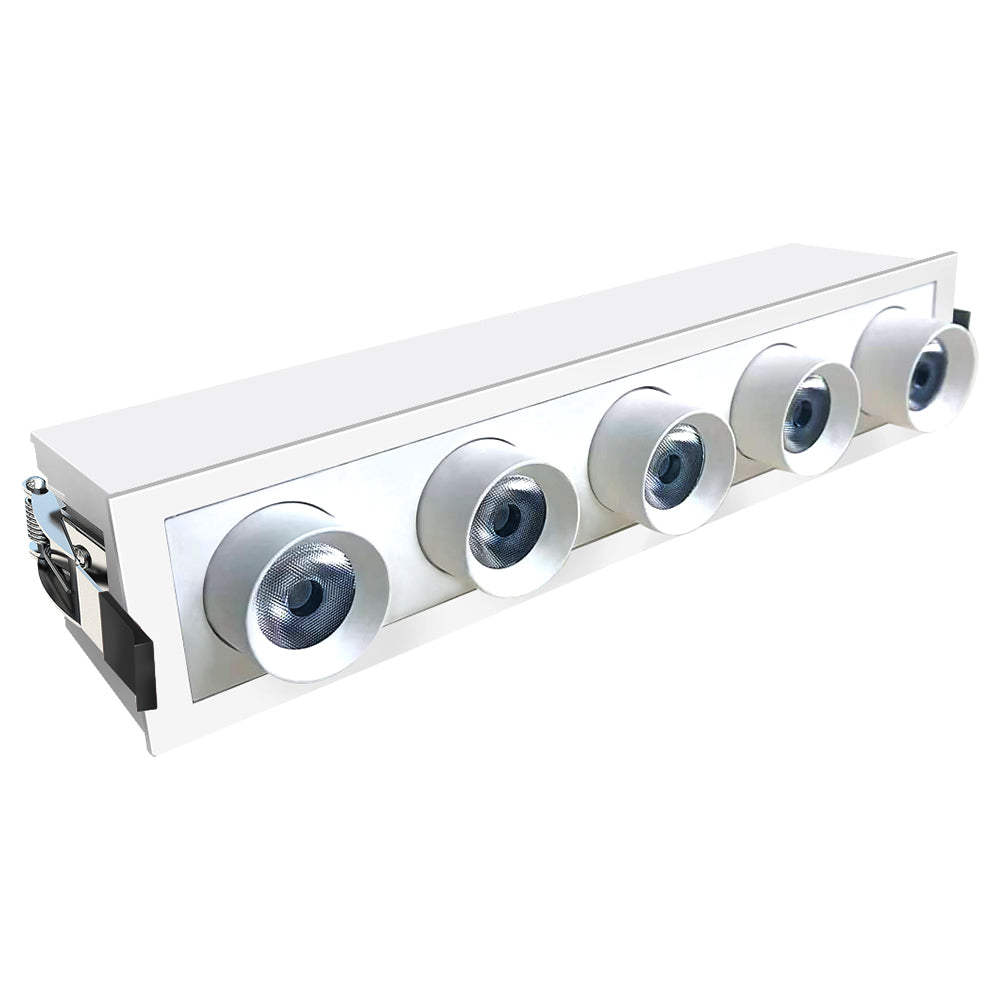

Lotus 5 LED Rotatable Linear Recessed Downlight 16W | JXL-TXH05-G16W

Lotus 5 LED Rotatable Linear Recessed Downlight 16W | JXL-TXH05-G16W

Available to order — ships from incoming stock

Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)

SKU:JXL-TXH05-G16W-BK-3000K

Shipping terms (Free over $300) calculated at checkout.

Overview

The Lotus LED 5 LED Rotatable Linear Recessed Downlight is an architectural-spec fixture designed for unique and original lighting installations. This versatile luminaire provides a track lighting effect without the need for visible tracks, allowing each of the five LEDs to be adjusted individually for precision accent lighting.

Key Features

  • Individual Adjustability: Every one of the five LEDs can be pulled down and rotated 350°, or pushed up to be concealed.
  • Precision Highlighting: Features a 20° directional low-glare beam, making it an ideal solution for highlighting artwork and wall washing.
  • IC Rated: Contractor-grade construction approved for direct contact with insulation, requiring no bulky recessed housing.
  • Slim Profile: At only 2 1/4" deep, this fixture is engineered for installations where ceiling space is limited.
  • Architectural-Spec Light Quality: Delivers 3000K illumination with a CRI 90+ rating for true color rendering.

Technical Specifications

  • Power: 16W (5 LEDs x 3W each)
  • Light Output: 1220 lm
  • Color Temperature: 3000K
  • CRI: 90+
  • Beam Angle: 20°
  • Input Voltage: 120V - 277V AC
  • Dimming: TRIAC Dimmable (10% - 100%)
  • Dimensions: 9 3/4" x 2 1/8" (OD); 2 1/4" Depth
  • Cut Out: 9 7/16" x 1 3/4"
  • Approved Location: Insulated Ceiling & Damp Locations
  • Air Tight: Yes
  • Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Projected Life: 70% light output at 30,000 hours
  • Certifications: cETLus
  • Warranty: 3 Year

Spec / Sell Sheets
