WhisperValue DC™ with Pick-A-Flow™ Speed Selector (50-80-100 CFM) | FV0510VS1
WhisperValue DC™ with Pick-A-Flow™ Speed Selector (50-80-100 CFM) | FV0510VS1
Ships in 3–5 Days (Western Canada) · 3–5 Days (Eastern Canada)
In stock

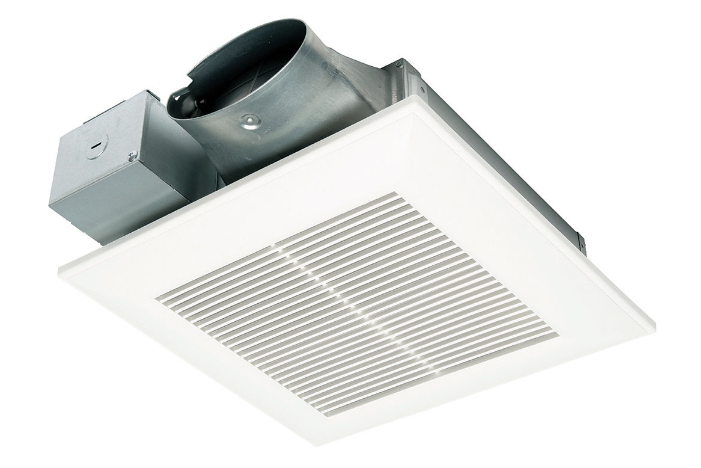

The WhisperValue® DC exhaust fan FV-0510VS1 is the ultimate low-profile spot ventilation fan, ideal for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Featuring a revolutionary ECM motor with SmartFlow™ technology, it combines exceptional performance with an ultra-slim design, making it the lowest-profile ENERGY STAR®-rated fan on the market.
One of its standout features is the Pick-A-Flow® Airflow Selector, which lets you choose between 50, 80, or 100 CFM. This customizable airflow ensures the fan meets a variety of ventilation requirements, stays compliant with building codes, and minimizes the chance of callbacks.
WhisperValue® DC Fan with Pick-A-Flow®, 50-80-100 CFM
The WhisperValue® DC exhaust fan FV-0510VS1 is the ultimate low-profile spot ventilation fan, ideal for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Featuring a revolutionary ECM motor with SmartFlow™ technology, it combines exceptional performance with an ultra-slim design, making it the lowest-profile ENERGY STAR®-rated fan on the market.
One of its standout features is the Pick-A-Flow® Airflow Selector, which lets you choose between 50, 80, or 100 CFM. This customizable airflow ensures the fan meets a variety of ventilation requirements, stays compliant with building codes, and minimizes the chance of callbacks.
- Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance
- • SmartFlow® Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output
- Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR® certified fan available, making it perfect for tight spaces and easy installation, even in 2" x 4" stud walls
- Cost-Effective Wall Installation: Wall-mounted installation eliminates the need for expensive radiation dampers in fire-rated ceilings, making it an ideal choice for multi-family projects
- Warranty: 6 years ECM Motor, 3 years all other parts
Model | FV-0510VS1 |
---|---|
Air Volume Exhaust (CFM) | 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP |
Master Carton Dimensions (HxWxD) | 6.89 x 14.25 x 16.73 |
CFM | 50-70. 80-110 |
Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
Construction Type | Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
Current (Amps) | 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A |
Ventilation Design Approach | Ventilation Design Approach |
Duct Diameter | 4" Oval |
Energy Efficiency (CFM/Watt) | 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W |
ENERGY STAR® Certified | Yes |
Fan Type | Fan Only |
Grille Size (in sq.) | 13" |
Industry | Residential. Light Commercial |
Installation | Ceiling Mount, Wall Mount (UL), Tub/Shower (UL) |
Motor Type (AC/DC) | DC |
Mounting Opening (in sq.) | 10-1/2" |
Mounting Options | Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL) |
Noise (Sones) |
50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3 |
Power Consumption (Watts) | 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W |
Power Rating (V/Hz) | 120/60 |
Product Family Name | WhisperValue DC |
Radiation Damper Available | Yes |
UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
Warranty | 6 year DC Motor, 3 Year Parts |
Master Carton Gross Weight (lbs.) | 8.82 |
