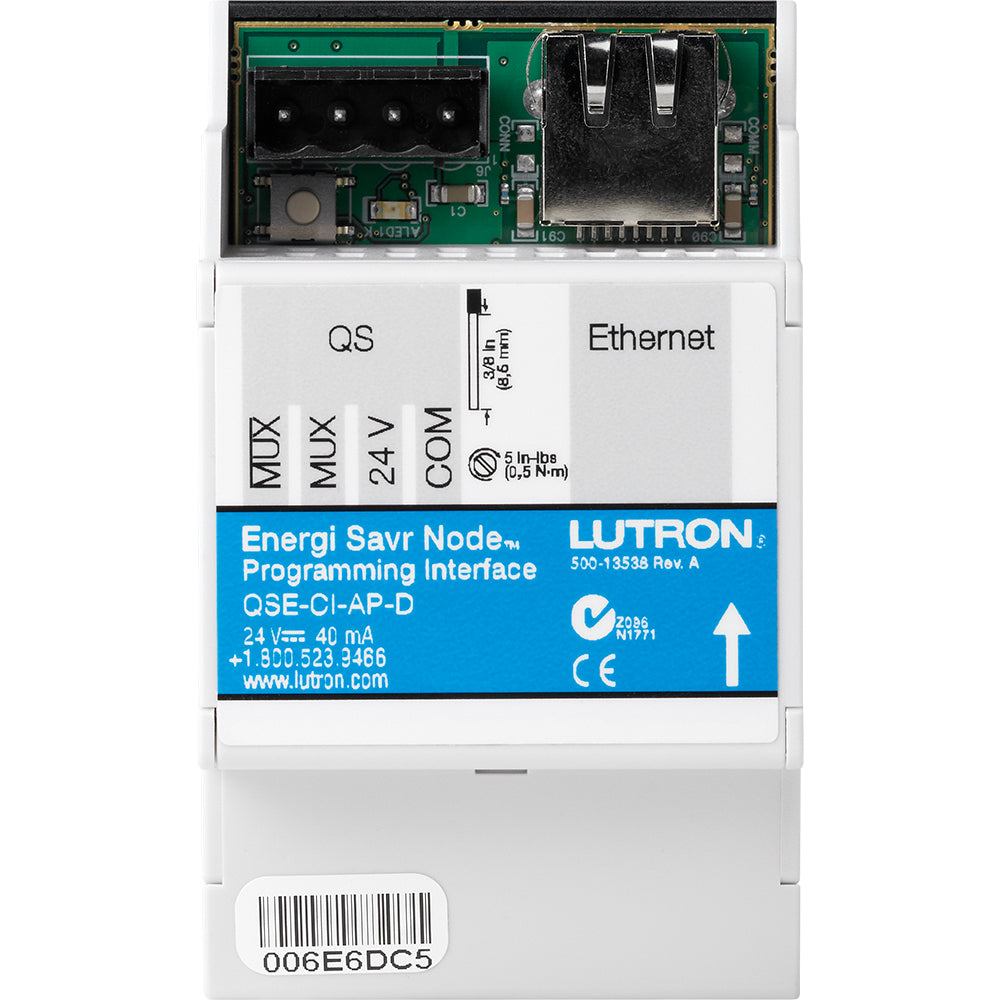

Lutron QSE-CI-AP-D Energi Savr Node Programming Interface
The Lutron QSE-CI-AP-D is a dedicated Ethernet-to-QS link bridge designed specifically for the commissioning and maintenance of the Energi Savr Node (ESN) product family. Compatible with all QSN- and QSNE- models, this interface allows electrical contractors and facility managers to program entire lighting links using an intuitive mobile application.
By connecting the QSE-CI-AP-D to a standard Wi-Fi router, installers can walk through a space with an iPhone or iPod touch to identify zones, set occupancy/daylight sensor logic, and adjust light levels in real-time. This eliminates the need for complex PC-based software or manual button-press programming, making it the most efficient way to deploy Lutron's ESN architectural solutions.
Key Features
- Mobile Commissioning: Program all Energi Savr Node modules on a QS link wirelessly using the ESN mobile app.
- Flexible Connectivity: Features a standard RJ45 Ethernet port (Category 5) for connection to local networks or Wi-Fi routers.
- Versatile Mounting: Designed for DIN rail mounting (35mm), but also supports surface mount or installation in a standard junction box.
- System Compatibility: Works with the entire ESN family, including 0-10V, Phase Adaptive, and Switching models.
- QS Link Powered: Draws its 24-36V DC power directly from the Lutron QS communication link, requiring no external power supply.
- Compact Footprint: Minimal DIN rail space required (approximately 3.5" H x 2.1" W).
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | QSE-CI-AP-D |
| Port Type | Ethernet (RJ45) |
| Input Voltage | 24 - 36 VDC (2 Power Draw Units) |
| Amperage Rating | 40 mA |
| Mounting | 35mm DIN Rail, Surface, or Junction Box |
| Dimensions | 3.5" H x 2.1" W x 2.4" D |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Certifications | CE, NOM |
Applications
- Commissioning new Energi Savr Node commercial installations.
- Adjusting daylighting thresholds in office spaces.
- Re-configuring occupancy sensor time-outs without accessing the ceiling.
- Wireless troubleshooting of the Lutron QS Link.
