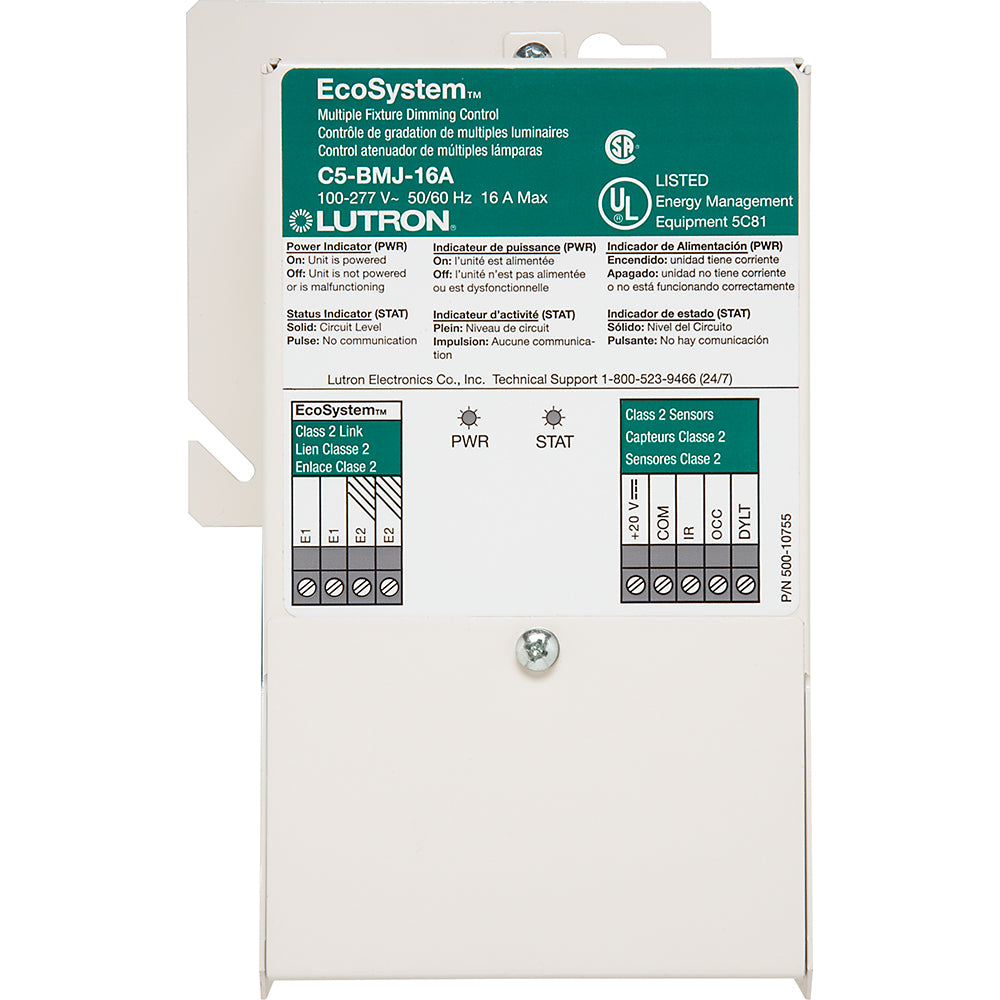

Lutron C5-BMJ-16A EcoSystem 16A Dimming Power Module

The Lutron C5-BMJ-16A is an architectural-grade power module that bridges the gap between digital EcoSystem control and Lutron’s high-performance 3-wire phase-control dimming technology. This module allows a single EcoSystem digital address to control a full 16A circuit of Lutron 3-wire fluorescent ballasts or Hi-lume LED drivers, providing seamless integration into a larger building management system.

Engineered for commercial reliability, the C5-BMJ-16A supports universal input voltages from 100V to 277V. It is the ideal solution for retrofitting existing 3-wire lighting systems into a modern Quantum, Athena, or Energi Savr Node network without the need to replace expensive high-performance fixtures.

Key Features

• Digital-to-Analog Bridge: Translates EcoSystem digital commands into a Lutron 3-wire phase-control signal.
• High Capacity: Rated for a full 16A load, capable of managing large circuits of lighting fixtures.
• Universal Voltage: Operates on 100V, 120V, 220-240V, or 277V AC at 50/60 Hz.
• Versatile Load Support: Compatible with Lutron 3-wire ballasts/drivers, as well as Incandescent, Halogen, MLV, and ELV loads.
• System Integration: Assigns a unique digital address on the EcoSystem bus for individualized or grouped control.
• Non-Volatile Memory: Restores lighting to previous levels or a safe "on" state following a power failure.

Technical Specifications

Included in the Box

• (1) EcoSystem 16A Dimming Power Module (C5-BMJ-16A)
• (1) Installation Instructions and Wiring Diagrams
