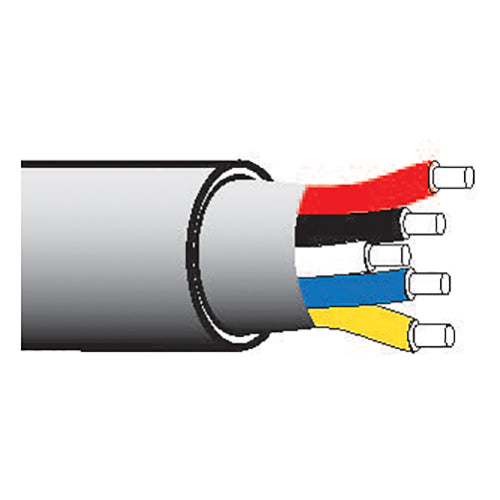

Lutron EcoSystem 5-Conductor Shielded Cable, Plenum Rated, 1000 ft Spool | C-PCBL-522S-CL-1
Lutron EcoSystem 5-Conductor Shielded Cable, Plenum Rated, 1000 ft Spool | C-PCBL-522S-CL-1
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:C-PCBL-522S-CL-1
Lutron C-PCBL-522S-CL-1 EcoSystem Low-Voltage Shielded Cable
The Lutron C-PCBL-522S-CL-1 is a high-quality, application-specific cable designed to simplify the installation of Lutron EcoSystem digital links and sensors. This 5-conductor, 22 AWG stranded wire is shielded to protect signal integrity from electromagnetic interference (EMI), ensuring reliable communication between ballasts, LED drivers, and controllers.
This cable features a Plenum-rated (CL2P) jacket, allowing for safe installation in environmental air spaces without the need for conduit (where local codes permit). To reduce installation errors, the internal conductors use a color-coding scheme that matches EcoSystem device terminals and leads exactly. Whether you are wiring digital links or occupancy sensors, this cable provides a professional, "one-and-done" solution.
Key Features
- EcoSystem Ready: Internal conductor colors (Purple, Purple, Black, White, Red) match EcoSystem device terminals for intuitive wiring.
- Shielded Protection: Integrated shield minimizes interference, which is critical for digital communication stability.
- Plenum Rated (CL2P): Approved for use in plenum air ceilings and other environmental air spaces.
- Stranded Conductors: 22 AWG stranded bare copper provides the flexibility needed for easy pulling through tight spaces and standard junction boxes.
- Bulk Spool: Shipped on a 1000 ft (305 m) spool for large-scale commercial projects.
- Multi-Use Design: Ideal for EcoSystem digital links, Class 2 sensors, and wallstation communication.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | C-PCBL-522S-CL-1 |
| Conductor Count | 5 Conductors |
| Wire Gauge | 22 AWG |
| Wire Type | Stranded Bare Copper |
| Shielding | Shielded |
| Rating | Plenum Rated (CL2P / CMP) |
| Voltage Rating | 300 V |
| Jacket Color | Clear |
| Length | 1000 ft (305 m) |
Applications
- EcoSystem Digital Link Wiring
- Lutron Occupancy and Daylight Sensors
- EcoSystem LED Drivers and Ballasts
- QS Link Communication
