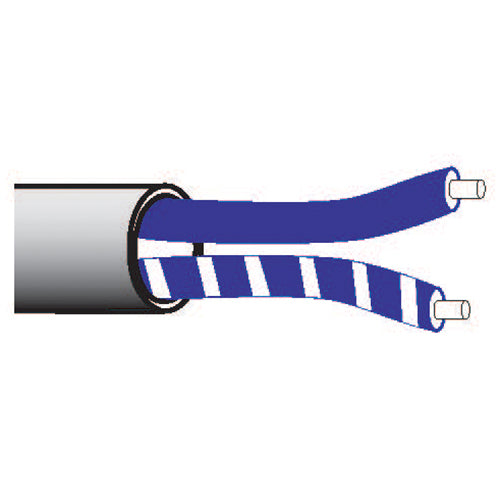

Lutron EcoSystem 2-Conductor Digital Link Cable, 16 AWG Solid, Gray | C-CBL-216-GR-1

Lutron C-CBL-216-GR-1 EcoSystem 16 AWG 2-Conductor Link Cable

The Lutron C-CBL-216-GR-1 is a high-performance, non-plenum digital link cable specifically engineered for the Lutron EcoSystem family of products. Featuring two 16 AWG solid bare copper conductors, this cable provides the robust electrical foundation required for stable, long-distance communication between EcoSystem ballasts, LED drivers, and control modules.

This cable is designed with a durable gray PVC jacket and is Non-Plenum (Class 2) rated, making it the cost-effective choice for installations where wiring is run in conduit or non-plenum environmental spaces. The 16 AWG solid conductor design ensures that connections to terminal blocks are secure and resistant to the fraying often associated with stranded alternatives.

Key Features

• EcoSystem Optimized: Specifically designed to meet the electrical requirements of the EcoSystem digital link bus.
• Solid Copper Conductors: 16 AWG solid bare copper ensures maximum signal integrity and easy installation into push-in terminals.
• Non-Plenum Rated: UL and cUL listed for standard Class 2 applications (Non-plenum).
• High-Temperature Rating: Rated for operation between -4°F and 221°F (-20°C to 105°C) to handle demanding environments.
• RoHS Compliant: Constructed with environmentally responsible materials.
• Flexible Installation: Features a 1.75-inch minimum bend radius and a 62.5 lb maximum pull tension for easier wire pulls.

Technical Specifications

Applications

• EcoSystem Digital Link (Bus) Communication
• Wiring for EcoSystem Ballasts and LED Drivers
• Commercial Lighting Control Networks
• Lutron QS System Accessories
