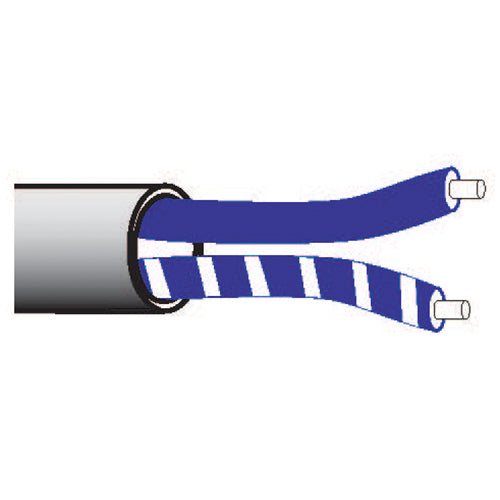

Lutron EcoSystem 2-Conductor Digital Link Bus Cable, 16 AWG Solid, Plenum Rated, 1000 ft | C-PCBL-216-CL-1
Lutron EcoSystem 2-Conductor Digital Link Bus Cable, 16 AWG Solid, Plenum Rated, 1000 ft | C-PCBL-216-CL-1
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:C-PCBL-216-CL-1
Lutron C-PCBL-216-CL-1 EcoSystem 16 AWG 2-Conductor Digital Link Cable
The Lutron C-PCBL-216-CL-1 is the dedicated bus cable for EcoSystem digital links. Featuring two 16 AWG solid bare copper conductors, this cable is engineered to provide a robust physical layer for Lutron’s digital lighting control communication. The solid conductor design ensures a secure, high-integrity connection directly to EcoSystem ballast and module terminals without the need for additional crimping or prep work.
This cable is Plenum-rated (CL3P/CMP), making it suitable for use in air handling spaces in commercial buildings. To streamline installation, the internal conductors are color-coded (Purple/Purple) to match the standard EcoSystem digital link terminal scheme. Wrapped in a clear FEP jacket with white ink markings, it is easy to identify and pull through complex wire runs.
Key Features
- Optimized for EcoSystem: Specifically designed for the EcoSystem digital link, ensuring maximum communication distance and reliability.
- Solid Copper Conductors: 16 AWG solid bare copper provides superior terminal connectivity compared to stranded alternatives.
- Plenum Rated: Meets CL3P, CMP, and FT-6 standards for installation in environmental air spaces.
- Color-Coded Interior: Internal purple conductors match EcoSystem device leads to eliminate wiring errors on the job site.
- High Voltage Rating: Rated for up to 300 VAC, allowing for safe routing alongside power circuits where permitted.
- Bulk Spool: 1000 ft (305 m) length provides ample coverage for large-scale lighting control deployments.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | C-PCBL-216-CL-1 |
| Conductor Count | 2 Conductors (Purple / Purple) |
| Wire Gauge | 16 AWG |
| Conductor Type | Solid Bare Copper |
| Rating | Plenum Rated (CL3P, CMP, FT-6) |
| Voltage Rating | 300 VAC |
| Jacket Material | FEP (Clear) |
| Temperature Rating | -20°C to 105°C |
| Length | 1000 ft (+/- 10%) |
Applications
- EcoSystem Digital Link (Bus) Wiring
- Connection of EcoSystem Ballasts and LED Drivers
- Commercial Lighting Control Networks
- Class 2 Low-Voltage Control Circuits
