Lutron Diva 0-10V Dimmer - 8A / 50mA Sink | DVSTV
Lutron Diva 0-10V Dimmer - 8A / 50mA Sink | DVSTV
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:DVSTV-R-WH-C

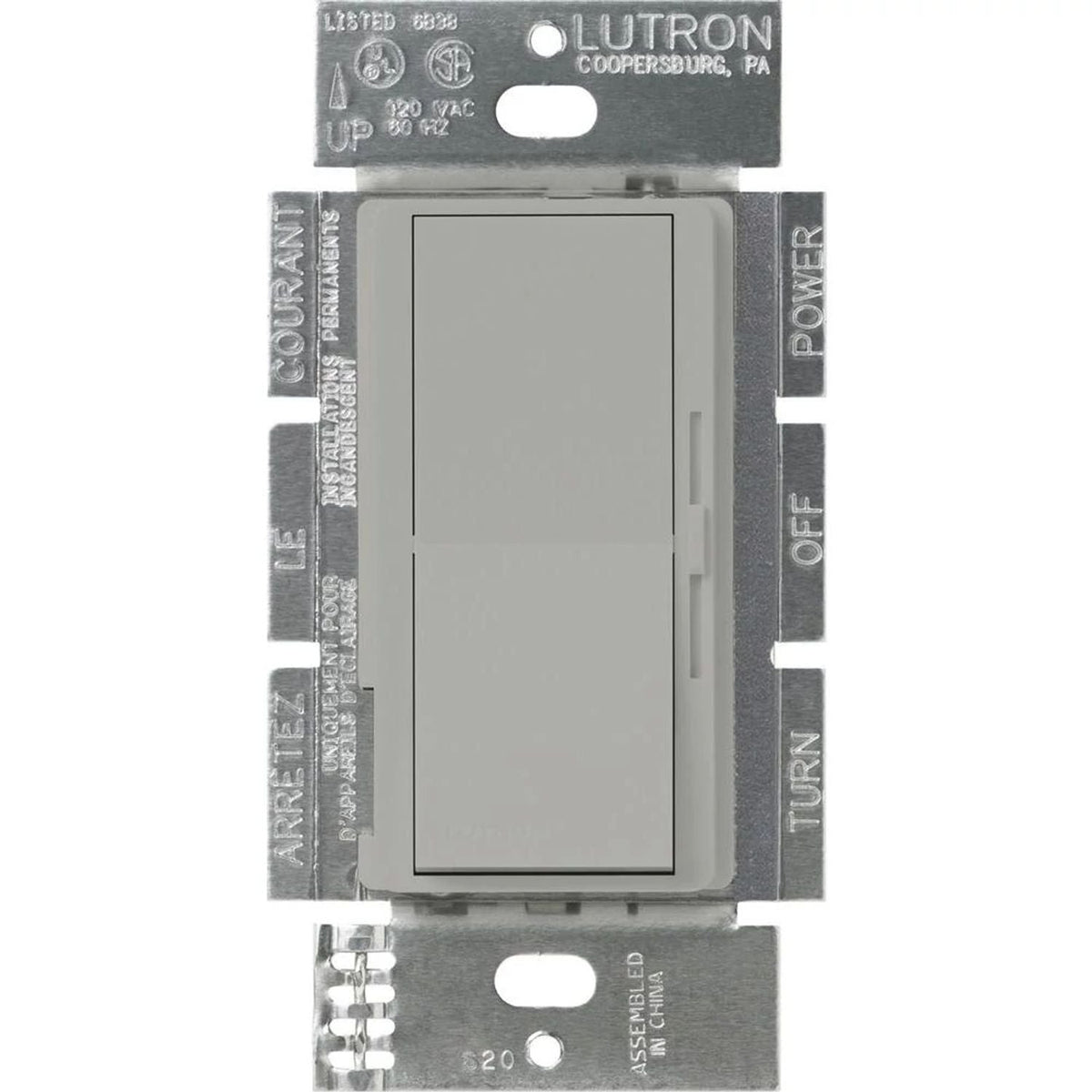

Dealer decision summary: The Lutron Diva DVSTV is an integrated 0-10V wallbox dimmer for compatible LED drivers and fluorescent ballasts. It combines line-voltage load switching and a 0-10V sink in one Diva control, eliminating the need for a separate power pack within the published DVSTV ratings.
Lutron's current engineering specification rates DVSTV for 120-277V, 50/60Hz, 8A switching and a 50mA maximum 0-10V sink. The 0-10V control link is Class 1. No neutral is required.
When to specify DVSTV
- 0-10V LED fixtures or fluorescent ballasts requiring local wallbox dimming.
- Projects where an integrated 8A switch avoids a separate power pack.
- Single-pole or 3-way applications using a standard mechanical switch at the remote location.
- Commercial and residential 0-10V applications within the published line-voltage and control-current limits.
Electrical and control reference
| Operating voltage | 120-277V~, 50/60Hz |
|---|---|
| Load switching | 8A |
| 0-10V sink | 50mA maximum, sink only |
| 0-10V control link | Class 1 |
| Driver / ballast count | Up to 25 when each compliant device draws no more than 2mA from the control link |
| Neutral | Not required |

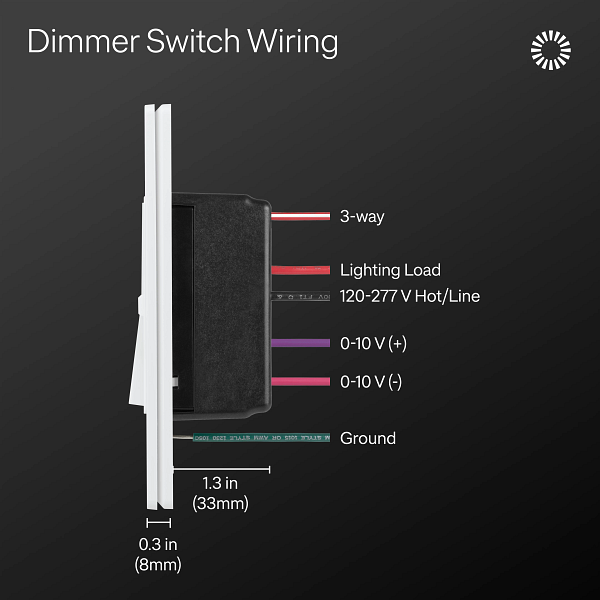

| Wiring | Single-pole / 3-way with mechanical switch |
Commissioning and application notes

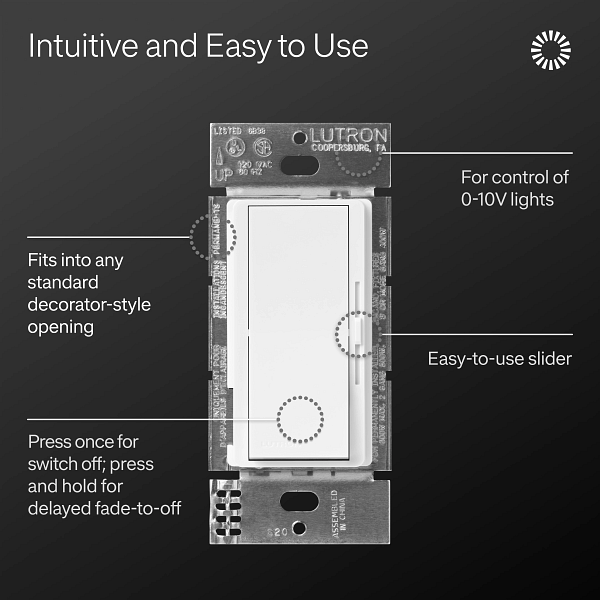

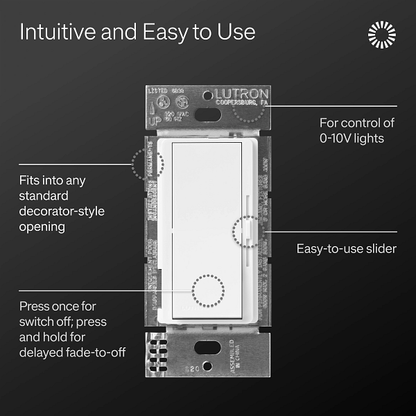

- Captive Diva slider provides 0-10V level control; paddle provides switched on/off control.
- Adjustable high-end and low-end trim supports fixture/driver commissioning.
- No ganging derating is required for DVSTV within its published ratings.
- A separate Lutron power pack is not used with DVSTV models; select a different 0-10V control architecture when the load exceeds the DVSTV switching rating.
- Power-failure memory returns the control signal to its previous level when power is restored.
Model and ordering reference

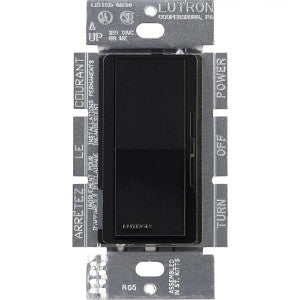

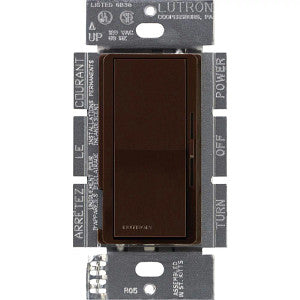

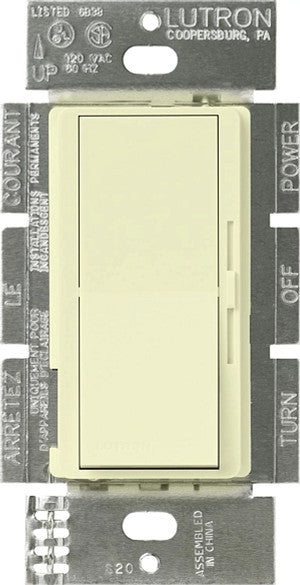

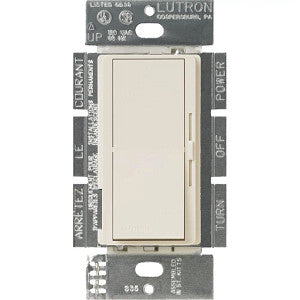

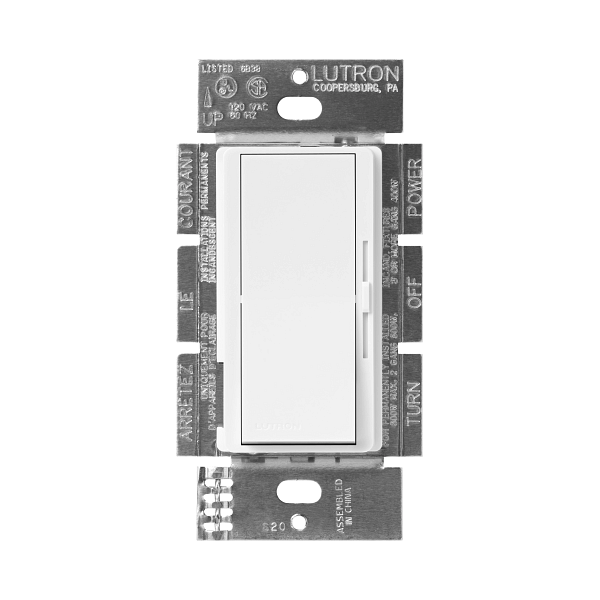

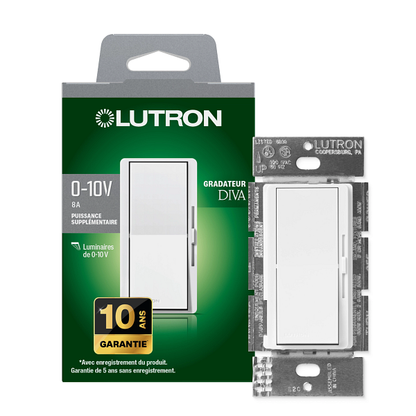

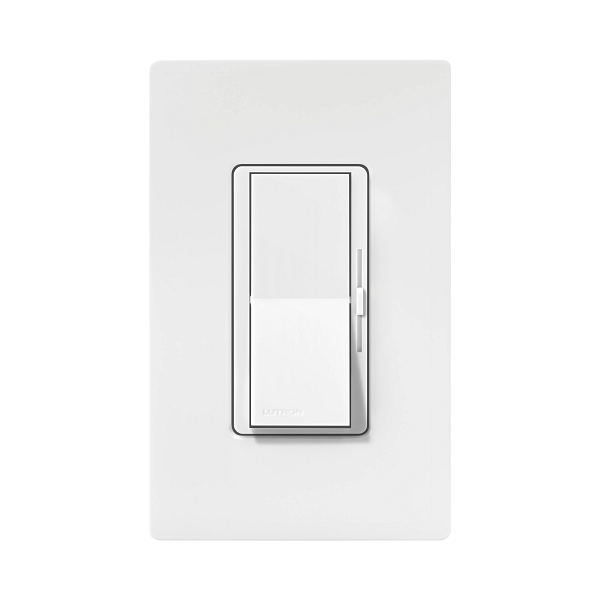

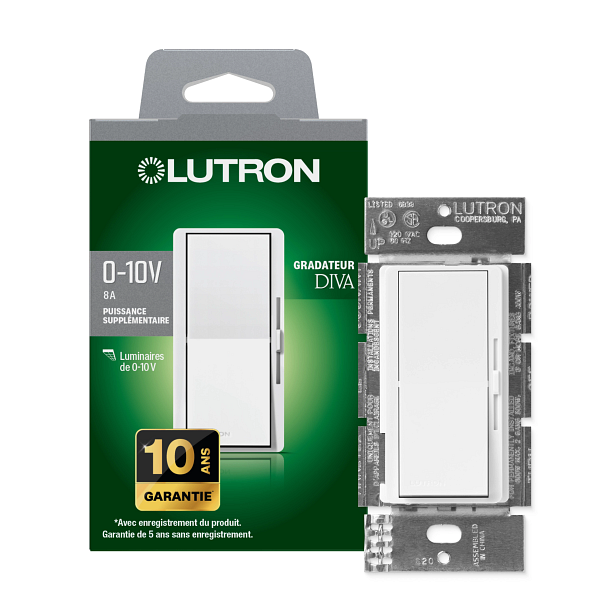

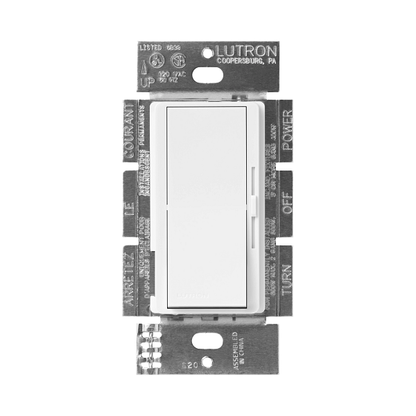

Family model: DVSTV. Gloss finish variants use DVSTV-XX model numbers. The new Canadian/on-shelf White package is DVSTV-R-WH-C. The product is an integrated 0-10V control, not a forward/reverse phase-cut dimmer. Coordinating wallplate sold separately.
