Lutron Diva LED+ Pro Max Phase-Selectable Dimmer | DV-PRO
Lutron Diva LED+ Pro Max Phase-Selectable Dimmer | DV-PRO
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:DV-PRO-WH
Dealer decision summary: The Lutron Diva LED+ Pro Max DV-PRO is the high-capacity, phase-selectable Diva control for projects where the final load may be LED, electronic low voltage (ELV), magnetic low voltage (MLV), incandescent or halogen. Specify it when you want one familiar paddle-and-slider control that can cover demanding specialty loads without moving to separate ELV- or MLV-specific dimmers.
DV-PRO is rated for up to 250W dimmable LED, 500W ELV, 400VA MLV, or 500W incandescent/halogen at 120V. A neutral connection is optional for LED and incandescent/halogen loads and required for ELV and MLV operation. The control supports forward- or reverse-phase operation, advanced trim/phase programming and multi-location control.
When to specify DV-PRO
- Mixed project portfolios where the connected load may change between LED, ELV and MLV.
- Higher-capacity LED or low-voltage lighting where standard 150W controls are undersized.
- ELV tape/strip-light applications using compatible electronic drivers.
- MLV track, accent or transformer-fed lighting using compatible magnetic transformers.
- Single-pole, 3-way or larger multi-location projects where the classic Diva form factor is preferred.
Load, neutral and phase reference
| Load type | Maximum rating | Neutral | Phase guidance |
|---|---|---|---|
| Dimmable LED | 250W | Optional | Forward or reverse, as application requires |
| Electronic low voltage (ELV) | 500W | Required | Reverse phase for standard ELV transformer applications |
| Magnetic low voltage (MLV) | 400VA | Required | Forward phase for standard MLV transformer applications |
| Incandescent / halogen | 500W | Optional | Forward or reverse |
LED transformer loads: verify the lamp/transformer combination and follow Lutron application guidance for low-voltage LED lamps. Use only lighting products identified as dimmable.
Multi-location control
For a conventional 2-location application, DV-PRO can be used with a mechanical switch. For larger multi-location layouts, pair one DV-PRO with up to nine Lutron ST-AS accessory switches for control from up to 10 locations. Confirm wiring topology before rough-in.
Ganging and derating
| Load | Not ganged | End of gang | Middle of gang |
|---|---|---|---|
| LED | 250W | 200W | 150W |
| ELV halogen transformer | 500W | 400W | 300W |
| Incandescent / halogen | 500W | 400W | 300W |
| MLV halogen transformer | 400VA | No derating required | No derating required |
Installer-facing features

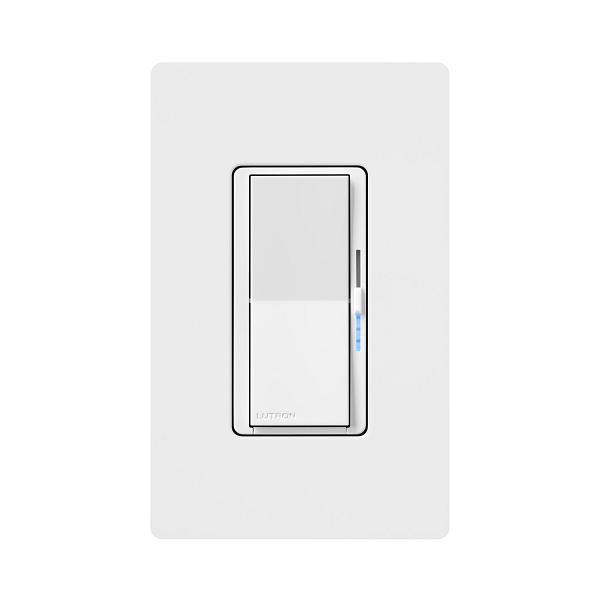

- Classic Diva paddle with captive slider and soft-glow light-level indicator.
- Advanced Programming Mode for high-end trim, low-end trim, light-bar behaviour and phase selection.
- Power-failure memory returns the control to its previous state after power is restored.
- Indoor wallbox control; coordinating Claro wallplate sold separately.
DV-PRO vs. DV-PS
Choose DV-PRO when the project needs the higher 250W LED / 500W ELV / 400VA MLV capacity or multiple gloss colours. For lower-capacity applications in Gloss White, the DV-PS LED+ Pro provides the same core phase-selectable load flexibility at 150W LED / 300W ELV / 250VA MLV.
Model and ordering reference

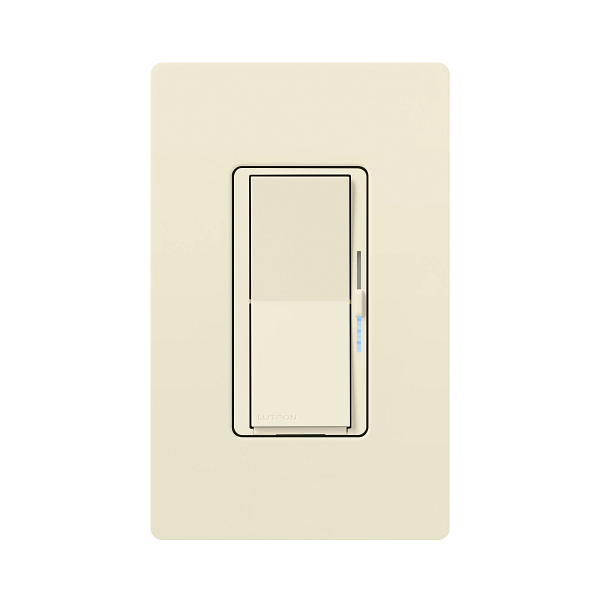

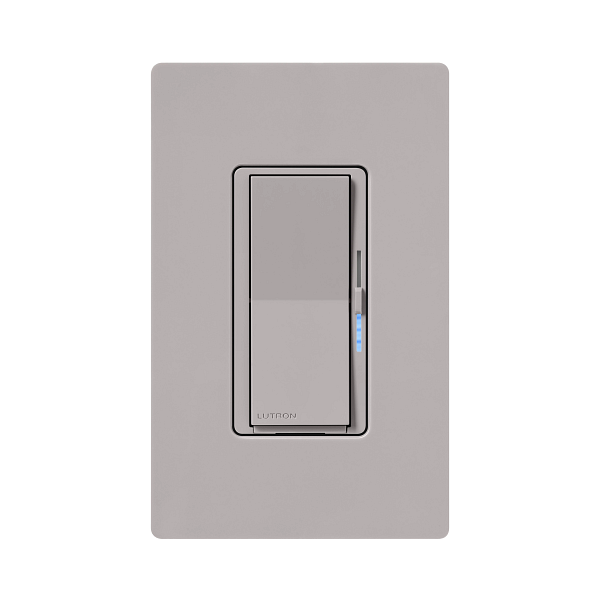

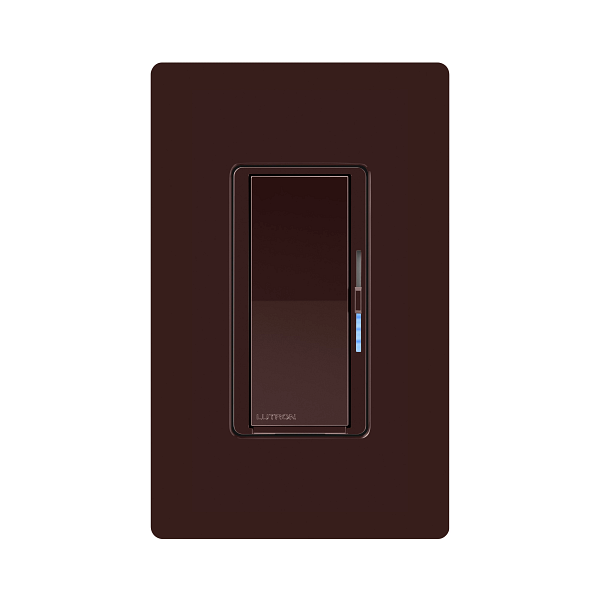

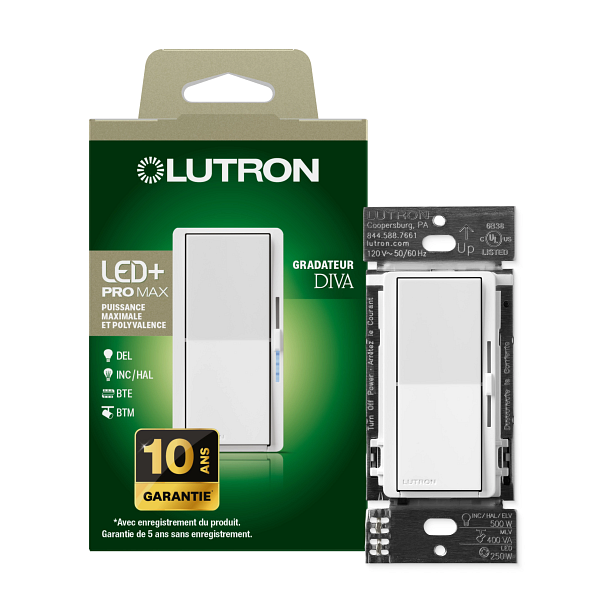

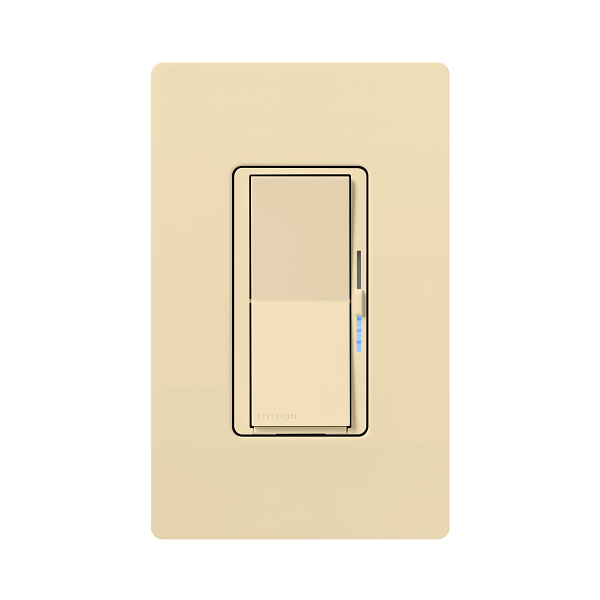

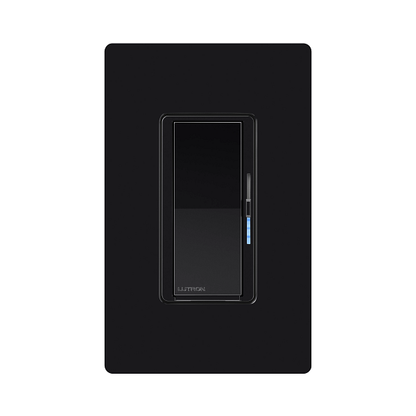

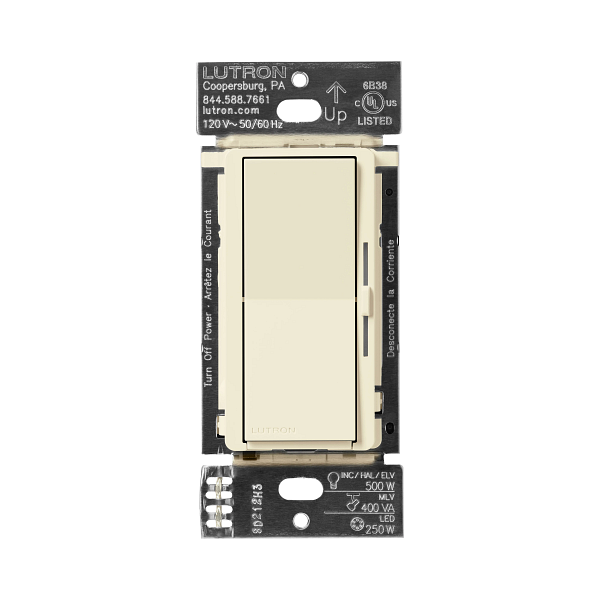

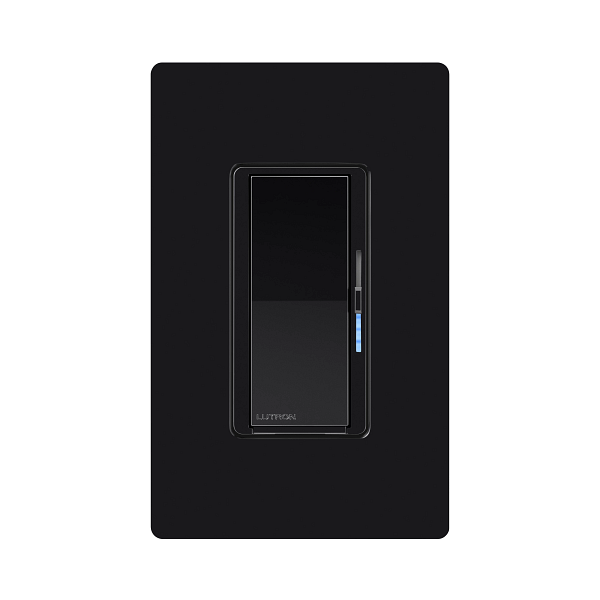

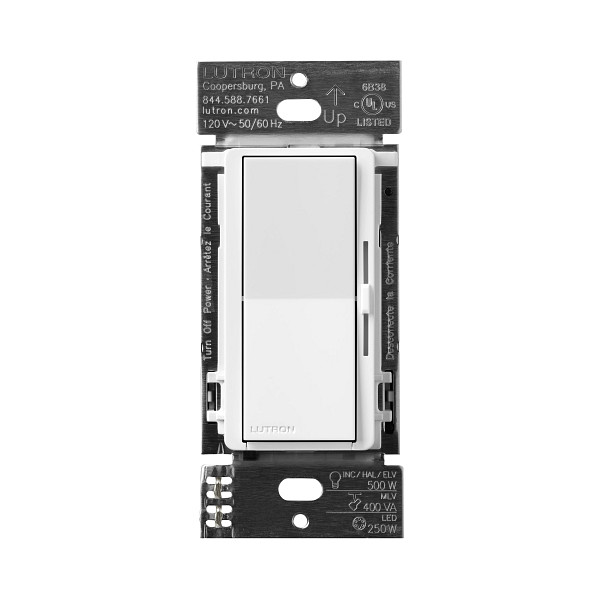

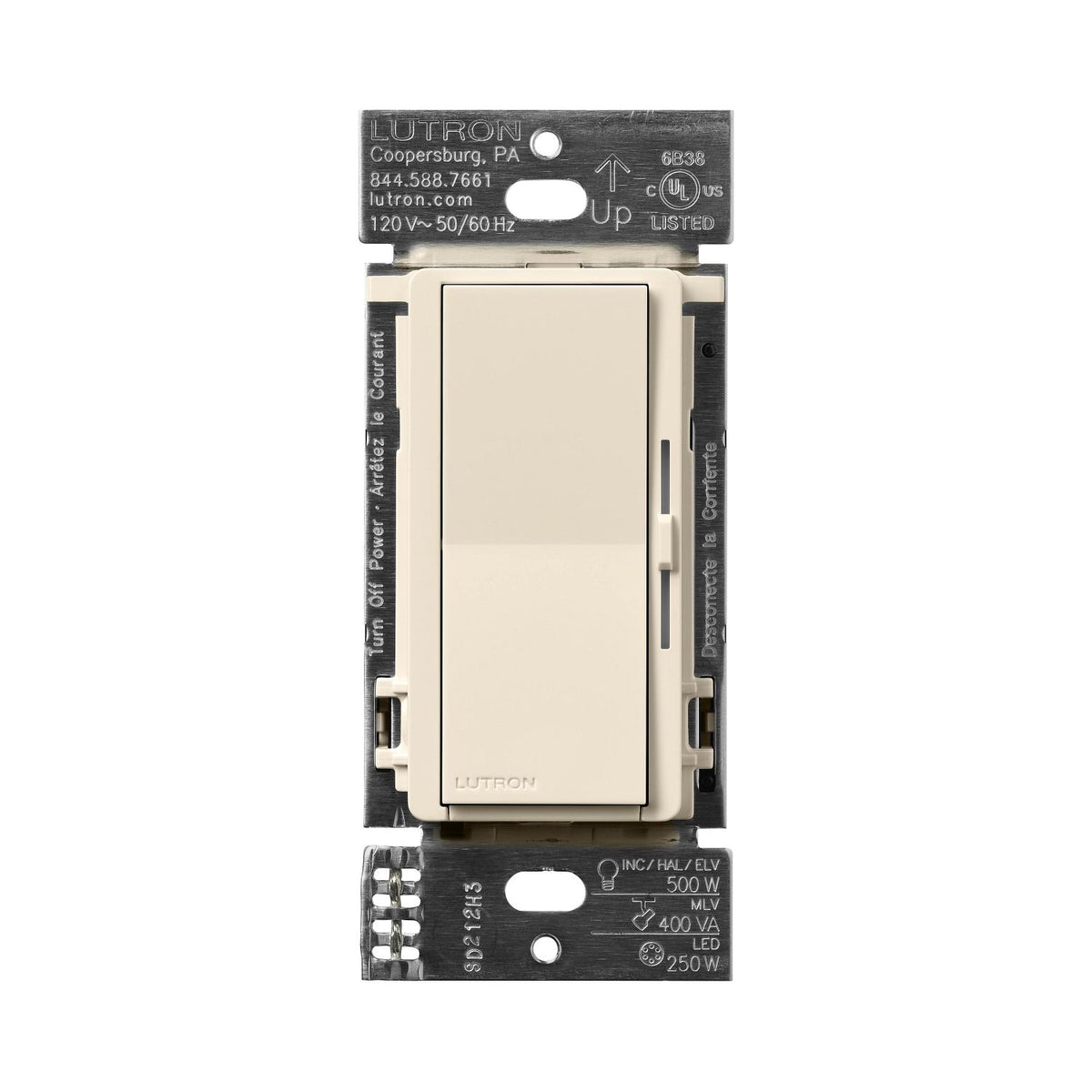

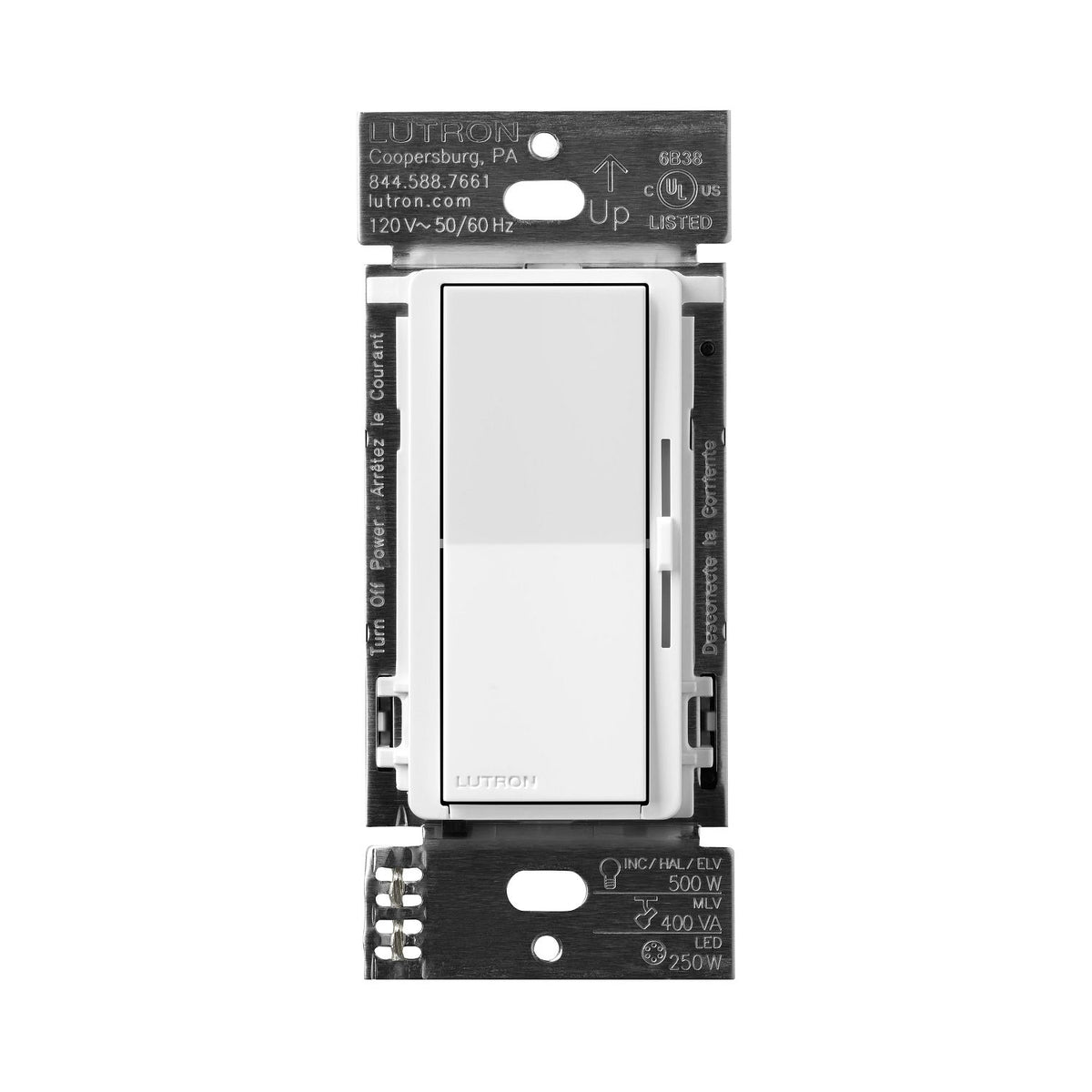

Family model: DV-PRO. Finish-specific models are DV-PRO-XX. Canadian retail/on-shelf packaging may use an additional packaging code such as DV-PROR-WH-C; Lutron identifies packaging-letter differences as packaging variations rather than a change to the control itself. Use the selected variant SKU/UPC for ordering and quoting.
