Monitor Audio W1M-E Creator Series Tier 1 In-Wall Speaker | CSW1ME
Monitor Audio W1M-E Creator Series Tier 1 In-Wall Speaker | CSW1ME
Limited Stock - Order Soon
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:CSW1ME
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

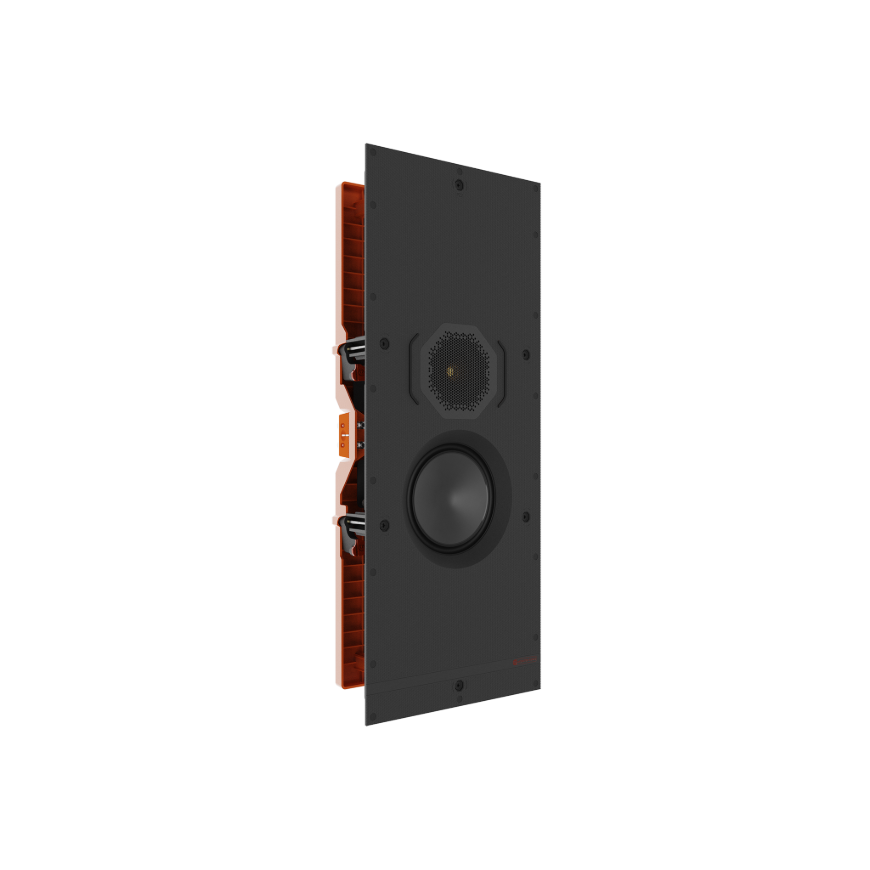

Monitor Audio W1M-E is a Creator Series Tier 1 in-wall loudspeaker designed for cost-effective custom installations without giving up the core C-CAM driver technology and installation system used throughout the range.
W1M-E at a glance
- System: 2-way, passive.
- Drivers: 1 x 5" C-CAM mid-bass driver; 1 x 1" C-CAM tweeter with UD Waveguide.
- Frequency response: 40 Hz–30 kHz installed (-6 dB).
- Sensitivity: 84 dB.
- Nominal impedance: 8 ohms; minimum 6.5 ohms @ 200 Hz.
- Continuous power handling: 50 W.
- Recommended amplifier power: 25–100 W.
- Warranty: Lifetime.
Installation planning
Cutout is 527 × 198 mm with 85 mm mounting depth. The matching pre-construction bracket is WM-B. Quik-Link simplifies speaker-cable connection and Tri-Grip II provides secure fitment.
Physical dimensions
560 × 231 × 90 mm including grille; 2.6 kg each. Sold individually.
