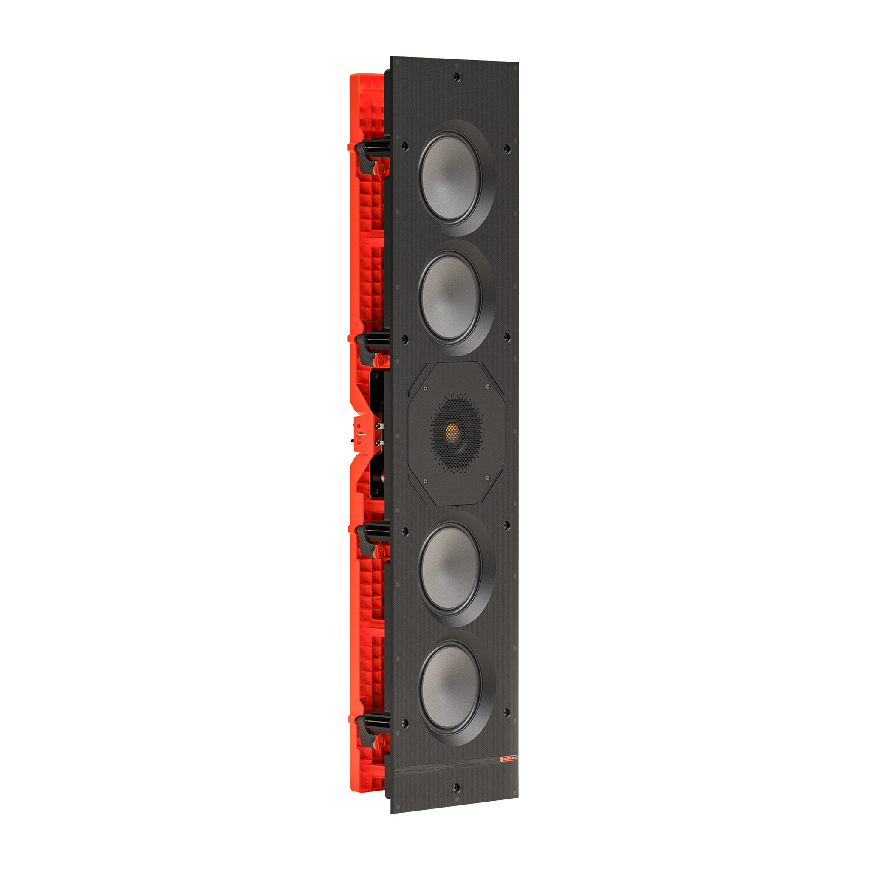

Monitor Audio W1L Creator Series Tier 1 In-Wall Speaker | CSW1L
Monitor Audio W1L Creator Series Tier 1 In-Wall Speaker | CSW1L
In Stock (Ready to Ship)
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:CSW1L
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.
Monitor Audio W1L is a Creator Series Tier 1 in-wall loudspeaker designed for cost-effective custom installations without giving up the core C-CAM driver technology and installation system used throughout the range.
W1L at a glance
- System: 2-way, passive.
- Drivers: 4 x 5" C-CAM mid-bass drivers; 1 x 1" C-CAM tweeter with UD Waveguide.
- Frequency response: 38 Hz–30 kHz installed (-6 dB).
- Sensitivity: 88 dB.
- Nominal impedance: 6 ohms; minimum 5.2 ohms @ 13 kHz.
- Continuous power handling: 100 W.
- Recommended amplifier power: 30–150 W into 8 ohms | 80–300 W into 4 ohms.
- Warranty: Lifetime.
Installation planning
Cutout is 880 × 202 mm with 85 mm mounting depth. The matching pre-construction bracket is WL-B. Quik-Link simplifies speaker-cable connection and Tri-Grip II provides secure fitment.
Physical dimensions
909 × 231 × 93 mm including grille; 6.69 kg each. Sold individually.
