EcoNet Bulldog Z-Wave Plus Smart Water Shutoff Valve, Universal Retrofit (½"–1.5") | EVC200-HC2LXL
EcoNet Bulldog Z-Wave Plus Smart Water Shutoff Valve, Universal Retrofit (½"–1.5") | EVC200-HC2LXL
Available to order — ships from incoming stock
Typically ships in 3–7 Business Days (Western Canada) · 3–7 Business Days (Eastern Canada)
SKU:EVC200-HC2LXL
For dealers: The EVC200-HC2LXL is EcoNet's Z-Wave Plus retrofit valve robot — clamps over existing ½"–1.5" lever ball valves, no plumbing. Genuine, channel-protected stock held in Calgary for next-day shipping across Western Canada. Full manufacturer warranty on every unit.
Bulldog Z-Wave Plus Smart Valve Robot (Retrofit Edition)
The EVC200-HC2LXL is a Z-Wave Plus certified retrofit actuator that turns an existing lever-handle ball valve into a remote-controlled automatic shutoff. High-torque motor (~15Nm) handles stiff or mineral-scaled valves other actuators can't move.
Quick Facts
| Protocol | Z-Wave Plus, 908.42 MHz (North America) |
| Hub required | Yes — SmartThings, Hubitat, Home Assistant (Z-Wave JS), Ring Alarm, Ezlo/Vera, Homeseer |

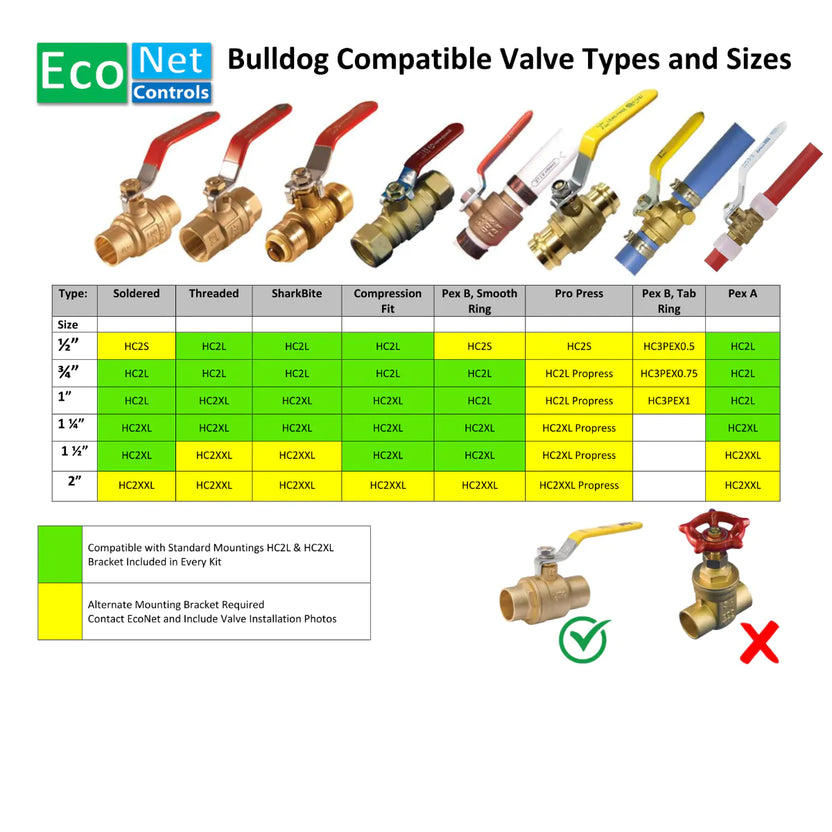

| Valve fitment | ½", ¾", 1", 1.25", 1.5" quarter-turn lever ball valves |
| Torque | ~15Nm (11 lbf) |
| Stroke time | ~18 seconds |
| Power | 12V DC adapter included; compatible with Battery Backup (BB3K) |

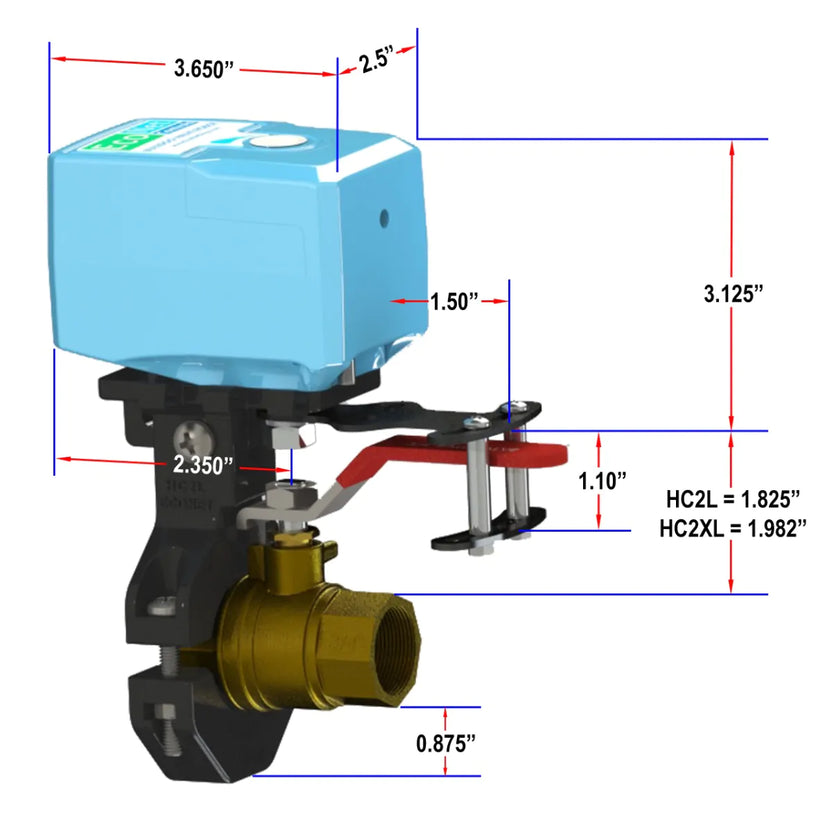

| Dimensions / weight | 3.65 x 2.50 x 2.60 in; 0.42 lbs (motor unit) |
Why Spec This for Your Project
- Authorized & protected: genuine EcoNet product with full manufacturer warranty and channel protection — no gray-market risk.
- Retrofit-first: clamps over an existing valve in ~15 minutes, cutting truck time on service and reno jobs.
- Free BOM validation: send us the valve photo/spec and we'll confirm fitment before you order.
- Stocked in Calgary: next-day shipping across Western Canada on in-stock units.
Installation & Compatibility

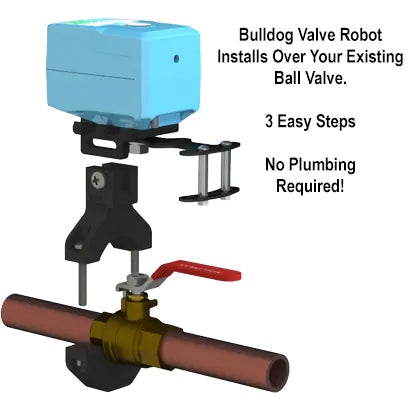

Valve type: quarter-turn ball valve (lever handle) only — not gate valves (round wheel handles). Installs with a Phillips screwdriver, no pipe cutting.
What's Included

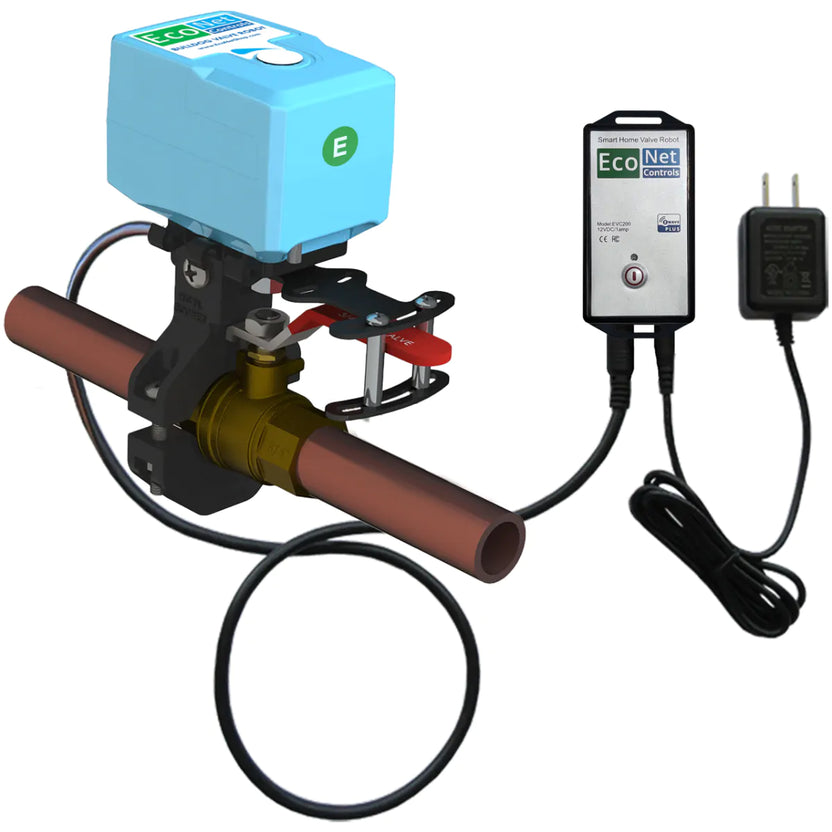

- 1 × Bulldog Valve Robot (EVC200)
- 1 × Universal Mounting Kit (HC2LXL), fits ½" to 1.5" valves
- 1 × 12V DC power adapter
- Mounting hardware & quick start guide
Dealer FAQ
Is this MAP/channel protected?
Yes. As Canada's authorized master distributor for EcoNet Controls, we enforce channel protection so your margin isn't undercut by unauthorized sellers.
What's the warranty/RMA process?
Full manufacturer warranty applies. Contact us with the order/job reference for RMA support — we handle the claim so you don't have to chase the manufacturer directly.
Can I get project or volume pricing?
Yes — submit a Project Pricing request for multi-unit or spec-driven orders.
Not a dealer yet?
Apply for dealer access — approval typically takes 1–2 hours.
Pairs Well With
- Battery Backup (BB3K) — keeps the valve operational for 24+ hours during a power outage.
- Any Z-Wave Plus leak sensor on the customer's hub ecosystem (this model does not use 433MHz ELS100 sensors).
Product Identifiers
SKU / MPN: EVC200-HC2LXL | UPC: 628451752196 | Brand: EcoNet Controls | Category: Home & Garden > Flood, Fire & Gas Safety > Water & Flood Detectors
