Monitor Audio FIX-M Speaker Mount | BFIXM

Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

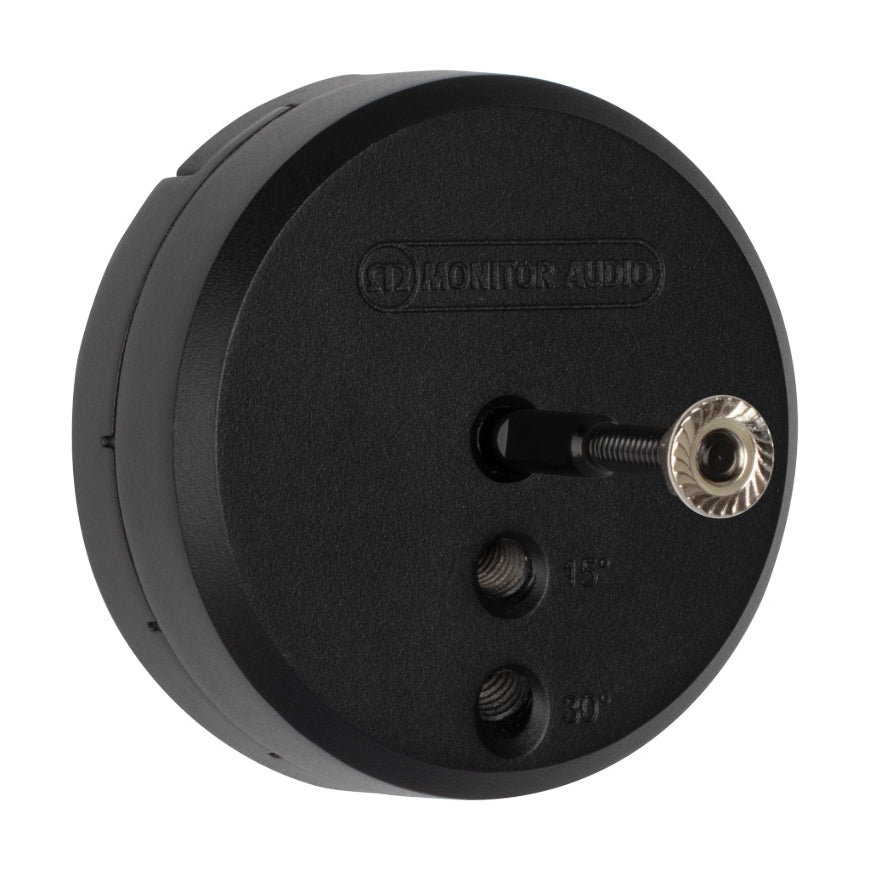

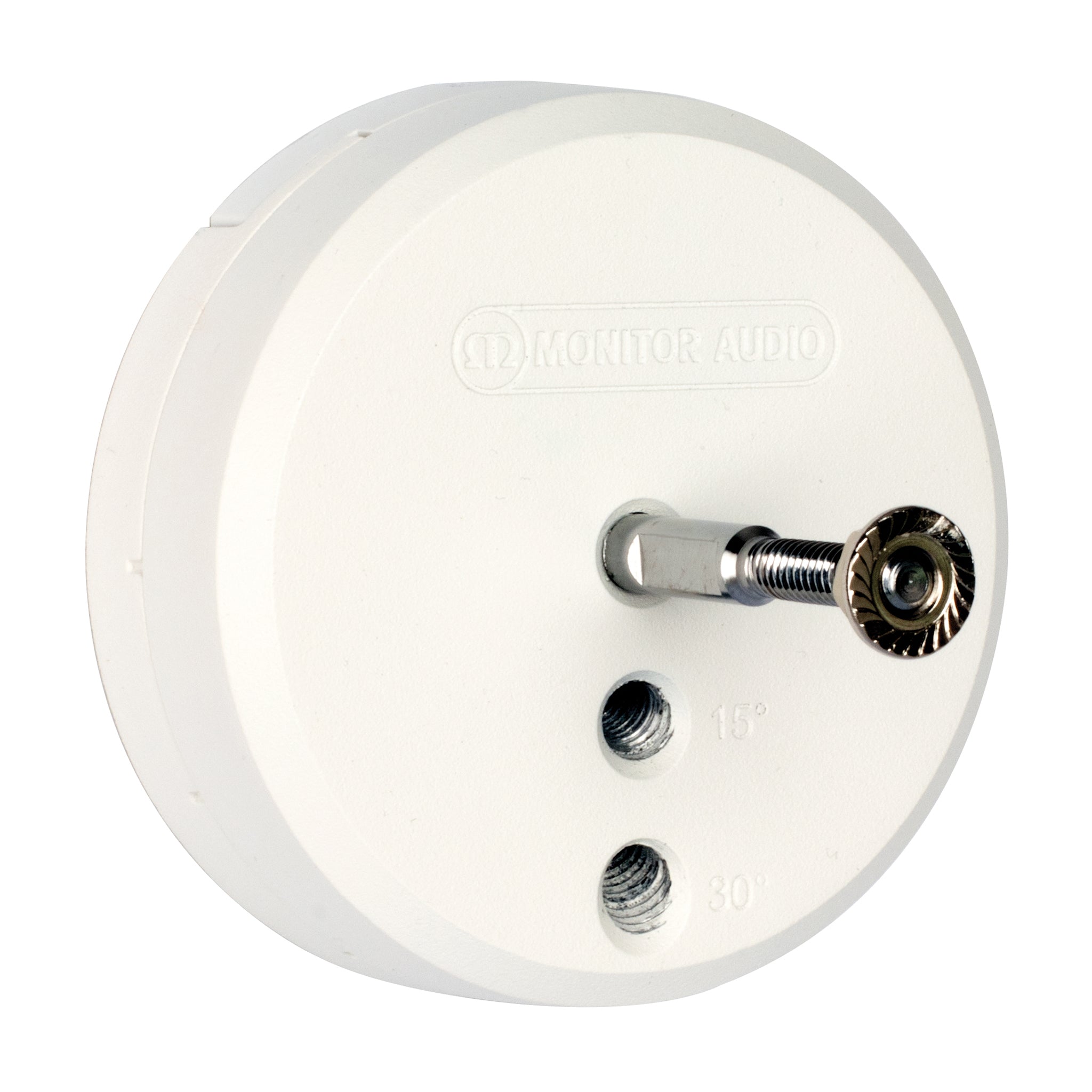

Monitor Audio FIX-M is an adjustable speaker wall mount designed to position compatible Monitor Audio compact loudspeakers at repeatable angles. It is sold as a single mount, with Black and White finish variants.

The adjustment system starts with a choice of 0°, 15° or 30° from centre. The front section can then be rotated through indexed positions, creating 14 available speaker positions for controlled aiming after the mount is fixed to the wall.

FIX-M at a glance

• Sold as: Single mount — one FIX-M per sell unit.
• Accessory type: Adjustable speaker wall mount.
• Primary angle settings: 0°, 15° or 30° from centre.
• Total indexed positions: 14.
• Positioning mechanism: Rotating front section with indexed hexagonal plate.
• Locking method: Snap-fit clip completes the secured mount assembly.
• Current Canadian supported speakers: Bronze 50 7G, Monitor 50, Radius 1 4G and Radius 3 4G.
• Finishes: Black and White.
• Warranty: 5 years.

14-position aiming system

FIX-M is more controlled than a simple fixed-angle wall plate. Monitor Audio provides three primary offsets — 0°, 15° and 30° — and then allows the front section of the mount to rotate, producing a total of 14 indexed positions.

This lets the installer choose both the amount and direction of speaker aim so the supported loudspeaker can be directed toward the intended listening area rather than being forced to fire straight out from the wall.

Indexed hexagonal plate and secure locking

Behind the front section is a hexagonal positioning plate. It slots into predetermined positions that are referenced by external indicator marks, allowing the chosen orientation to be set deliberately rather than by guesswork.

Once the position is selected, Monitor Audio specifies a snap-fit clip inserted into the top of the mount to complete the secured installation.

Current Canadian compatibility

The current Canadian Monitor Audio bracket table explicitly maps FIX-M to the following products in the approved Simply Secured assortment:

The Canadian compatibility source does not require the speaker and mount finishes to match. A Black FIX-M or White FIX-M may therefore be selected independently of speaker finish where the project design calls for it.

Public manufacturer accessory-page compatibility

Monitor Audio's current public FIX-M accessory page separately lists Bronze 50 6G, Radius 1 4G and Radius 3 4G. Bronze 50 6G is retained here as manufacturer-published compatibility for existing / earlier-generation installations; it is not part of the currently approved Simply Secured Monitor Audio product assortment.

The newer Canadian bracket table is the source supporting Bronze 50 7G and Monitor 50 compatibility in the current Canadian assortment.

Installation planning

FIX-M is a mechanical wall-mount accessory. Wall construction, fastener selection, speaker-cable routing and the required structural support must be assessed for the actual installation surface. Compatibility with a loudspeaker does not imply that one universal screw or anchor type is suitable for every wall.

The current public manufacturer page does not publish a complete dimensional drawing directly in its specification text, although it provides separate FIX-M Quick Start Guide and CAD Drawing resources. Because the normalized source flags the parsed axis dimensions for review, this PDP does not manufacture a clean H × W × D specification from ambiguous source labels.

Finish, SKU and GTIN identification

Product-data notes

Important purchase detail: FIX-M is sold as a single mount. A stereo pair of separately mounted speakers generally requires two FIX-M units.

Warranty

Current Canadian product data support a 5-year warranty for FIX-M.
