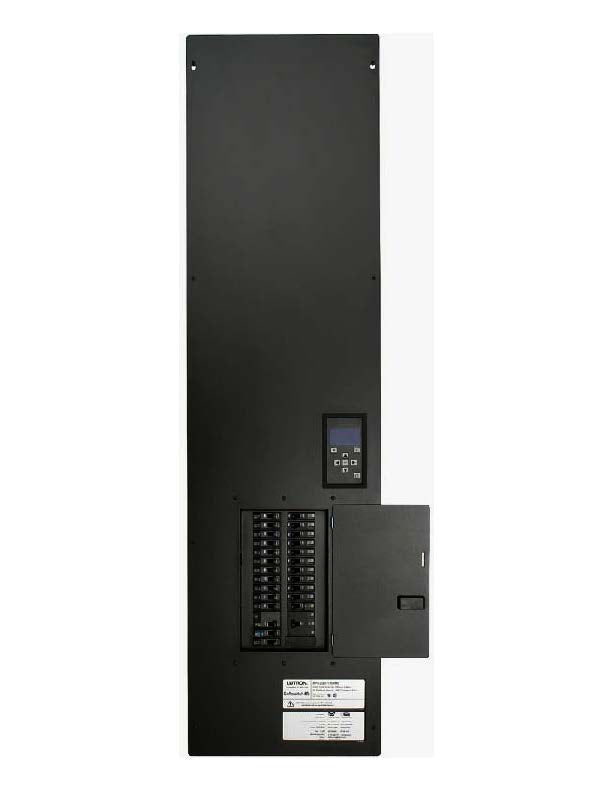

Lutron XPS8-FT Softswitch 128 8-Relay Feed-Through Power Panel
The Lutron XPS8-FT is a high-performance switching power panel designed for high-reliability commercial and industrial applications. As a member of the Softswitch 128 series, this 8-relay unit is engineered to manage the heavy inrush currents associated with modern LED, HID, and fluorescent lighting. Its compact 24.5-inch height makes it an ideal solution for installations where wall space is at a premium.
The core of this panel is Lutron’s patented Softswitch technology. By utilizing a specialized relay circuit that eliminates arcing at the mechanical contacts, the XPS8-FT achieves a relay life of 1,000,000 cycles. This arcless switching not only protects the hardware but also ensures your lighting system remains maintenance-free for years to come.
Key Features
- Softswitch Arcless Technology: Eliminates relay contact degradation, ensuring a long product lifespan of 1 million cycles even under full load.
- 8-Relay Switching: Centralized control for up to 8 independent circuits of lighting or motor loads.
- Compact Footprint: Housed in a 24.5-inch 16-gauge steel enclosure, perfect for smaller electrical closets or utility rooms.
- Universal Voltage Support: Fully compatible with 120V, 208V, 277V, and 347V AC power systems.
- Feed-Through Design: Simplifies installation by allowing wires to pass directly through the panel for a cleaner, faster setup.
- Heavy-Duty Construction: NEMA 1, IP20 rated enclosure built for professional-grade indoor environments.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | XPS8-FT |
| Number of Circuits | 8 Circuits |
| Output Voltage | 120 / 208 / 277 / 347 VAC |
| Current Rating | 16A (per relay) / 20A Max |
| Enclosure Type | NEMA 1, IP20 (16-Gauge Steel) |
| Mounting | Surface or Recess Mount |
| Dimensions | 15.88" W x 24.5" H x 4.25" D |
| Load Compatibility | LED, Incandescent, HID, MLV, ELV, Neon/Cold Cathode |
| Motor Rating | 1/3 HP @ 120V, 1/2 HP @ 277/347V |
Included in the Box
- (1) Lutron XPS8-FT Softswitch Power Panel Enclosure
- (1) Pre-installed 8-Relay Switching Module
- (1) Installation Instructions & Wiring Guide
