Lotus 5" Ultimate J-Box Mount or retrofit LED 10W 5CCT | LBL-JB10W-5CCT-AC

Overview

The Lotus LED LBL-JB10W-5CCT-AC is a versatile 5-inch architectural-spec lighting solution designed for high-end multi-family and residential applications. This "ultimate" fixture features a patent-pending design that fits directly into most standard 4", 4/0, and 3/0 junction boxes or can be used as a recessed lighting retrofit in existing housings.

Key Features

• 5CCT field-selectable color temperature allows installers to choose between 2700K, 3000K, 3500K, 4000K, and 5000K on-site.

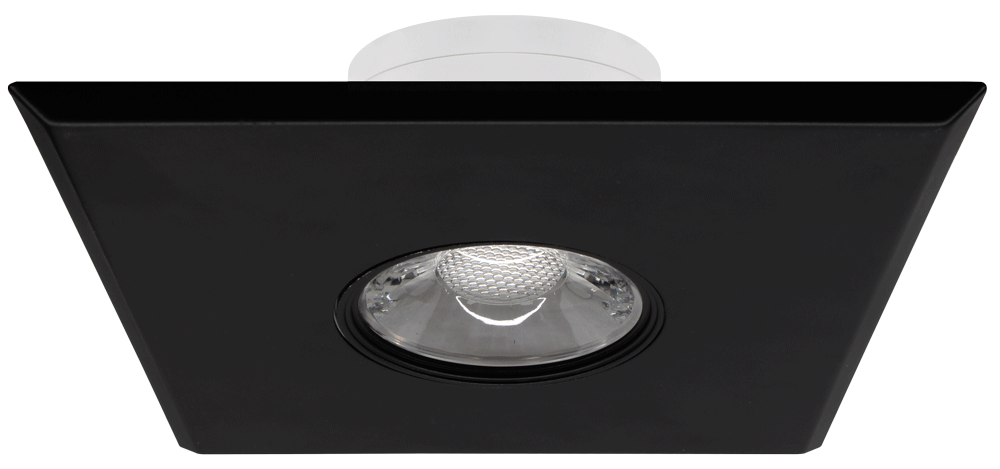

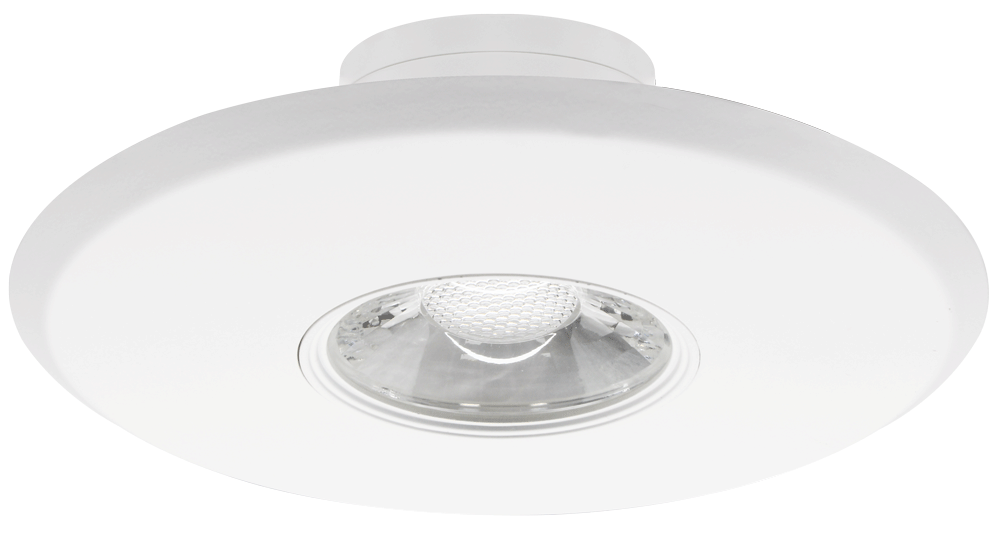

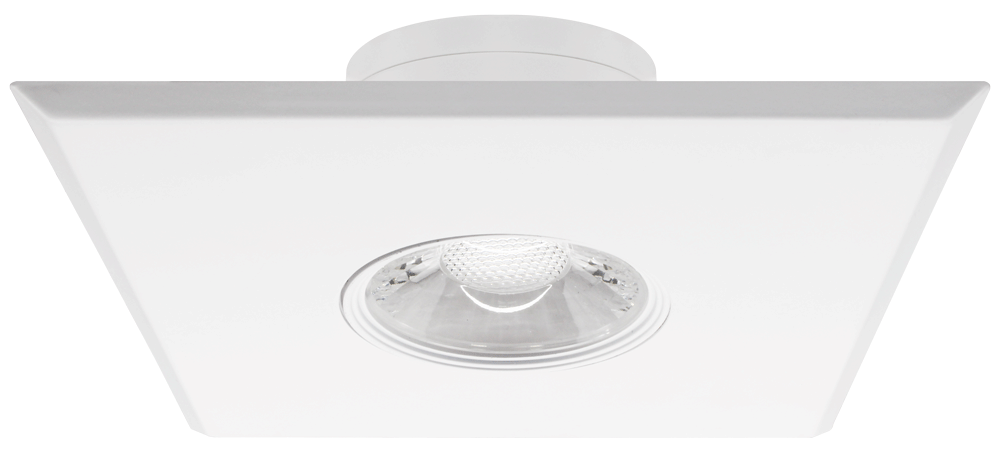

• Interchangeable magnetic trims offer a clean, regressed look with an ultra-thin 1/8" visible profile in round or square options.
• Wet Location certified and IP rated for safe installation in showers, kitchens, and outdoor protected soffits.
• Contractor-grade 90+ CRI ensures high-fidelity color rendering for premium interior spaces.
• Direct 120V AC input and TRIAC dimmability (100% down to 5%) provide professional-grade control without a remote driver.

Technical Specifications

• Energy Used: 10W
• Light Output: 600 lm – 740 lm
• Halogen Equivalent: 75W
• Beam Angle: 60° (standard), 38° (optional)
• CRI: 90+
• Input: 120V AC 50/60 Hz
• Dimming: TRIAC 5% - 100%
• Approved Location: Wet Locations
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cETLus
• Warranty: 5 Year
• Outer Diameter: 5 1/4"
• Total Depth: 1 1/2"
• Visible Trim Thickness: 1/8"
