Lotus 4" Round Regressed Gimbal HO 15W 1100 lm IC Wet CRI 90+ | LRG4-HO

Overview

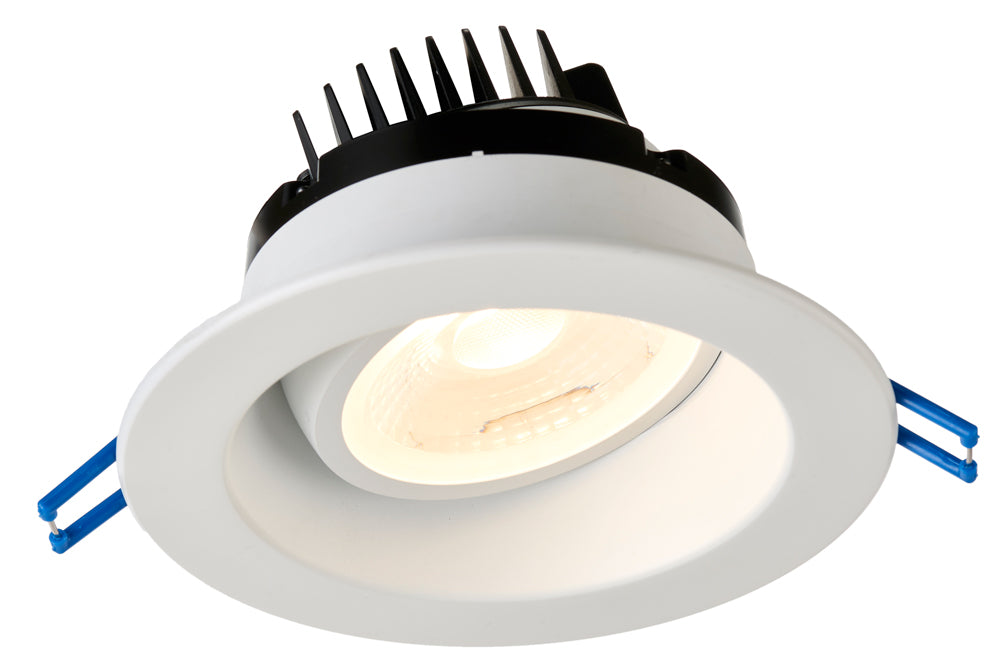

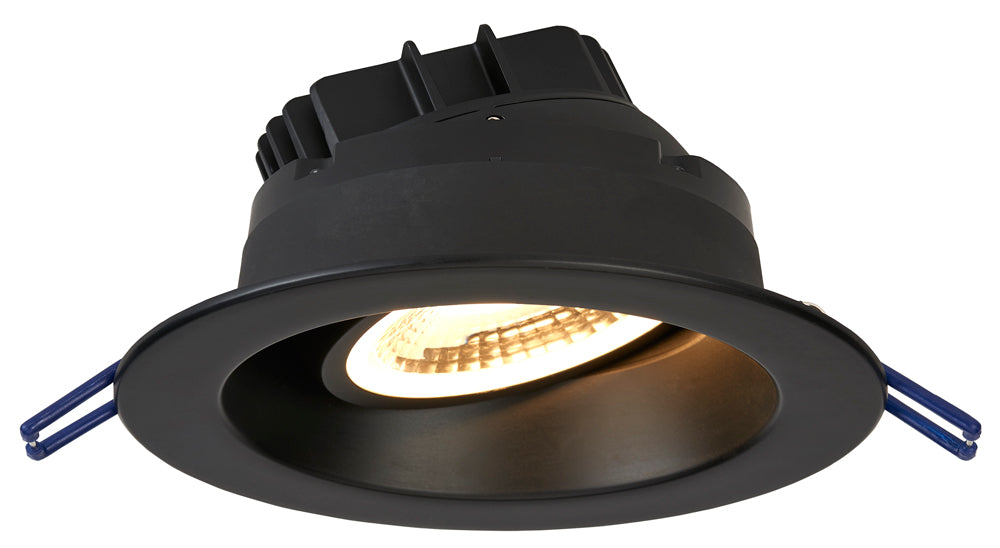

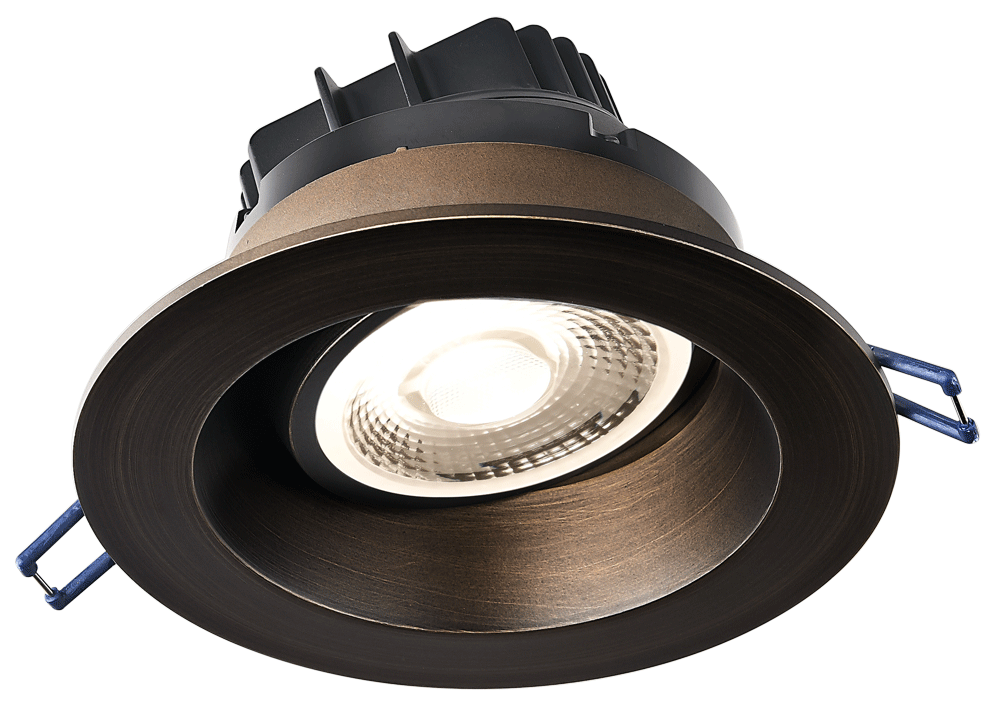

The Lotus LED 4" Round Regressed Gimbal High Output is an architectural-spec lighting solution designed for high-end residential and commercial applications. Featuring a 1" regressed optic for superior glare reduction, this 15W fixture offers a directional beam with 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork. The air-tight, IC-rated design allows for installation in direct contact with insulation without the need for a separate recessed housing.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: 1" regressed design minimizes visual glare while maintaining a high lumen output.
• Advanced Directional Control: Features a 38° beam with 20° tilt and 360° rotation for precise light aiming.
• Wet Location Rated: IP 54 certified and air-tight, suitable for use in showers, bathrooms, and outdoor soffit installations.
• Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring and reduces labor costs.

Technical Specifications

• Energy Used: 15W
• Light Output: 900 to 1400 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3200K (DTW 30-20K), 3018K (DTW 30-18K), 3500K, 4000K, 5000K, or 5CCT Selectable
• Beam Angle: 38° beam with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac (Standard 5% - 100%) or 0-10V (Optional)
• Dimensions: ID 4 3/4", OD 5 3/4", Thickness 3"
• Cut-Out: 4 3/4" to 5"
• Ceiling Clearance: 3"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
