Lotus 4" Sloped Round Regressed Gimbal LED 7.5W | LRG3-4RSL
Lotus 4" Sloped Round Regressed Gimbal LED 7.5W | LRG3-4RSL
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LRG3-30K-4RSL-WH
MPN: LRG3-30K-4RSL-WH
Shipping terms (Free over $300) calculated at checkout.
Overview

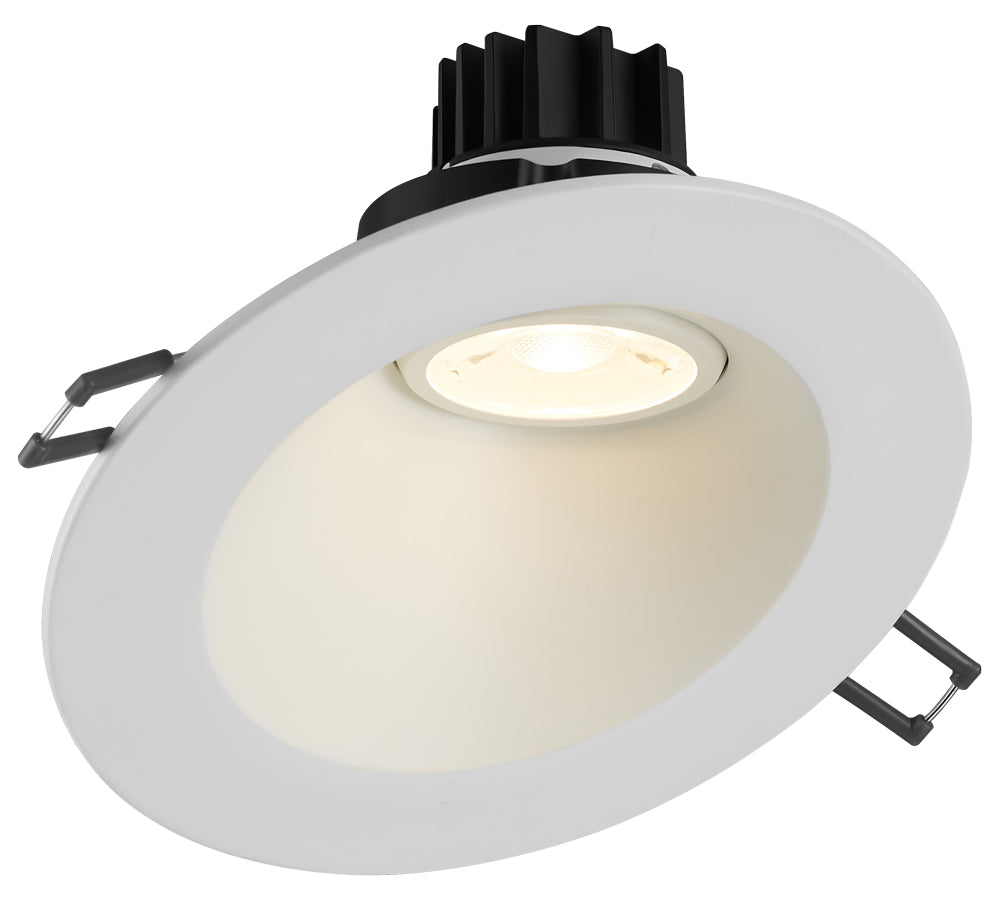

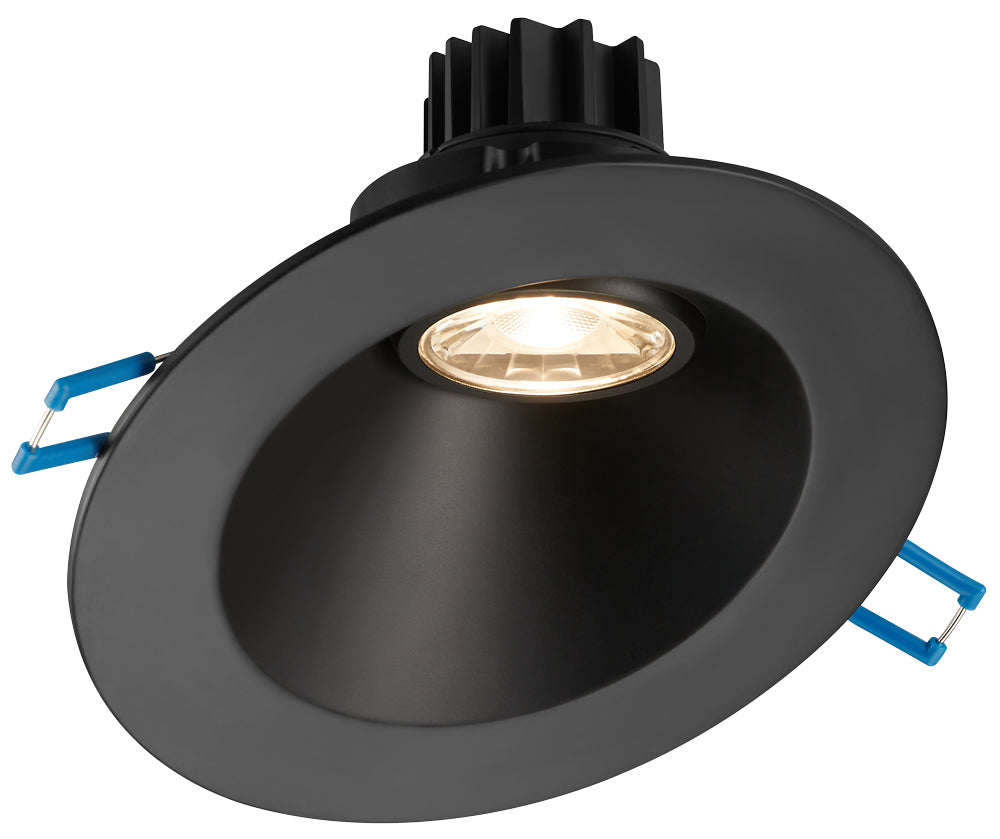

The Lotus LED 4" Sloped Round Regressed Gimbal is an architectural-spec recessed lighting solution specifically engineered for sloped ceilings with a pitch ranging from 5° to 55°. This 7.5W fixture features a 30° sloped trim and a deep regressed gimbal for superior glare control, making it ideal for wall washing and highlighting artwork in high-end residential and commercial spaces. Its low-profile 3" depth allows for installation in restricted ceiling plenums without the need for a traditional housing.
Key Features
- IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
- Optimized for Sloped Ceilings: Features a specialized 30° sloped trim and 20° tilt/360° rotation for precise directional lighting on pitched surfaces.
- Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring, while attached spring clips allow for fast setup in 4 1/2" to 5" cut-outs.
- Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for protected outdoor soffits, bathrooms, and shower areas.
- Superior Color Rendering: CRI 90+ rating ensures true color accuracy for architectural and accent lighting applications.
Technical Specifications
- Energy Used: 7.5W
- Light Output: 500 to 650 lumens (depending on CCT)
- Color Temperature: 2700K, 3000K, 3500K, 4100K, 5000K, Dim to Warm (3000K-2000K), or 5CCT Selectable
- Beam Angle: 38° beam with 20° tilt and 360° rotation
- CRI: 90+
- Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V)
- Dimmable: Yes (Triac or 0-10V)
- Aperture/Dimensions: 4 1/2" ID, 5 3/4" OD
- Thickness/Depth: 3"
- Cut-Out: 4 1/2" to 5"
- Ceiling Clearance: 2 1/2" (required for driver)
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- IP Rating: IP 54
- Projected Life: 70% light output at 50,000 hours
- Certifications: cULus, Title 24, Type IC, Air-Tight
- Warranty: 10 Year Residential / 5 Year Commercial
