JXL-CA04-T10W-5CCT | 4" Round Regressed Baffle Economy LED 10W
The Lotus JXL-CA04-T10W-5CCT is a 4-inch round regressed baffle economy LED downlight designed for renovations and new construction. Its 1/4" regressed baffle reflector helps reduce glare while maintaining a clean, low-profile recessed appearance for everyday ceiling lighting applications.
This compact 10W LED downlight features 5CCT selectable color temperature, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K. With a 1/2" deep fixture body, Type IC rating, air-tight construction, and an included 120V Triac dimmable driver, it is built for fast, practical installations where a housing-free recessed fixture is preferred.
Why this fixture sells
- Regressed baffle design: 1/4" regressed reflector helps reduce glare
- Economy 4" format: practical recessed lighting option for renovations and new construction
- Ultra-thin fixture body: 1/2" deep fixture fits directly under joists
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- No housing required: Type IC rated fixture installs without a recessed can
- No separate junction box needed: driver is inside the connection box
- Air-tight construction: helps support code-conscious recessed installations
- Damp location approved: suitable for insulated ceilings and damp-location applications
- Triac dimmable: included 120V AC driver supports 10% to 100% dimming
- White and black trims: finish options for different ceiling and design conditions
Recommended applications
- Renovations
- New construction
- Residential ceiling lighting
- Multi-family lighting
- Basements and low-clearance ceilings
- General recessed lighting
- Damp-location ceiling applications where permitted by code
Key specifications
| Model Family | JXL-CA04-T10W-5CCT |
|---|---|
| Fixture Type | 4" Round Regressed Baffle Economy LED |
| Applications | Renovations & New Construction |
| Power | 10 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output, White Trim | 650 / 720 / 770 / 780 / 710 lm |
| Light Output, Black Trim | 550 / 610 / 660 / 680 / 610 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 110° |
| CRI | 80 |
| Driver Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 10% - 100% |
| Junction Box Volume | 9.69 cubic inches / Max 5 No. 12 AWG or 8 No. 14 AWG |
| Approved Location | Insulated Ceiling & Damp Locations |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 4 1/8" ID, 4 7/8" OD, 1/2" depth |
| Cut Out | 4 1/4" to 4 3/8" |
| Certification | cETLus |
| Warranty | 3 Year |
Available models
- JXL-CA04-T10W-5CCT-WH: 5CCT selectable, White trim

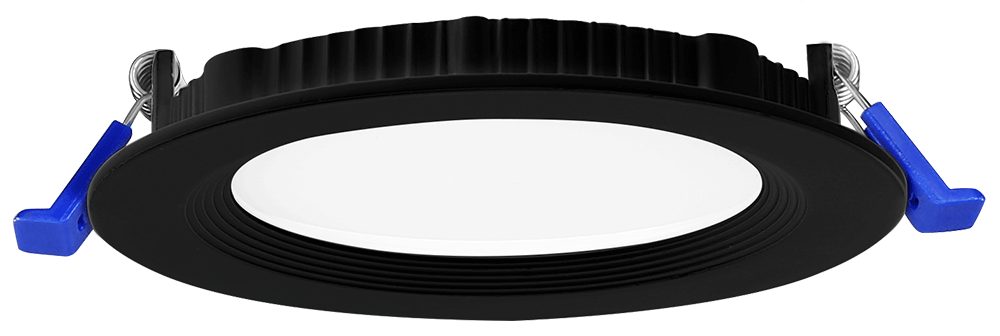

- JXL-CA04-T10W-5CCT-BK: 5CCT selectable, Black trim
Compatible accessories
- MP4-2: 13" flat mounting plate
- MP4: 13" flanged mounting plate
- RIP414: 26" long flat rough-in plate
- FRP4: Flanged plate with hanger bars
- JC-5CCT-10: 10 ft jumper cable
- GR4: White goof ring, 5 3/4" OD
- GR4-BK: Black goof ring, 5 3/4" OD
Installation notes
- The 1/2" deep fixture body fits directly under joists.
- The fixture is Type IC rated and does not require a recessed housing.
- The driver is inside the connection box, so no separate junction box is needed.
- The 120V Triac dimmable driver is included.
- Designed for insulated ceilings and damp locations.
- Cut out range is 4 1/4" to 4 3/8".
- 4" round regressed baffle economy LED downlight
- 10W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- White trim output: 650-780 lm depending on selected CCT
- Black trim output: 550-680 lm depending on selected CCT
- 110° beam angle
- CRI 80
- Type IC and air-tight
- Insulated ceiling and damp location approved
- 120V Triac dimmable driver included
- White and black trim options
Frequently Asked Questions
What is the Lotus JXL-CA04-T10W-5CCT?
It is a 4-inch round regressed baffle economy LED downlight with 5CCT selectable color temperature and an integral driver in the connection box.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Does this fixture require a recessed housing?
No. The fixture is Type IC rated and does not require a recessed housing.
Is the driver included?
Yes. A 120V AC Triac dimmable driver is included inside the connection box.
Is this fixture dimmable?
Yes. It is compatible with Triac dimmers and supports dimming from 10% to 100%.
Can this fixture be used in damp locations?
Yes. The spec sheet lists the fixture for insulated ceilings and damp locations.
Is this fixture air-tight?
Yes. The JXL-CA04-T10W-5CCT is listed as air-tight.
What trims are available?
The fixture is available with white or black trim.
