Lotus 4" Floating Gimbal 9W 5CCT 27-50K 700 lm CRI90+ | LED-4-S9W-xx-FG
Lotus 4" Floating Gimbal 9W 5CCT 27-50K 700 lm CRI90+ | LED-4-S9W-xx-FG
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LED-4-S9W-3K-FG-WH
LED-4-S9W-FG | 4" Round Floating Gimbal Recessed LED 9W
The Lotus LED-4-S9W-FG is a 4-inch round floating gimbal recessed LED fixture designed for sloped ceilings, wall washing, accent lighting, artwork highlighting, task lighting, and general lighting. Its adjustable floating gimbal design allows light to be aimed where needed while maintaining a clean recessed ceiling appearance.
This 9W recessed floating gimbal is available in 3000K single CCT, 5CCT selectable, and dim-to-warm configurations. The 5CCT model allows field selection between 2700K, 3000K, 3500K, 4000K, and 5000K, while the dim-to-warm version warms from 3000K to 1800K as it dims.
With CRI 90+, a standard 38° beam angle, 120V AC Triac dimming, Type IC, air-tight construction, and damp-location approval, the LED-4-S9W-FG is a flexible adjustable downlight for residential and light commercial applications where housing-free recessed installation is preferred.
Why this fixture sells
- Floating gimbal design: adjustable aiming for sloped ceilings, wall washing, artwork, and task lighting
- Multiple light engine options: available in 3000K, 5CCT selectable, and dim-to-warm
- High color quality: CRI 90+ for accurate color rendering
- Compact recessed format: 4" round aperture with 4 7/8" outside diameter
- Standard 38° beam: focused beam for accent and directional lighting
- Optional beam adders: 24° and 60° available by ordering adder
- Type IC rated: no recessed housing required
- Air-tight construction: supports code-conscious recessed installations
- Driver inside connection box: no separate junction box needed
- 120V Triac dimming: dimmable from 10% to 100%
Recommended applications
- Sloped ceilings
- Wall washing
- Artwork highlighting
- Accent lighting
- Task lighting
- General recessed lighting
- Residential ceiling lighting
- Damp-location ceiling applications where permitted by code
- Housing-free recessed installations
Key specifications
| Model Family | LED-4-S9W-FG |
|---|---|
| Fixture Type | 4" Round Floating Gimbal Recessed LED |
| Applications | Sloped ceilings, wall washing, accent lighting, artwork highlighting, task lighting, general lighting |
| Power | 9 W |
| Color Temperature Options | 3000K / 5CCT Selectable / Dim-to-Warm 3000K-1800K |
| 5CCT Selection | 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 3000K: 790 lm / 5CCT: 740-855 lm / Dim-to-Warm: 650 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 38° standard; 24° and 60° available as adder |
| CRI | 90+ |
| Driver Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 10% - 100% |
| Junction Box Volume | 9.69 cubic inches / Max 5 No. 12 AWG or 8 No. 14 AWG |
| Approved Location | Insulated Ceiling & Damp Locations |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 4" ID, 4 7/8" OD, 1 3/8" depth |
| Cut Out | 4 1/8" to 4 1/4" |
| Certification | cETLus |
| Warranty | 3 Year |
Available variants
- LED-4-S9W-3K-FG-WH: 3000K, White trim, 790 lm, 38° standard beam

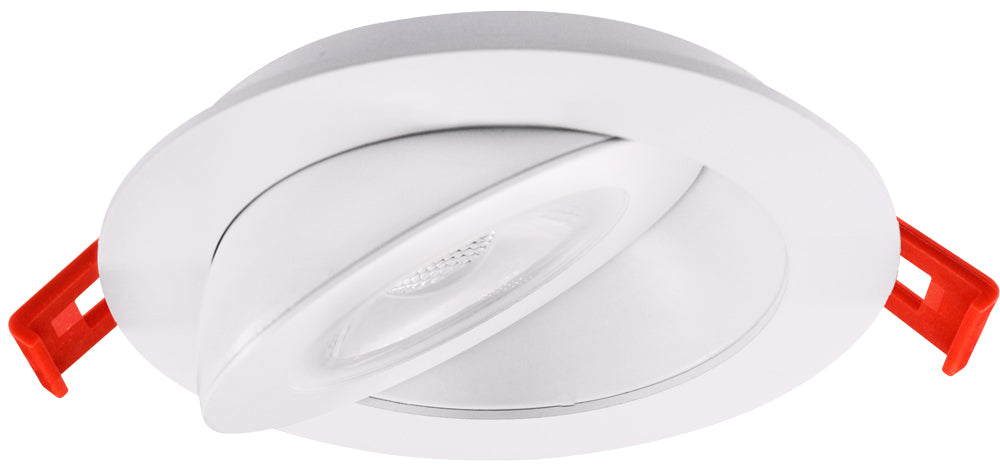

- LED-4-S9W-5CCT-FG-WH: 5CCT selectable, White trim, 740-855 lm, 38° standard beam

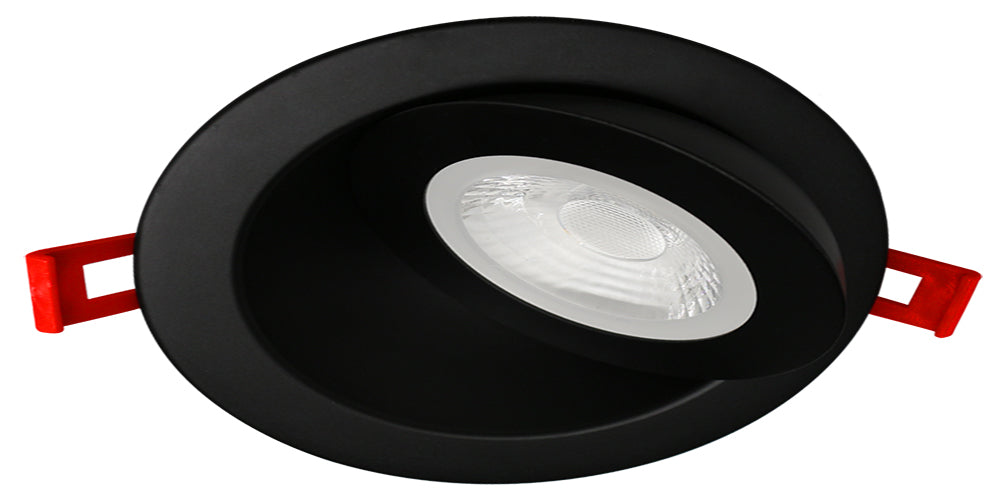

- LED-4-S9W-5CCT-FG-BK: 5CCT selectable, Black trim, 740-855 lm, 38° standard beam
- LED-4-S9W-DTW-FG-WH: Dim-to-Warm 3000K-1800K, White trim, 650 lm, 38° standard beam
- LED-4-S9W-DTW-FG-BK: Dim-to-Warm 3000K-1800K, Black trim, 650 lm, 38° standard beam
Recommended Shopify variant options
- Option 1 - Light Engine: 3000K / 5CCT / Dim-to-Warm
- Option 2 - Finish: White / Black
Beam angle note
The standard beam angle is 38°. Add -24D for a 24° beam or -60D for a 60° beam. If listing the 24° or 60° models, create separate beam-angle products or a dedicated beam-angle variant structure so the beam angle metafield remains accurate.
Contractor pack note
The spec sheet also lists a 6-pack 5CCT white trim option: LED-4-S9W-5CCT-EFG-WH-6P. If pack quantity is important for merchandising or metafields, list the 6-pack as a separate product or as a dedicated pack-size variant.
Compatible accessories
- MP4-2: 13" flat mounting plate
- MP4: 13" flanged mounting plate
- RIP414: 26" flat rough-in plate
- FRP4: Flanged plate with hanger bars
- JC-10: 10 ft jumper cable for single CCT model
- JC-5CCT-10: 10 ft jumper cable for 5CCT model
- GR4: Goof ring, 5 3/4" OD
Installation notes
- Type IC rated with no recessed housing required.
- Driver is inside the connection box, so no separate junction box is needed.
- Cut out range is 4 1/8" to 4 1/4".
- Fixture depth is 1 3/8".
- Approved for insulated ceilings and damp locations.
- Air-tight construction supports code-conscious recessed lighting installations.
- The included driver is 120V AC Triac dimmable from 10% to 100%.
- 4" round floating gimbal recessed LED fixture
- 9W power consumption with 75W halogen equivalent
- Light engine options: 3000K, 5CCT selectable, or dim-to-warm
- 5CCT selectable version: 2700K, 3000K, 3500K, 4000K, 5000K
- Dim-to-warm version: 3000K to 1800K
- 650-855 lumen output depending on selected configuration
- CRI 90+
- 38° standard beam angle; 24° and 60° optional adders
- 120V AC Triac dimmable driver included
- Type IC, air-tight, and damp location approved
- White and black trim options by configuration
Frequently Asked Questions
What is the Lotus LED-4-S9W-FG?
The LED-4-S9W-FG is a 4-inch round floating gimbal recessed LED fixture designed for sloped ceilings, wall washing, accent lighting, task lighting, and general lighting.
What color temperature options are available?
The fixture is available in 3000K single CCT, 5CCT selectable, and dim-to-warm configurations. The 5CCT version offers 2700K, 3000K, 3500K, 4000K, and 5000K. The dim-to-warm version shifts from 3000K to 1800K.
What trim finishes are available?
White and black trims are available by configuration. The spec sheet lists 3000K in white, 5CCT in white and black, and dim-to-warm in white and black.
What is the standard beam angle?
The standard beam angle is 38°. A 24° beam is available with the -24D adder, and a 60° beam is available with the -60D adder.
Is this fixture adjustable?
Yes. The floating gimbal design allows the light to be aimed for sloped ceilings, wall washing, artwork highlighting, task lighting, and accent lighting.
Is the driver included?
Yes. The fixture includes a 120V AC Triac dimmable driver inside the connection box.
Does this fixture require a recessed housing?
No. The fixture is Type IC rated and does not require a recessed housing.
Is the fixture air-tight?
Yes. The LED-4-S9W-FG is listed as air-tight.
Can this fixture be used in wet locations?
No. This model is listed for insulated ceilings and damp locations. Use a wet-location-rated model where wet-location approval is required.
Is a 6-pack available?
Yes. The spec sheet lists a 6-pack 5CCT white trim option under model LED-4-S9W-5CCT-EFG-WH-6P.
