Lotus 4" Round Multi Fit Floating Gimbal LED 9W Round Trim 5CCT Wet CRI 90+ | AD-LED-4-S9W-MFG
Lotus 4" Round Multi Fit Floating Gimbal LED 9W Round Trim 5CCT Wet CRI 90+ | AD-LED-4-S9W-MFG
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:AD-LED-4-S9W-5CCT-WH-MFG
AD-LED-4-S9W-5CCT-MFG | 4" Multi Fit Floating Gimbal LED 9W
The Lotus AD-LED-4-S9W-5CCT-MFG is a 4-inch multi fit floating gimbal LED fixture designed for J-box mounting or 4-inch can retrofit applications. Its adjustable floating gimbal design makes it a strong option for sloped ceilings, wall washing, artwork highlighting, accent lighting, task lighting, and general lighting.
This 9W adjustable LED gimbal features 5CCT selectable color temperature, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K. It delivers 675 to 830 lumens depending on the selected CCT, with CRI 90+, a standard 38° beam angle, and 120V AC Triac dimming from 10% to 100%.
The AD-LED-4-S9W-5CCT-MFG is designed for wet-location use and is suitable for showers and outdoor applications when installed according to code and manufacturer instructions. It is also air-tight, uses a magnetic trim for easy installation, and can meet fire rating code when installed with a fire-rated junction box.
Why this fixture sells
- Multi fit installation: installs in a compatible J-box or retrofits into a 4" can
- Floating gimbal design: adjustable aiming for sloped ceilings, wall washing, artwork, and accent lighting
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- High color accuracy: CRI 90+ for true color rendering
- Strong output: 675-830 lumens from only 9W
- Wet location approved: suitable for showers and outdoor applications where permitted by code
- Air-tight construction: supports code-conscious ceiling installations
- Magnetic trim: simplifies trim installation and servicing
- Triac dimmable: 120V AC dimming from 10% to 100%
- Optional beam adders: 24° and 60° beam options available by ordering adder
Recommended applications
- J-box mount lighting
- 4" recessed can retrofit applications
- Sloped ceilings
- Wall washing
- Artwork highlighting
- Accent lighting
- Task lighting
- General ceiling lighting
- Showers and approved wet-location areas
- Outdoor ceiling or soffit applications where permitted by code
Key specifications
| Model Family | AD-LED-4-S9W-MFG |
|---|---|
| Fixture Type | 4" Multi Fit Floating Gimbal LED |
| Applications | J-Box Mount or Retrofit, Sloped Ceilings, Wall Washing |
| Power | 9 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 675 / 725 / 780 / 815 / 830 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 38° standard; 24° and 60° optional |
| Tilt | Up to 90° |
| CRI | 90+ |
| Driver Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 10% - 100% |
| Approved Location | Wet Locations |
| Air Tight | Yes |
| J-Box Compatibility | Fits in 4O - 1 1/2" deep octagon box |
| Fire Rating Note | Meets fire rating code when used in a fire-rated J-box |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Certification | cETLus |
| Warranty | 5 Year |
Available standard 38° variants

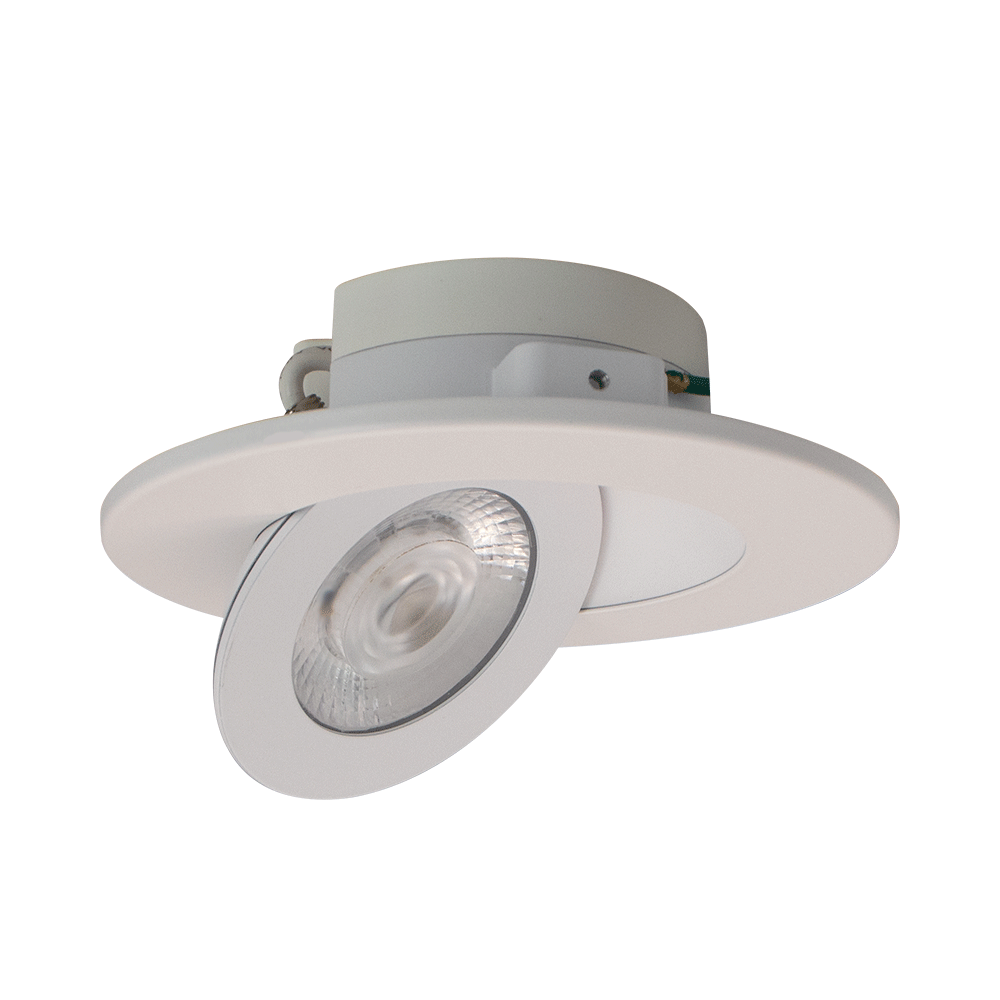

- AD-LED-4-S9W-5CCT-WH-MFG: 5CCT selectable, White trim, 38° standard beam

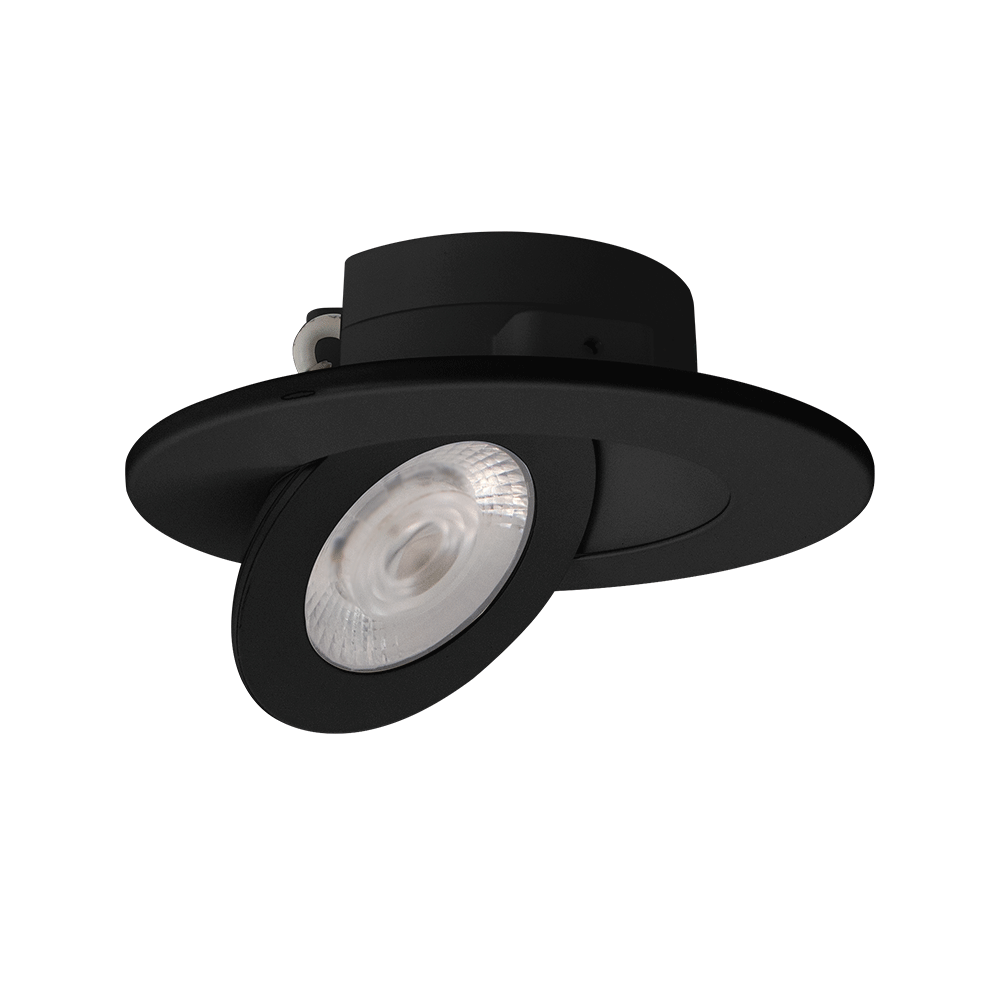

- AD-LED-4-S9W-5CCT-BK-MFG: 5CCT selectable, Black trim, 38° standard beam
Recommended Shopify variant options
- Option 1 - Finish: White / Black
Beam angle note
The standard beam angle is 38°. Add -24D for a 24° beam or -60D for a 60° beam. If listing those beam options, create dedicated beam-angle products or add Beam Angle as a variant option so the product data stays accurate.
Compatible accessory
- RK-4M: Retrofit kit with E26 adapter and butterfly clips for 4" can retrofit applications, sold separately
Installation notes
- Designed for J-box mount or 4" can retrofit installation.
- Fits in a 4O - 1 1/2" deep octagon box.
- Use retrofit kit RK-4M for 4" can retrofit applications.
- Adjustable floating gimbal tilts up to 90° for directional aiming.
- Wet-location approved and suitable for showers and outdoor applications when installed according to code and manufacturer instructions.
- Meets fire rating code when used with a fire-rated junction box.
- 5CCT selection allows final color temperature to be set in the field.
- Other trims are available by custom order.
- 4" multi fit floating gimbal LED fixture
- Installs in J-box or retrofits into 4" can
- 9W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 675-830 lumen output depending on selected CCT
- CRI 90+
- 38° standard beam angle; 24° and 60° optional adders
- Tilt up to 90°
- 120V AC Triac dimmable, 10%-100%
- Wet location and air-tight rated
- White and black trim options
Frequently Asked Questions
What is the Lotus AD-LED-4-S9W-5CCT-MFG?
It is a 4-inch multi fit floating gimbal LED fixture designed for J-box mounting or 4-inch can retrofit applications.
What makes this a multi fit fixture?
The fixture can be installed in a compatible junction box or used as a retrofit in a 4-inch recessed can with the RK-4M retrofit kit, sold separately.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
What is the standard beam angle?
The standard beam angle is 38°. A 24° beam is available with the -24D adder, and a 60° beam is available with the -60D adder.
Is this fixture adjustable?
Yes. The floating gimbal can tilt up to 90° for directional aiming.
Is this fixture dimmable?
Yes. It is designed for 120V AC Triac dimming from 10% to 100%.
Can this fixture be used in wet locations?
Yes. The fixture is wet-location approved and suitable for showers and outdoor applications when installed according to code and manufacturer instructions.
Is this fixture air-tight?
Yes. The spec sheet lists the fixture as air-tight.
Can it be used in a fire-rated ceiling?
The spec sheet states that the fixture meets fire rating code when used with a fire-rated junction box.
What trim finishes are available?
The standard listed trims are white and black. Other trims are available by custom order.
