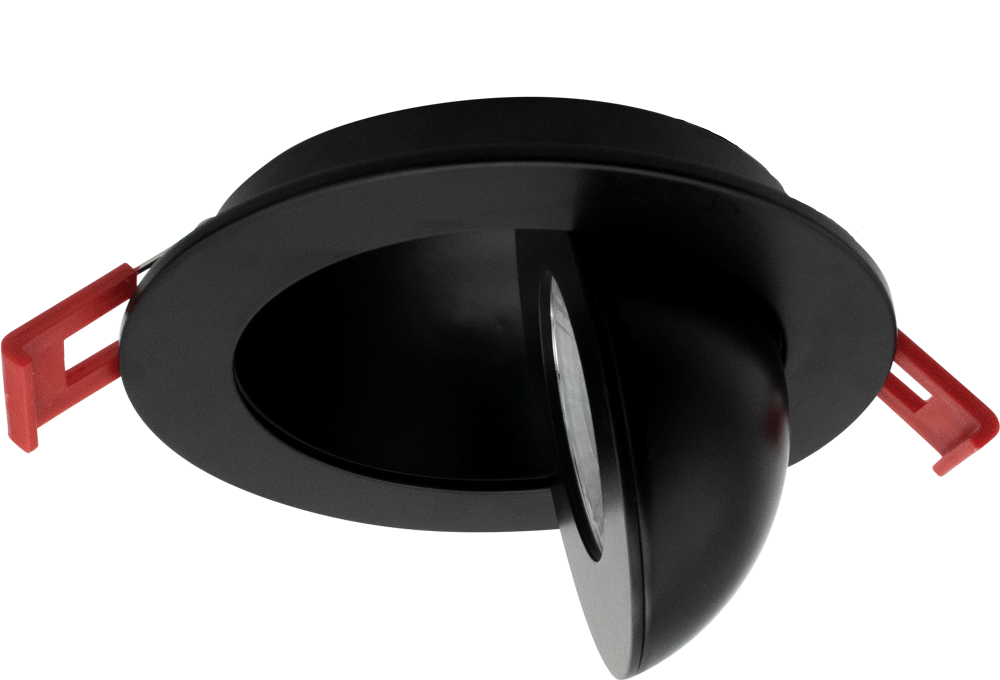

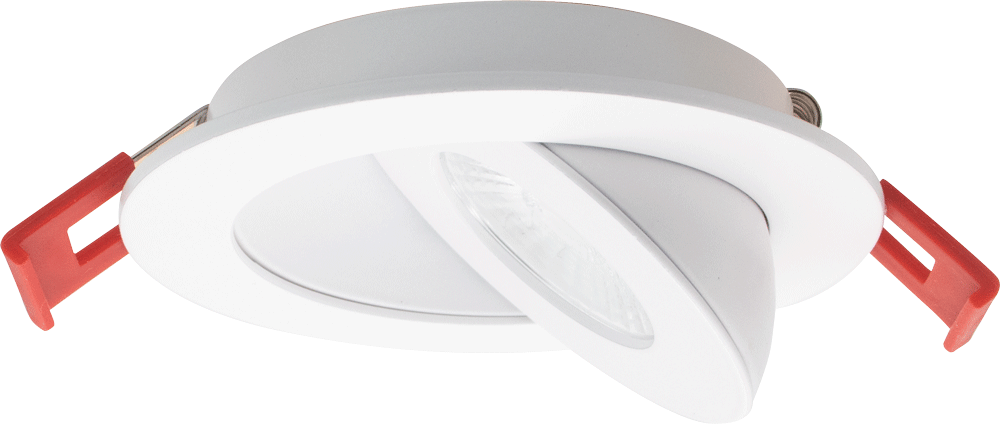

Lotus 3" Round Floating Gimbal Recessed LED | LED-3-S7W-FG
Lotus 3" Round Floating Gimbal Recessed LED | LED-3-S7W-FG
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LED-3-S7W-3018K-FG-BK
LED-3-S7W-FG | 3" Round Floating Gimbal Recessed LED
The Lotus LED-3-S7W-FG is a compact 3-inch round floating gimbal recessed LED designed for directional accent lighting, sloped ceilings, soffits, wall washing, artwork, task lighting, and general lighting. Its adjustable floating gimbal design allows the light to be aimed where it is needed, making it a strong option for spaces that require flexible beam control from a clean recessed fixture.
Using only 7W, this fixture delivers efficient LED performance with a 50W halogen equivalent, CRI 90+ color quality, and a focused 38° beam angle. Available in 5CCT selectable, 3000K single CCT, and dim-to-warm 3000K-1800K versions, the LED-3-S7W-FG gives contractors and designers a flexible small-aperture gimbal solution for residential and light commercial projects.
Why this fixture sells
- Floating gimbal design: adjustable in any direction for accent, task, and wall-wash lighting
- Compact 3" aperture: clean small-format recessed look
- 5CCT, 3000K, and dim-to-warm options: choose field-selectable, fixed warm white, or warm-dimming output
- High color quality: CRI 90+ for true color rendering
- Efficient output: 7W LED with 50W halogen equivalent performance
- Triac dimmable: 120V AC dimming from 100% to 10%
- Type IC rated: no recessed housing required
- Air-tight and damp location rated: suitable for insulated ceilings and damp-location applications
- Low ceiling clearance: 1 1/4" deep fixture body fits in 3/4" ceiling space when the driver is remotely mounted
- White and black trims: stocked trim options for different ceiling finishes
Recommended applications
- Sloped ceilings
- Soffits
- Wall washing
- Artwork lighting
- Accent lighting
- Task lighting
- General recessed lighting
- Residential and light commercial spaces
Key specifications
| Model Family | LED-3-S7W-FG |
|---|---|
| Fixture Type | 3" Round Floating Gimbal Recessed LED |
| Applications | Sloped ceilings, soffits, wall washing, artwork, task lighting, general lighting |
| Energy Used | 7 W |
| Color Temperature Options | 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K; single CCT 3000K; dim-to-warm 3000K-1800K |
| Light Output | 550 / 580 / 630 / 630 / 640 lm; dim-to-warm version 465 lm |
| Halogen Equivalent | 50 W |
| Beam Angle | 38° |
| CRI | 90+ |
| Driver Input | 120V AC |
| Dimming | Triac dimmable, 100% - 10% |
| Junction Box Volume | 6.53 in³ / 2 in, 2 out, 12 AWG |
| Approved Location | Insulated Ceiling & Damp Locations |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 3 1/2" ID, 4 1/4" OD, 1 1/4" depth |
| Cut Out | 3 3/4" |
| Certification | cETLus |
| Warranty | 3 Year |
Available models
- LED-3-S7W-5CCT-FG-WH: 5CCT selectable, White trim
- LED-3-S7W-3K-FG-WH: 3000K, White trim
- LED-3-S7W-3018K-FG-WH: Dim-to-warm 3000K-1800K, White trim
- LED-3-S7W-5CCT-FG-BK: 5CCT selectable, Black trim
- LED-3-S7W-3K-FG-BK: 3000K, Black trim
- LED-3-S7W-3018K-FG-BK: Dim-to-warm 3000K-1800K, Black trim
Compatible accessories
- MP334: Flat mounting plate
- RIP334: 26" long flat rough-in plate
- JC10: Jumper cable for single CCT and dim-to-warm models
- JC-5CCT-10: Jumper cable for 5CCT models
Installation notes
- The fixture is Type IC rated and does not require a recessed housing.
- The driver is located inside the connection box, so no separate junction box is needed.
- The 1 1/4" deep fixture body can fit in 3/4" ceiling space when the driver is remotely mounted.
- Approved for insulated ceilings and damp locations.
- Designed for 120V AC Triac dimming applications.
- 3" round floating gimbal recessed LED
- 7W power consumption with 50W halogen equivalent
- 5CCT, 3000K, and dim-to-warm options
- 38° beam angle for accent and directional lighting
- CRI 90+ color rendering
- 120V AC Triac dimmable, 100%-10%
- Type IC rated, air-tight, and damp location approved
- White and black trim options
Frequently Asked Questions
What is the Lotus LED-3-S7W-FG?
The LED-3-S7W-FG is a 3-inch round floating gimbal recessed LED fixture designed for directional accent, task, wall-wash, artwork, soffit, and sloped ceiling lighting.
Is this fixture adjustable?
Yes. The floating gimbal design allows directional adjustment, making it useful for aiming light at artwork, walls, task areas, or angled ceiling applications.
What color temperature options are available?
The family includes 5CCT selectable models, fixed 3000K models, and dim-to-warm 3000K-1800K models.
Is the LED-3-S7W-FG dimmable?
Yes. The fixture is 120V AC Triac dimmable from 100% to 10%.
Does this fixture require a recessed housing?
No. The spec sheet lists the fixture as Type IC rated with no housing required.
Can it be used in damp locations?
Yes. The LED-3-S7W-FG is approved for insulated ceilings and damp locations.
What trims are available?
The fixture is available in white and black trim options, with 5CCT, 3000K, and dim-to-warm configurations.
