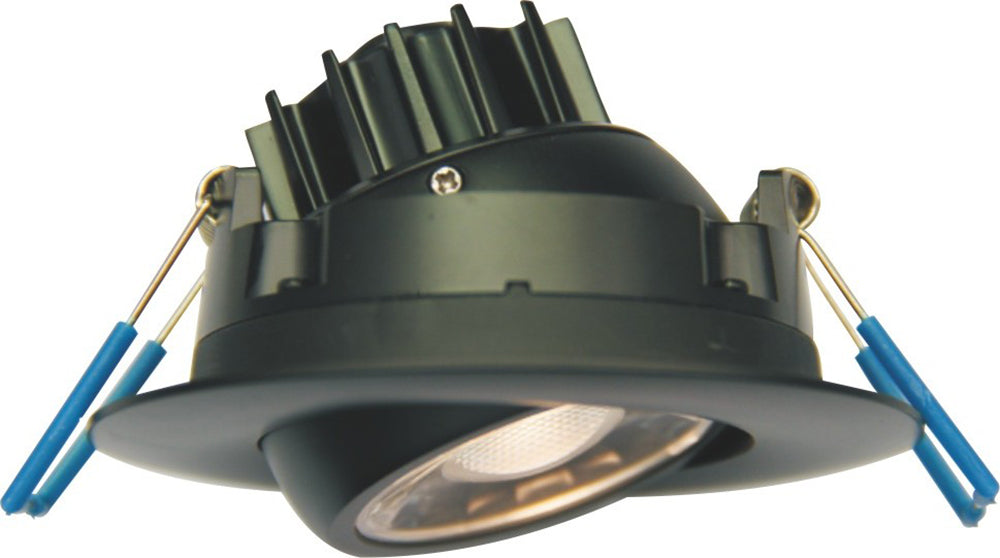

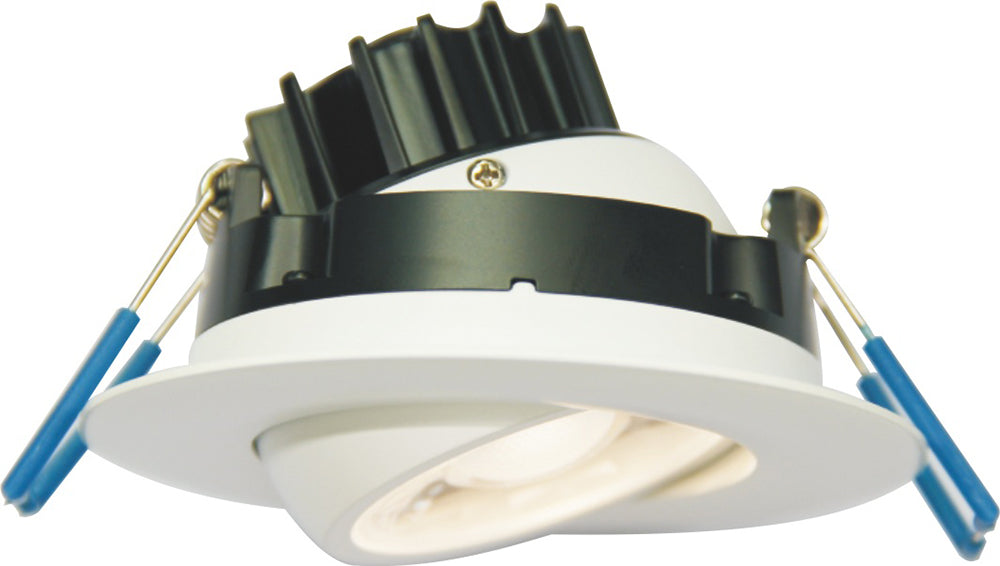

Lotus 3" Round Eyeball Gimbal 7.5W 38° 580 lm IC Wet CRI 90+ | LL3G

Overview

The Lotus LED 3" Round Eyeball Gimbal is a contractor-grade recessed lighting solution designed to fit where other fixtures cannot, featuring a slim 1 3/4" depth for limited ceiling spaces. This architectural-spec fixture is ideal for sloped ceilings and highlighting artwork, providing a directional beam with a 20° tilt and 360° rotation. It is IC rated and air-tight, allowing for direct contact with insulation without the need for a separate recessed housing.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky housings.
• Precision Aiming: Directional eyeball gimbal allows for 20° tilt and 360° rotation for perfect light placement on sloped ceilings or task areas.
• Wet Location Rated: IP 54 certified, making it suitable for protected outdoor areas, bathrooms, and showers.
• Ultra-Slim Profile: Only 1 3/4" deep, requiring minimal ceiling clearance for versatile installation in tight plenums.
• High Color Accuracy: CRI 90+ provides true color rendering for high-end residential and commercial applications.

Technical Specifications

• Energy Used: 7.5W
• Light Output: 580 to 650 lumens (depending on CCT)
• Color Temperature: 2700K, 3000K, 3200K (DTW 30-20K), 3500K, 4100K, 5000K, or 5CCT Selectable
• Halogen Equivalent: 50W
• Beam Angle: 38°
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture/Dimensions: ID 2 1/2", OD 3 1/4"
• Cut-Out: 2 3/4" to 3"
• Ceiling Clearance: 2 1/2" for Romex; 3 1/2" for MC or BX
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
