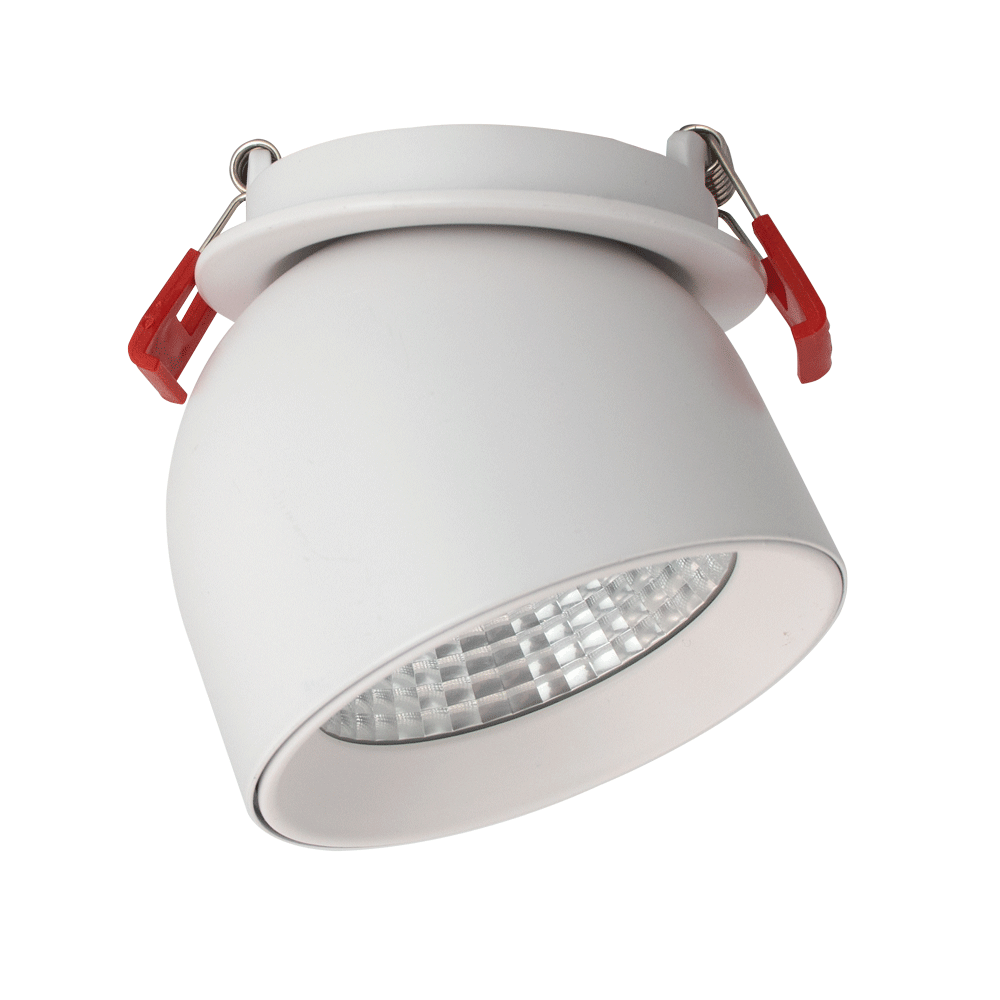

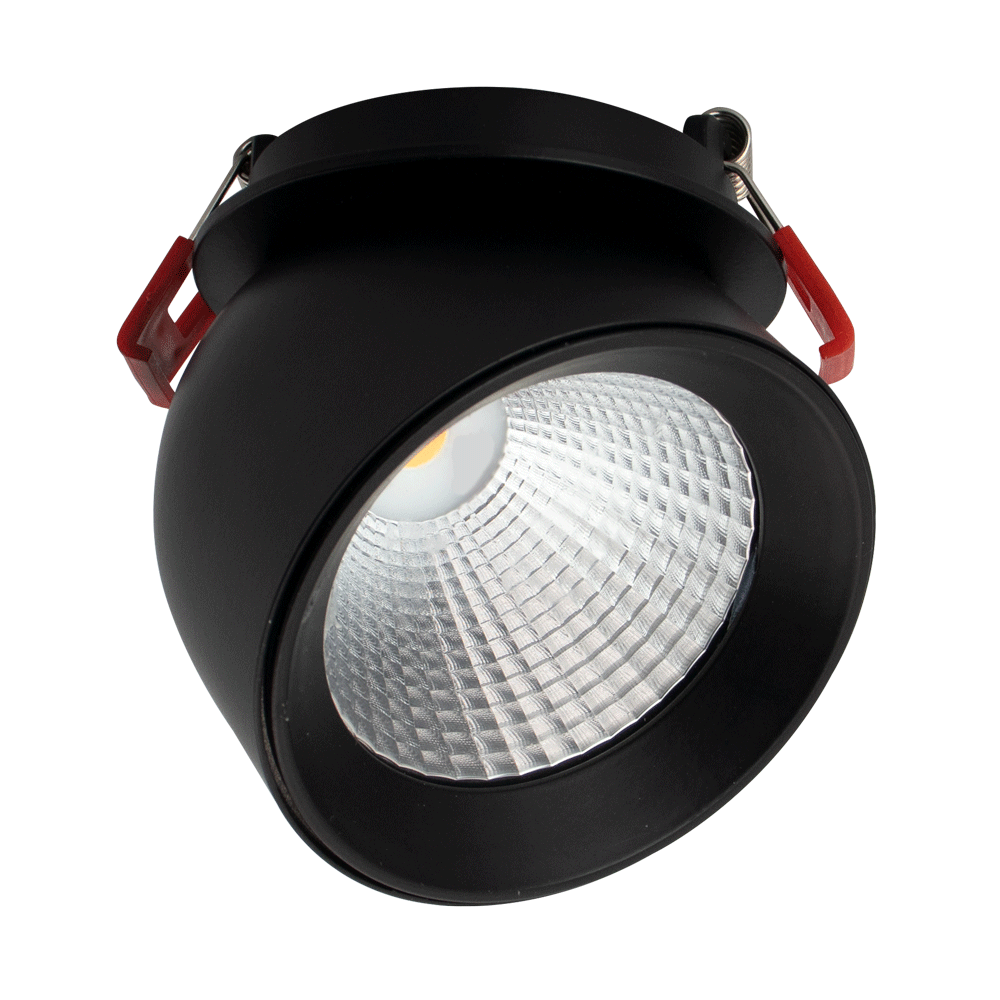

Lotus 3" Bullet Floating Gimbal LED 14W | AD-3-S14W-AR

Overview

The Lotus LED 3-inch Bullet Floating Gimbal is an architectural-spec mono-point luminaire designed to provide a track light effect without the need for visible tracks. This multi-directional fixture is highly versatile, serving as either a straight downlight or an adjustable accent light for sloped ceilings, wall washing, and highlighting artwork.

Key Features

• Multi-Directional Adjustability: Features a floating gimbal design that allows for up to a 30° tilt to precisely direct light where needed.
• 5CCT Switchable: Equipped with a field-selectable color temperature system, allowing users to choose between 2700K, 3000K, 3500K, 4000K, and 5000K.
• IC Rated & Air-Tight: Contractor-grade construction approved for direct contact with insulation and certified air-tight for maximum energy efficiency.
• Integrated Driver: Includes a driver inside the connection box, eliminating the need for a separate junction box and simplifying installation.
• Architectural Optics: Offers a choice of 24° or 38° beam angles and a CRI 90+ rating for high-quality, true color rendering.

Technical Specifications

• Power: 15W
• Light Output (38° Beam): 1095 lm – 1347 lm
• Light Output (24° Beam): 1091 lm – 1365 lm
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
• CRI: 90+
• Beam Angle: 24° or 38°
• Tilt Angle: 30°
• Input Voltage: 120V AC (Standard TRIAC Dimmable) / 120-347V AC (Optional 0-10V)
• Dimensions: OD 3 3/16", ID 2 7/8", Length 3 3/4"
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Approved Location: Wet Locations
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus
• Warranty: 3 Year
