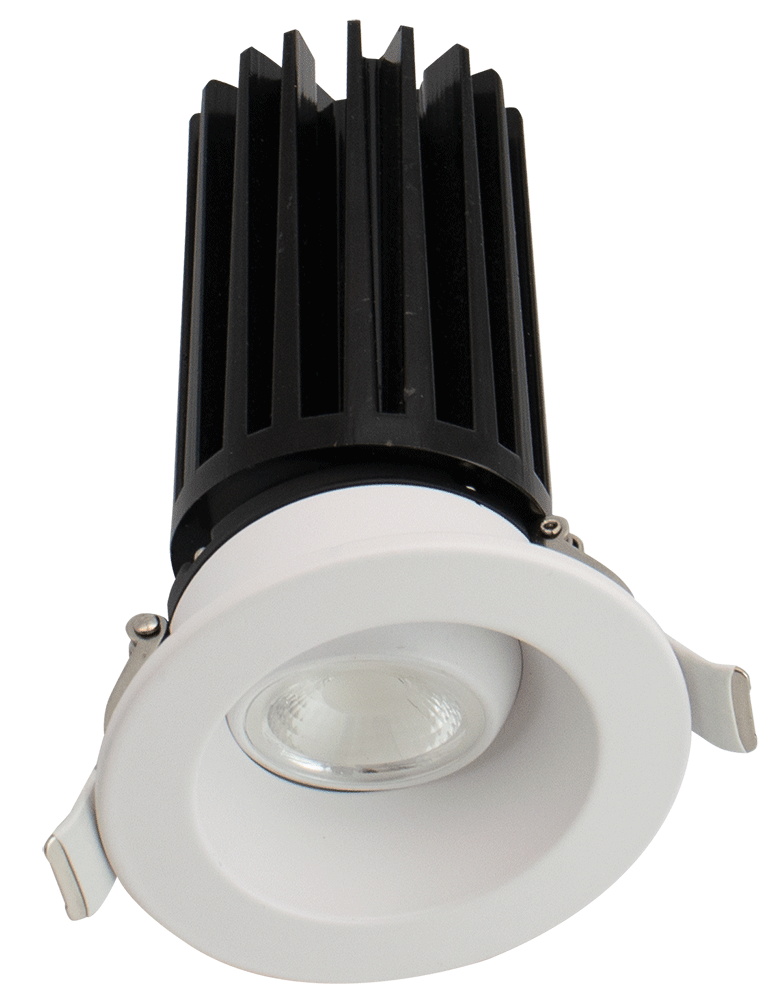

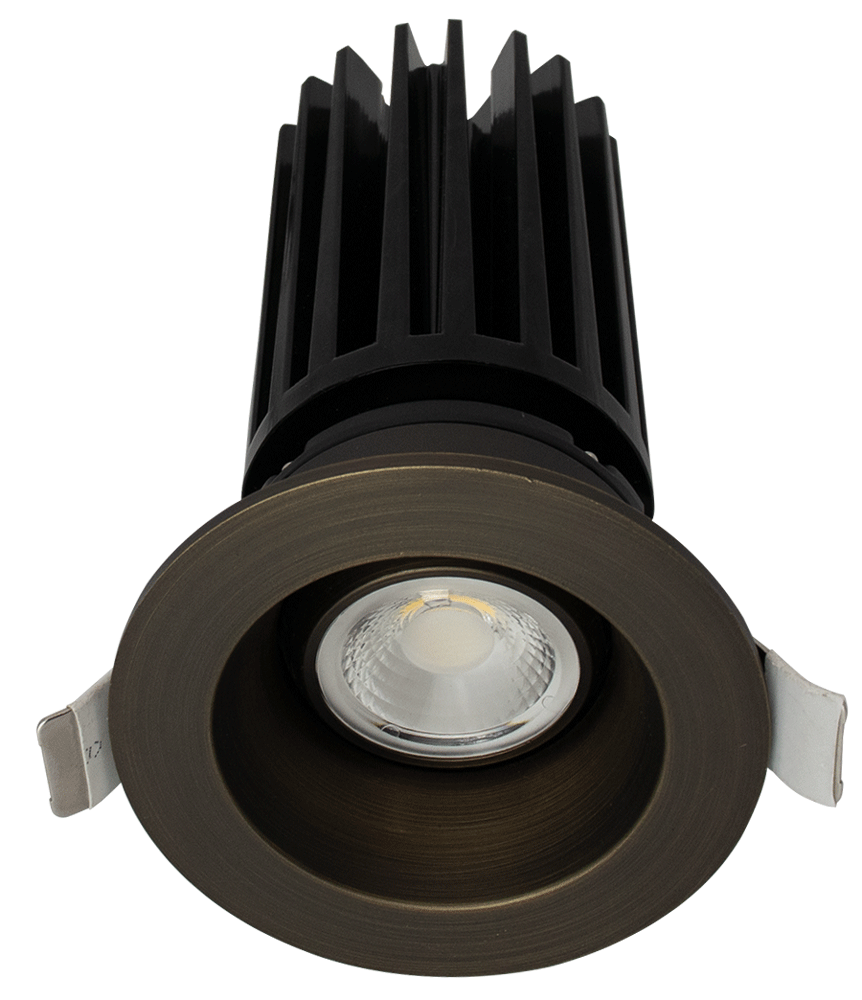

Lotus 2" Round Gimbal LED 11W | LED-2-S11W-EY

Overview

The Lotus LED 2" Round Gimbal (Model LED-2-S11W-EY) is a high-performance 11W recessed lighting solution designed for general illumination, sloped ceilings, and precision highlighting of artwork. This fixture features an adjustable eyeball gimbal with a 20° tilt, making it ideal for wall washing and applications on pitched ceilings. Engineered with an integral driver inside a connection box, it eliminates the need for a traditional recessed housing or separate junction box. It is IC Rated for direct contact with insulation and approved for wet locations, providing maximum versatility for residential and commercial projects.

Key Features

• Adjustable Directional Beam: Offers a 20° tilt angle to provide flexible light placement on sloped ceilings or for accenting architectural features.
• IC Rated & Air-Tight: Certified for direct contact with insulation and air-tight construction, ensuring energy efficiency and simplified installation.
• Color Flexibility: Available in both 5CCT user-selectable (2700K to 5000K) and Dim to Warm (3000K to 1800K) technology.
• High Light Output: Delivers up to 1080 lumens, serving as a powerful 90W halogen equivalent from a compact 2" aperture.
• Wet Location Rated: Certified for use in high-moisture environments, including bathrooms and protected outdoor areas.

Technical Specifications

• Energy Used: 11W
• Light Output: 900 to 1080 lumens (varies by CCT)
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Beam Angle: 38° standard (24° and 60° custom options available)
• Tilt Angle: 20°
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Aperture/Dimensions: ID 2 1/2", OD 3 1/8"
• Cut-Out: 2 5/8"
• Ceiling Clearance: 5"
• IP Rating: Air-Tight and Wet Location approved
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cETLus, Type IC
• Warranty: 5 Year
