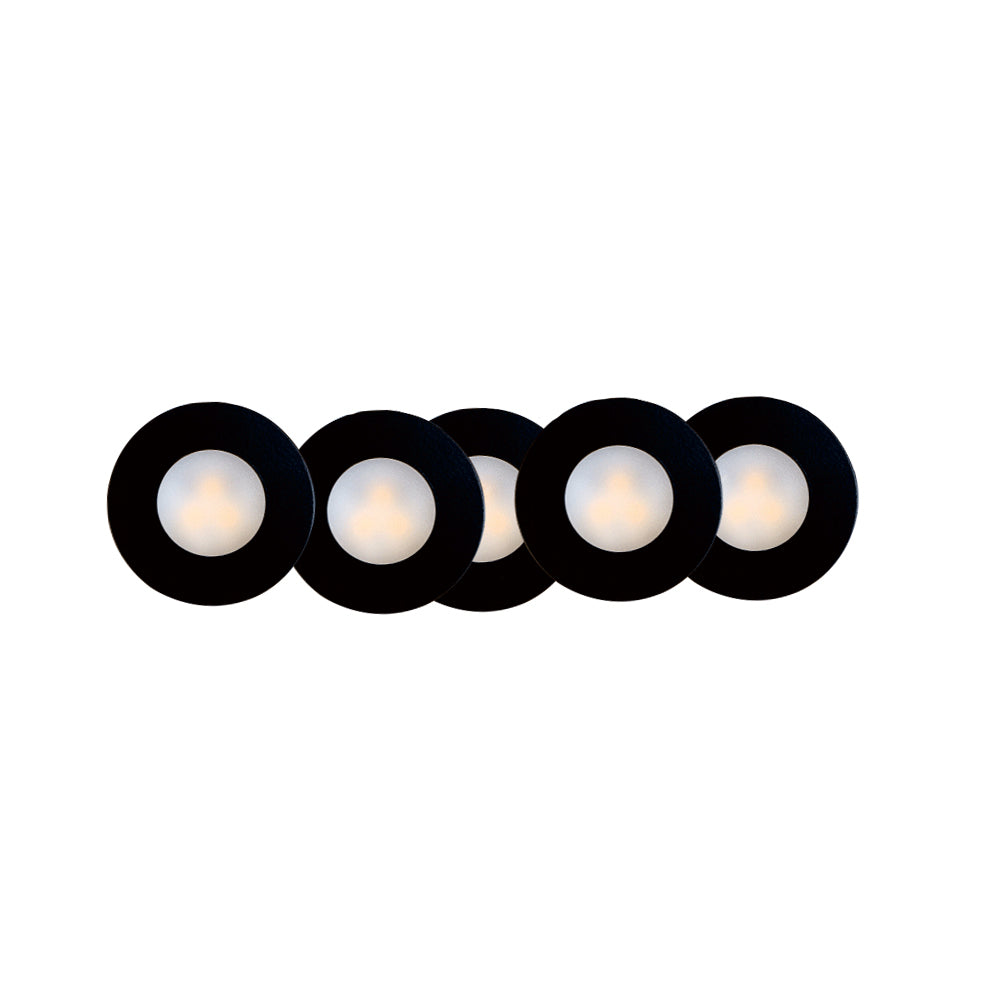

Lotus 1" Mini Puck LED Light 12V - 6 Pack | 6P-AD108-3K-D-H
Lotus 1" Mini Puck LED Light 12V - 6 Pack | 6P-AD108-3K-D-H
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:6P-AD108-3K-D-H
MPN: 6P-AD108-4K-D-H-BK
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED AD-108 is a contractor-grade 1-inch mini puck light designed for discreet architectural-spec accenting in millwork, cabinetry, and niche displays. This comprehensive 6-pack kit includes a 6-port hub and driver, providing a low-profile recessed lighting solution that is both IC Rated and Air Tight for high-performance residential and commercial applications.
Key Features
- Ultra-compact 1-inch aperture for minimalist visual impact in high-end cabinetry and shelving.
- High color rendering (CRI 90+) for accurate material representation and professional-grade illumination.
- Durable die-cast aluminum housing provides superior heat management and a 50,000-hour rated life.
- Versatile 12V DC system approved for damp locations and direct contact with insulation.
- Complete 6-light system includes a dedicated 6-port hub for simplified, streamlined installation.
Technical Specifications
- Model: 6P-AD108-3K-D-H / 6P-AD108-3K-D-H-BK
- Energy Used: 1W per fixture
- Light Output: 70 lm
- Color Temperature: 3000K
- CRI: 90+
- Beam Angle: 100°
- Input Voltage: 12V DC
- Dimming: Dimmable with compatible external 12V drivers
- Aperture Size: 1"
- Cutout: 1 1/16"
- Outer Diameter: 1 5/16"
- Depth: 5/8"
- Approved Location: Damp Locations
- Ratings: IC Rated, Air Tight
- Certification: cETLus
- Warranty: 3 Year
