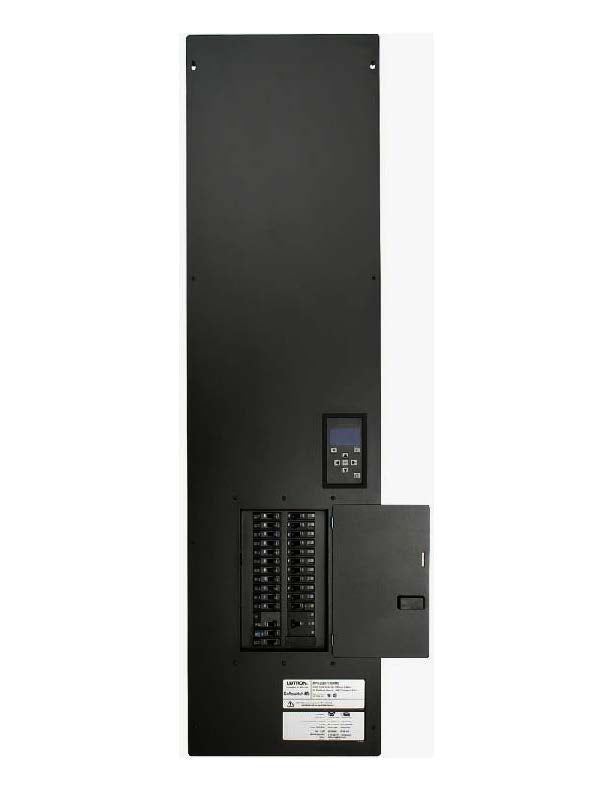

Lutron XPS12-FT Softswitch 128 12-Relay Feed-Through Power Panel
The Lutron XPS12-FT is a centralized switching power panel engineered for maximum longevity in high-demand commercial and industrial environments. As part of the Softswitch 128 family, this 12-relay unit is designed to handle the rigorous inrush currents of modern lighting, including LED and HID loads, without the relay wear common in standard panels.
Featuring Lutron’s patented Softswitch technology, the internal mechanical relays are protected from arcing. This innovative design allows the relays to reach an average lifespan of 1,000,000 cycles, significantly reducing maintenance costs over the life of the building. The feed-through architecture and 16-gauge steel NEMA 1 enclosure make it a favorite for contractors looking for a durable, easy-to-install solution for medium-sized switching applications.
Key Features
- Softswitch Arcless Technology: Prevents arcing at mechanical contacts, extending relay life to 1 million cycles—even with high-inrush loads.
- 12-Relay Capacity: Centralized control for up to 12 independent circuits.
- Universal Voltage Support: Flexible operation across 120V, 208V, 277V, and 347V AC.
- Feed-Through Design: Simplifies the wiring process for both new construction and retrofits.
- Industrial-Grade Build: Housed in a heavy-duty 16-gauge steel NEMA 1 enclosure with a clear, professional finish.
- Multi-Load Compatibility: Safely switches Incandescent, Halogen, MLV, ELV, LED, Neon/Cold Cathode, and HID lighting.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | XPS12-FT |
| Number of Circuits | 12 Circuits |
| Output Voltage | 120 / 208 / 277 / 347 VAC |
| Amperage Rating | 16A (per relay) / 20A Max |
| Enclosure | NEMA 1, IP20 (16-Gauge Steel) |
| Mounting | Surface or Recess Mount |
| Dimensions | 15.88" W x 59.5" H x 4.25" D |
| Motor Rating | 1/3 HP @ 120V, 1/2 HP @ 277/347V |
Included in the Box
- (1) Lutron XPS12-FT Softswitch Power Panel Enclosure
- (1) Pre-installed 12-Relay Switching Module
- (1) Installation Instructions and Wiring Diagram
