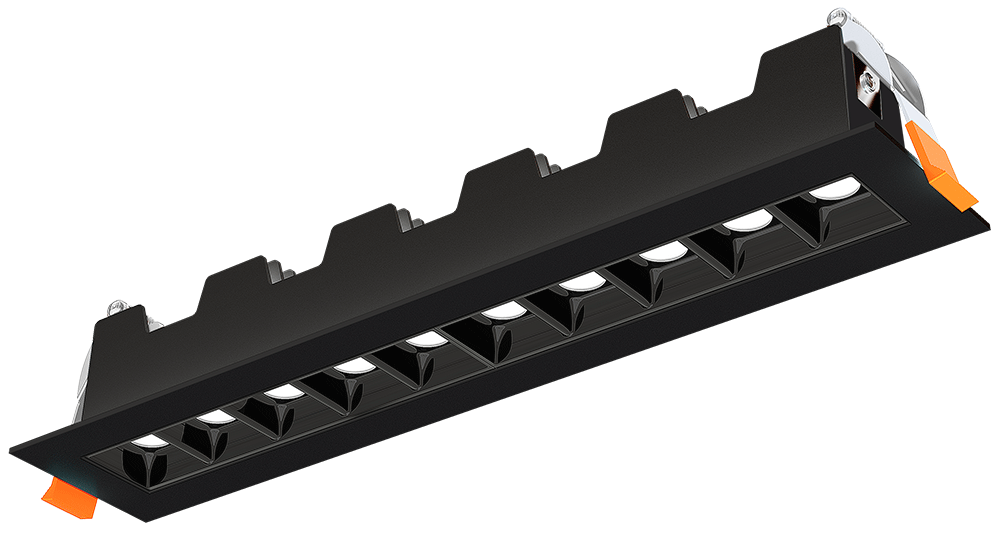

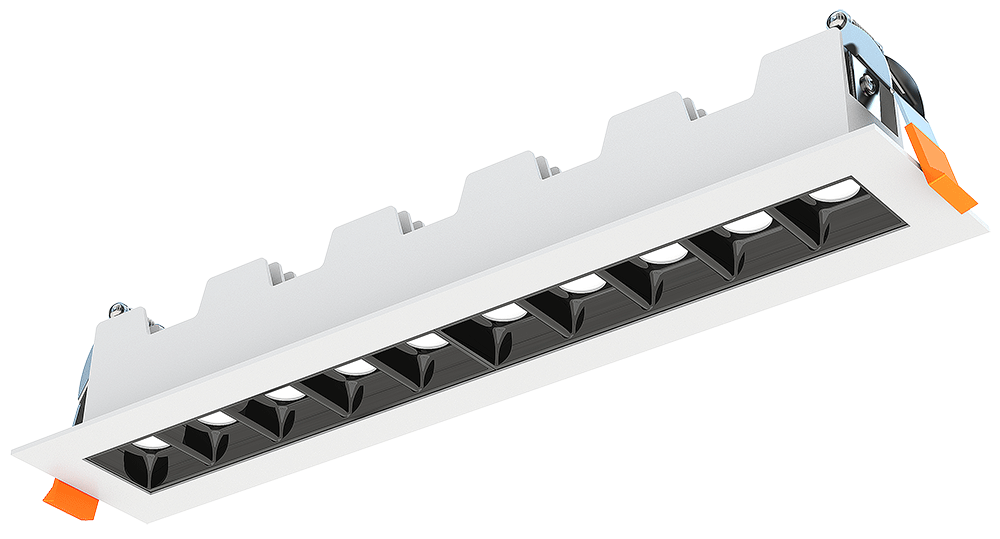

Lotus 10 LED Linear Recessed 18W 5CCT | JXL-TXH10-T18W-5CCT

Overview

The Lotus LED JXL-TXH10-T18W-5CCT is an architectural-spec 10-light linear recessed fixture engineered for unique and original lighting installations. Designed for both residential and commercial applications, its 2-inch ultra-shallow depth allows for seamless integration into areas where ceiling space is strictly limited.

Key Features

• 5 CCT User Selectable: Choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures during installation.
• IC Rated: Type IC rated for direct contact with insulation, eliminating the need for a separate recessed housing.
• Dimmable Performance: Equipped with a 120V Triac dimmable driver supporting a 20% to 100% dimming range.
• Low Profile Design: Features a physical depth of only 2 inches to fit into restricted ceiling plenums.
• Contractor-grade Construction: Air Tight and approved for use in both insulated ceilings and damp locations.

Technical Specifications

• Power: 18W
• Light Output: 930 | 1030 | 1170 | 1210 | 1230 Lumens
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (Selectable)
• CRI: 80
• Beam Angle: 45° (default) or 30°
• Driver Input: 120V AC 50/60 Hz
• Dimming: TRIAC Dimmers 20% - 100%
• Outside Dimensions: 11 5/8" x 2 5/16"
• Inside Dimensions: 10 7/16" x 15/16"
• Depth: 2"
• Cut Out: 10 5/8" x 1 1/2"
• Junction Box Volume: 3.88 in³
• Driver Dimensions: 4 1/4" x 2 5/8" x 1 3/8"
• Approved Location: Insulated Ceiling & Damp Locations
• Air Tight: Yes
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% Light Output at 30,000 Hours
• Certification: cETLus
• Warranty: 3 Year
