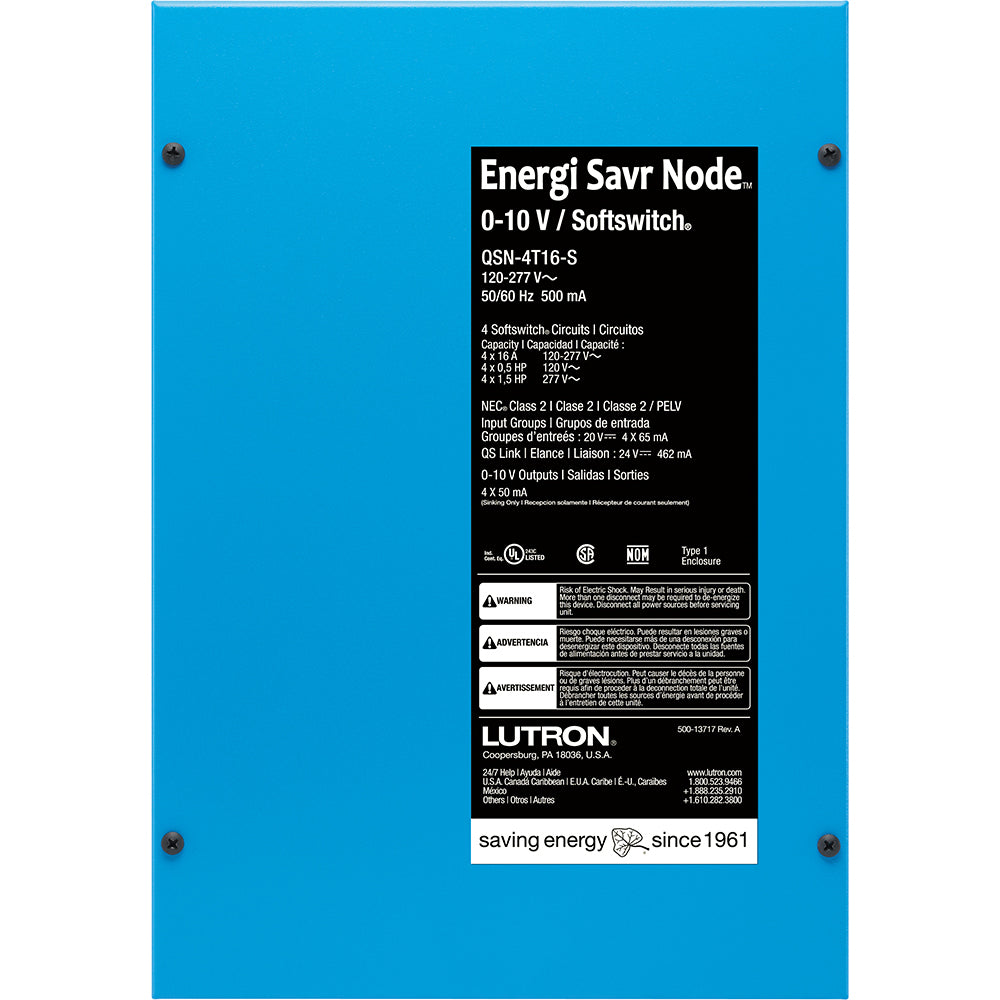

Lutron QSN-4T16-S Energi Savr Node 4-Zone 16A 0-10V Controller

The Lutron QSN-4T16-S is a high-performance fixture controller designed to provide centralized dimming and switching for $0-10V$ compatible lighting. Featuring four independent zones, each capable of switching a 16A load, this Energi Savr Node (ESN) is the professional choice for commercial spaces utilizing LED or fluorescent fixtures that require a precise $0-10V$ control signal.

This unit is engineered with Lutron’s patented Softswitch technology, an arcless switching design that prevents relay contact degradation. This ensures a massive 1,000,000-cycle product lifespan, even under the high inrush currents typical of modern LED drivers. With integrated inputs for occupancy and daylight sensors, the QSN-4T16-S makes energy code compliance (such as Title 24 and ASHRAE 90.1) simple and efficient.

Key Features

• 4-Zone 0-10V Dimming: Independent control of four zones for smooth, flicker-free dimming of LED and fluorescent loads.
• Softswitch Technology: Patented relay protection ensures 1 million switching cycles, significantly reducing maintenance and replacement costs.
• Integrated Sensor Inputs: Direct connection for 4 occupancy sensors and 4 daylight sensors for autonomous, energy-saving operation.
• System Compatibility: Seamlessly integrates with Lutron Quantum, Athena, and HomeWorks systems via the wired QS link.
• Local Control & Feedback: Features buttons for manual zone control and diagnostic LEDs to verify system status and wiring integrity.
• Universal Voltage: Flexible operation across 120V, 220-240V, and 277V AC power systems.

Technical Specifications

Included in the Box

• (1) Energi Savr Node 4-Zone 16A 0-10V Controller (QSN-4T16-S)
• (1) Surface-Mount Enclosure with Removable Cover
• (1) Installation & Wiring Manual
