Lotus 5CCT Selectable 24V 96W 120-277V Driver, 5-in-1 Dimmable | SVD-24096-J-5CCT
Lotus 5CCT Selectable 24V 96W 120-277V Driver, 5-in-1 Dimmable | SVD-24096-J-5CCT
In Stock (Ready to Ship)
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SVD-24096-J-5CCT
Shipping terms (Free over $300) calculated at checkout.
Overview

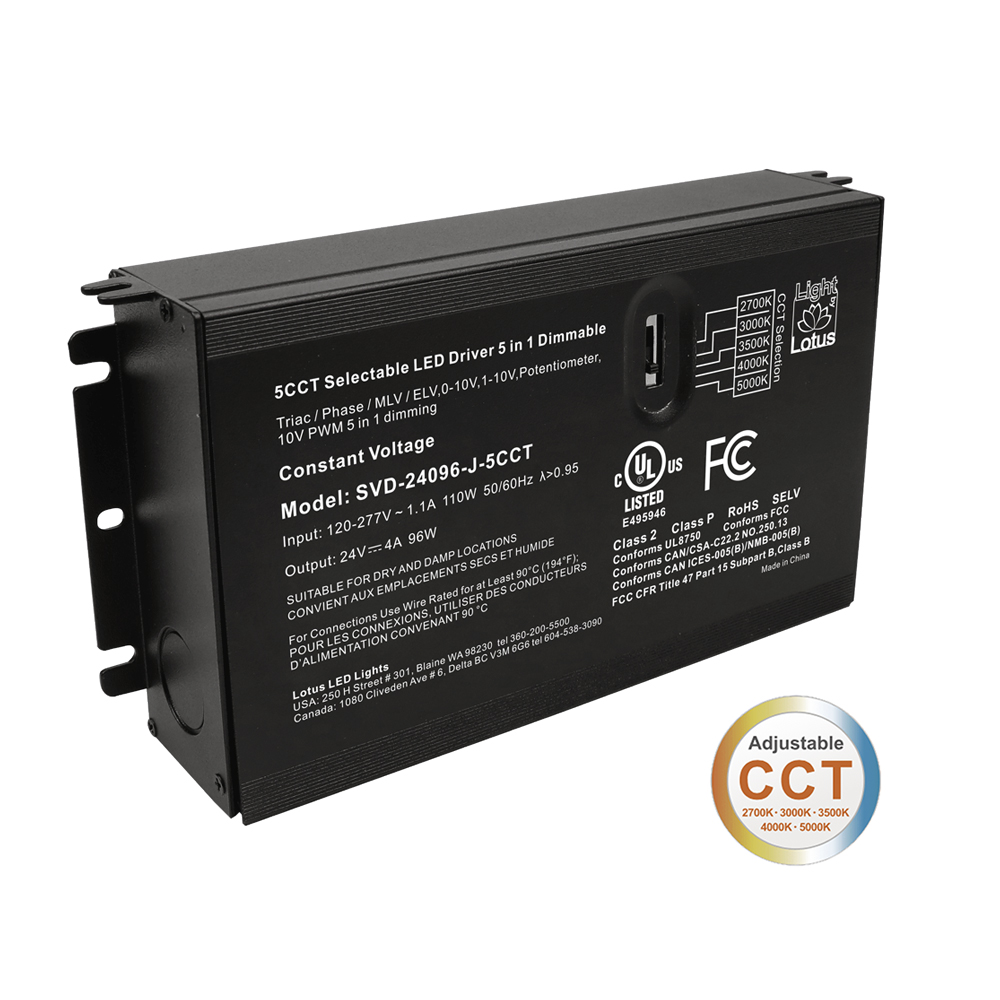

The SVD-24096-J-5CCT is a 24V 96W Class 2 constant-voltage LED driver with built-in wiring compartments for line and low-voltage connections. It is designed for tunable-white LED tape and supports 2700K, 3000K, 3500K, 4000K, and 5000K selection, with 5-in-1 dimming compatibility including TRIAC, ELV, MLV, 0-10V, 1-10V, potentiometer, and 10V PWM. It is specifically positioned for use with Lotus 5CCT tape only, including LBL-COB-TW5CCT-IP20.
Key Features
- Advanced 5-in-1 dimming compatibility with TRIAC, ELV, MLV, 0-10V, 1-10V, potentiometer, and 10V PWM systems.
- 5CCT selectable output with field adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Built-in wiring chambers keep line- and low-voltage connections organized for professional installations.
- Universal 120V-277V AC input for residential and commercial projects.
- Rated for dry, damp, and wet locations.
Technical Specifications
- Input Voltage: 120V - 277V AC
- Output: 24V DC / 4A
- Power Rating: 96W
- Load Range: 9W minimum to 96W maximum
- CCT Options: 2700K / 3000K / 3500K / 4000K / 5000K
- Efficiency: 89% @ 120V / 91% @ 277V at full load
- Power Factor: > 0.95 at full load
- PWM Frequency: 16 KHz
- Approved Locations: Dry, Damp, and Wet Locations
- Operating Temperature: -40°F (-40°C) to +122°F (+50°C)
- Warranty: 5 Year
