SimplyTEST LanTEK IV-S 3000MHz Cable Certifier — Cat8/Class I with PL/CH Adapters | ST-163009
SimplyTEST LanTEK IV-S 3000MHz Cable Certifier — Cat8/Class I with PL/CH Adapters | ST-163009
Available to order — ships from incoming stock
Typically ships in 3–6 Business Days (Western Canada) · 4–8 Business Days (Eastern Canada)
SKU:ST-163009
SimplyTEST LanTEK IV-S 3000MHz Cable Certifier with PL/CH Adapters — ST-163009
The ST-163009 LanTEK IV-S 3000MHz is SimplyTEST's highest-performance copper cable certifier — capable of certifying Cat8/Class I cabling to 2000MHz for 25GBaseT and 40GBaseT applications. Designed for Canadian data centres, hyperscale colocation facilities, hospital core switching infrastructure, and enterprise campuses deploying next-generation high-density copper connectivity.

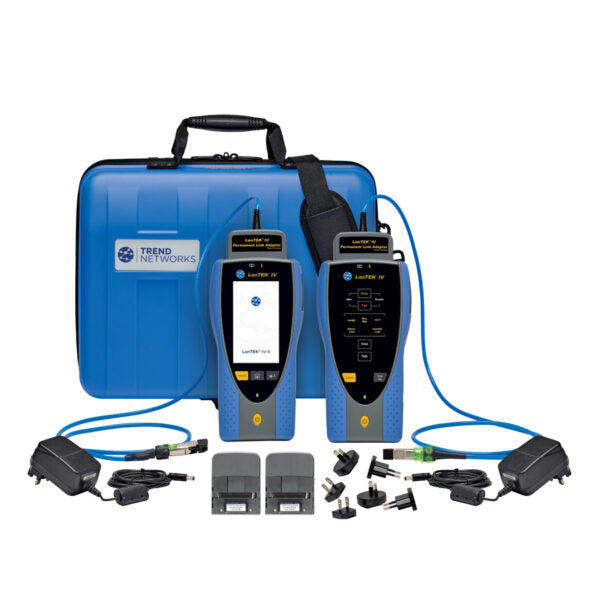

What's Included
- LanTEK IV-S 3000MHz main unit with touchscreen
- LanTEK IV-S remote unit
- Permanent Link (PL) adapters
- Channel (CH) adapters
- Carrying case
- Power supply and cables
Cat8 Certification for Canadian Data Centres
Cat8 cabling (ISO/IEC 11801 Class I/II) is the infrastructure standard for 25G and 40G top-of-rack switch connectivity in modern Canadian data centres and dense compute environments. Certifying Cat8 to 2000MHz requires a 3000MHz-capable instrument — only the LanTEK IV-S 3000MHz and comparable Fluke DSX-8000 class instruments can perform this test. The ST-163009 delivers this capability at a competitive Canadian price point.
Technical Specifications
| Part Number | ST-163009 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Bandwidth | 3000MHz |
| Cable Standards | Cat5e, Cat6, Cat6A, Cat7, Cat7A, Cat8 UTP/STP |
| Certification | ANSI/TIA 568.2-D, ISO/IEC 11801 Class E/Ea/F/FA/I/II |
| Application Standards | 10GBaseT, 25GBaseT, 40GBaseT |
| Adapters Included | Permanent Link (PL) + Channel (CH) |
| Interface | Touchscreen |
| Sapphire Care Plan | Available separately (ST-SCP1YR / ST-SCP2YR / ST-SCP3YR) |
| Country of Origin | Malaysia |
| UPC | 810093721115 |
| Warranty | 1 Year (extendable via Sapphire Care Plan) |
| HTS Code (Canada) | 9030.40.0000 |
Request a Quote
Contact SimplyControlled.ca for volume pricing, bundle options with Sapphire Care Plans, or to discuss your data centre certification project requirements.
Frequently Asked Questions
Do I need 3000MHz certification for a standard commercial office building?
No. Cat6A/500MHz certification (ST-163008) is sufficient for 10GBaseT commercial cabling. The 3000MHz model is required only when certifying Cat7, Cat7A, or Cat8 cabling for 25G/40G applications.
Can the ST-163009 also certify Cat5e and Cat6?
Yes. The 3000MHz model is backward-compatible with all lower cable categories.
