RENO Veil Black LED Gooseneck Sign Light | 15–25W, 5CCT, IP65

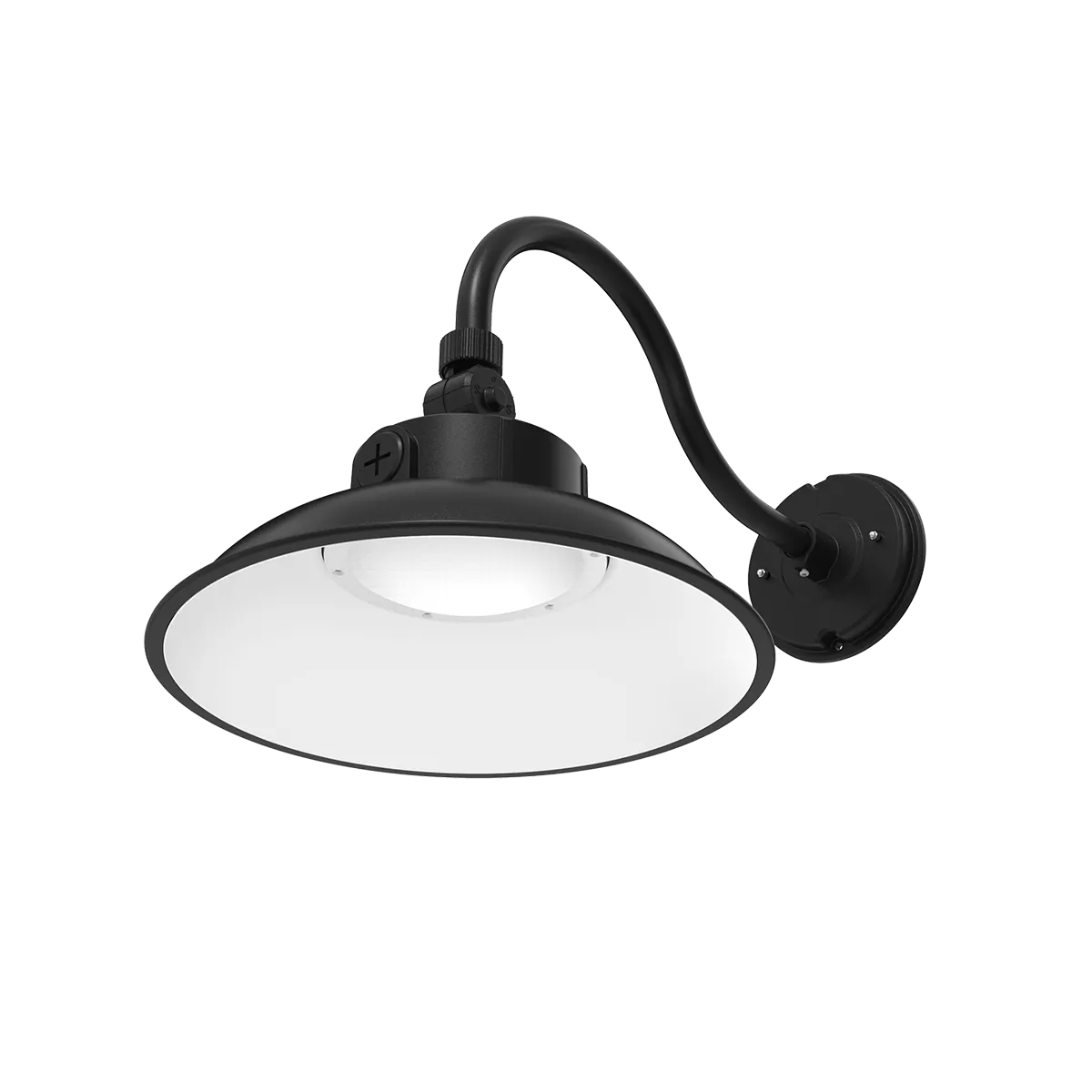

RENO Veil PRIME R51060 — fully integrated LED gooseneck architectural sign light. Black-finish, wall-mounted 120–347V luminaire with included default curved arm and straight shade, built-in configurable photocell, 0–10V dimming and selectable wattage/CCT for signage, barn, porch and patio installations.

Ordering identity and package

RENO order: R51060. MPN: RENO-GN-MW-DV-MCCT-BK. UPC: 789889311765. Sell unit: each. Carton: 1 luminaire, 15 × 15 × 10 in, packed weight 5.75 lb.

Engineering specifications

• Manufacturer and order code: RENO Lighting, Veil PRIME | R51060
• Model: RENO-GN-MW-DV-MCCT-BK
• What is included: one black gooseneck LED light with default curved arm and straight shade; mounting accessories as specified in RENO's installation instructions
• Field-selectable wattage: 15 / 20 / 25W (factory default 25W)
• Field-selectable white CCT: 2700 / 3000 / 3500 / 4000 / 5000K (factory default 5000K)
• Electrical and controls: 120–347V AC; compatible 0–10V dimming; integrated photocell with selectable on/off (factory default ON)
• Optical: CRI 80; 110° beam angle; measured 2,234.6–3,694.1 lm depending on power/CCT
• Aiming: up to 180° vertical and 360° horizontal fixture-head adjustment
• Ingress protection: IP65; mount and seal as directed for outdoor applications
• Mounting: hardwired wall-mounted gooseneck luminaire; qualified electrician required
• Operating ambient: −40°C to +45°C; rated L70 life: over 100,000 hours
• Manufacturer warranty: 5 years (subject to RENO's terms)
• Default straight-shade diameter: 301.1 mm (11.85 in); default arm projection: approximately 522.1 mm (20.6 in)

Power factor: ≥0.9. Mounting/wiring: line (black), neutral (white), protective earth (green), 0–10V DIM+ (purple) and DIM− (pink) as shown in the four-page installation guide. Disconnect and verify branch wiring before work; a licensed electrician should install. The manual describes surface/wall and junction-box mounting and shade replacement.

Manufacturer photometric output matrix

Model-specific reported fixture lumens for all 15 settings (3 selectable wattages × 5 CCT choices). The factory default is 25W / 5000K / photocell ON. Efficacy depends on the actual wattage and CCT: 158.0 lm/W at 15W/5000K, versus 147.8 lm/W at 25W/5000K.

Consult the measured photometric table for the specified wattage and colour temperature. Verify critical project dimensions with RENO before final installation.

Mechanical configuration and system options

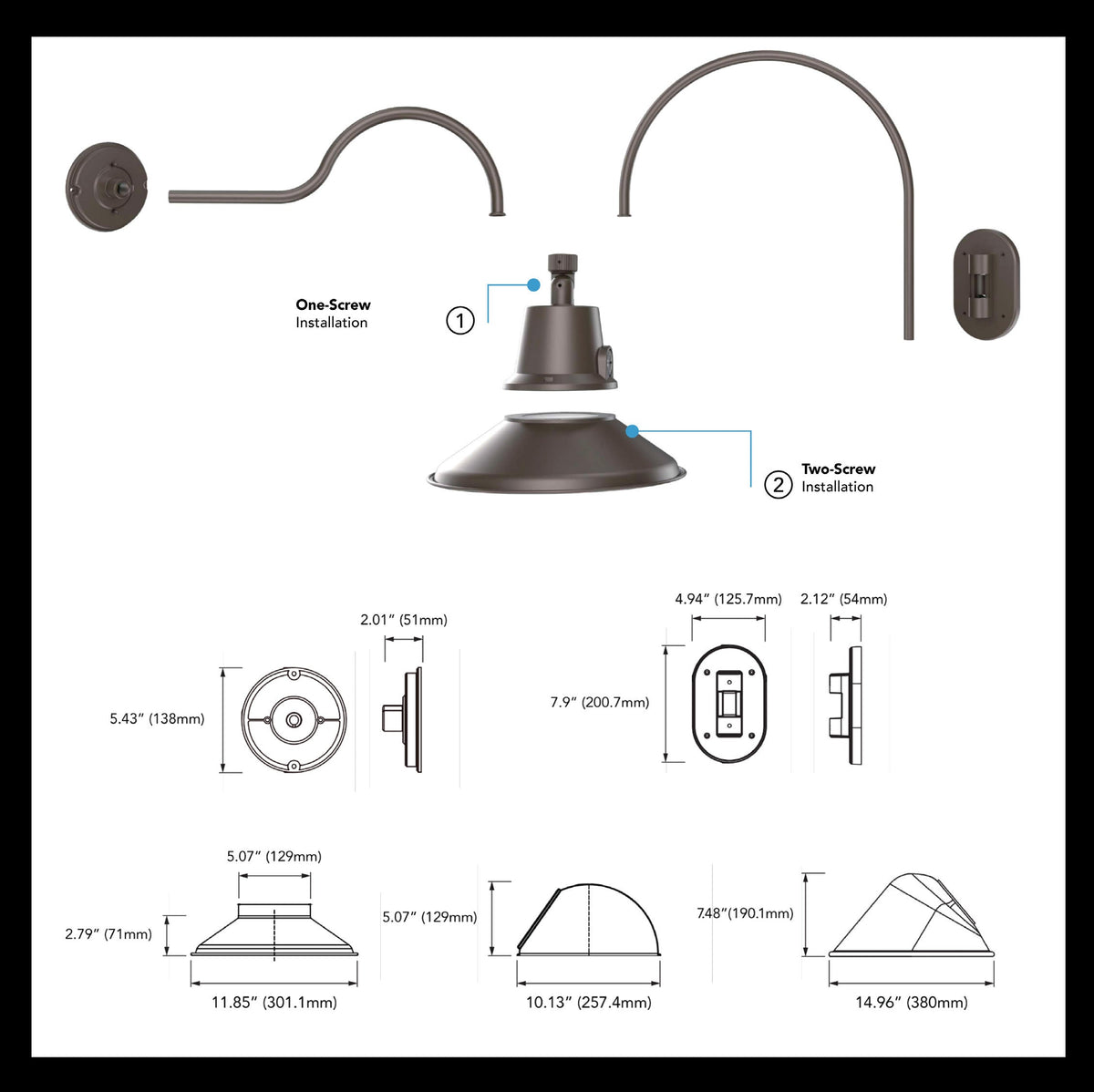

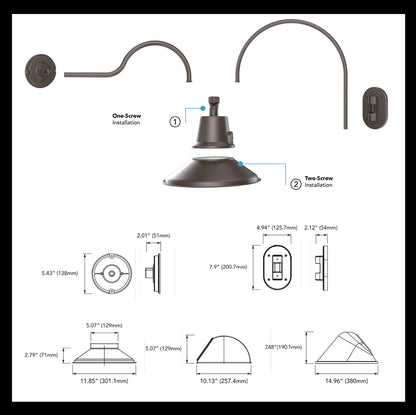

Standard arm projection approximately 522.1 mm (20.6 in), standard straight shade diameter 301.1 mm (11.85 in). Adjustable lamp head provides up to 180° vertical tilt and 360° horizontal rotation. Alternative shade geometry changes fixture envelope and light direction; confirm installed arm/shade and junction box clearance before final submittal.

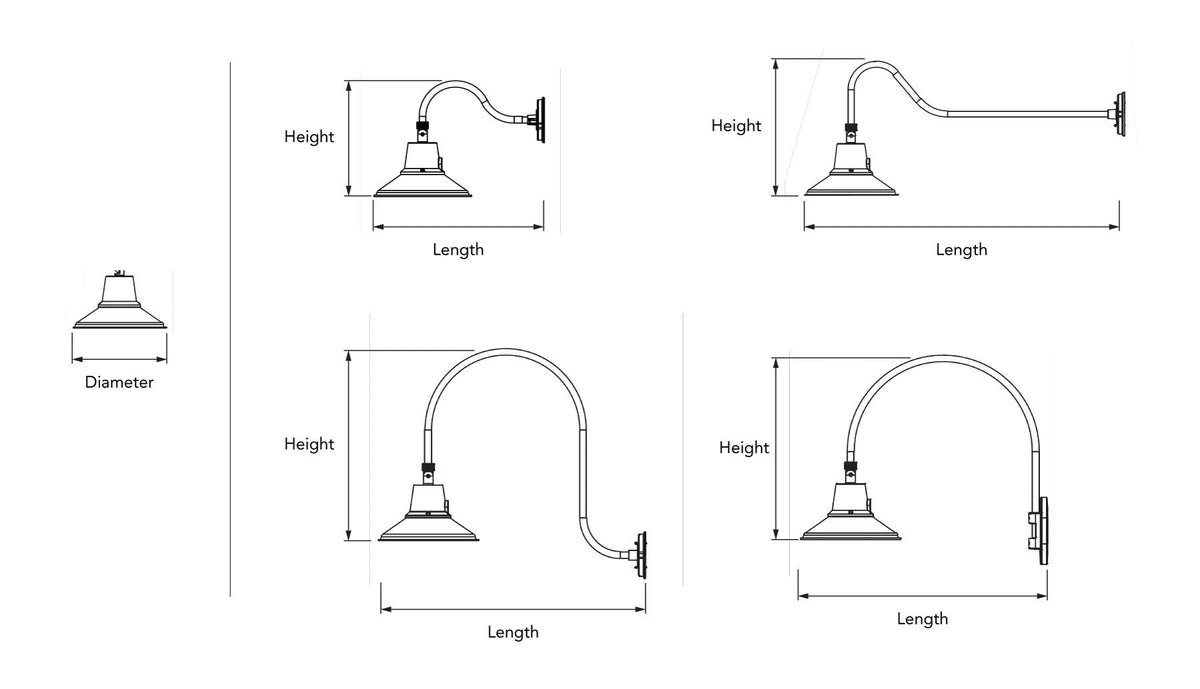

Compatible separately ordered shades and arms

• R59060 / RENO-GN-ACS-BK: black angled cone shade (optional; Ø257.4 mm)
• R59061 / RENO-GN-ADS-BK: black angled dome shade (optional; Ø380 mm)
• R59062 / RENO-GN-GOOSE2-BK: alternative GOOSE2 curved arm
• R59063 / RENO-GN-GOOSE3-BK: alternative GOOSE3 curved arm
• R59064 / RENO-GN-GOOSE4-BK: alternative GOOSE4 curved arm

These are separately ordered physical accessories—not additional colour, wattage or CCT variants. Confirm the desired arm/shade combination before installation. Accessory pages may be unavailable until published.

Installation, photocell and dimming

The supplied guide shows a dedicated photocell ON/OFF switch and separate field controls for wattage and CCT. Photocell defaults to ON. For a 0–10V installation, provide compatible controls and conductors; do not substitute line-voltage phase-cut dimming without manufacturer approval. Install, ground and seal in accordance with the instructions and electrical codes. RENO states a −40°C to +45°C ambient operating range and an IP65 enclosure rating.

IES files, submittal documentation and limitations

Consult the manufacturer's R51060 product page for the specification sheet, installation manual and IES photometric files. The supplied IES archive contains all 15 wattage × CCT combinations; use the appropriate file for project-specific lighting calculations.

Photometric files were supplied for all 15 combinations. Luminaire output in a real application depends on geometry, aiming, mounting conditions and surroundings; avoid using a single simulated foot-candle figure as a universal illumination guarantee.

Technical references: RENO Veil specification sheet, installation instructions and manufacturer photometric files.
