RENO Vangard 8-inch Round Guard LED Bulkhead | IP65, 9–15W

RENO Vangard PRIME R51082/R51083 — 8-inch round-guard wet-location LED bulkhead. Two finish variants share a common 9/12/15W, 3000/4000/5000K electrical platform with integrated photocell, IP65 housing, 120–347V input and 0–10V dimming. Specify the bronze or white finish by manufacturer SKU; do not model power/CCT settings as separate purchase variants.

Finish-specific order codes

Electrical and mechanical specifications

• Manufacturer: RENO Lighting; Vangard PRIME Series, 8-inch round guard bulkhead

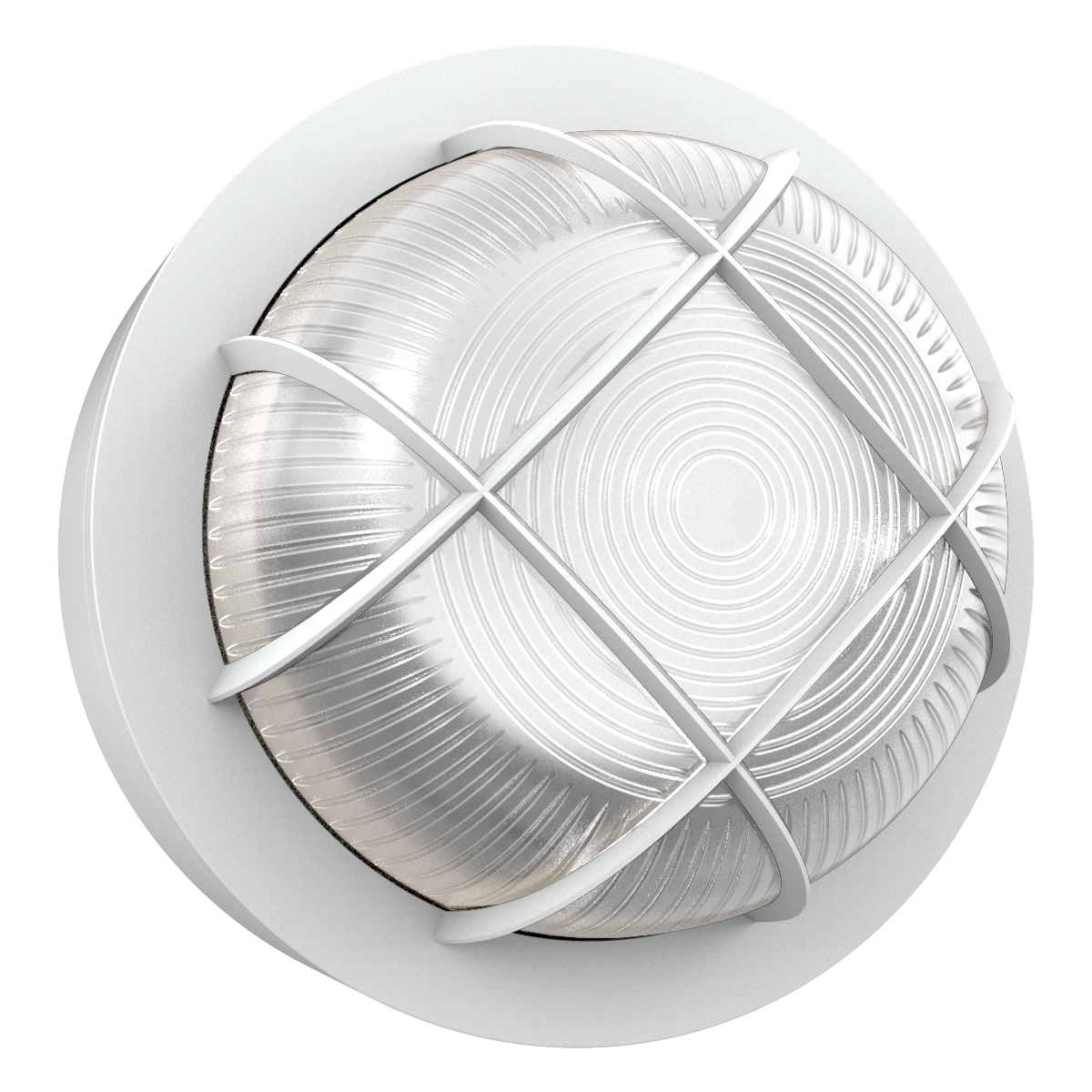

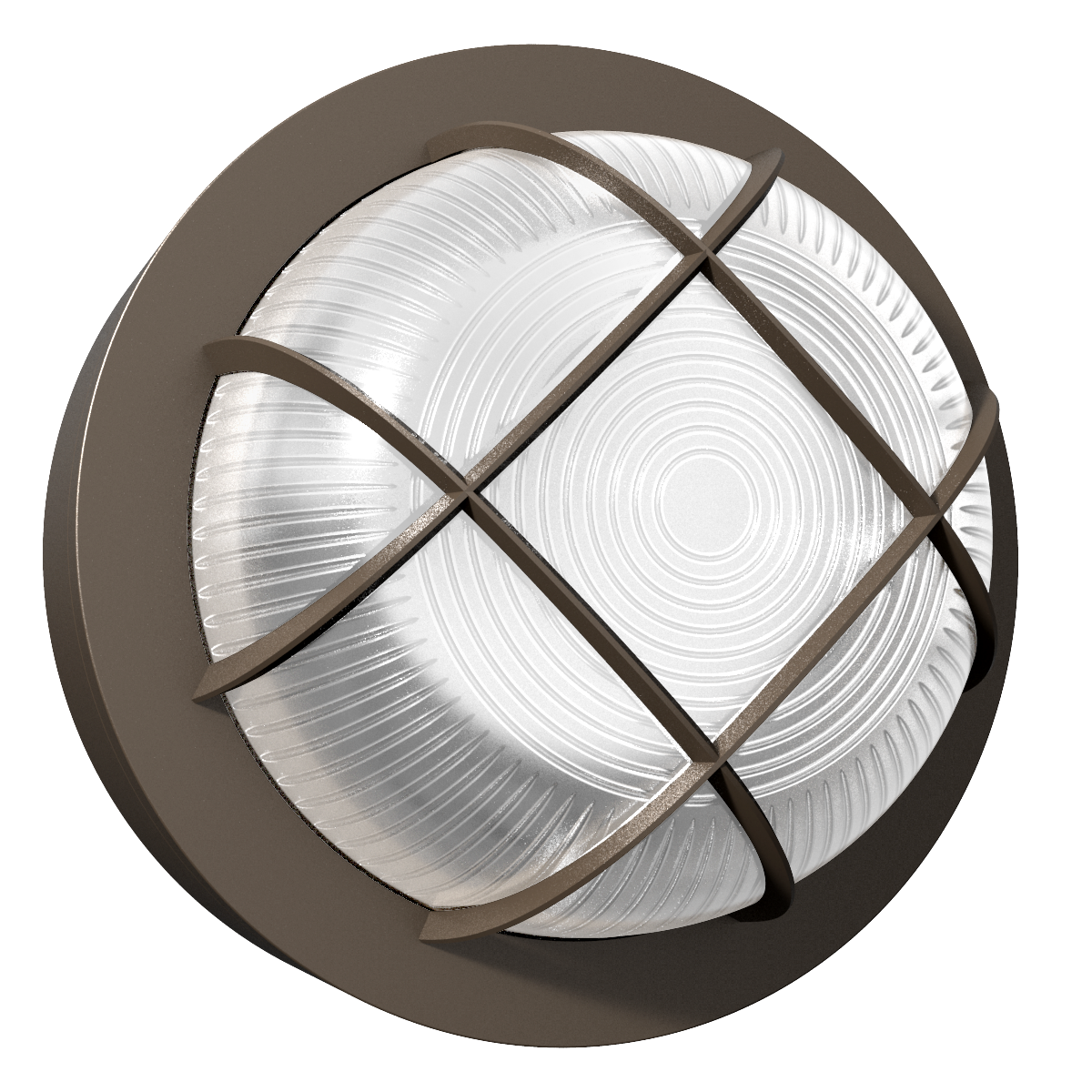

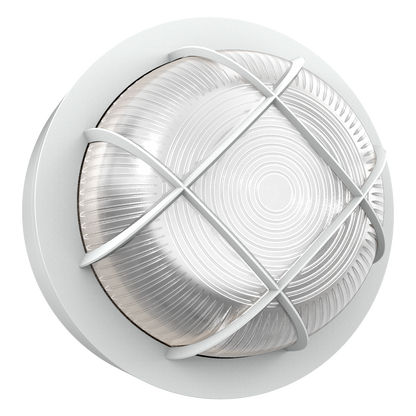

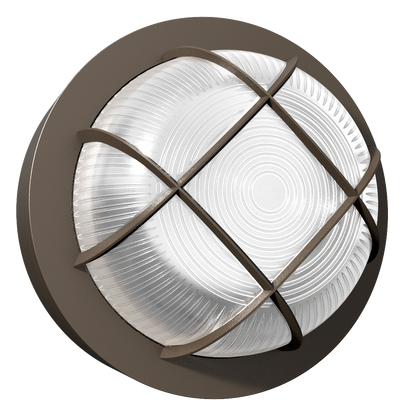

• Models: R51082 / RENO-RGB8-MW-MCCT-BRN (Bronze); R51083 / RENO-RGB8-MW-MCCT-WH (White)
• Wattage: 9W, 12W or 15W selectable; 15W default
• Colour temperature: 3000K, 4000K or 5000K selectable; 5000K default
• Power: 120–347V AC hardwired; 0–10V dimming with compatible controls; integrated DC photocell with independent ON/OFF switch (default ON)

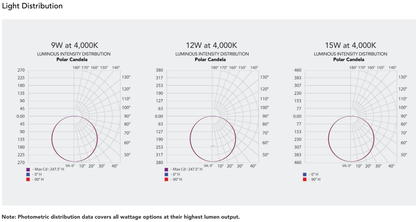

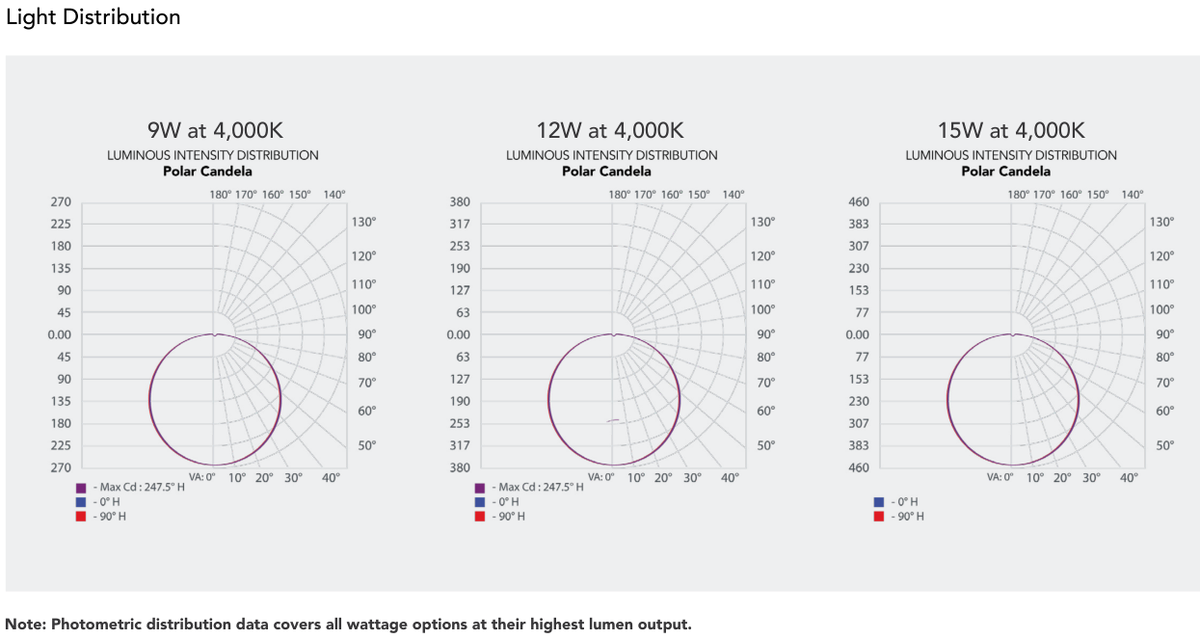

• Optics: 80 CRI; 130° beam; up to 1,632.7 lumens (15W / 4000K)

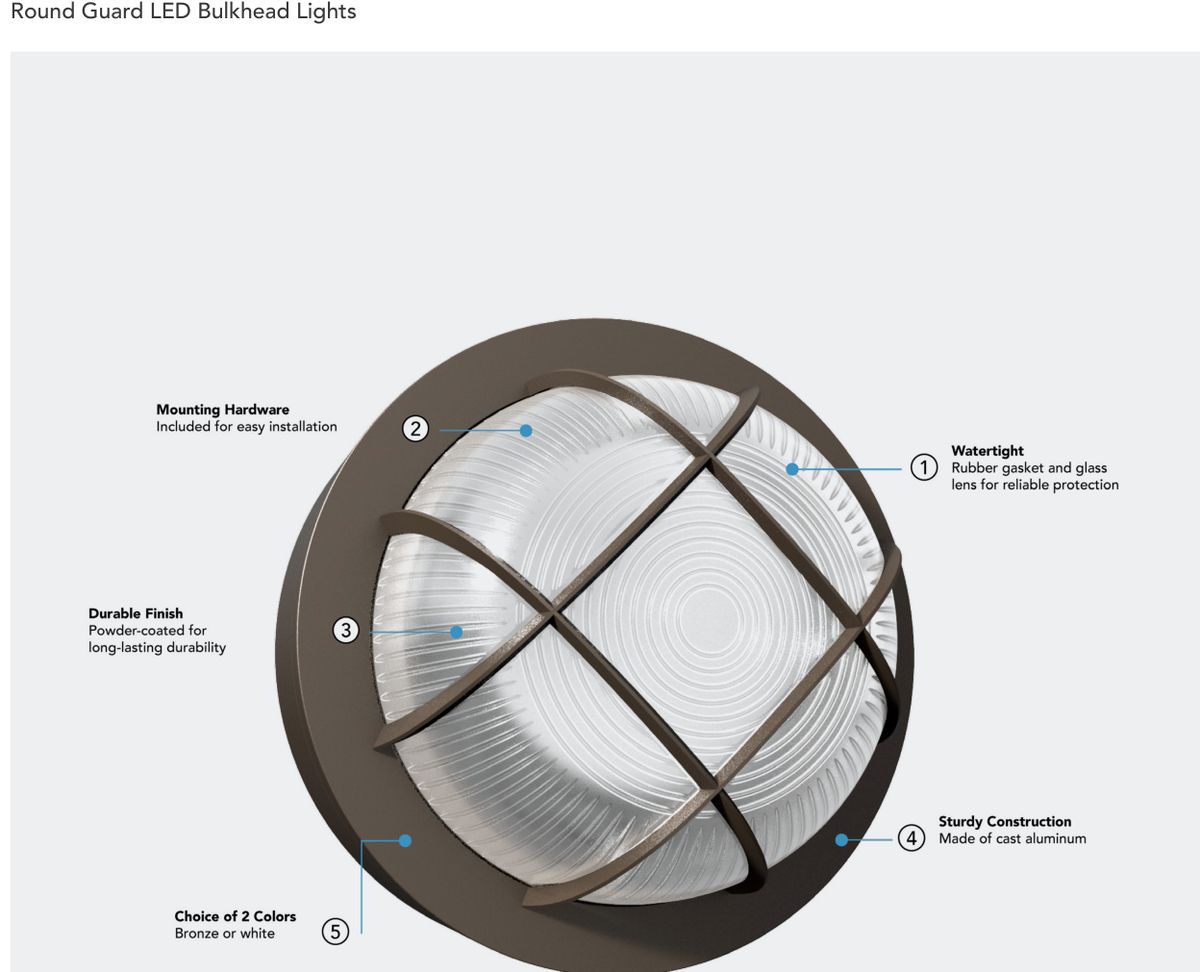

• Weather protection: IP65, wet-location suitable when correctly installed; glass lens and watertight rubber gasket
• Body: powder-coated die-cast aluminum; integral round protective guard

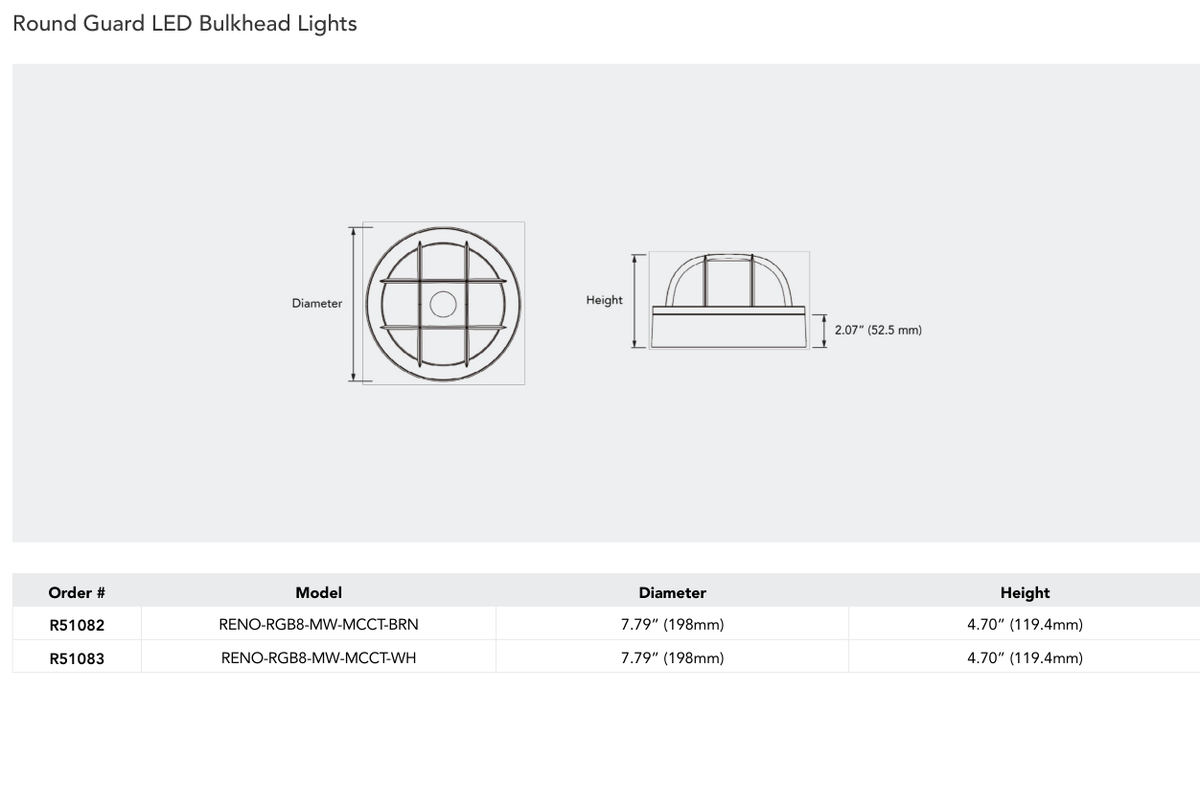

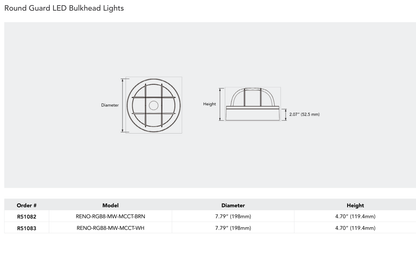

• Actual dimensions: Ø198 mm (7.79 inches), overall height 119.4 mm (4.70 inches); nominal size 8 inches
• Rated ambient: −40°C to +45°C; L70 rated approximately 100,000 operating hours
• Power quality: power factor >0.9; THD ≤20%
• Mounting: wall-mounted junction-box installation; qualified electrician; mounting hardware supplied
• Warranty: 10-year limited RENO manufacturer warranty, subject to manufacturer terms

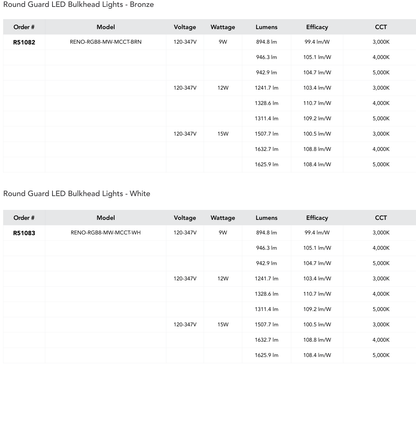

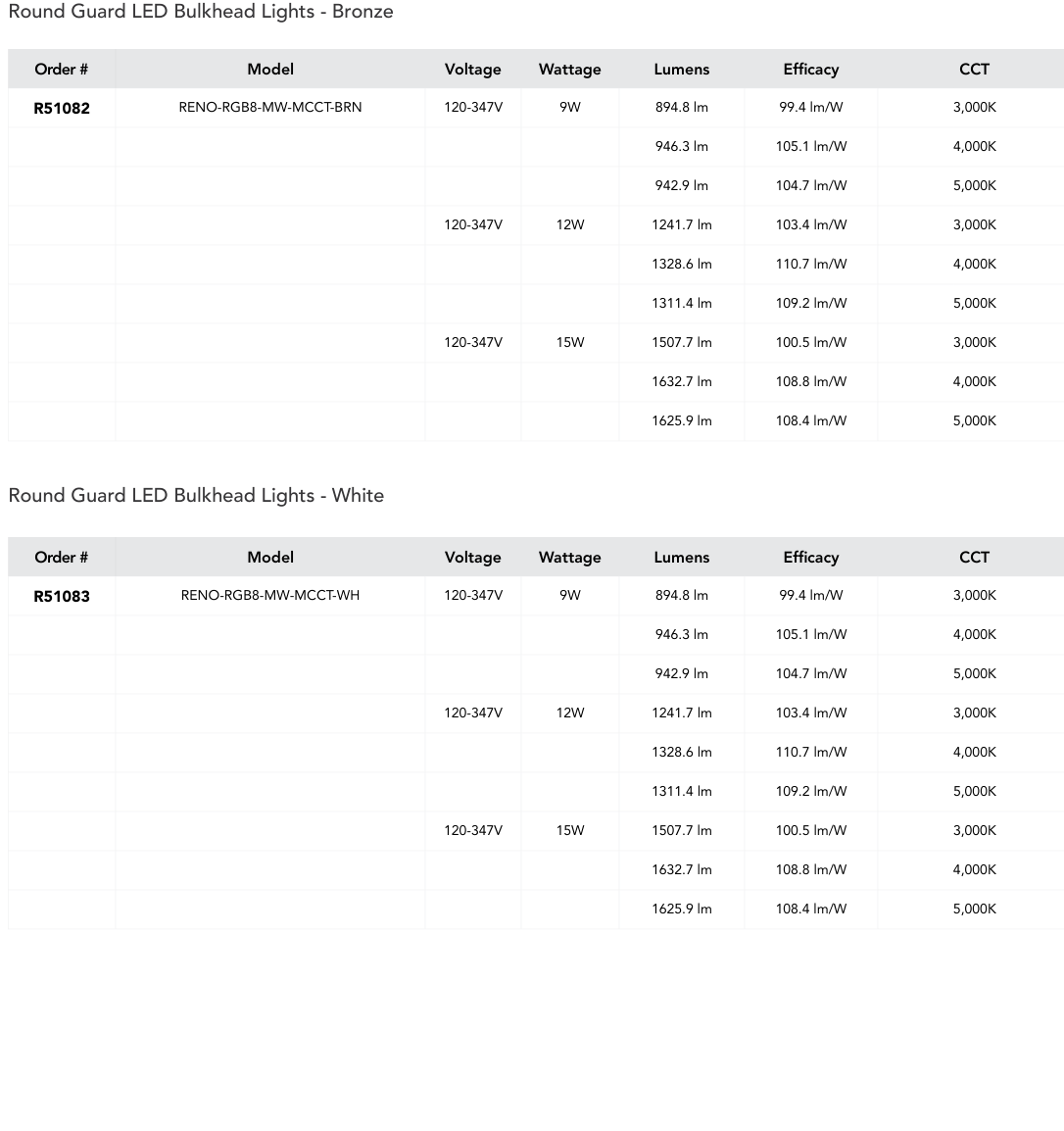

Manufacturer-measured luminous flux — both finishes

The manufacturer's sheet gives identical lumen values for Bronze and White. The maximum measured output is 1,632.7 lm at 15W/4000K; factory default 15W/5000K is 1,625.9 lm.

Installation and control notes

Wall mounting to a suitable junction box is shown in the official installation guide. Wiring colours: black line, white neutral, green ground, purple 0–10V Dim+ and pink Dim−. Guide-specified screw torques: 1 Nm for bracket attachment and 6 Nm for the two M6 locking set screws. The guide illustrates a safety tether; follow its complete instructions and local electrical codes rather than using this summary as a substitute. Photocell has its own ON/OFF DIP switch, separate from wattage and CCT controls. Only qualified electrical installers should perform the work.

Stock, packaging and fulfilment

Sold individually. Shipping and project lead times are confirmed at order placement.

Application suitability

Appropriate manufacturer applications include cabins, porches, patios, decks, utility rooms, storerooms, docks and boathouses. IP65 rating does not establish immersion tolerance or independent salt-fog/corrosion certification. The model is not equivalent to the larger 12-inch R51087 bulkhead; verify actual diameter, electrical output and mount location before substitution.

Frequently asked technical questions

Are wattage and colour temperature separate products?

No. Both R51082 and R51083 offer all nine field-selectable light-output combinations within each finish. Choose Bronze or White when buying; an electrician sets the wattage and CCT on the unit.

Does it have dusk-to-dawn automatic control?

Yes. An integrated DC photocell is switched ON by default and may be disabled with its separate DIP switch, as illustrated in the manufacturer's installation guide.

Can this be installed by a dock or boathouse?

RENO lists docks and boathouses among intended applications and rates the housing IP65 for wet locations. That does not certify the fixture for submersion, saltwater exposure or marine corrosion resistance; confirm any special coastal or salt-spray requirements with the manufacturer and installer.

What kind of dimmer can I use?

RENO specifies 0–10V dimming. Use compatible 0–10V controls; do not assume compatibility with a standard phase-cut/TRIAC wall dimmer.

What is the physical diameter?

“8-inch” is the nominal product family name. The manufacturer's measured diameter is 7.79 inches (198 mm) and total fixture height is 4.70 inches (119.4 mm).

Manufacturer files and IES photometrics

For model-specific documents, see the RENO R51082 manufacturer page and RENO's marine-light family listing (including R51083 white). The supplied five-page specification and two-page installation guide cover both finishes, alongside nine IES files for the 3 wattage × 3 CCT settings. Consult the latest official documents and the appropriate IES file for each lighting calculation.

Specification basis: RENO 5-page Vangard R51082/R51083 technical sheet, 2-page shared installation guide, and 9 IES files. Manufacturer requirements and final site selection govern.
