RENO Vanguard 12-inch Bronze LED Bulkhead | IP65, 24–40W

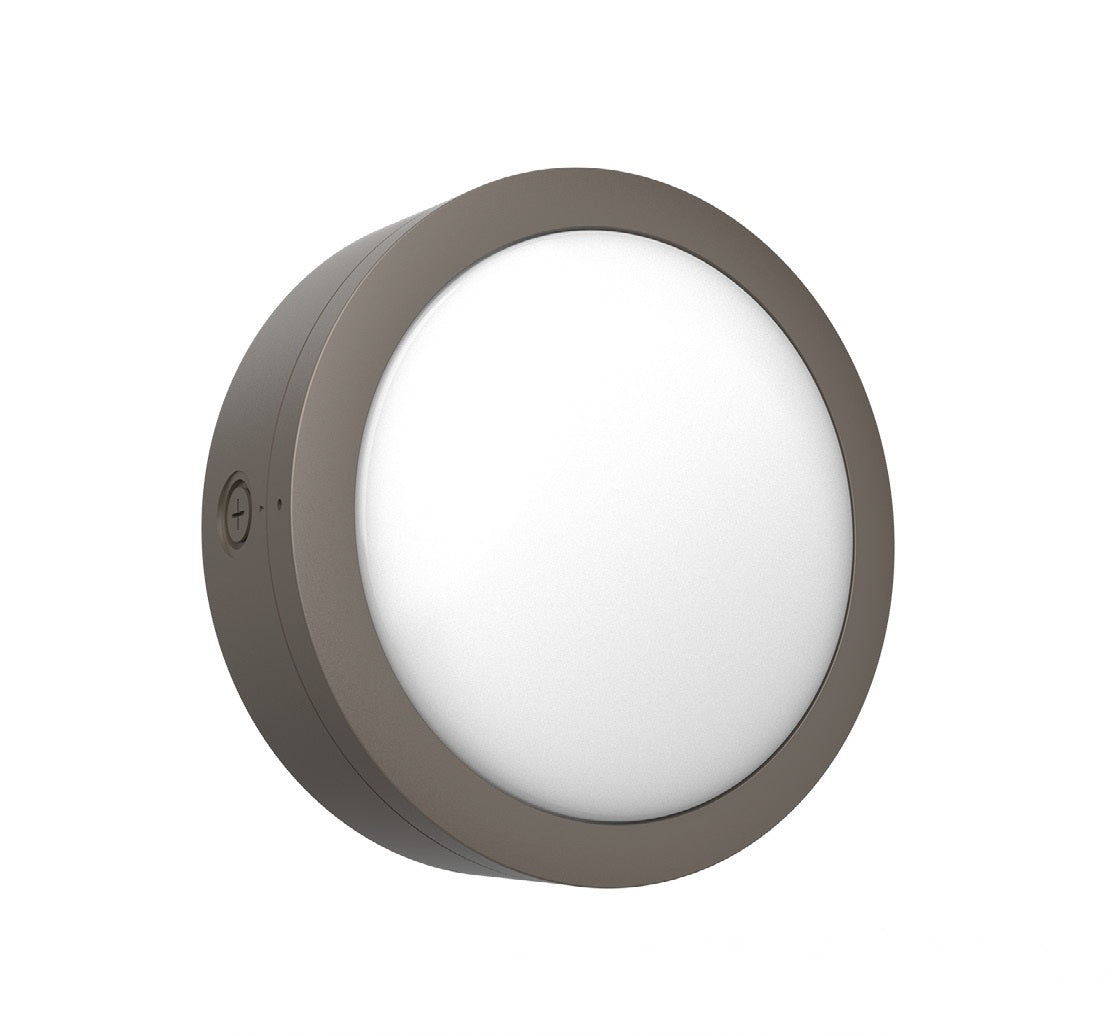

RENO Vanguard / Vangard PRIME — R51087. 12-inch bronze round-guard LED bulkhead luminaire for wet-location commercial, exterior, utility and marine-style installations. Specifications and photometric information apply to RENO-RB12-MW-MCCT-BRN, not the adjacent 8-inch Vangard models.

Engineering and project fit

• Manufacturer part: R51087 / RENO-RB12-MW-MCCT-BRN (one bronze fixture per order)
• Series: Vanguard (also printed Vangard in RENO technical documents)
• Field-selectable wattage: 24 / 32 / 40W (40W factory default)
• Field-selectable colour temperature: 3000 / 4000 / 5000K (5000K factory default)
• Output: 2,818.4–4,860.7 lumens, depending on selected wattage and CCT
• Voltage: 120–347V AC; dimming: 0–10V (compatible control required)
• Integrated photocell: DC photocell with separate DIP ON/OFF switch
• Protection: IP65, manufacturer wet-location rated; not for immersion
• Optics: 110° beam angle, CRI 80, sealed polycarbonate lens

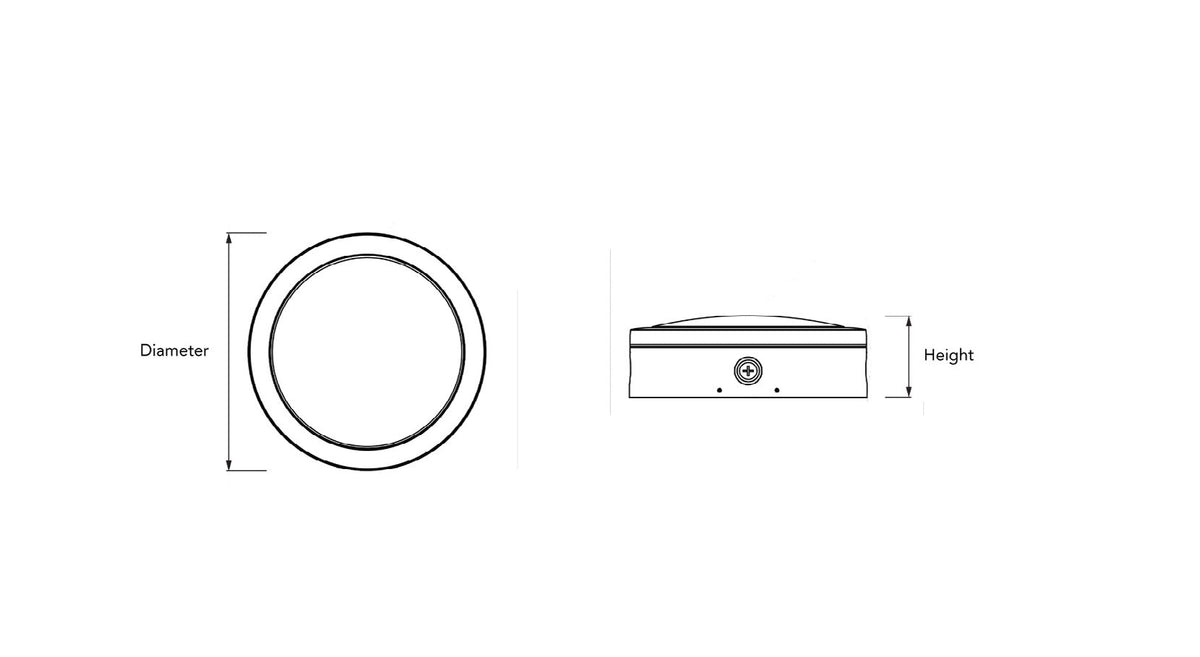

• Dimensions: 302.2 mm (11.88 in) diameter × 103.9 mm (4.06 in) depth
• Housing: bronze powder-coated cast aluminum with rubber seal
• Mounting: wall or ceiling, hardwired; mounting hardware included
• Operating ambient: −40°C to +45°C
• Rated life: L70 approximately 100,000 hours; warranty: 10-year limited manufacturer warranty

Power factor: ≥0.9; THD: ≤20%. Factory-default 40W/5000K. Integrated DC photocell can be enabled or disabled independently of 0–10V dimming control.

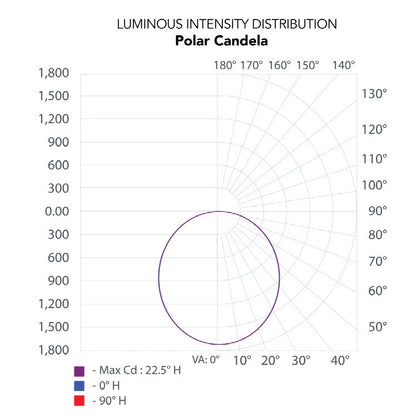

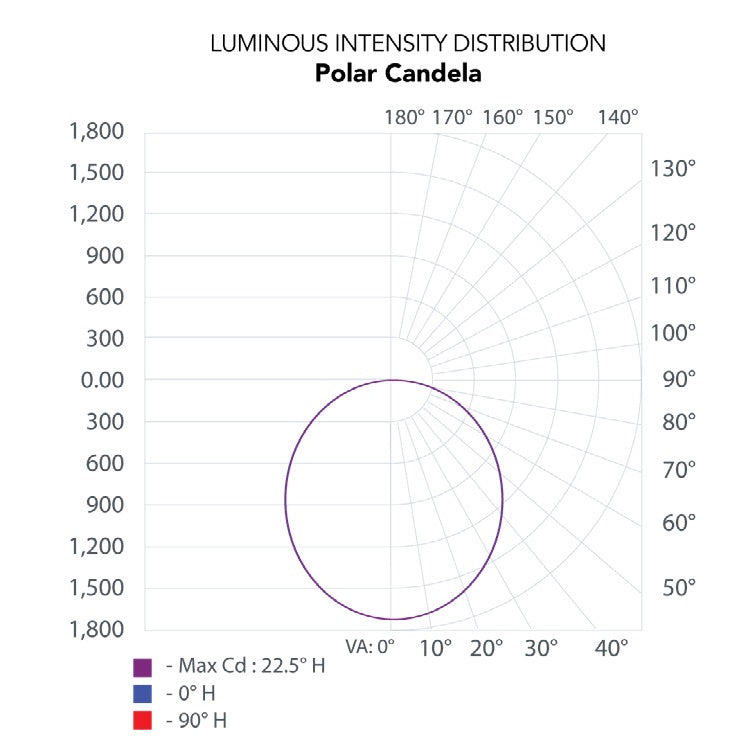

Manufacturer-tested lumen output by setting

Photometric clarification: The highest measured output is 4,860.7 lm at 40W / 4000K. At the factory-default 40W / 5000K setting, measured output is 4,750.4 lm. Changing power or CCT changes lumen output; this remains one SKU with field-adjustable settings, not nine separately sold variants.

Mounting, sealing and controls

RENO's installation guide requires installation by a licensed electrician, disconnecting supply before service, use of a suitable junction box/mounting bracket or documented conduit method and caulking around the mounting surface on all sides. Bracket screws and locking set screws have manufacturer-specified tightening torques; follow the supplied manual rather than treating this overview as instructions. Connections include line, neutral, ground, 0–10V Dim+ and Dim−. The internal DIP switches configure 24/32/40W, 3000/4000/5000K and the photocell ON/OFF setting.

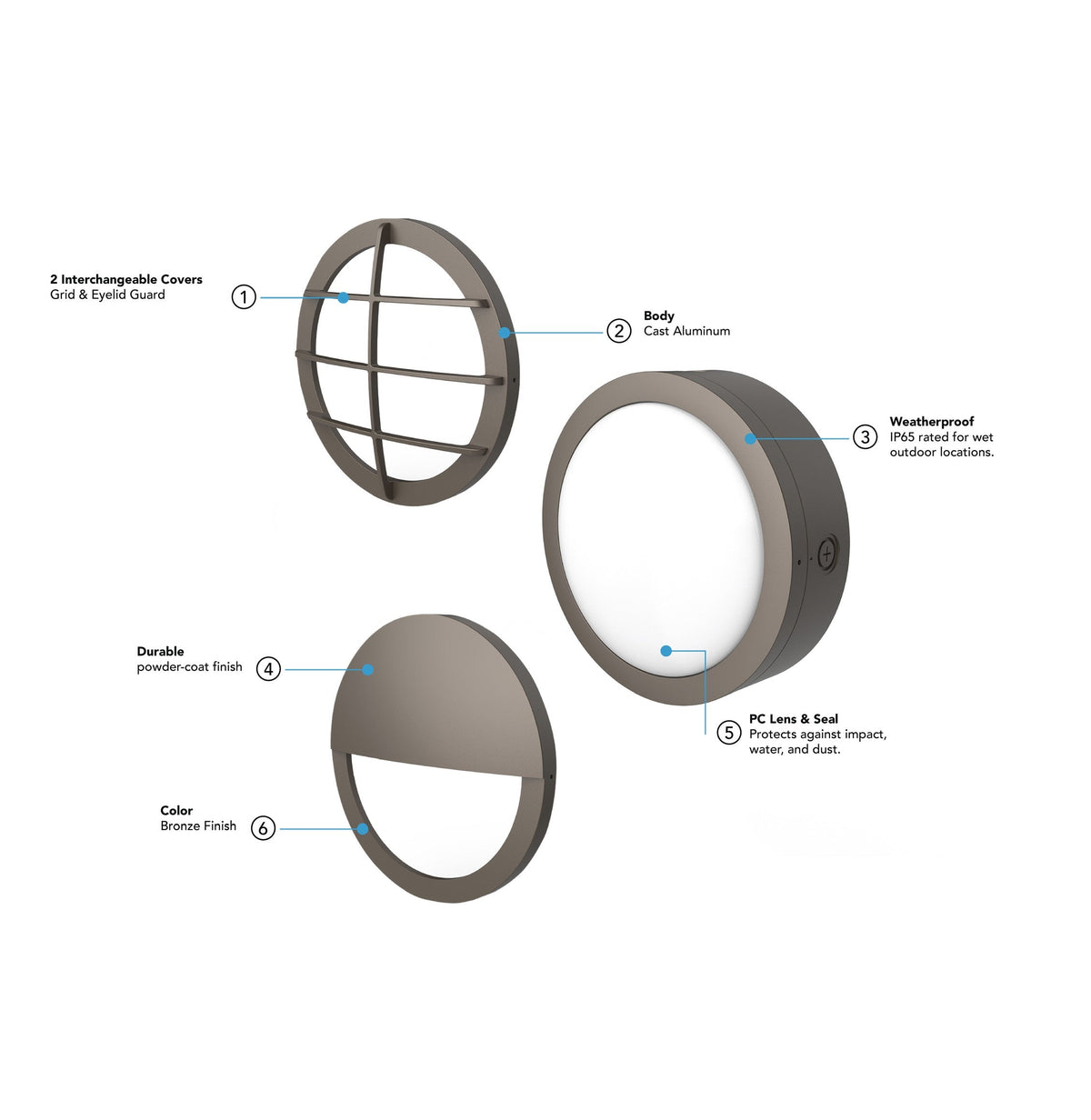

Optional matching guard covers

• R59070 / RENO-RB12-EG-BRN: 12-inch bronze eyelid guard
• R59071 / RENO-RB12-GG-BRN: 12-inch bronze grid guard

Matching guard options are shown in the manufacturer documentation. Neither guard is included in the base R51087 fixture. Contact us regarding the appropriate separately ordered guard.

Manufacturer documentation and photometric data

Manufacturer documentation for this exact model includes a five-page specification sheet with the nine-setting lumen table and a four-page installation guide covering bracket and conduit installation, electrical connections, photocell settings and DIP switch operation. IES photometric files are supplied for all nine wattage/CCT combinations. The RENO R51087 manufacturer product page offers specification, installation and IES downloads; follow current manufacturer instructions for the actual installation.

Packaging and inventory integrity

Sold individually. For project lead times, packaging and freight requirements, contact our team before ordering.

Specification FAQ

Are 24W, 32W, and 40W separate purchase options?

No. One R51087 fixture has selectable power settings. The same applies to 3000K, 4000K and 5000K colour temperatures; installers select the settings using internal DIP switches.

Does it include a photocell?

Yes, RENO specifies a built-in DC photocell with its own ON/OFF DIP switch. It does not need a separately purchased photocell for the built-in feature.

Can I dim it with a standard wall dimmer?

Not by assumption. The fixture specifies 0–10V dimming, requiring a compatible 0–10V control setup and qualified installation.

Is an eyelid guard or grille supplied?

No. The standard listed R51087 fixture is guard-free. Optional bronze eyelid R59070 and grid R59071 covers are separate items.

Can this be mounted outdoors by a boathouse or patio?

RENO rates R51087 IP65 for wet locations and lists boathouses, docks, decks and patios among intended uses. It is not specified for submersion, and any marine/saltwater exposure requirements beyond IP65 need separate confirmation.

Installation and wet-location suitability are subject to the manufacturer's current technical instructions and warranty terms.
