RENO STORY 30W H-Type Zoomable LED Track Head | 5CCT, 120V

RENO STORY / ARK — new R31139/R31140 30W zoomable cylinder heads. One product with separate White/Black SKU variants. This is a specified 120V H-style (Halo-compatible) track head for architectural accent, display and merchandising lighting, using field-selectable 5CCT and a mechanical 10°–60° spot-to-flood zoom ring.

Ordering matrix and identifiers

Detailed engineering specifications

• Manufacturer: RENO Lighting — STORY/ARK series zoomable 30W cylinder track head

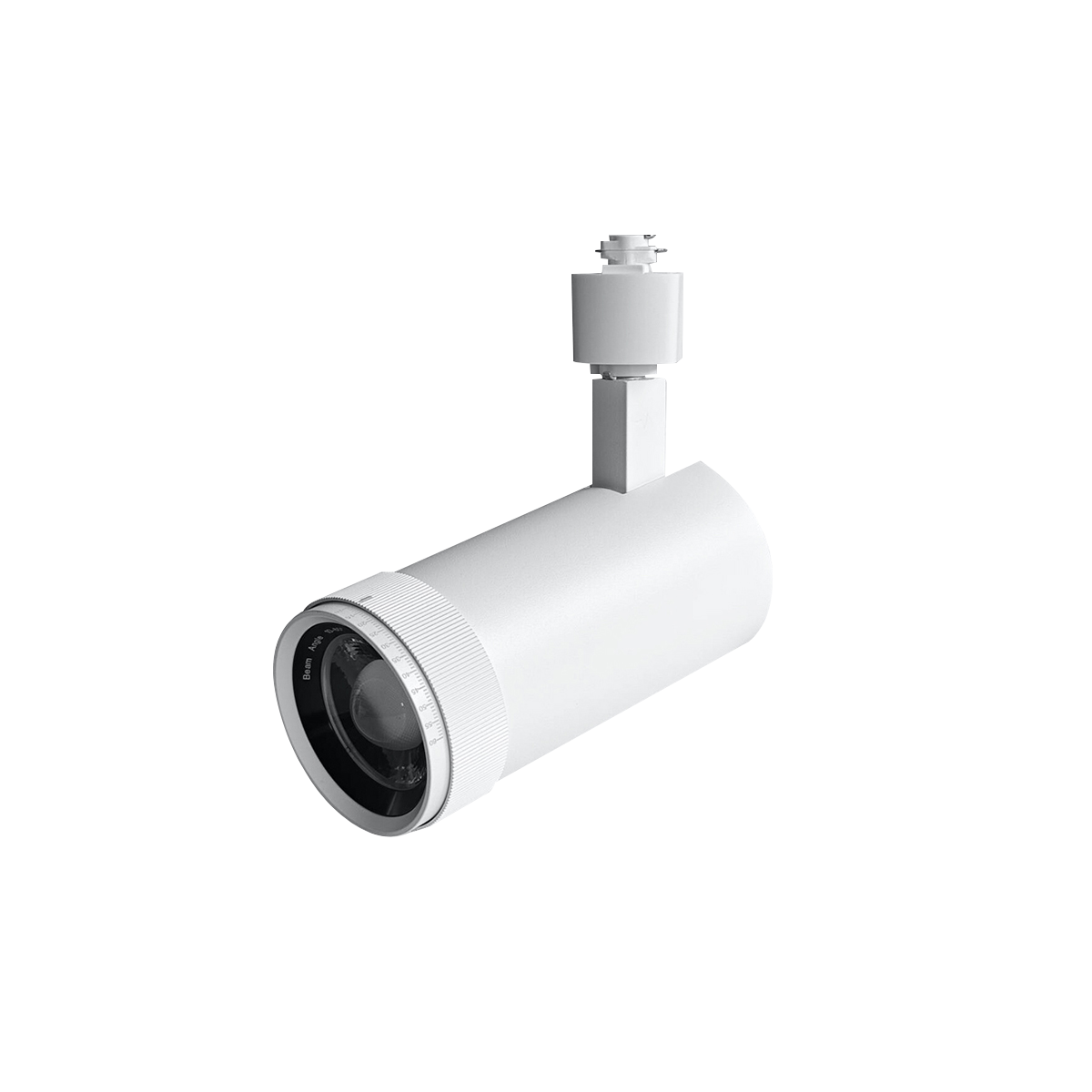

• White: R31139 / RENO-TH30W-5CCT-ADJ-HTYPE-WH; UPC 789889312151

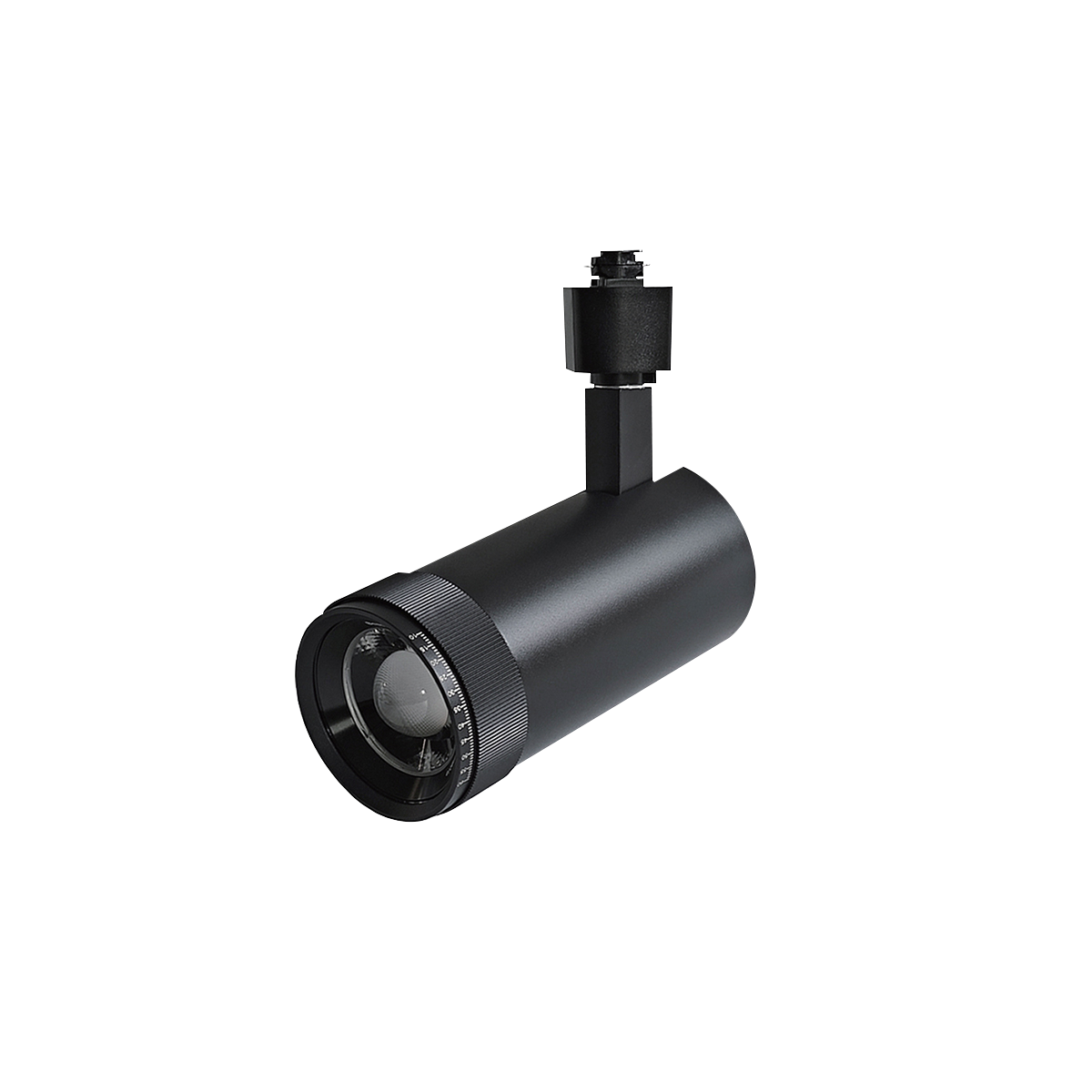

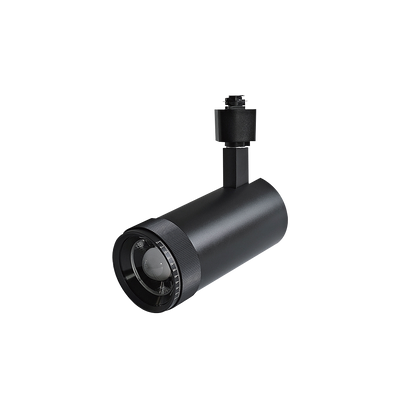

• Black: R31140 / RENO-TH30W-5CCT-ADJ-HTYPE-BK; UPC 789889312168
• Compatible track: 120V single-circuit H-type/Halo-style track as listed for these exact new SKUs by RENO; verify adapter before fitting existing systems
• Power: 30W, 120V AC, TRIAC phase-cut dimming with a compatible circuit/dimmer
• Selectable CCT: 2700 / 3000 / 3500 / 4000 / 5000K, chosen on the head prior to energizing

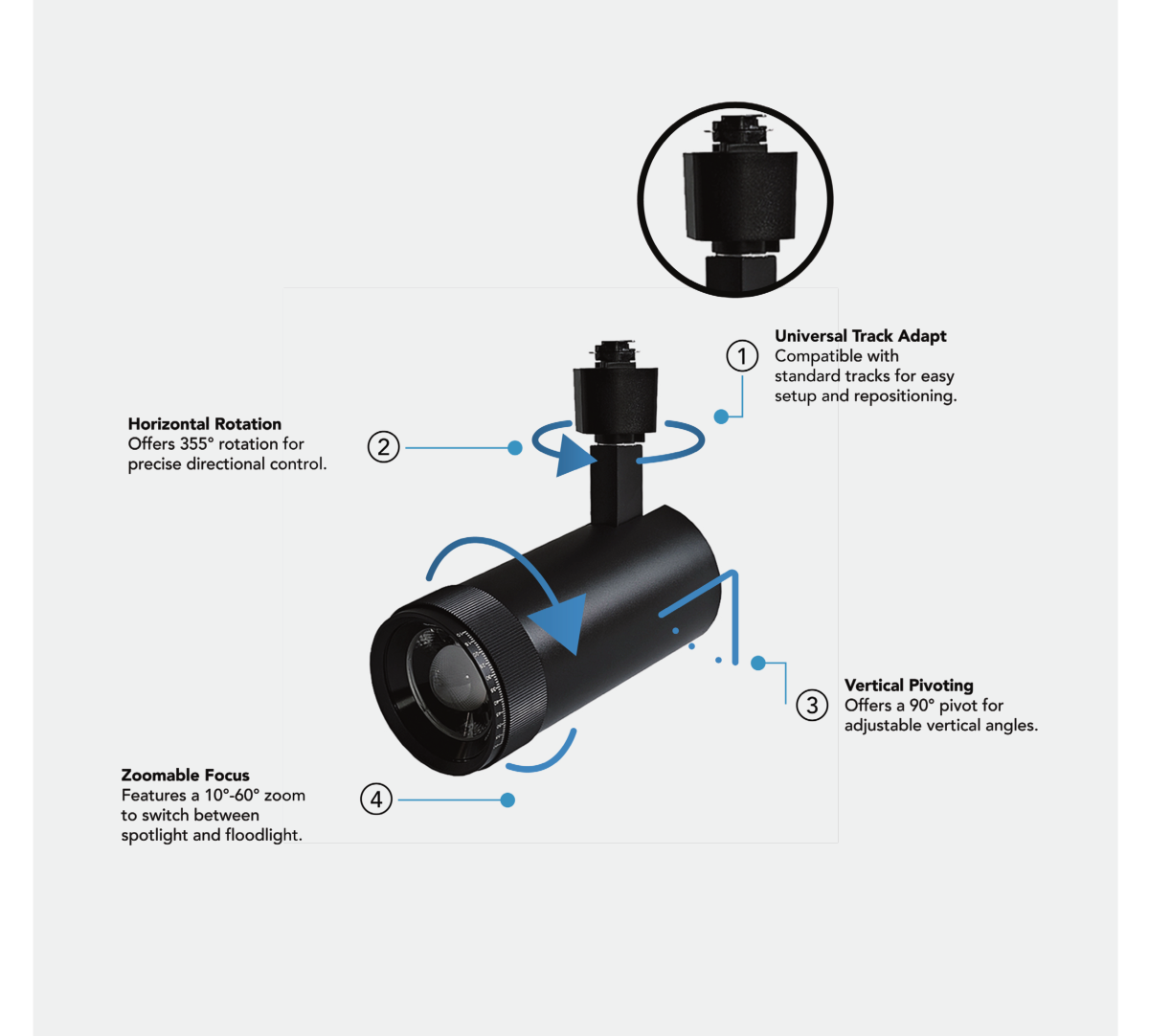

• Optical control: zoomable 10°–60° beam; 90° vertical tilt and 350° horizontal rotation per installation guide
• Colour rendering: CRI 93 (manufacturer selling specification)
• High-output performance: up to 3,216.5 fixture lumens at 30W / 5000K / 60°; different CCT and beam settings produce different flux
• Housing/optics: cold-forged aluminum with glass lens, white or black finish

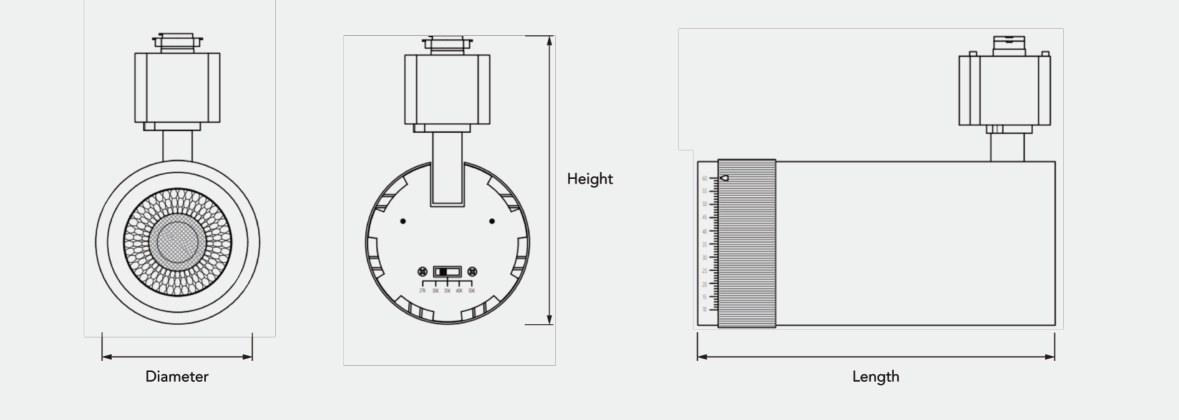

• Actual dimensions: 190 mm (7.5 in) cylinder length × 90 mm (3.5 in) diameter; approx. 244 mm (9.6 in) overall height including adapter
• Net fixture weight: 1.11 kg (2.44 lb)
• Operating ambient: −20°C to +40°C per technical sheet; indoor dry installation only
• Manufacturer life/warranty: L70 approximately 100,000 hours; 5-year limited warranty

30W photometrics — 10° spot vs 60° flood

Measured output is beam- and CCT-dependent. The manufacturer supplied ten 30W IES files: two beam endpoints × five colour-temperature selections. Values below are not intended as universal lumen output at every beam setting:

Compatibility and system BOM

Track is not included. Choose a compatible RENO STORY H-type track in your preferred finish and length: 2, 4, 6 or 8 ft. Feed kits, connectors, floating canopies and suspension accessories are separate system components. Match the track type and polarity before installation.

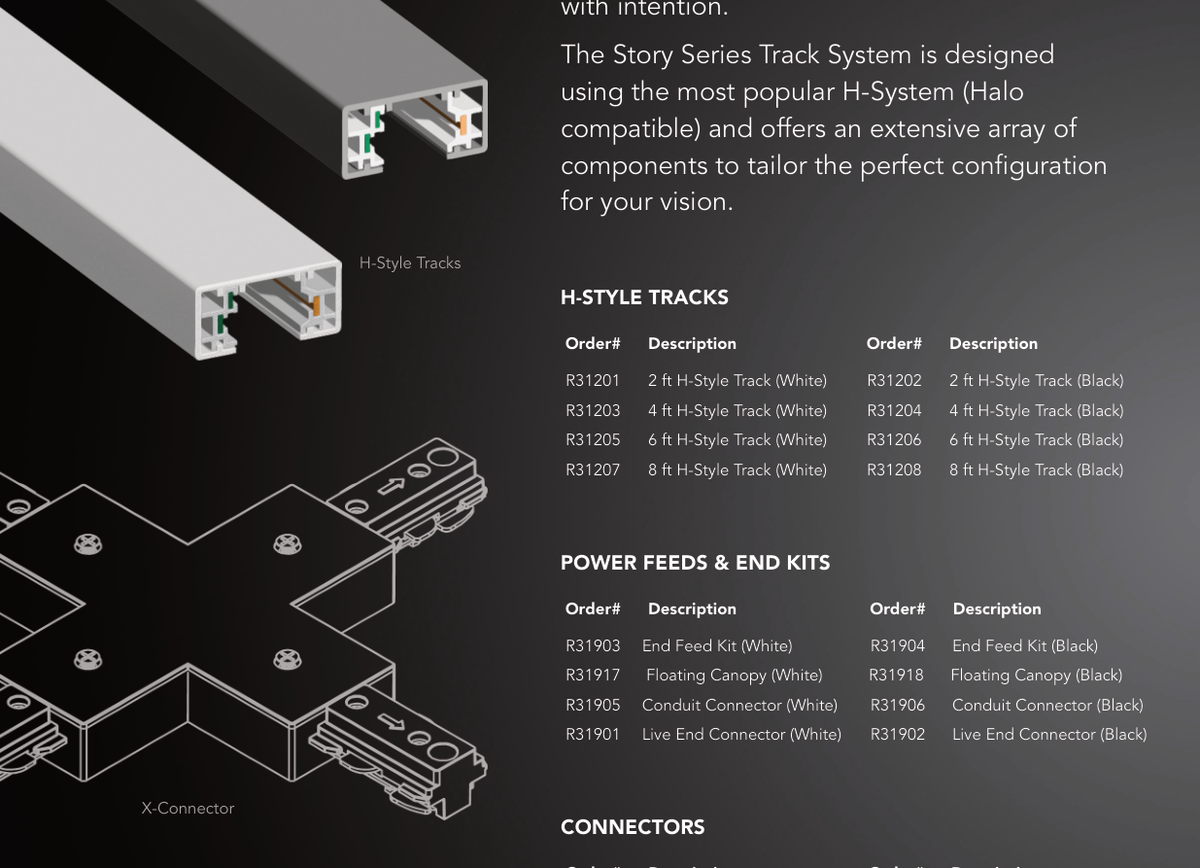

RENO STORY H-style rail ordering: 2 ft White R31201 / Black R31202; 4 ft White R31203 / Black R31204; 6 ft White R31205 / Black R31206; 8 ft White R31207 / Black R31208. Order any required end feed, floating canopy, track connector, conduit connection or suspension parts separately. A complete rail installation is not included with this head.

Installation notes

Follow the RENO installation guide for track polarity (L/N/E), secure adapter engagement, power-off CCT setting and qualified electrical installation. The diagram specifies 90° vertical tilt and 350° horizontal rotation. The product is not intended for wet locations.

Track compatibility

Confirm H-type track adapter compatibility, 120V electrical requirements and appropriate TRIAC dimmer with RENO before installation. J-type and L-type adapters are not interchangeable.

Older 30W STORY H-type heads: keep separate

R31313 / R31314 (RENO-TH30W-5CCT-ADJ-WH / BK) are earlier existing 30W STORY heads from an earlier model series. R31139 / R31140 are separate new SKUs. They are not automatically interchangeable, and no supersession is asserted.

Technical documentation and IES files

RENO R31139 model page provides manufacturer documents. The supplied 4-page specification sheet reports 10° and 60° measured photometry and dimensions; the shared 1-page installer guide and 10 IES files cover the two finishes. Confirm adapter family and electrical nameplate with RENO for final submittals.

Packaging and fulfilment

Sold individually. Contact us for shipping and lead-time arrangements.
