RENO STORY 20W H-Type Zoomable LED Track Head

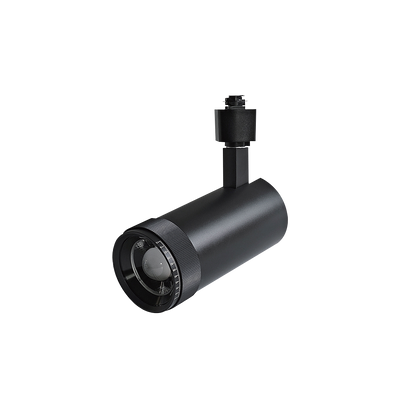

Specify a compact 20W architectural track head for accurate accent, gallery and merchandise-display lighting. Mechanical 10°–60° focusing, five selectable CCTs and CRI 93 provide useful flexibility without changing the ordered product. Choose White (R31137) or Black (R31138).
Model identification
| Finish | RENO order | Manufacturer SKU | UPC |
|---|---|---|---|
| White | R31137 | RENO-TH20W-5CCT-ADJ-HTYPE-WH | 789889312137 |
| Black | R31138 | RENO-TH20W-5CCT-ADJ-HTYPE-BK | 789889312144 |
Technical specifications
- Input: 120V AC, 20W, TRIAC dimming with a compatible control
- Light quality: CRI 93; choose 2700K, 3000K, 3500K, 4000K or 5000K using the fixture's CCT switch before energizing
- Output: up to 2,112.5 lumens at 5000K/60°; output varies by CCT and focus

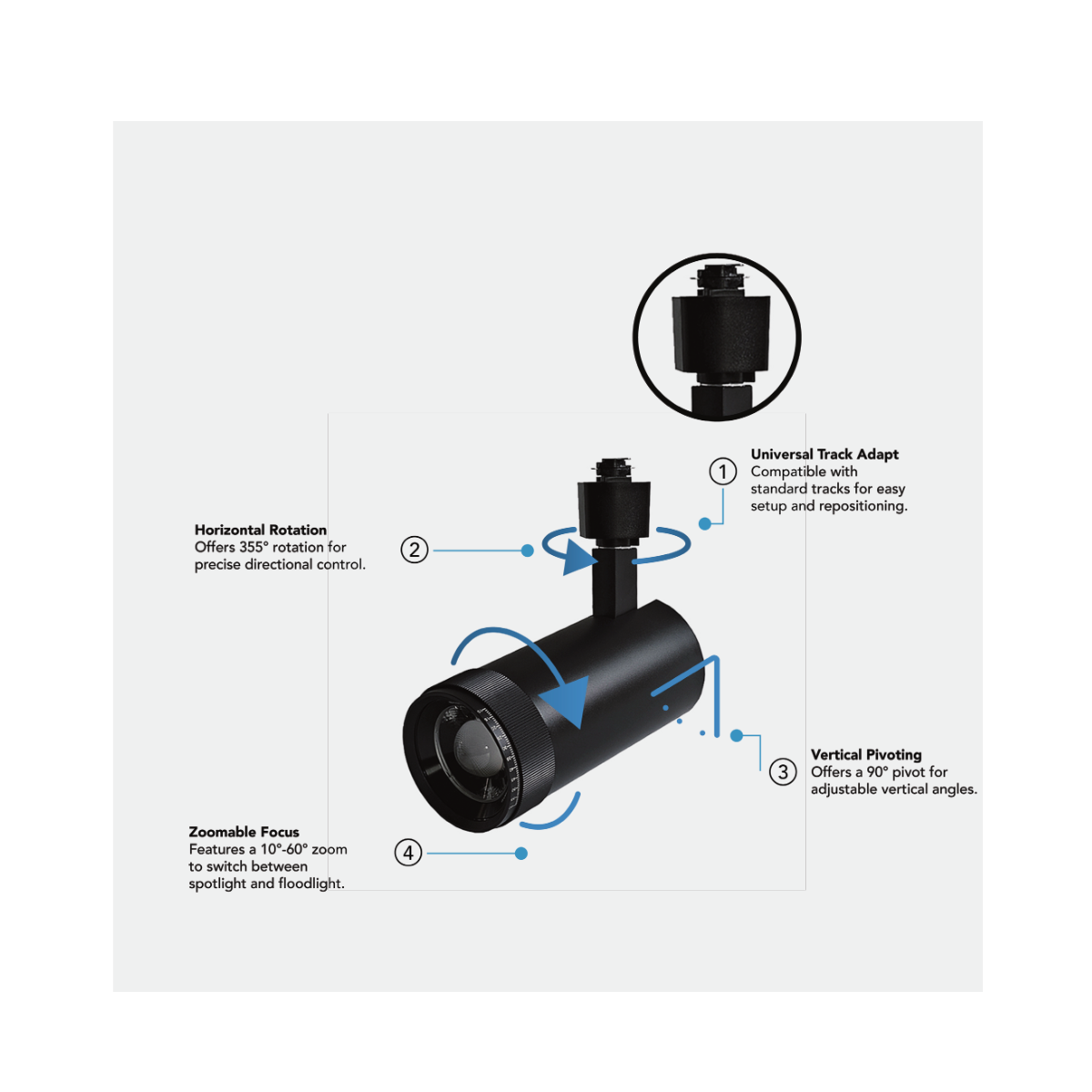

- Zoomable optic: 10° concentrated spot to 60° wider flood
- Aiming: 90° vertical tilt and 350° horizontal rotation

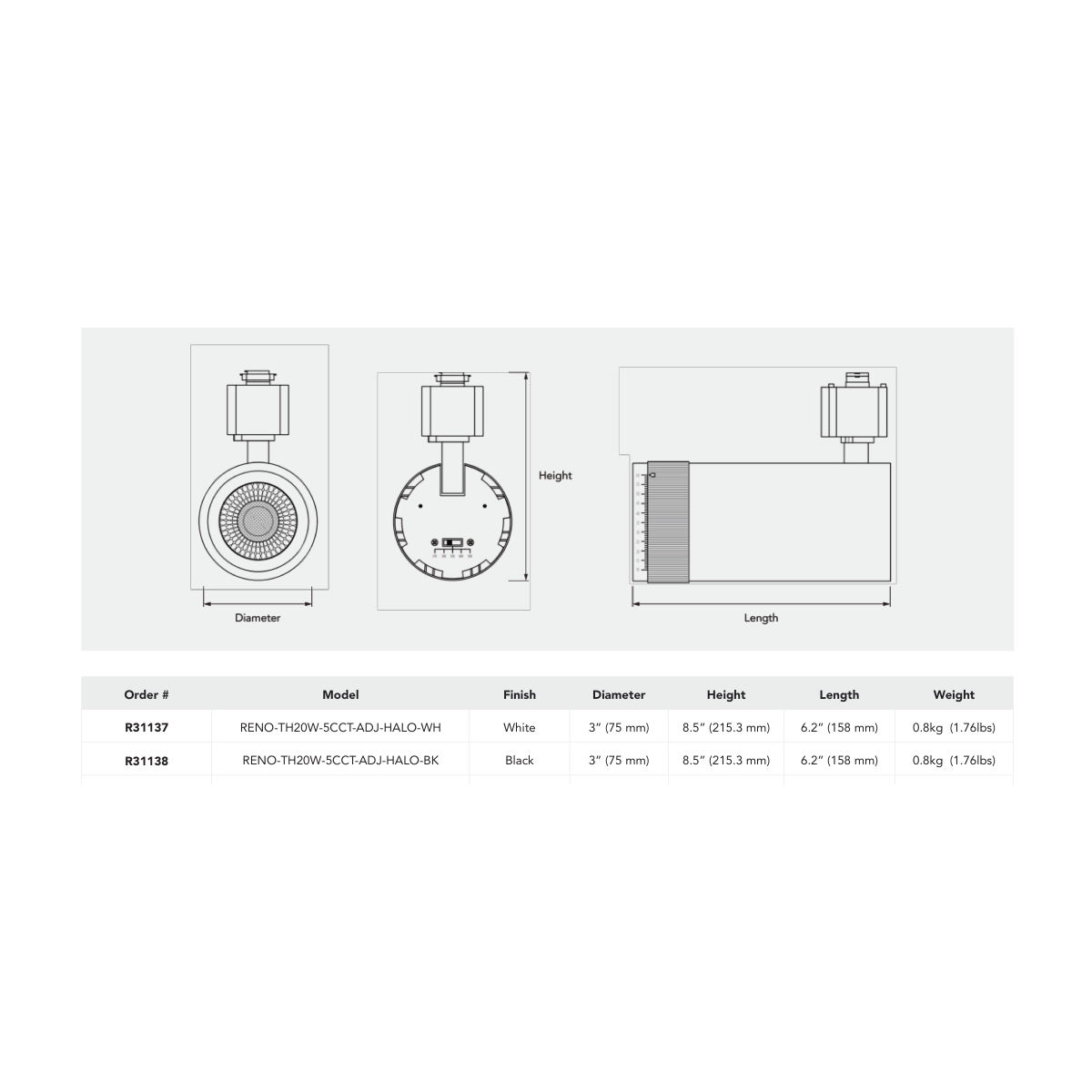

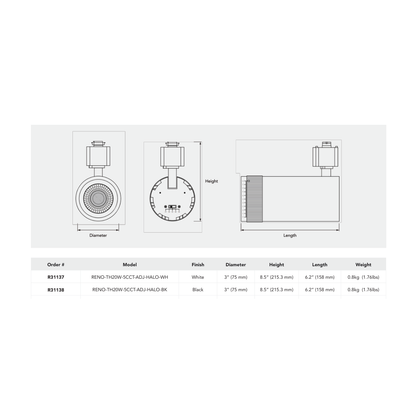

- Dimensions: 75 mm diameter × 158 mm cylinder length; 215.3 mm overall height
- Fixture net weight: 0.8 kg (not packaged shipping weight)
- Construction: cold-forged aluminium housing and glass lens
- Location: indoor dry locations only
- Rated life: L70 approximately 100,000 hours; 5-year manufacturer warranty
Photometric output by colour temperature
Manufacturer 20W photometric test values, in lumens. Results depend on CCT and beam setting.
| CCT | 10° beam | 60° beam |
|---|---|---|
| 2700K | 1,744.2 | 1,760.7 |
| 3000K | 1,773.4 | 1,793.9 |
| 3500K | 1,886.5 | 1,883.9 |
| 4000K | 2,000.1 | 2,004.9 |
| 5000K | 2,099.5 | 2,112.5 |
For project illumination calculations, use the manufacturer photometric IES file matching the selected beam and CCT.
Installation and system compatibility
Designed for RENO STORY H-style / Halo-compatible, single-circuit 120V track. The head includes its H-style adapter; rail, power feed, connectors and suspension components are sold separately. The installer must match adapter and track polarity (L, N and earth) and set CCT with power off. Not for J-type or L-type track and not for wet locations. Electrical work should be performed by a qualified electrician.

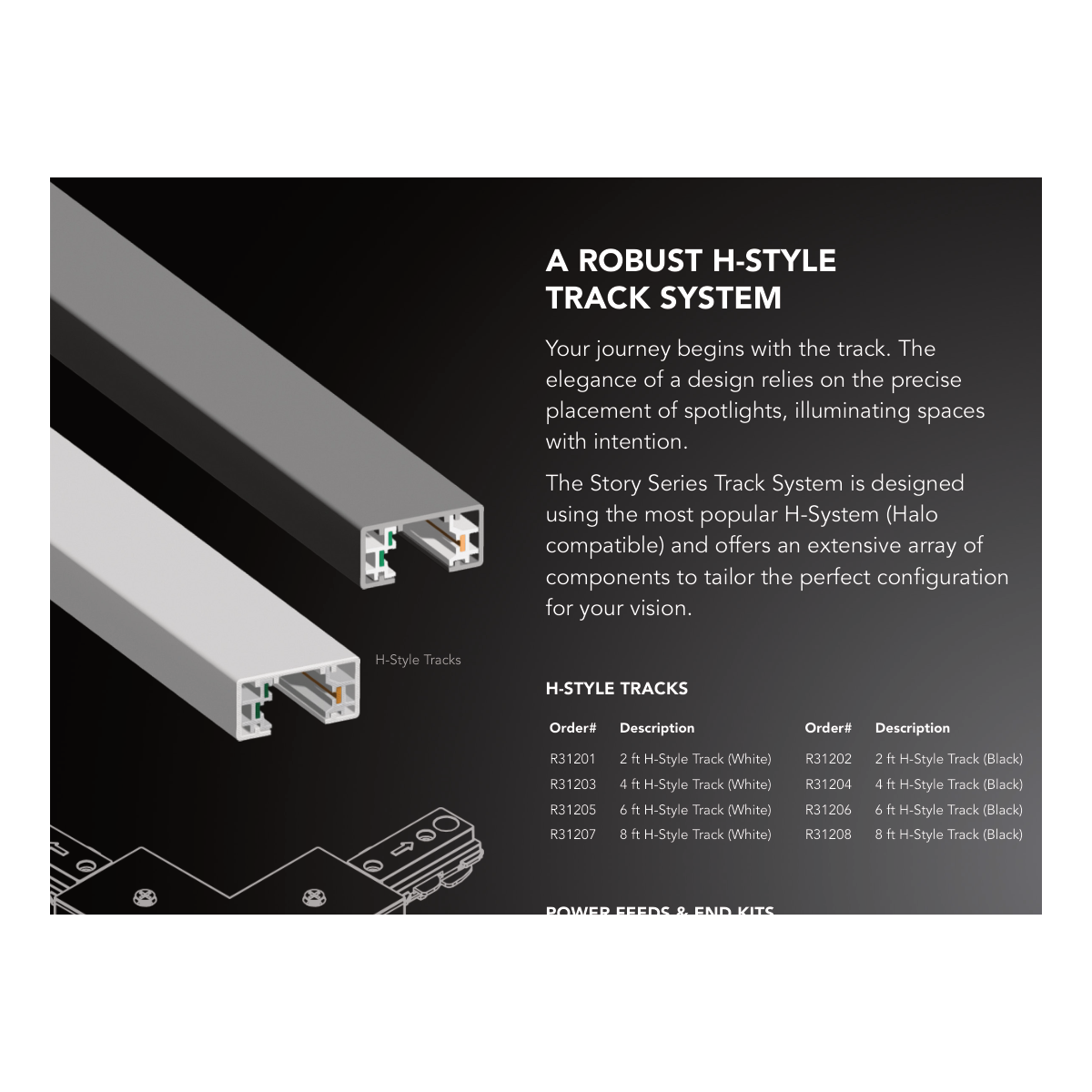

Build your STORY track system
Pair with the separately sold STORY H-type track rail (2, 4, 6 or 8 ft), end feed kit or live end connector. Choose the appropriate finish and verify the electrical layout for the installation. See RENO's H-style track-system technical sheet for system dimensions and component ordering codes.
Supply and configuration
One 20W LED track head in the selected finish with H-style track adapter. Track rail, feeding accessories and dimmer are not included. Both finishes share the same 20W/5CCT configuration; CCT and beam settings are field adjustable, not separate orderable variants.
