RENO SABRE 4ft ECO Linear Strip | 15/25/35W, 3CCT, 0–10V | R33027
RENO SABRE 4ft ECO Linear Strip | 15/25/35W, 3CCT, 0–10V | R33027
Special Order / Call for ETA
Typically ships in 3–6 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:RENO-LSN4-35W-DV-MCCT-MW-ECO

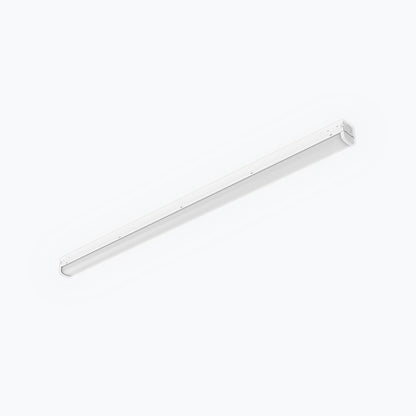

RENO SABRE R33027 — 4ft Selectable ECO Linear LED Strip
One 4-foot, high-efficacy, white commercial linear fixture replaces multiple fixed-output stock configurations. Select 15W, 25W or 35W and 3500K, 4000K or 5000K on site. Factory setting is 25W/4000K (3,544 lumens). Rated for 120–347V power with 0–10V dimming and surface or suspended installation; suitable for damp indoor commercial settings.
R33027 is distinct from older SABRE R33022 (20/30/40W), and from sensor-equipped R33024. Order by exact manufacturer SKU.

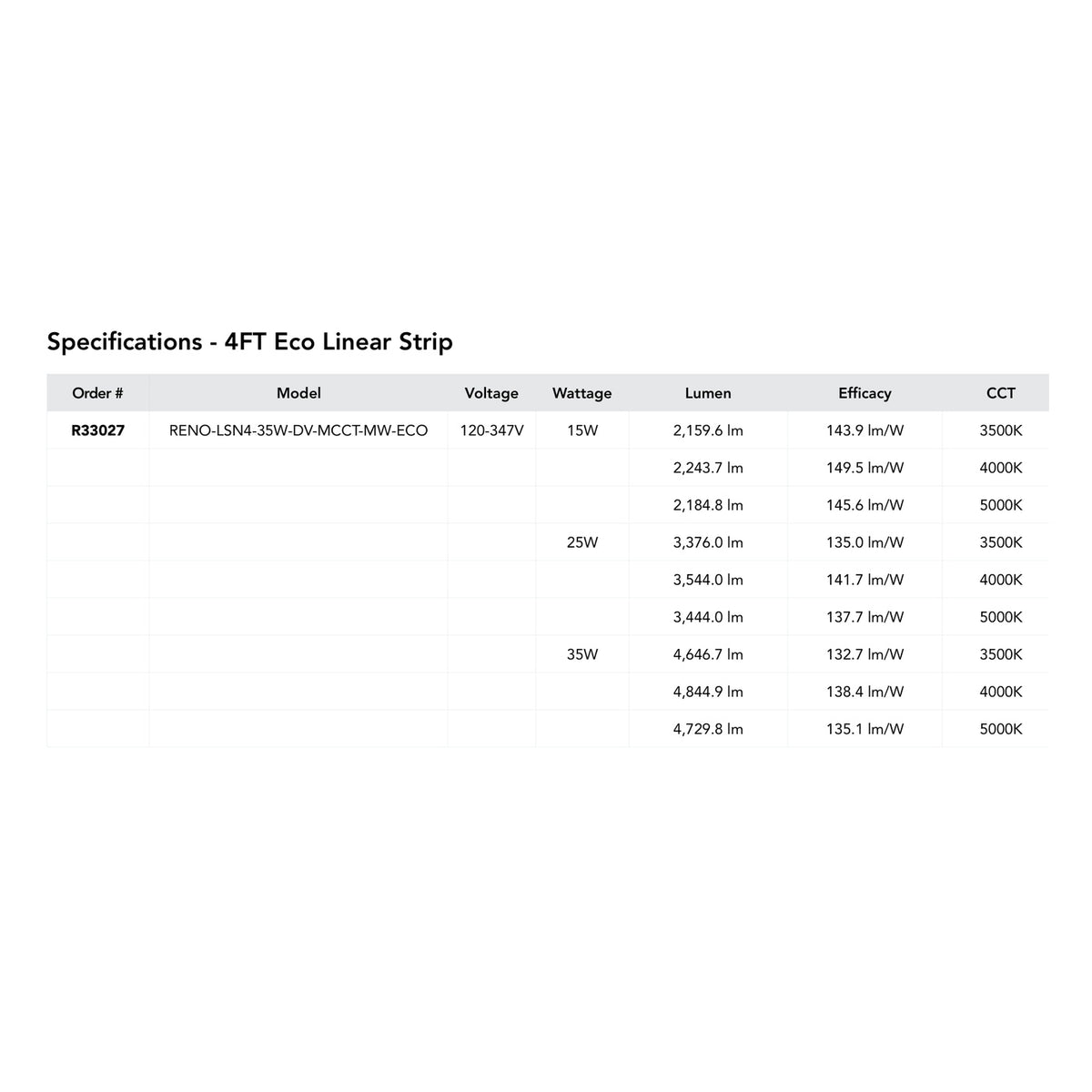

Measured light output by setting
Manufacturer photometric values; efficacy and lumens vary by wattage and colour temperature.
| Selectable power | 3500K | 4000K | 5000K |
|---|---|---|---|
| 15W | 2,159.6 lm | 2,243.7 lm (149.5 lm/W) | 2,184.8 lm |
| 25W (default) | 3,376.0 lm | 3,544.0 lm (default) | 3,444.0 lm |
| 35W | 4,646.7 lm | 4,844.9 lm (maximum) | 4,729.8 lm |
Peak efficacy (149.5 lm/W) occurs at 15W / 4000K. Peak output (4,844.9 lumens) occurs at 35W / 4000K; these figures do not describe the same configuration.
Technical specifications
| RENO order number | R33027 |
|---|---|
| Manufacturer SKU | RENO-LSN4-35W-DV-MCCT-MW-ECO |

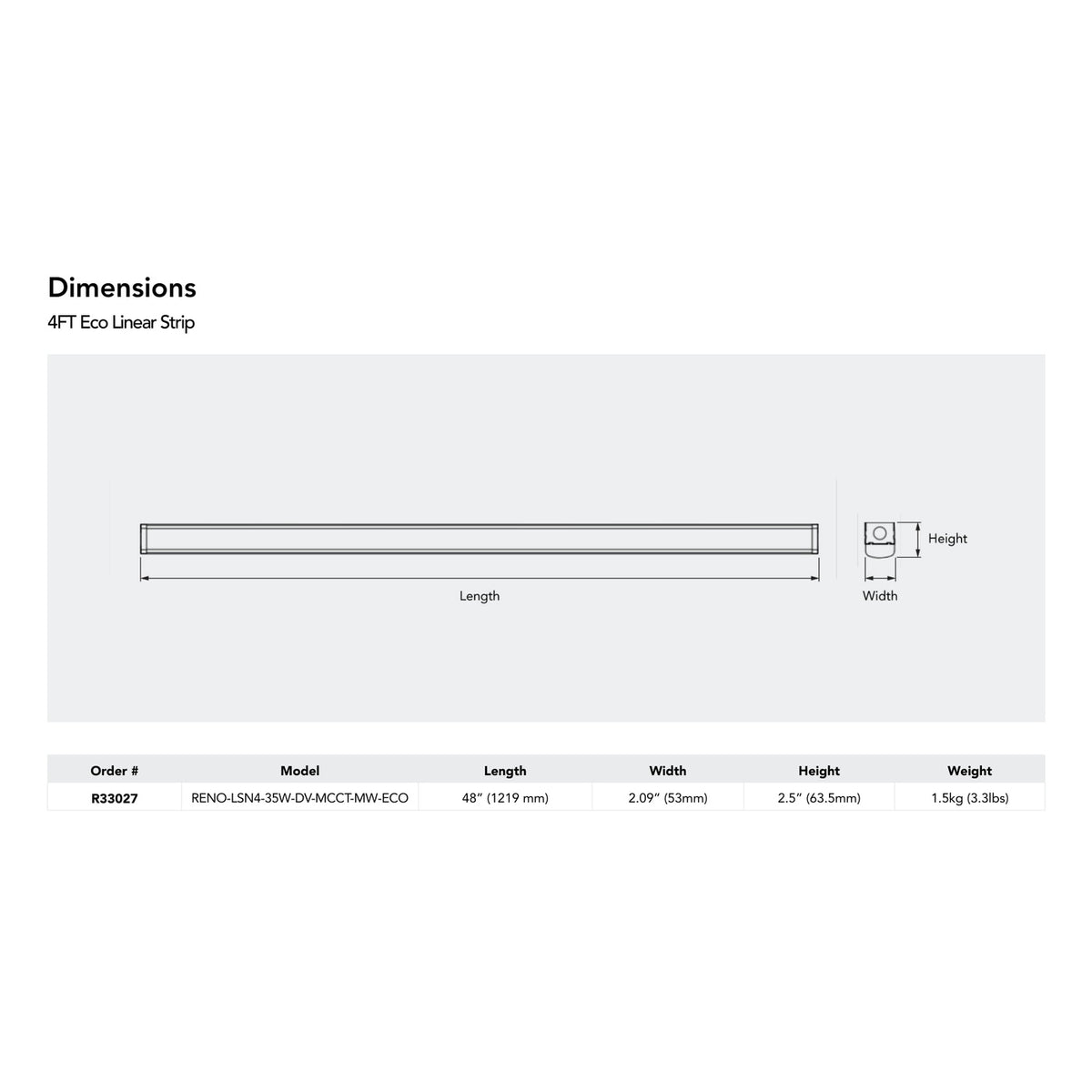

| Fixture length / housing | 48 in (1219 mm) L × 2.09 in (53 mm) W × 2.5 in (63.5 mm) H |
| Power / default | 15W, 25W or 35W selectable; factory default 25W |
| CCT / default | 3500K, 4000K or 5000K selectable; factory default 4000K |
| Input voltage | 120–347V AC |
| Dimming | 0–10V control (purple + / pink − leads); use a compatible controller |
| Beam angle / colour rendering | 120° / CRI ≥80 |
| Optics | Frosted, impact-resistant polycarbonate lens |
| Installation / location | Surface mounted or suspended; suitable for damp locations |
| Temperature range | −20°C to +50°C |
| Fixture net weight | 1.5 kg (3.3 lb); not packaged shipping weight |
| Rated lifetime / warranty | L70 >100,000 hours / RENO 5-year manufacturer warranty |

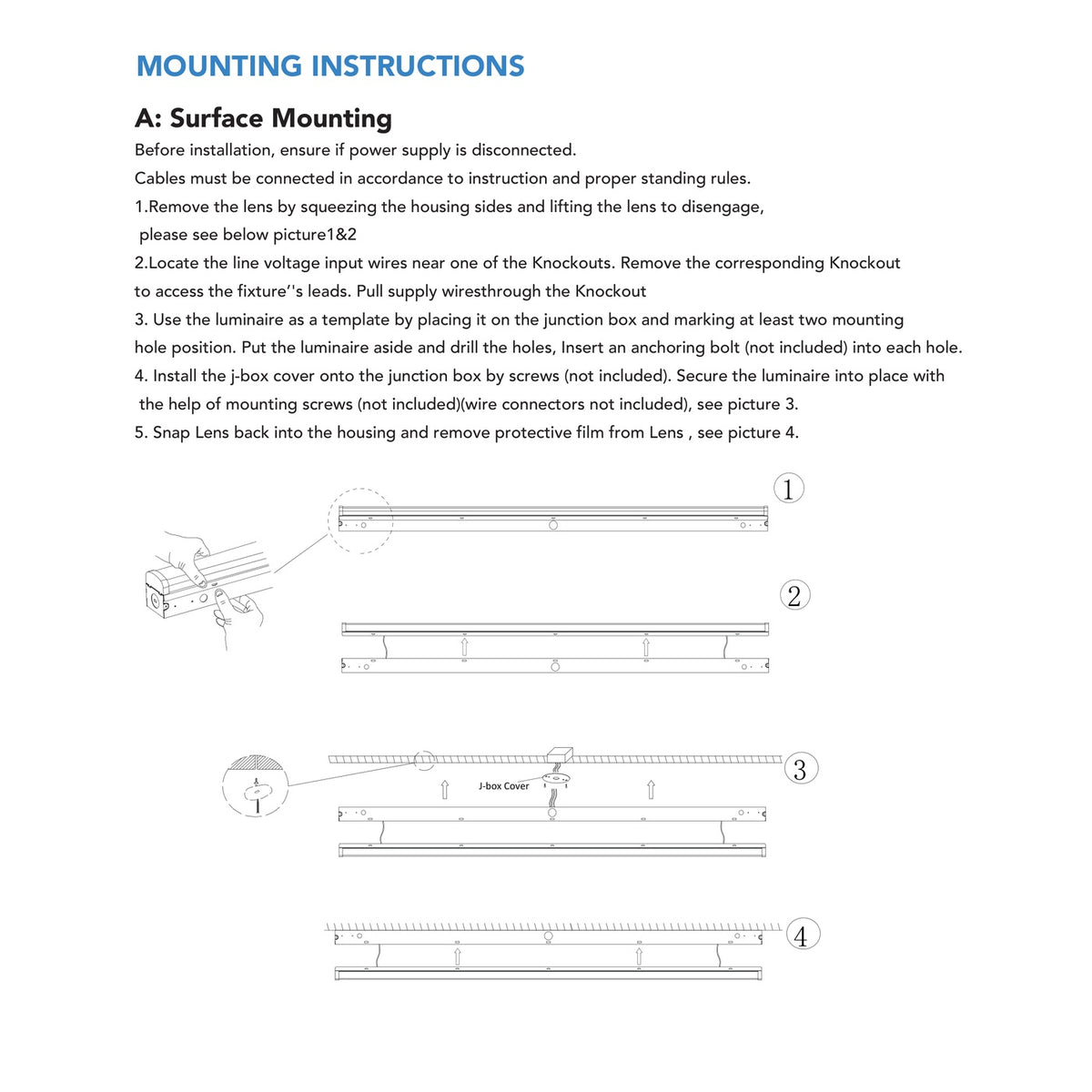

Installation and what's included
Includes the manufacturer's junction-box coverplate and V-hangers. Surface mounting hardware, wire connectors, suspension chain or aircraft cable, and 0–10V dimming controller are not included. Installation requires appropriate 120–347V wiring by qualified personnel; follow the manufacturer manual and local electrical codes. Black = line, white = neutral, green = ground, purple/pink = 0–10V dimming pair. If fitted, the yellow auxiliary sensor lead must be capped when not used, as specified by RENO.

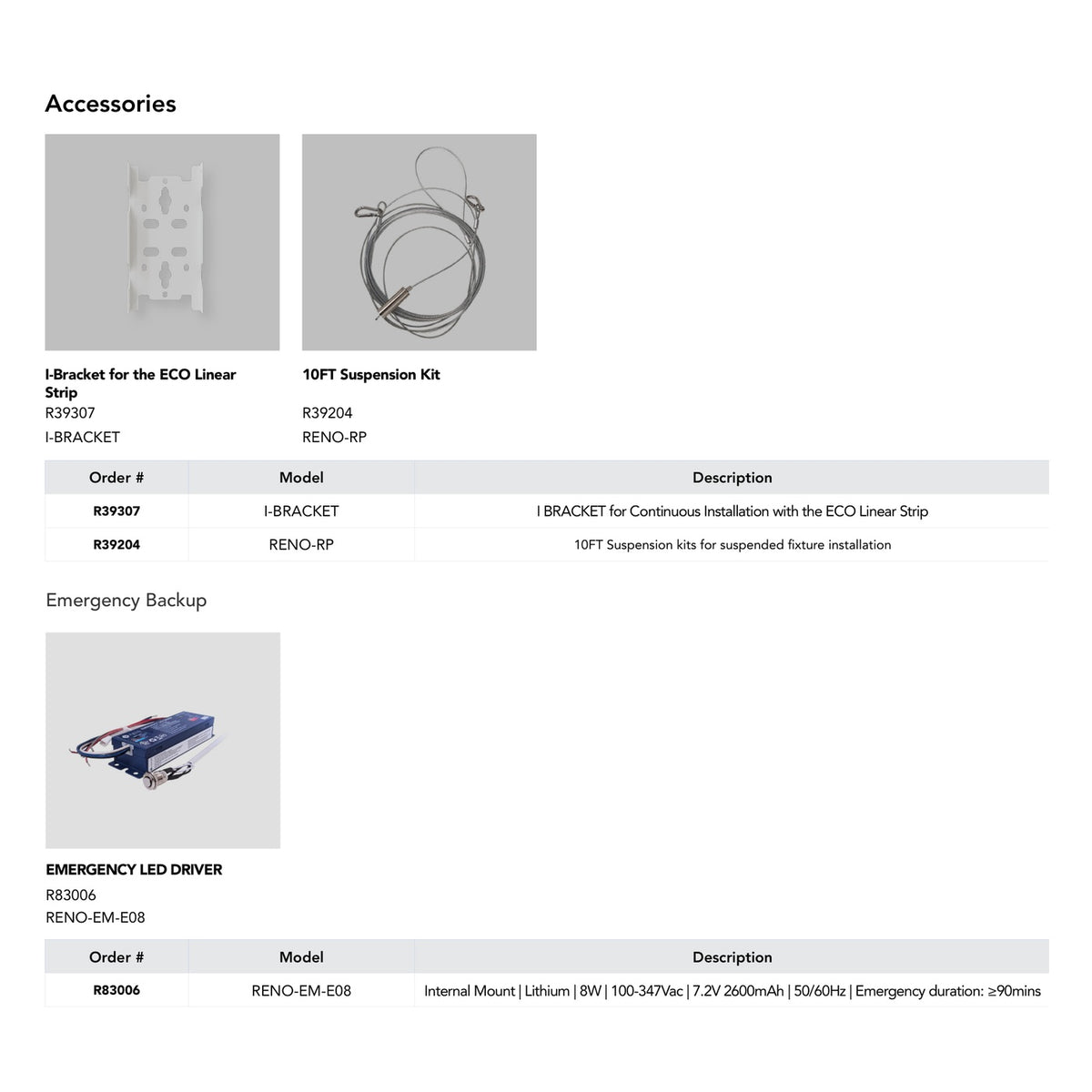

Compatible accessories (sold separately)
- R39307 I-BRACKET — joining bracket for continuous linear installations
- R39204 RENO-RP — 10-foot suspension kit
- R83006 RENO-EM-E08 — optional 8W emergency driver (verify electrical design and installation requirements)
Certification and selection
The manufacturer's R33027 specification sheet lists DLC Premium as pending; do not assume DLC rebate eligibility until approval is verified. This 15/25/35W fixture is different from the older 20/30/40W SABRE ECO strip. CCT and wattage are field-selected on the same product; they are not separately orderable variants.
