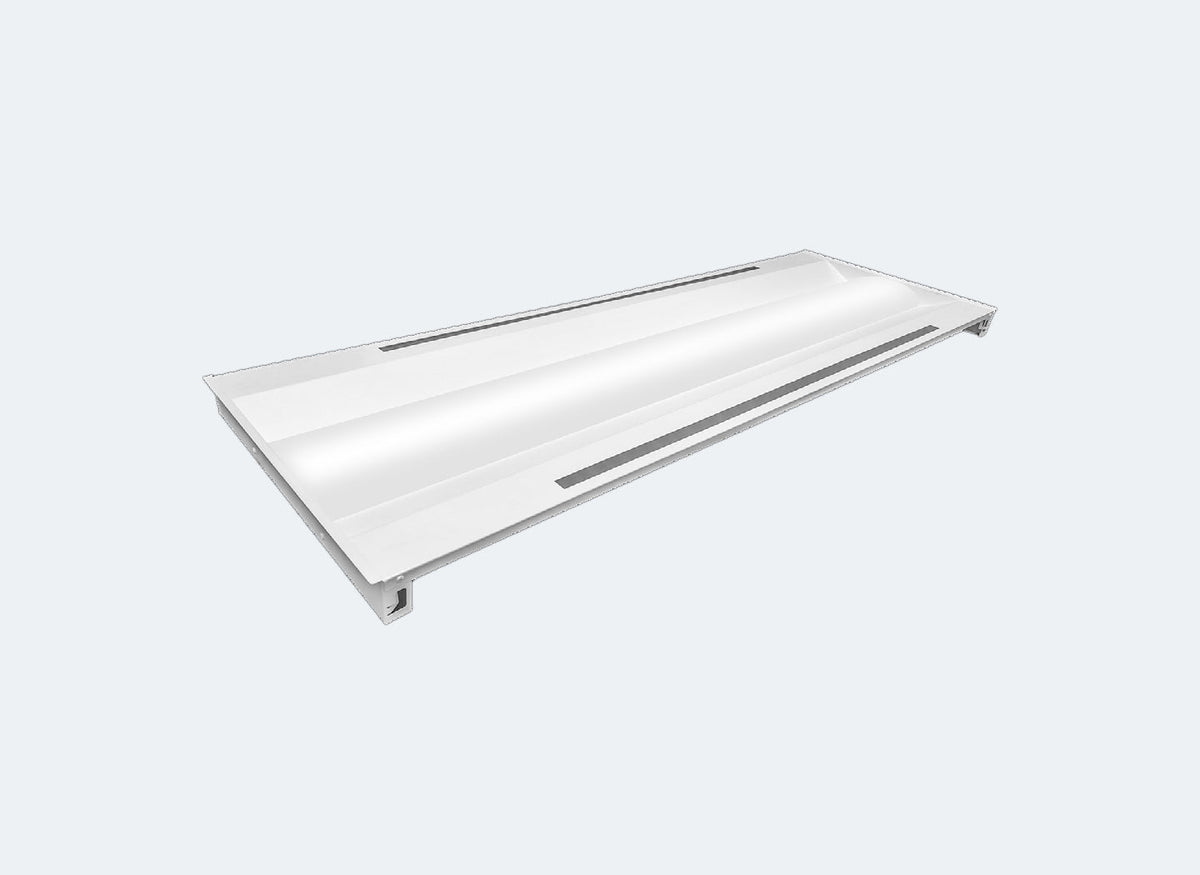

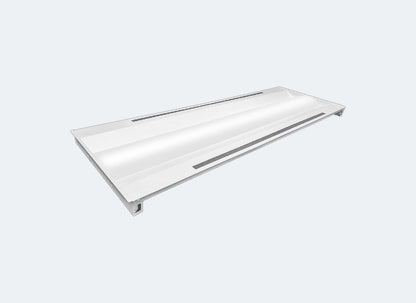

RENO LUXOR HL Metric Centre Basket Troffer | 30–70W, 120–347V

RENO LUXOR PRIME HL | R35409. High-output LED metric centre-basket troffer with optional air return for 500 × 1500 mm metric T-grid ceiling systems. Specify one luminaire with five field-selectable wattage settings (30/40/50/60/70W) and five selectable CCT settings (2700/3000/3500/4000/5000K). This is one manufacturer SKU—not 25 separate catalogue variants.

Ordering identification and performance

RENO order: R35409. MPN: RENO-2060CTF-UNV/347-MWMCCT-HL. UPC: 789889312298. Order unit: PC, box quantity 1.

Electrical, optical and installation data

• Manufacturer: RENO Lighting, LUXOR PRIME series
• Order # / MPN: R35409 / RENO-2060CTF-UNV/347-MWMCCT-HL
• One configurable fixture: field-selectable 30W / 40W / 50W / 60W / 70W and 2700K / 3000K / 3500K / 4000K / 5000K. These settings do not represent separate purchase variants.
• Voltage / dimming: 120–347V AC / compatible 0–10V dimmer
• Light quality: 90 CRI, wide beam >120° (manufacturer datasheet); frosted polycarbonate lens

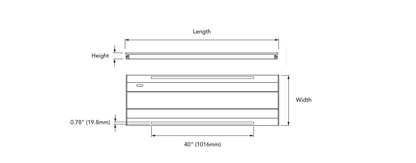

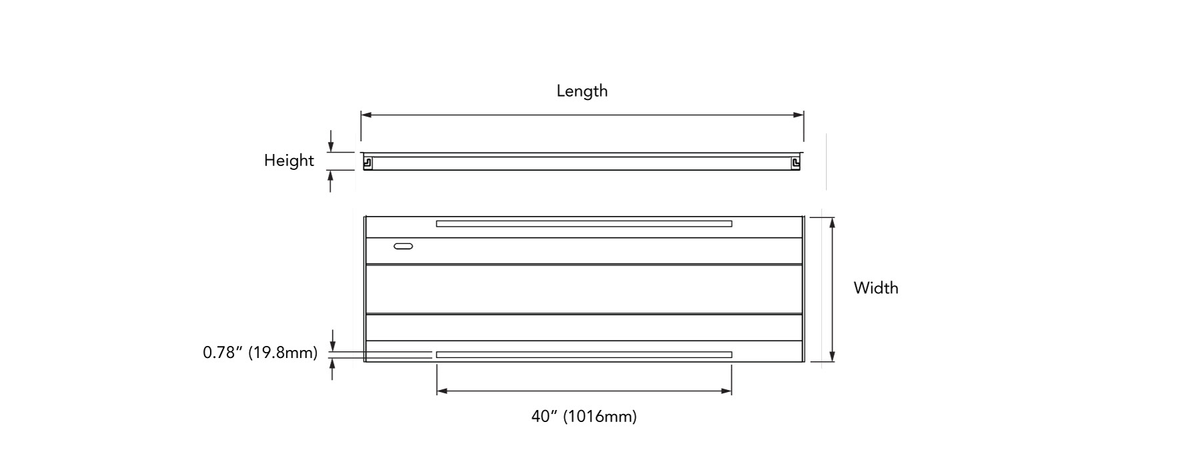

• Fixture size: 1505 × 500 × 59.94 mm (59.25 × 19.69 × 2.36 in); metric lay-in ceiling system
• Fixture weight: 20.3 lb (9.22 kg); packed shipping weight: 22.5 lb, one fixture per carton
• Location / temperature: damp locations, −20°C to +40°C; not specified for wet locations
• Body / finish: powder-coated steel, white
• Rated lifetime / warranty: L70 approximately 100,000 hours; 10-year RENO manufacturer warranty
• DLC: Standard listing S-56WFY3, High-Bay Luminaires. Do not confuse with DLC Premium or the older R35408 listing.

Power factor: >0.90; THD: <20%. Wide beam >120°, white steel housing, frosted polycarbonate lens, sensor-ready knockout. Emergency driver RENO-EM-H15 supported as a separately specified component. The manufacturer lists DLC Standard S-56WFY3 under High-Bay Luminaires; do not substitute another category or rebate qualification without checking the program.

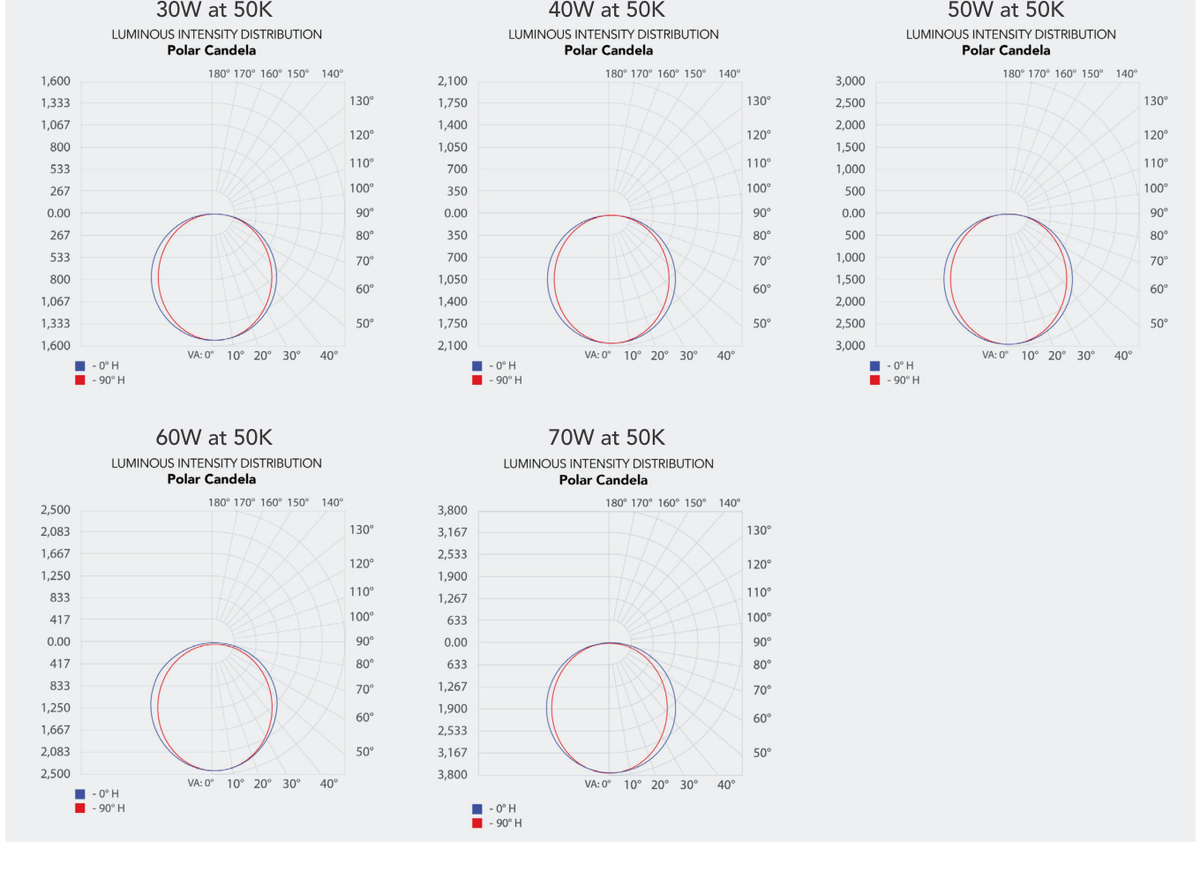

Full manufacturer photometric output by field setting

All 25 cells below are tested fixture lumens from the October 26, 2026 R35409 specification sheet. Consult the supplied matching IES files for formal lighting calculations rather than assuming that the highest listed lumen value applies at every operating setting.

Fit, air return and application suitability

Overall 1505 × 500 × 59.94 mm, net weight 9.22 kg / 20.3 lb. Intended for shallow-plenum metric drop ceilings; confirm actual grid opening, support and service access. Air-return capability is optional and requires the proper project configuration; do not state that a return-air assembly is included with a base luminaire.

Optional components: Air return is a manufacturer-described optional feature; confirm the specified vent configuration and HVAC return-air path for your project. Sensors, remotes and emergency driver are available separately and are not included by default. A sensor-ready knockout does not mean a sensor is preinstalled.

Optional accessories for an engineered system

• RENO-EM-H15 emergency LED driver (R83001) — optional emergency configuration
• Standalone PIR sensor (R74001)
• Bluetooth PIR sensor (R75003) — configured using RENO Smart App
• RENO sensor remotes (R73002 / R73005; one remote typically serves a project)

Confirm sensor, remote, emergency-driver and ceiling-system compatibility and complete accessory quantities before ordering.

R35409 versus previous R35408

See older LUXOR R35408 for the preceding non-HL LUXOR model. R35409 adds 70W and 2700K, uses 90 CRI optics, has a revised 1505 × 500 mm footprint and is not a drop-in dimensional equivalent to the older 1517.5 × 501.5 mm model. Do not inherit the older model's 60W limit or DLC Premium designation.

Photometric files / submittals

For the current specification sheet, R35409 installation documentation and IES photometric downloads, use the RENO manufacturer's R35409 product page. Photometric data supplied cover 25 combinations (five wattages × five CCT settings). Verify final installation instructions and project electrical requirements with RENO before proceeding.

Reference layout supplied: a simulation screenshot displays 45 fc in a 40 × 20 ft room using ten R35409 luminaires set to 30W / 2700K, arranged 5 × 2 at 8.5 ft luminaire height with a 2.5 ft workplane. That is a specific simulated layout—not a guaranteed illumination level for a project or a single luminaire.

Shipping and fulfilment

RENO lists one fixture per shipping carton: 60.2 × 21.5 × 3 inches, 22.5 lb packed. Net fixture weight 20.3 lb. Long cartons may require carrier-specific handling or additional charges. Delivery timelines are confirmed when ordering.
