RENO HaloTube™ Architectural LED Sign Light | IP66, 120–347V
RENO HaloTube™ Architectural LED Sign Light | IP66, 120–347V
Special Order / Call for ETA
Typically ships in 3–6 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:RENO-HTSL-2FT-DV-MCCT-WH

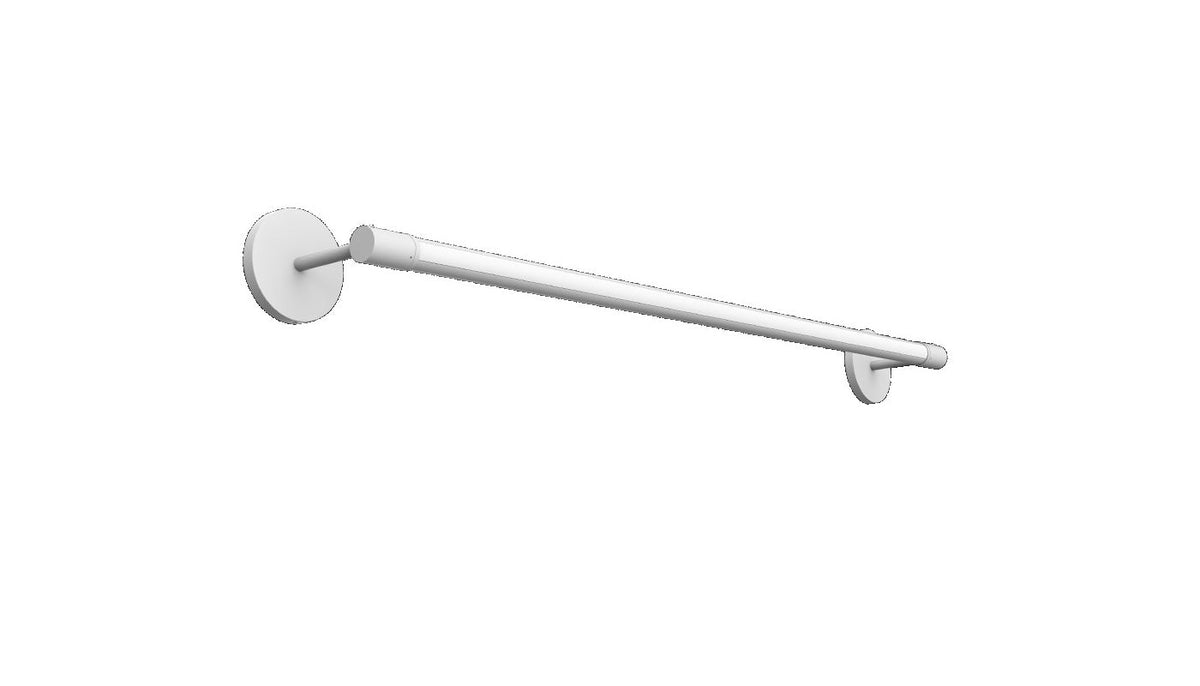

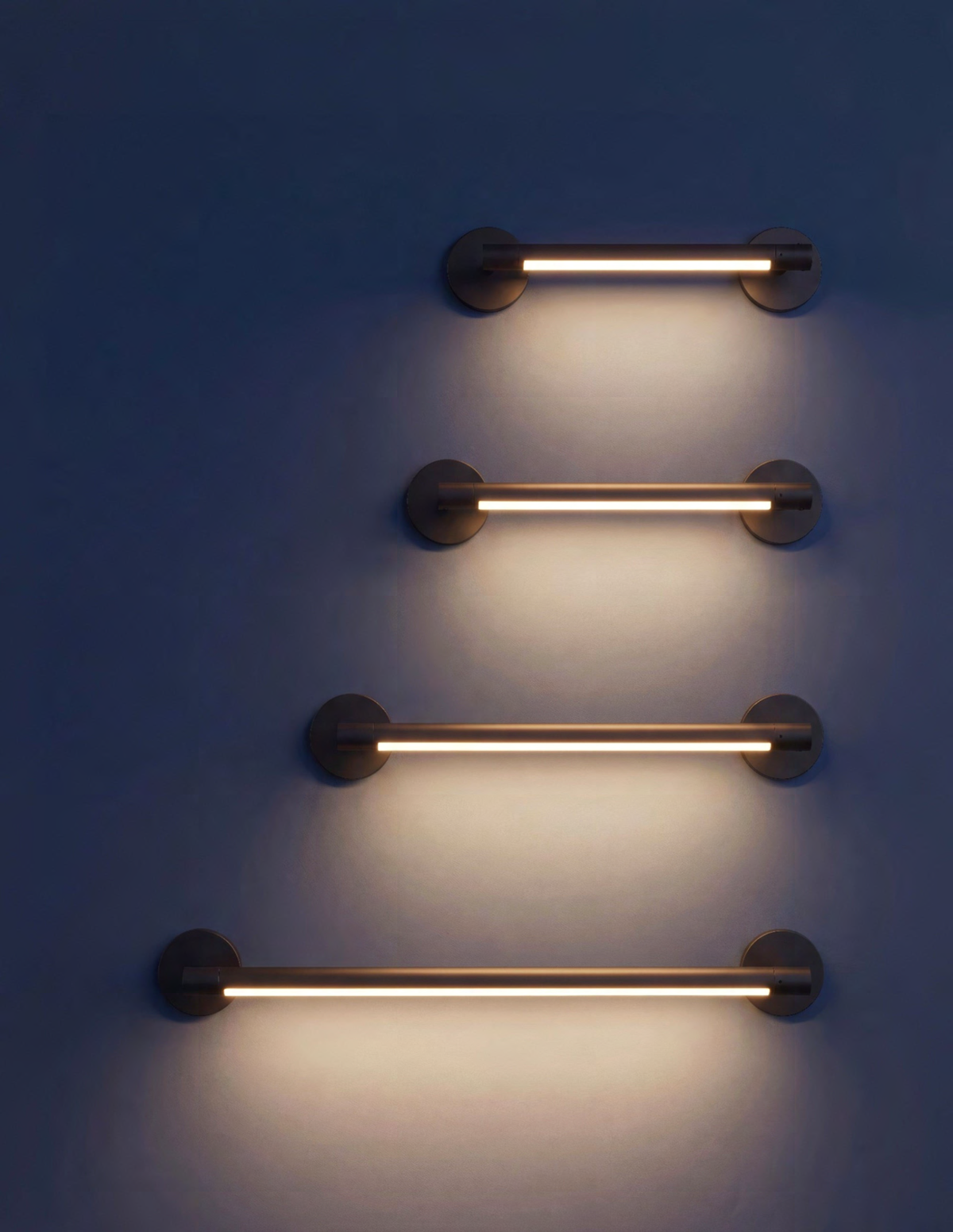

RENO HaloTube™ — ARK Collection. Adjustable, hardwired, IP66 architectural LED sign-light system for building identity, wayfinding, directory panels, retail signage and outdoor wall illumination. Available in 2, 3, 4 and 6 ft nominal lengths, white and black finishes, with 0–10V dimming, selectable CCT and interchangeable extension/linking components.
Engineering overview
- Mounting: hardwired wall-mounted architectural sign light
- Selectable white light: 2700K / 3000K / 3500K / 4000K / 5000K (4000K default; onboard selector, not RGB colour changing)
- Light quality: CRI 90; wide light distribution (manufacturer technical sheet lists >120°)

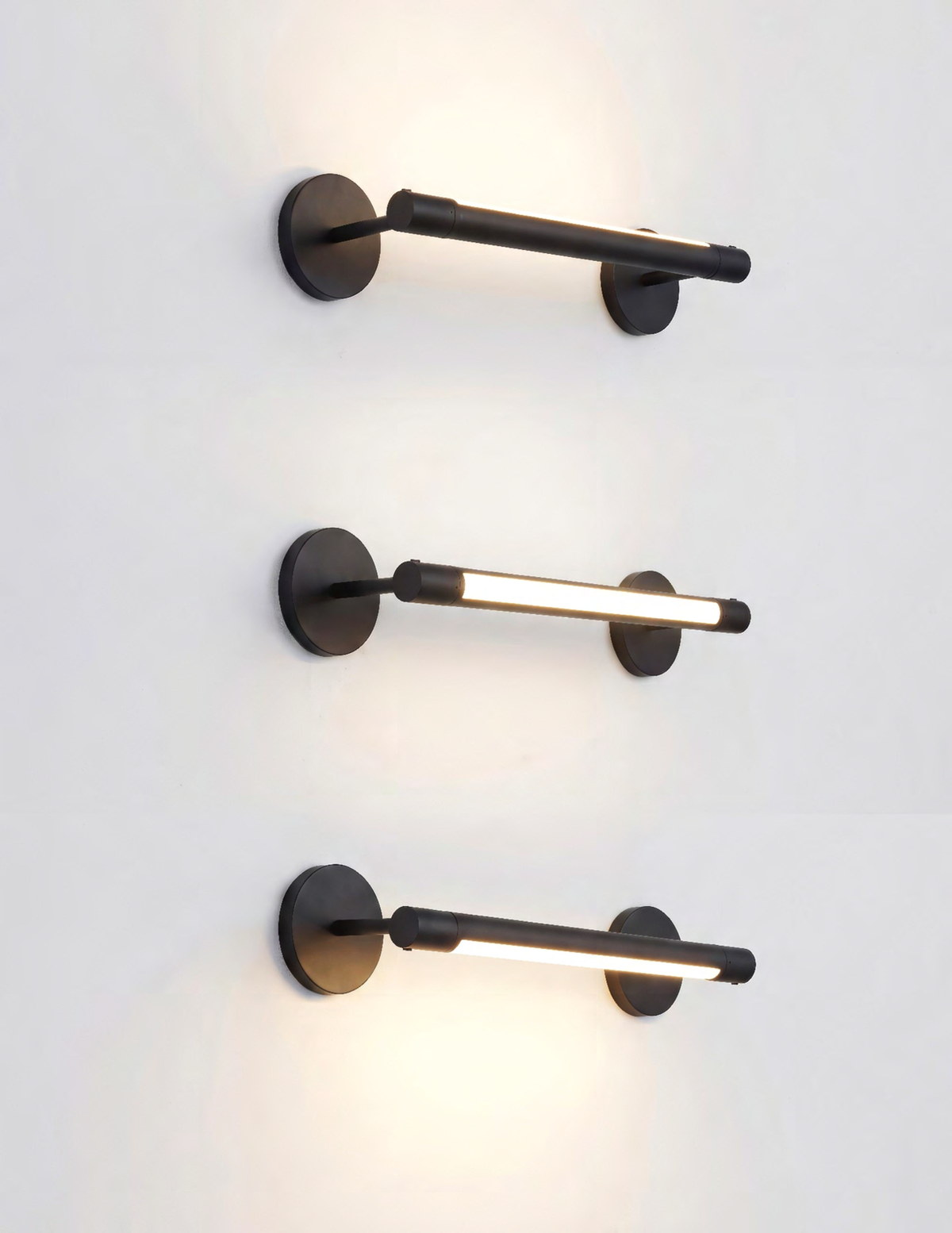

- Aiming: manually adjustable 300° rotational range
- Electrical: 120–347 VAC; 0–10V dimming requires compatible dimming controls; integrated driver
- Outdoor suitability: IP66, wet-location rated; extruded aluminum housing with protective finish
- Operating temperature: −25°C to +40°C
- Longevity and warranty: manufacturer-rated L70 100,000+ hours; 5-year manufacturer warranty
- Power factor: >0.9; THD: <20%
- Housing: heavy-duty extruded aluminum; five-stage phosphate bonding and baked-enamel finish
- Wall mounting: dual arm/canopy assembly; mounting plates, gaskets and waterproof sealing as detailed in installation manual
- IES files: supplied for R51076 at 2700K, 3000K, 3500K, 4000K and 5000K; use manufacturer photometric files for project-specific calculations
Exact dimensions by selected length
| Nominal length | Overall length | Mounting centres | Nominal input power |
|---|---|---|---|
| 2 ft | 705 mm | 580 mm | 16 W |
| 3 ft | 1,000 mm | 875 mm | 20 W |
| 4 ft | 1,300 mm | 1,175 mm | 30 W |
| 6 ft | 1,875 mm | 1,750 mm | 40 nominal W |

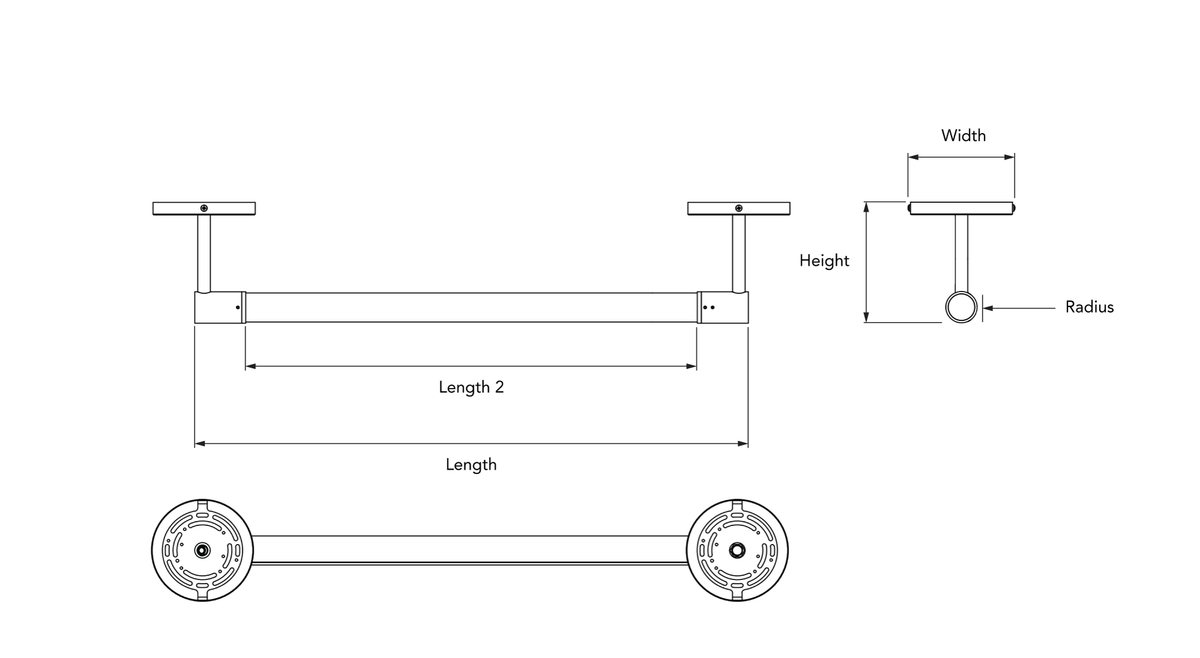

Common cross-section: 130 mm wide × 154 mm high (manufacturer drawing). Nominal lengths are merchandising sizes, not exact fixture lengths.
Variant matrix and photometric output
Manufacturer measured light output at the factory-default 4000K and at 5000K. Do not use the 6 ft white light output as a generic rating for the entire family.
| Length / Finish | RENO order | Watts | 4000K lumens | 5000K lumens |
|---|---|---|---|---|
| 2 ft / White | R51070 | 16W | 1,336.8 | 1,368.9 |
| 2 ft / Black | R51071 | 16W | 1,136.4 | 1,156.8 |
| 3 ft / White | R51072 | 20W | 1,809.9 | 1,811.0 |
| 3 ft / Black | R51073 | 20W | 1,514.8 | 1,535.6 |
| 4 ft / White | R51074 | 30W | 2,555.1 | 2,589.8 |
| 4 ft / Black | R51075 | 30W | 2,184.6 | 2,221.1 |
| 6 ft / White | R51076 | 40W | 3,701.8 | 3,760.7 |
| 6 ft / Black | R51077 | 40W nominal† | 3,069.4 | 3,113.7 |
†R51077 (6 ft black): manufacturer's website and nominal family data state 40W, while the detailed 2700–5000K test table states 41W. The datasheet also states −25°C lower operation; current manufacturer product page lists −20°C. Confirm both parameters with RENO for electrical submittals and colder Canadian projects.
R51076 | 6 ft White — project submittal details
- Manufacturer order: R51076
- Manufacturer model / SKU: RENO-HTSL-6FT-DV-MCCT-WH
- Nominal power: 40W
- 2700K: 3,603.1 lm / 90.0 lm/W
- 3000K: 3,617.2 lm / 90.4 lm/W
- 3500K: 3,646.7 lm / 91.1 lm/W
- 4000K: 3,701.8 lm / 92.5 lm/W
- 5000K: 3,760.7 lm / 94.0 lm/W
- Overall length: 1,875 mm (73.82 in); mounting-centre span: 1,750 mm (68.90 in)
- Manufacturer diagram dimensions: width 130 mm (5.12 in), height 154 mm (6.06 in), radius 40 mm (1.57 in)
Ordering and delivery
Sold individually. For longer fixture lengths, contact us to confirm delivery and freight arrangements.
System configuration / related parts
Separate accessories: 12-inch extension-rod kits R59230 (white) / R59231 (black), and inline link kits R59232 (white) / R59233 (black). Combination runs of 2, 3, 4 and 6 ft sections are supported by the manufacturer. Verify assembly, interlinking method and electrical loading against installation drawings for every project.
Site suitability: coordinate wall substrate, junction box, gasket/sealant plan and 300° aiming clearance. 0–10V controls are required for dimming (not line-voltage TRIAC dimming).
Installation considerations
Qualified electrician installation required. Use protective earth conductor, correct CCT DIP-switch setup and all specified gaskets/silicone rings/sealants—particularly at End B. Coordinate wall/junction-box positioning and aiming clearance. The manufacturer's photometric screenshot illustrates a 12-luminaire 40 × 20 ft layout and must not be used as a universal single-fixture illuminance claim.
Documentation and photometrics
Five supplied R51076 IES files represent 2700K, 3000K, 3500K, 4000K and 5000K settings. The manufacturer product page provides the photometric files; use them when preparing layout calculations.
Refer to RENO manufacturer documentation for installation and photometric specifications.
Matching HaloTube accessories (sold separately)
- 12-inch extension rod kits (white or black) (sold separately; contact us for availability) — lengthen the wall-mount standoff for your project.
- Inline link kits (white or black) (sold separately; contact us for availability) — connect compatible HaloTube fixtures in a continuous run.
Choose the matching finish. Consult RENO's installation guide for fitting and waterproof-sealing instructions. Accessory product pages may be unavailable until published.
