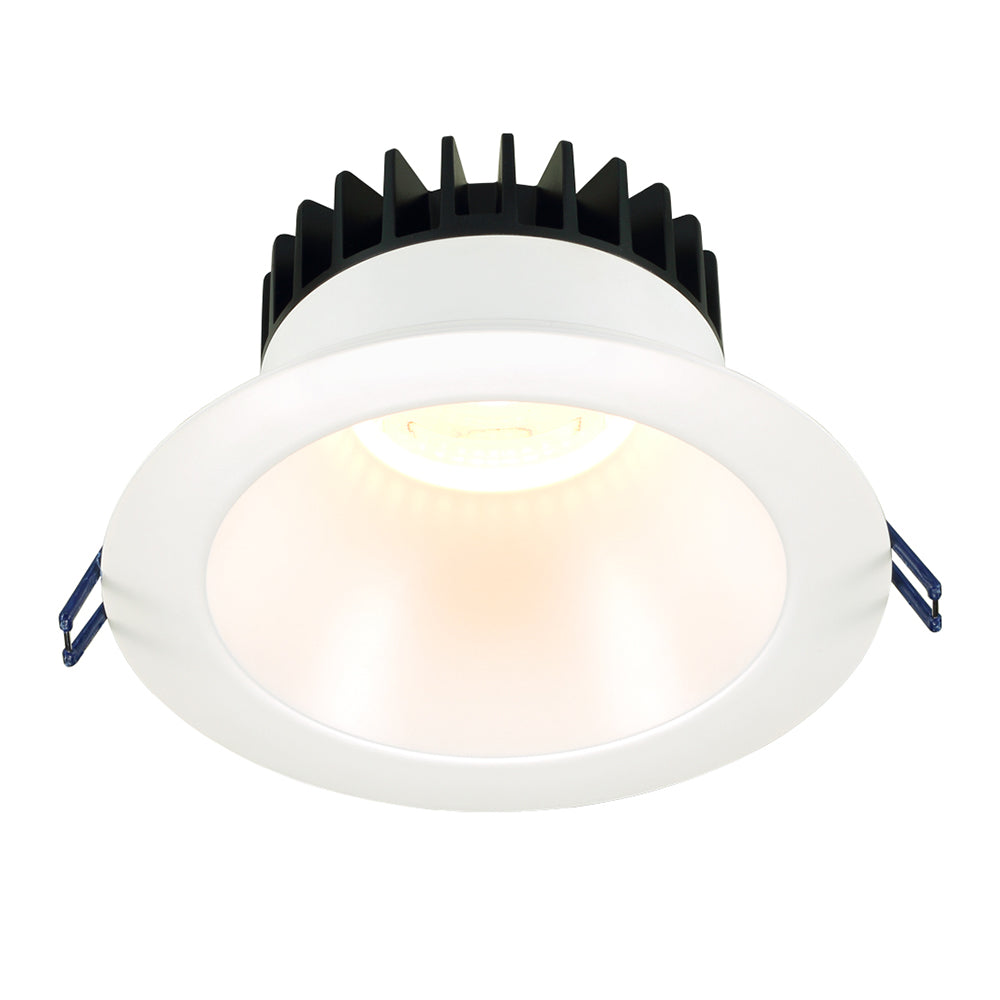

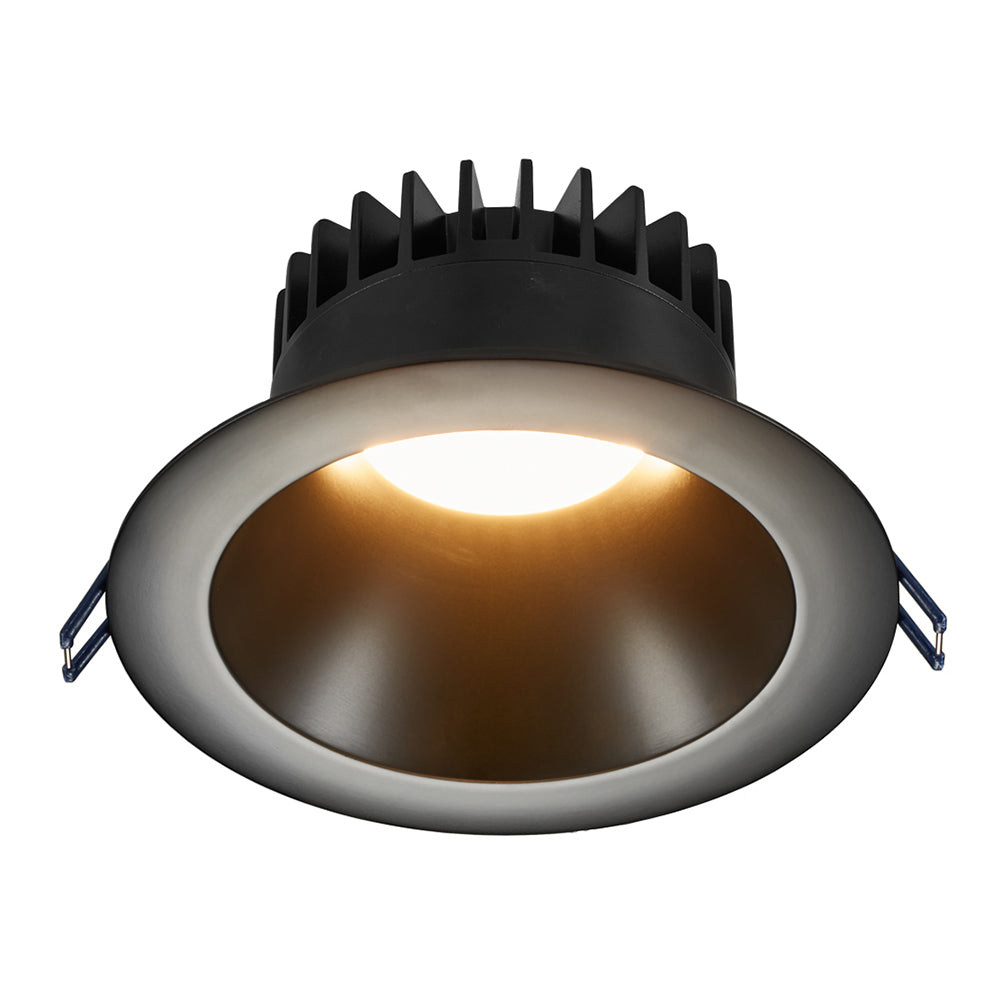

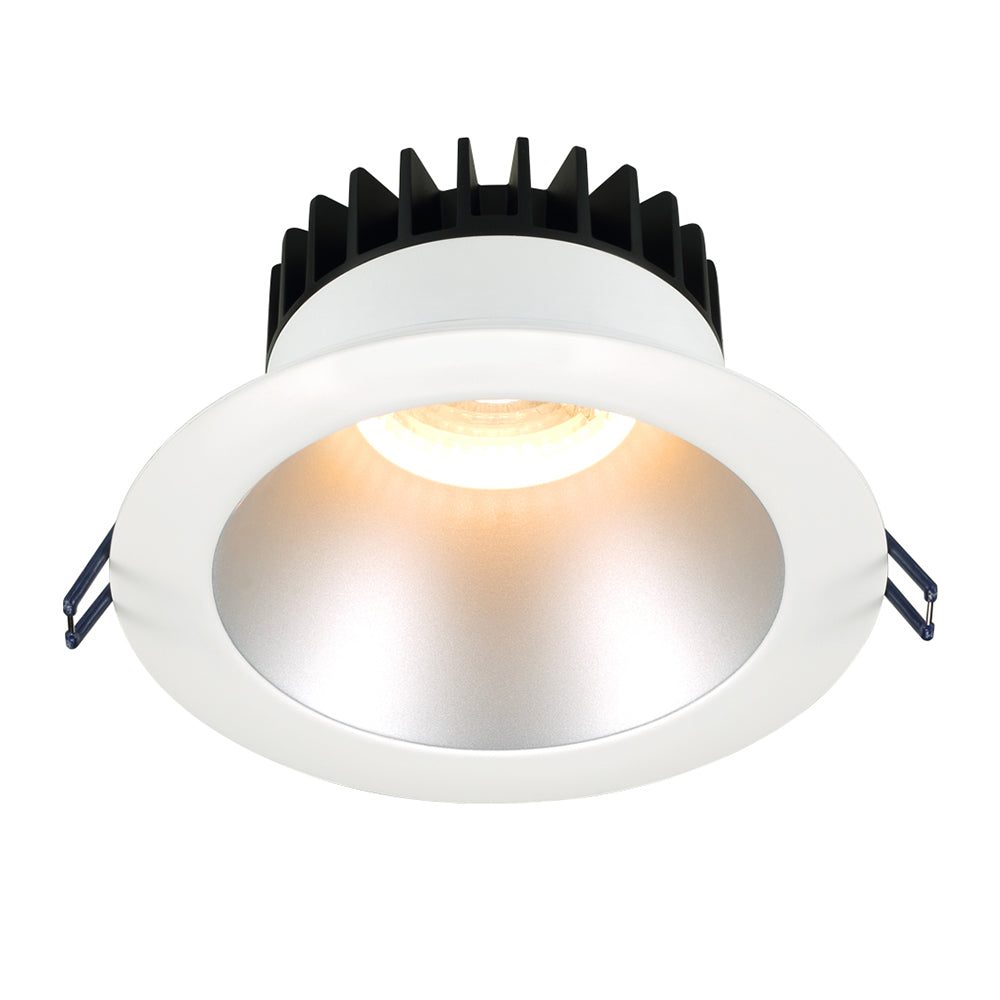

Lotus 6" Round Deep Regressed LED Open Plenum 18W | LD6R

Lotus 6" Round Deep Regressed LED Open Plenum 18W | LD6R

Available to order — ships from incoming stock

Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)

SKU:LD6R-27K-BR-WT

Shipping terms (Free over $300) calculated at checkout.

Overview

The Lotus LED 6" Round Deep Regressed LED Open Plenum is an architectural-spec recessed lighting solution designed for elegant, glare-free illumination. This 18W fixture features a deep regressed aperture and is specifically engineered with armored cable and metal connectors for high-performance open plenum applications. It provides a clean, professional aesthetic while maintaining commercial-grade durability without the need for a traditional housing.

Key Features

  • Glare-Reduced Design: The deep regressed design provides an elegant look while significantly reducing visual glare in professional environments.
  • Open Plenum Rated: Constructed with armored cable and metal connectors to meet strict commercial building codes.
  • IC Rated & Air-Tight: This contractor-grade fixture is certified for direct contact with insulation and maintains an air-tight seal for superior energy efficiency.
  • Versatile Color Selection: Available in 5 single CCT settings, Dim to Warm, or 5CCT user-selectable options to suit any project requirement.
  • Simplified Installation: Features an integrated driver inside the connection box, eliminating the need for a separate junction box in restricted 3" ceiling clearances.

Technical Specifications

  • Energy Used: 18W
  • Light Output: 1150 - 1700 lm
  • Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, Dim to Warm (3000K-2000K), or 5CCT Selectable
  • Beam Angle: 38° standard (60° custom available)
  • CRI: 90+
  • Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
  • Power Factor: 0.98
  • Aperture/Dimensions: ID 6 1/8", OD 6 3/4"
  • Cut-Out: 6 1/4"
  • Ceiling Clearance: 3"
  • IP Rating: IP 54 (Wet Location Rated)
  • Air Tight: Yes
  • Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Projected Life: 70% light output at 50,000 hours
  • Certification: cULus, T24, Type IC, Open Plenum Rated
  • Warranty: 10 Year Residential / 5 Year Commercial

Spec / Sell Sheets

View full details
Your cart
Variant Variant total Quantity Price Variant total

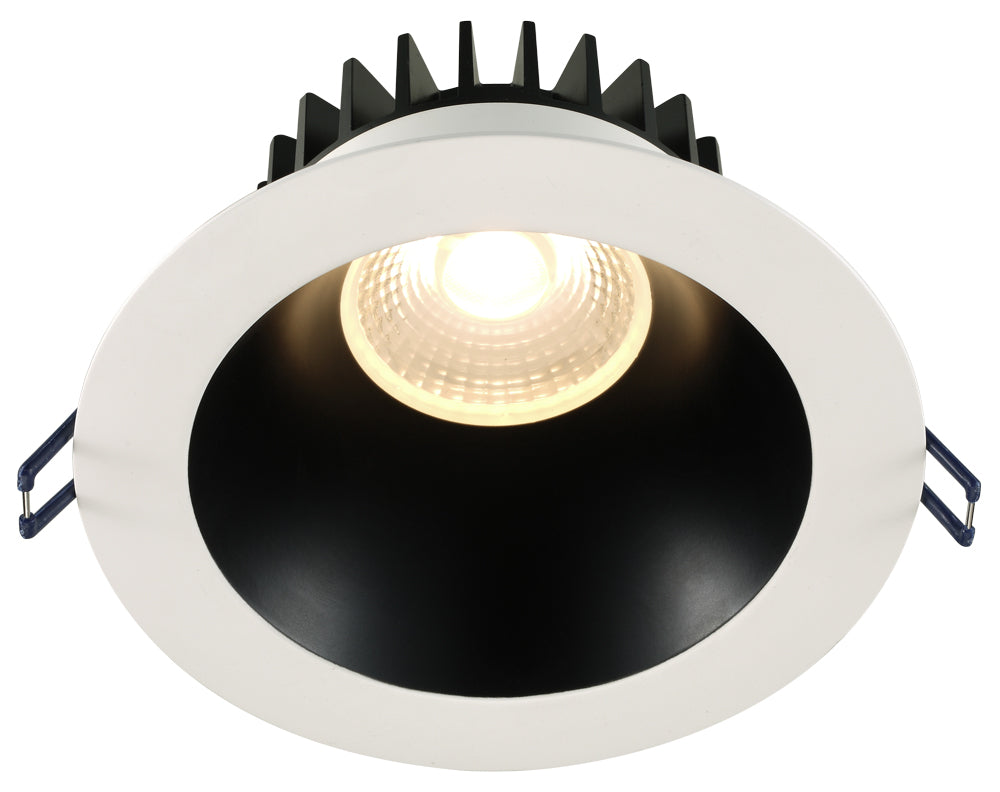

Product Display Visual of the SKU: LD6R-27K-BR-WT for Marketing of theLotus 6" Round Deep Regressed LED Open Plenum 18W | LD6R
