Lutron GRAFIK Eye QS Wireless 6-Zone Phase Control Unit | QSGRJ-6P
Lutron GRAFIK Eye QS Wireless 6-Zone Phase Control Unit | QSGRJ-6P
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:QSGRJ-6P-1TWH

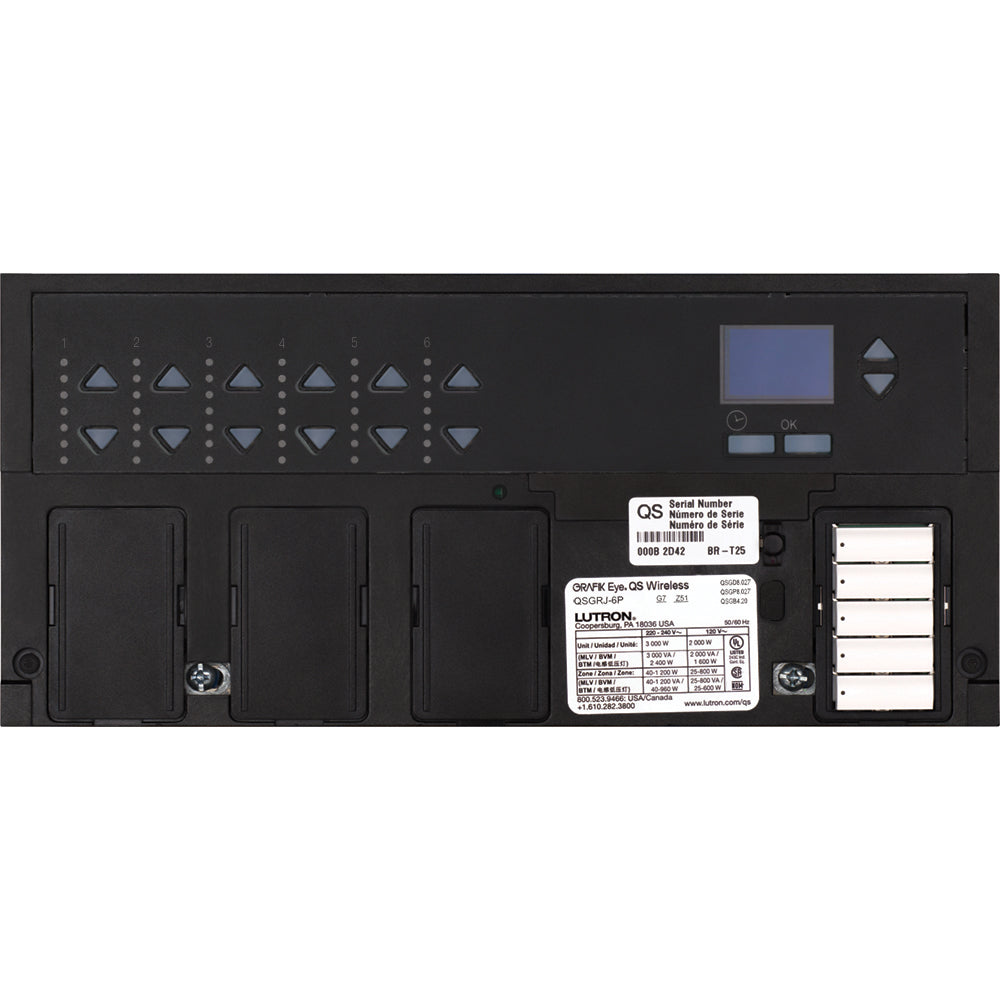

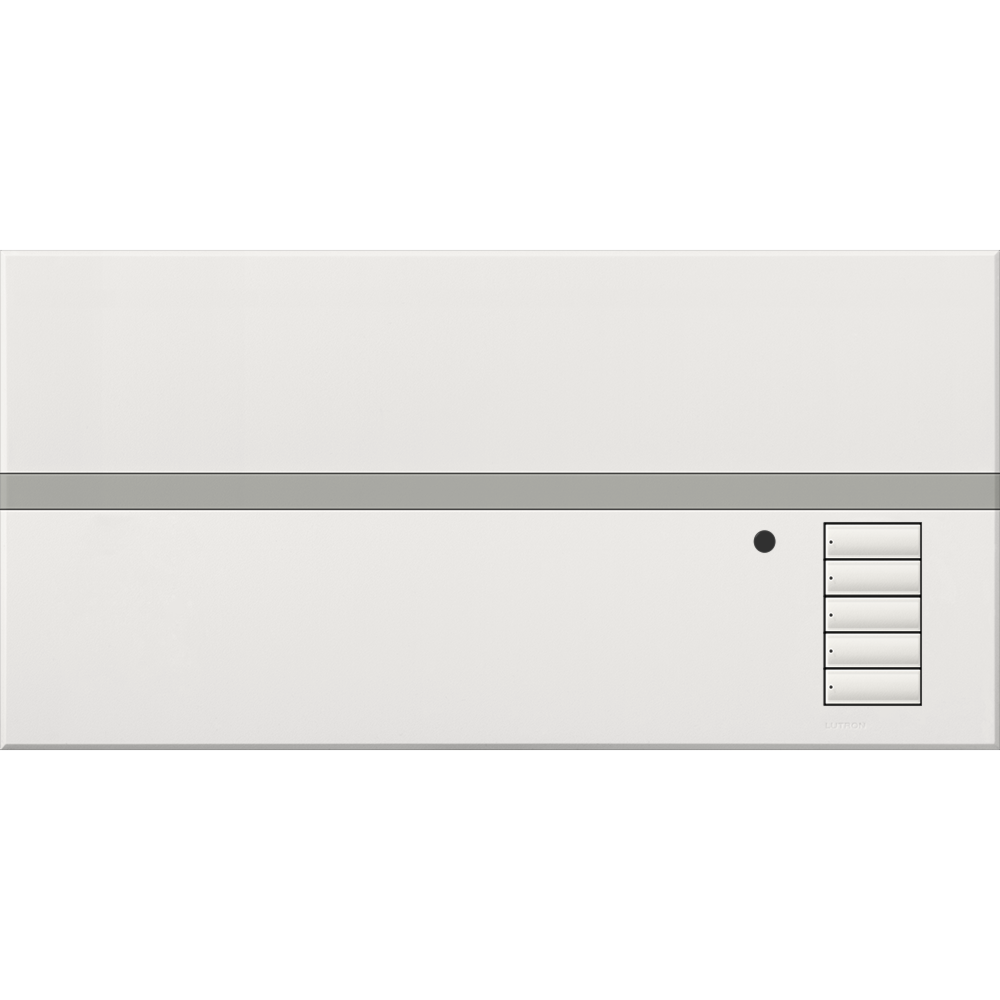

Lutron QSGRJ-6P GRAFIK Eye QS Wireless 6-Zone Lighting Controller
The Lutron QSGRJ-6P is a fully customizable preset lighting control system that allows you to adjust the ambiance of any space for any task. With 6 zones of integral line-voltage dimming, this unit replaces a bank of standard switches with a single, elegant wallstation. It is designed for high-end residential and commercial applications where precision, aesthetics, and energy efficiency are paramount.
Equipped with Lutron’s Clear Connect RF Technology, the QSGRJ-6P integrates wirelessly with Radio Powr Savr sensors, Pico wireless remotes, and Sivoia QS shades. Its built-in astronomic timeclock and 16 programmable scenes (4 accessible via the faceplate) allow for automated, effortless lighting transitions throughout the day.
Key Features
- 6-Zone Phase Control: Direct control of 6 zones of line-voltage lighting (Incandescent, Halogen, MLV, and more).
- Clear Connect RF: Operates on a reliable 434 MHz frequency for interference-free wireless integration with sensors and remotes.
- 16 Total Scenes: Program up to 16 scenes; 4 preset scenes plus "Off" are accessible directly from the main buttons.
- Astronomic Timeclock: Automate lighting events based on sunrise, sunset, or specific times of day with a built-in 10-year power failure memory.
- RTISS™ Technology: Real-Time Illumination Stability System compensates for incoming line-voltage variations to eliminate visible flicker.
- Backlit Information Display: Provides zone labeling, energy savings reports, and intuitive programming feedback.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | QSGRJ-6P |
| Zones | 6 Integral Dimmable Zones |
| Voltage | 120 - 127 V~ or 220 - 240 V~ (50/60 Hz) |
| Unit Capacity | 2000 W @ 120V / 3000 W @ 240V |
| Zone Capacity | 25 W – 800 W (per zone @ 120V) |
| Load Types | Incandescent, Halogen, MLV, Neon, Cold Cathode |
| RF Frequency | 434 MHz (Clear Connect) |
| Dimensions | 9.375" W x 4.6875" H (Fits 4-gang US backbox) |
Included in the Box
- (1) GRAFIK Eye QS Wireless Control Unit (QSGRJ-6P)
- (1) Set of Predefined Label Stickers
- (1) Mounting Hardware Kit
- (1) Installation & Programming Guide
