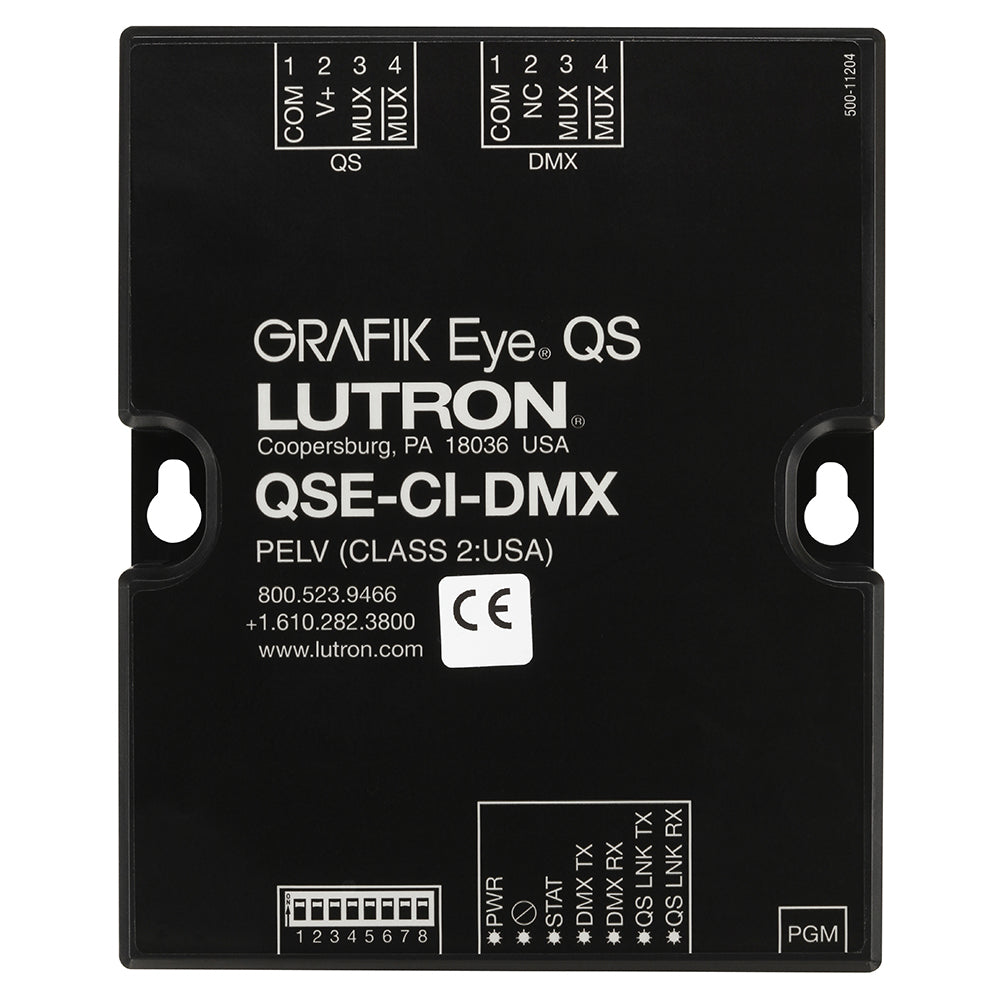

Lutron QSE-CI-DMX QS DMX512 Control Interface

The Lutron QSE-CI-NWK-E is a high-performance integration interface that allows a Lutron QS system to communicate with DMX512-controlled lighting fixtures. This device enables architectural controls—like seeTouch keypads and GRAFIK Eye QS units—to manage color-changing RGB/RGBW LEDs, motorized fixtures, and other specialized DMX equipment as if they were standard Lutron zones.

Capable of controlling up to 32 DMX channels (which can be mapped to any of the 16 Lutron zones), the QSE-CI-DMX provides a seamless experience for users who want sophisticated atmospheric lighting without the complexity of a dedicated lighting console. It is powered directly by the QS link, making it a "plug-and-play" addition to any modern Lutron architectural network.

Key Features

• DMX512 Integration: Bridges Lutron QS systems with DMX fixtures for control of RGB, RGBW, and other multi-channel equipment.
• Zone Mapping: Map DMX channels directly to Lutron zones; one Lutron zone can control up to 32 DMX channels.
• Bi-Directional Capability: Can be configured as a DMX output (Lutron controls the DMX lights) or a DMX input (a theatrical console controls Lutron zones).
• Standalone Operation: Can function as a standalone DMX controller for simple color-cycling effects even without a main processor.
• QS Link Powered: Operates on 24–36 VDC drawn directly from the Lutron QS communication link (consumes 2 PDUs).
• Easy Programming: Simple setup via the Lutron programming software or directly on a GRAFIK Eye QS unit.

Technical Specifications

Included in the Box

• (1) QS DMX Control Interface (QSE-CI-DMX)
• (1) Installation Instructions & Wiring Guide
