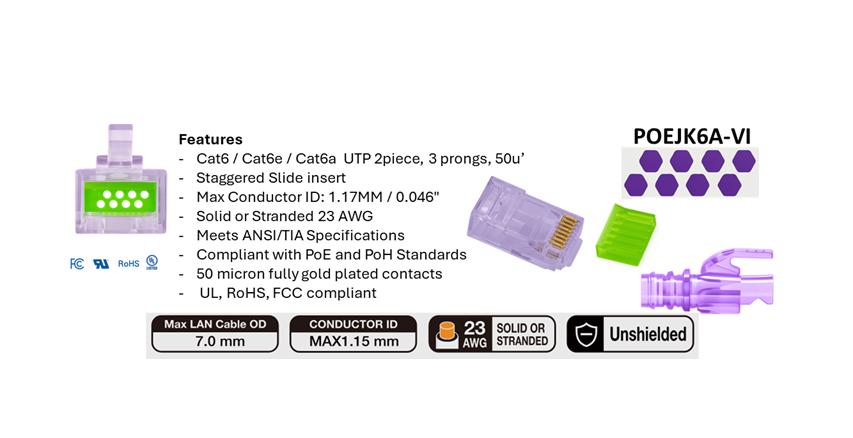

Cat6A/e RJ45 MPTL Staggered Sled Crimp Ends – 100-Pack Jar, Strain-Relief, Light Violet | POEJK6A-VI
Cat6A/e RJ45 MPTL Staggered Sled Crimp Ends – 100-Pack Jar, Strain-Relief, Light Violet | POEJK6A-VI
Ships in 5–7 Days (Western Canada) · 5–7 Days (Eastern Canada)
In stock
Overview
The POEJK6A-VI is a Cat6 / Cat6e / Cat6A UTP 2-piece RJ45 connector designed for high-performance terminations in PoE and PoH environments. With a staggered slide insert, 3-prong contacts and support for 23 AWG solid or stranded conductors, it’s built for reliable 10/100/1000BASE-T links where PoE current, crosstalk and insertion quality all matter.
Use POEJK6A-VI when you need a field-terminated modular plug that aligns with ANSI/TIA specifications and is explicitly compliant with PoE and PoH standards.
Key features
- Cat6 / Cat6e / Cat6A UTP – compatible with Cat6, Cat6e and Cat6A unshielded twisted-pair cable.
- 2-piece, 3-prong design – UTP 2-piece construction with 3-prong contacts for secure terminations.
- Staggered slide insert – helps align conductors and minimize crosstalk; staggered sled insert is designed to prevent arcing and shorting.
- Max conductor ID 1.17 mm / 0.046" – sized for 23 AWG solid or stranded copper conductors.
- PoE & PoH compliant – connector construction is compliant with PoE and PoH standards.
- Meets ANSI/TIA specifications – suitable for structured cabling that must follow recognized standards.
- 50 μin fully gold-plated contacts – 50 micron gold plating on contacts for long-term reliability.
- UL, RoHS, FCC compliant – aligns with key safety and environmental requirements.
Technical highlights
| Parameter | Value |
|---|---|
| Model | POEJK6A-VI |
| Cable types | Cat6 / Cat6e / Cat6A UTP |
| Design | UTP, 2-piece, 3-prong contacts |
| Max conductor ID | 1.17 mm / 0.046" |
| Supported conductors | 23 AWG solid or stranded copper |
| Insert | Staggered slide / sled insert (for crosstalk control and arcing/shorting mitigation) |
| Gold plating | 50 μin fully gold-plated contacts |
| Standards | Meets ANSI/TIA specifications; compliant with PoE and PoH standards |
| Compliance | UL, RoHS, FCC compliant |
Ideal applications
- Terminating Cat6/Cat6e/Cat6A UTP cable to RJ45 modular plugs for patch leads and custom jumpers.
- Creating PoE-ready cords for GRID PoE switches, Active POE-Jack® wall plates and IP endpoints.
- Field terminations where PoE/PoH compliance and controlled crosstalk are required.
Compatibility & ecosystem
POEJK6A-VI is designed to work with 23 AWG Cat6 / Cat6e / Cat6A UTP cabling, including GRID bulk cables such as POEJC6E-CMP and POEJC6A-CMP. It pairs naturally with GRID’s RJ45 tooling (e.g. POEJK-CRIMP) for consistent terminations across DC microgrid and structured cabling projects.
Specifications and details are taken directly from the GRID Networking catalog and are subject to change without notice. Always verify against the latest documentation before design or tender.
