ProdataKey (PDK) RHUB Red Hub HubNet PoE Wireless Gateway for Red Locksets | RHUB

ProdataKey (PDK) RHUB Red Hub Wireless Gateway

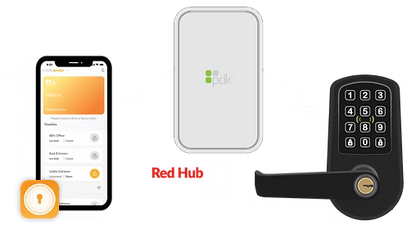

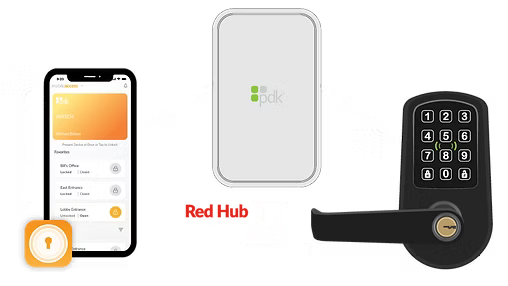

The ProdataKey (PDK) RHUB Red Hub is the ultimate wireless access control gateway engineered specifically for security integrators. Serving as the secure communication bridge between the cloud-based PDK.io platform and your edge hardware, the RHUB eliminates the need for complex, costly cable runs to individual doors. With automatic discovery in PDK.io, setup is quick and effortless, allowing you to maximize project margins and drastically reduce on-site labor hours.

Key Benefits for Integrators:

• Unmatched Scalability: Connect and supervise up to 16 wireless PDK Red Locksets through a single hub, simplifying commercial deployments.
• Proprietary HubNet Communication: Experience seamless, long-range Bluetooth (2.4 GHz) connectivity with an impressive 100 ft. average line-of-sight distance between the hub and the locksets.
• Supervised Credential Flexibility: Unlocks the full range of PDK credentials across your wireless network, including Prox, PIN, Red™ High-Security, Bluetooth, and Mobile.
• Enterprise-Grade Security: Protects facility data with impenetrable end-to-end AES 128-bit encryption.
• Versatile Power Options: Simplify wiring by powering the unit via Power over Ethernet (PoE), or use a standard 12-24 VDC terminal block (25-50mA).

Technical Specifications:

• Communication (Hub to Node): Ethernet 10/100Mbs (PoE Supported)
• Communication (Hub to Lock): Bluetooth Low Energy (2.4 GHz) via HubNet
• Wireless Range: Up to 100 ft. line-of-sight
• Power Requirements: PoE or 12-24 VDC at 25-50mA
• Encryption: End-to-end AES 128-bit
• Dimensions: 4" x 2.5" x 2" (Low-profile enclosure)
• Operating Temperature: -20°C to +45°C (-4°F to 113°F)
• Environment: Indoor Use Only (10% - 90% relative humidity, non-condensing)
• Compliance: Conforms to FCC Part 15

Ditch standard distribution delays and legacy hardwiring. The PDK RHUB Red Hub brings the power of true cloud access to any door and is the required infrastructure foundation for modern wireless deployments in the PDK ecosystem.
