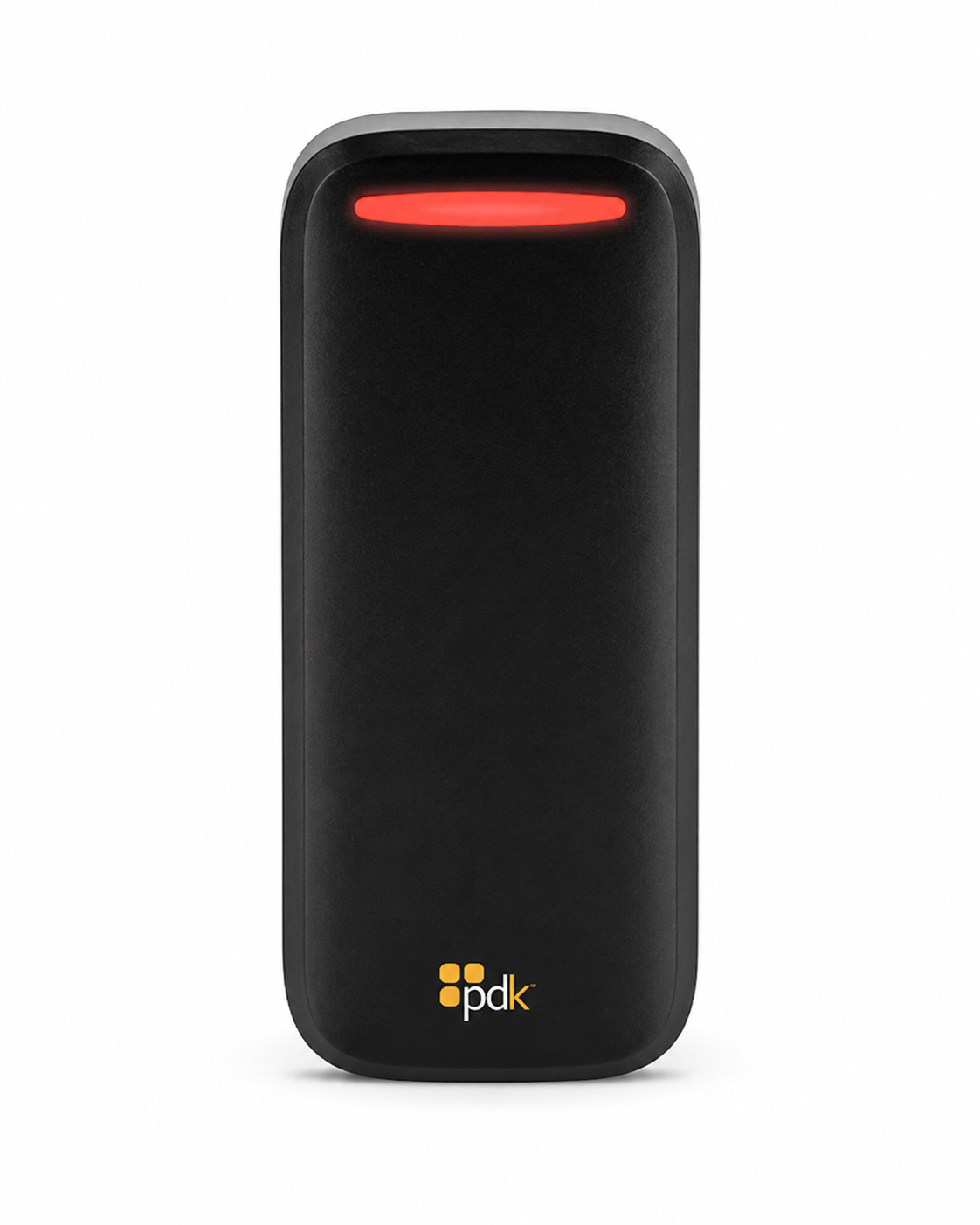

PDK RGPBV2 Red Reader V2 Single Gang High-Security Reader | RGPBV2

Dealer summary: The PDK RGPBV2 Red Reader V2 Single Gang High-Security Reader is the single-gang reader member of the new PDK Red Readers V2 line. It delivers OSDP and Wiegand output, a 2 in read range, IP65 weather resistance, and a cleaner install format for modern PDK Red deployments.

Best fit: Standard single-gang reader positions where the customer wants a larger face, cleaner wall presentation, and credential-only operation.

Key dealer specs

• Part number: RGPBV2
• Bluetooth BLE, 125 kHz prox, and 13.56 MHz high-security credential support.
• Output: OSDP or Wiegand; OSDP multi-drop can reduce homeruns on multi-reader projects.
• Power: 5-24VDC; max draw is 125 mA at 12VDC.
• Environmental range: -31 to 150 F / -35 to 66 C, up to 95% humidity, with IP65 protection.
• Dimensions: 5.25" x 3.29" x 0.73".
• Credential security: MIFARE DESFire EV2 / EV3 high-security support.

Installation and commissioning notes

• Max cable length guidance: 500 ft on Wiegand with 18 AWG, or 1000 ft on OSDP RS485 at 12VDC with 22 AWG shielded twisted pair.
• Power-up sequences help verify comm mode: Wiegand-only = red blink once, OSDP-only = green blink twice, Auto-Detect = green blink four times.
• Non-keypad model for credential-first deployments where PIN entry is not required.
• UL-listed 5-24VDC access control panel required. Wire colors and termination guidance are published in the official install guide.

Dealer verification checklist

• Confirm controller compatibility and whether the job should be wired in OSDP or Wiegand.
• Validate mounting surface and footprint for the selected single-gang reader form factor.
• Confirm whether the opening needs credential-only operation or PIN capability.
• For high-security deployments, align reader choice with Red credentials and controller strategy.
