Panasonic Intelli-Balance 200 LCD Wired Wall Control FV-SW20VEC1 | FVSW20VEC1

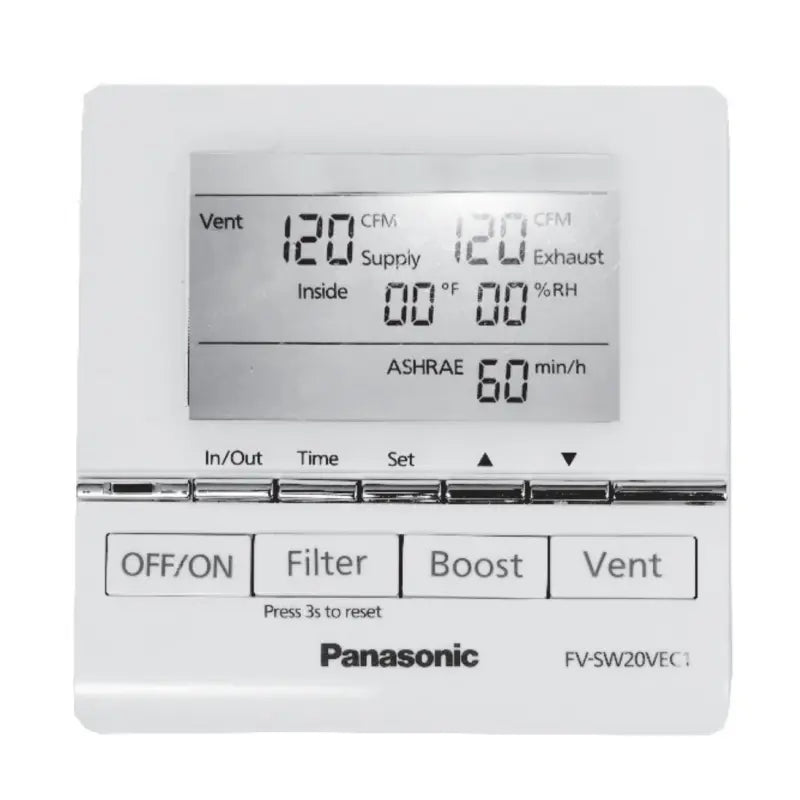

Panasonic FV-SW20VEC1 Intelli-Balance 200 LCD Wired Wall Control

The Panasonic FV-SW20VEC1 is an LCD wired wall control for the Panasonic Intelli-Balance 200 ERV system. It is intended for dealers, installers, and ventilation professionals who need a dedicated control interface for ERV operation, airflow adjustment, boost operation, filter reset, and system status monitoring.

Key Benefits

• Dedicated ERV control: Provides wall-mounted access to Intelli-Balance 200 operating functions.
• LCD status display: Displays supply and exhaust airflow, indoor/outdoor temperature and humidity, filter maintenance status, defrost mode, Cosmos indicator, and fault codes where supported by the connected system.
• Boost mode control: Allows boost operation with supply and exhaust airflow set to 200 CFM under normal operating conditions.
• ASHRAE timer support: Provides control access for intermittent ventilation timer settings used with the Intelli-Balance 200 system.
• Filter reset function: Includes a reset control after filter maintenance is completed.

Dealer / B2B Use Case

This wall control is suited for HVAC dealers, ventilation installers, builders, and service teams supplying Panasonic Intelli-Balance 200 ERV installations. It is most relevant when the project requires a visible user interface for airflow settings, boost operation, filter maintenance reminders, and operating feedback from the ERV.

Technical Specifications

• Brand: Panasonic
• Model: FV-SW20VEC1
• SKU format: FVSW20VEC1 / FV-SW20VEC1
• UPC / Barcode: 885170380400
• Product type: LCD wired wall control panel
• Compatible system: Panasonic Intelli-Balance 200 ERV, model FV-20VEC1
• Compatibility note: Panasonic lists this control as compatible only with the Intelli-Balance 200.
• Air volume settings: Supply and exhaust airflow settings of 60, 80, 100, 120, 140, 160, 180, and 200 CFM.
• Boost timer settings: 10, 20, 30, 40, 50, or 60 minutes; default listed as 20 minutes.
• ASHRAE timer settings: 10, 20, 30, 40, 50, or 60 min/h; default listed as 60 min/h.
• Display functions: Indoor/outdoor temperature and humidity, supply and exhaust airflow, ASHRAE time, boost time, filter maintenance reminder, defrost mode, Cosmos indicator, and fault codes.
• Approximate wall control dimensions: 3 3/8 in. x 3 3/8 in. face size; 11/16 in. depth, based on Panasonic installation documentation.
• Recommended wiring: 14 AWG to 26 AWG cable, maximum length 33.3 ft. / 10 m.
• Supplied accessories noted in manual: Wall control, screws, installation and operating instructions, wall anchors, and limited warranty document.

Compatibility / Application Notes

• Use with Panasonic Intelli-Balance 200 ERV model FV-20VEC1.
• When the wall control is connected, Panasonic documentation notes that the FV-20VEC1 control panel is disabled; ERV controls are enabled again when the wall control is disconnected.
• Boost airflow may be limited to 180 CFM when outdoor temperature is below 14 degrees F, according to Panasonic operating documentation.
• For final system selection, confirm ERV model, regional catalog availability, wiring requirements, and project code requirements before ordering.

Ordering / Dealer Notes

• Order by Panasonic model FV-SW20VEC1 or SKU FVSW20VEC1.
• Barcode / UPC for product matching: 885170380400.
• This is an accessory control, not the ERV unit itself.
• Confirm pairing with Panasonic FV-20VEC1 Intelli-Balance 200 on quotes, submittals, and purchase orders to avoid mismatch with other ventilation models.

Why Dealers Choose This Product

The FV-SW20VEC1 gives installers and end users a dedicated control and monitoring point for the Intelli-Balance 200 ERV. For dealer workflows, it helps clarify the control accessory required for projects where ERV status visibility, boost operation, airflow adjustment, and maintenance prompts are part of the installed ventilation package.
