Panasonic BalancedHome Elite Plus+ 210 ERV, Top Port, FV-21VEC1T | FV21VEC1T

Panasonic BalancedHome Elite Plus+ 210 Energy Recovery Ventilator

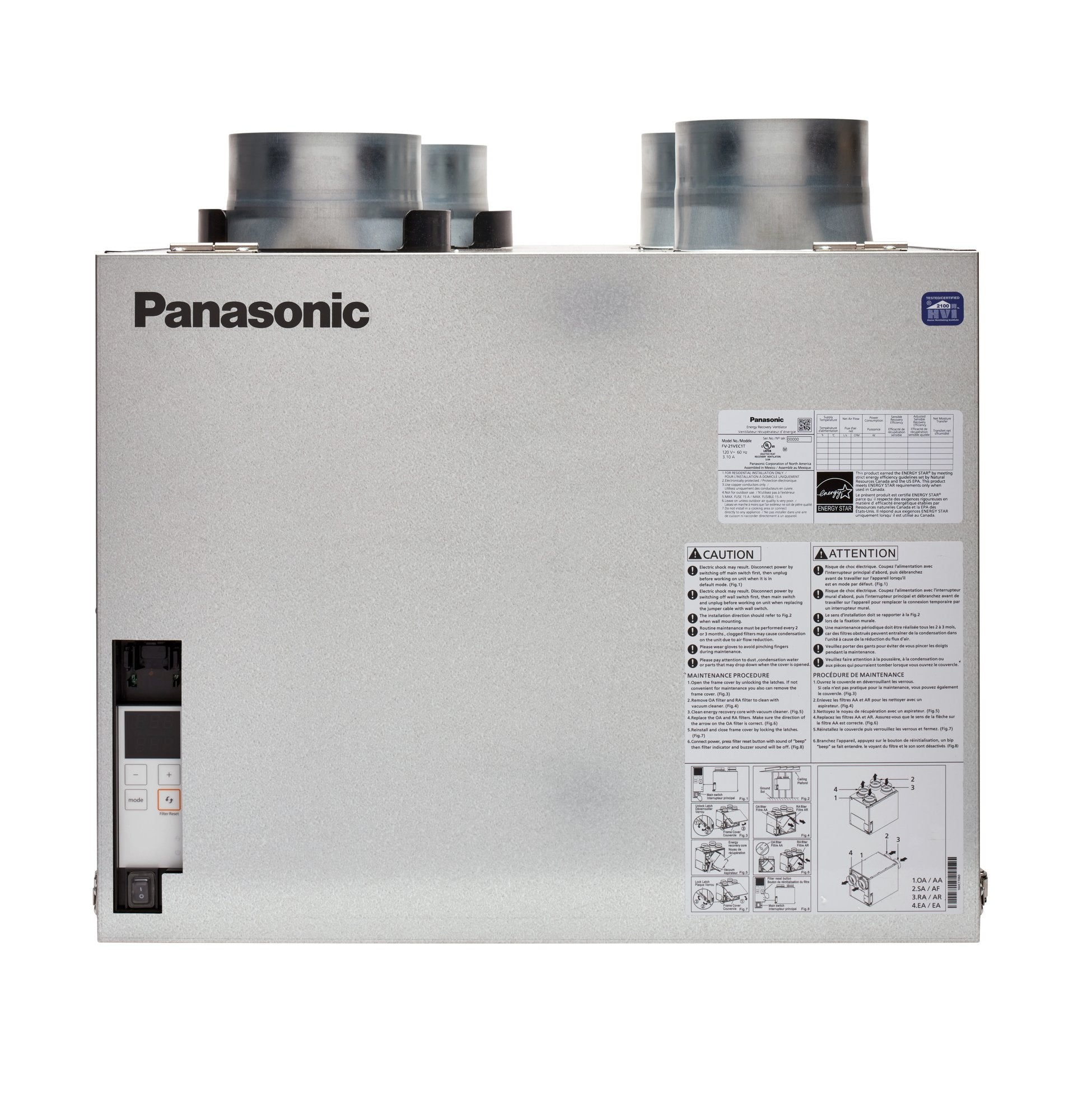

The Panasonic FV-21VEC1T is a BalancedHome Elite Plus+ 210 Energy Recovery Ventilator designed for balanced residential ventilation projects. This top-port ERV provides adjustable supply and exhaust airflow for dealers, HVAC contractors, builders, and integrators specifying whole-home fresh-air ventilation.

Key Benefits

• Adjustable ventilation: Independent supply and exhaust settings from 40 to 210 CFM, with occupant-controlled boost up to 210 CFM.
• Top-port configuration: Four vertically oriented 6-inch ducts support installations where ductwork is routed above the unit.
• Balanced airflow control: SmartFlow technology automatically adjusts motor speed to help maintain selected CFM against static pressure.
• Energy recovery core: Hygroscopic membrane core tempers supply air while transferring moisture and energy between air streams.
• Filtration included: Includes MERV 13 filter FV-FL1321VE1; washable MERV 6 replacement filter FV-FL0621VE1 is available.
• Installation flexibility: Includes standard power cord, hardwire adaptor kit, chain mounts, and wall mounts with predrilled brackets.

Dealer / B2B Use Case

FV-21VEC1T is suited for residential new construction, retrofit ventilation upgrades, and code-driven indoor air quality projects requiring a higher-capacity BalancedHome ERV. Dealers should position this model where a 210 CFM top-port ERV is required and confirm project airflow, duct design, service access, and control requirements before ordering.

Technical Specifications

Brand	Panasonic
Model / SKU	FV-21VEC1T
Product Type	Energy Recovery Ventilator, ERV
Series	BalancedHome Elite Plus+ 210
Port Orientation	Top port / vertically oriented ducts
Adjustable Airflow Range	40 to 210 CFM supply and exhaust
Boost Capacity	Up to 210 CFM
Duct Size	Four 6-inch ducts
Motor Type	Two DC-enclosed ECM brushless motors rated for continuous run
Power Rating	120V / 60Hz, 3.1 amps
Housing	Galvanized, corrosion-resistant steel body
Included Filter	MERV 13 filter, FV-FL1321VE1
Optional Filter	Washable MERV 6 filter, FV-FL0621VE1
Controls	Optional touchscreen LED wall control FV-SCVE2 sold separately
Warranty	6 years ECM motors; 3 years all other parts, from original purchase date

Compatibility / Application Notes

• Engineered for use in North American climate zones.
• Can be used to support ASHRAE 62.2, Ontario Building Code, ENERGY STAR Canada, LEED, Indoor airPLUS, California Title 24, and 2021 Washington State Residential Energy Code requirements when properly specified and installed.
• ENERGY STAR certification is noted for the Canadian market only; Panasonic states there are no current ENERGY STAR ratings for ERVs in the U.S. market.
• Optional FV-SCVE2 wall control is used for control and fault indicator display functions and is sold separately.

Ordering / Dealer Notes

• Confirm top-port orientation before ordering; Panasonic also lists a side-port model in this 210 CFM class.
• Verify final airflow sizing, duct layout, static pressure, controls, filtration, mounting location, and regional code requirements before installation.
• Barcode was provided as 885170452138, but should be confirmed against distributor or manufacturer ordering data before bulk upload or EDI use.

Why Dealers Choose This Product

FV-21VEC1T gives dealers a higher-capacity Panasonic BalancedHome ERV option with adjustable 40 to 210 CFM airflow, top-port ducting, ECM motors, included MERV 13 filtration, and documented code-support features for professional residential ventilation projects.
