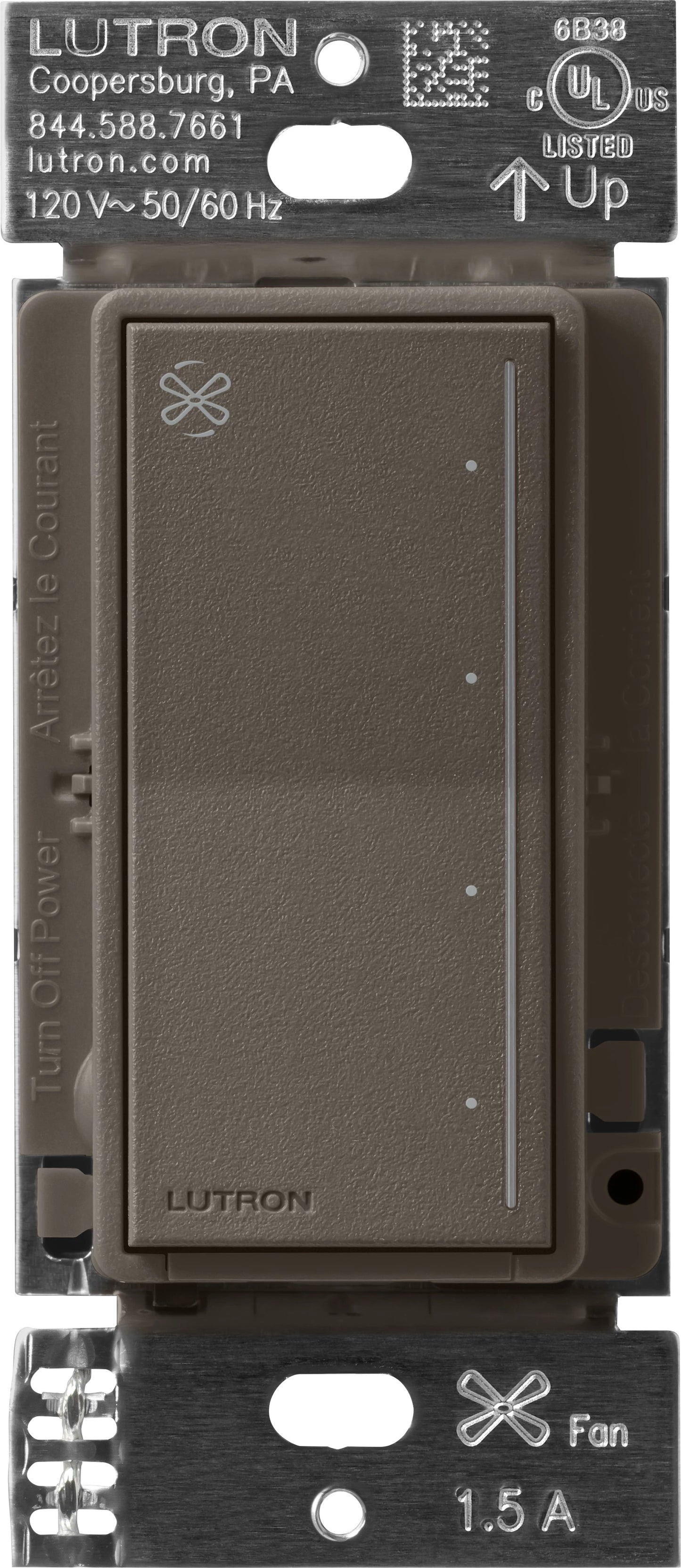

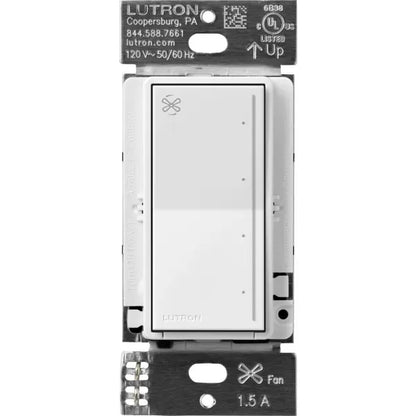

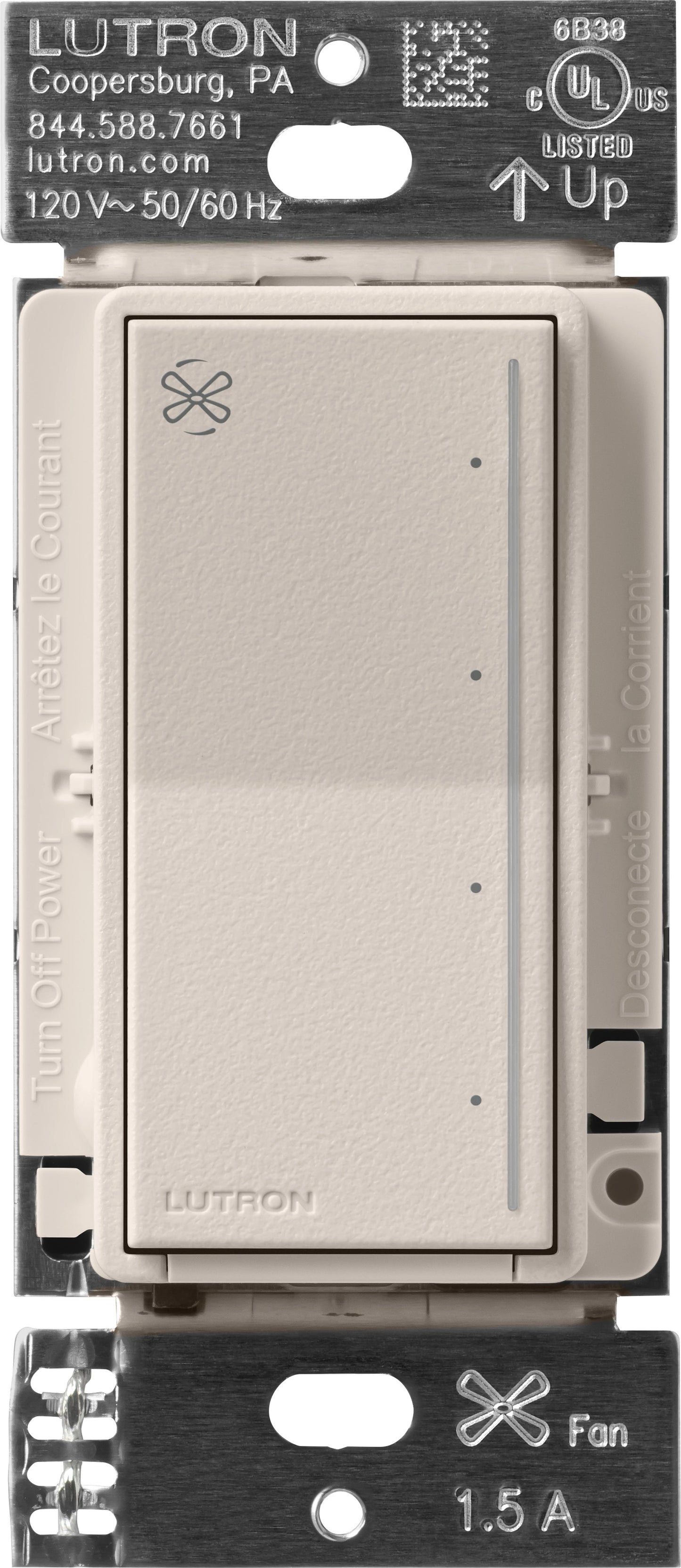

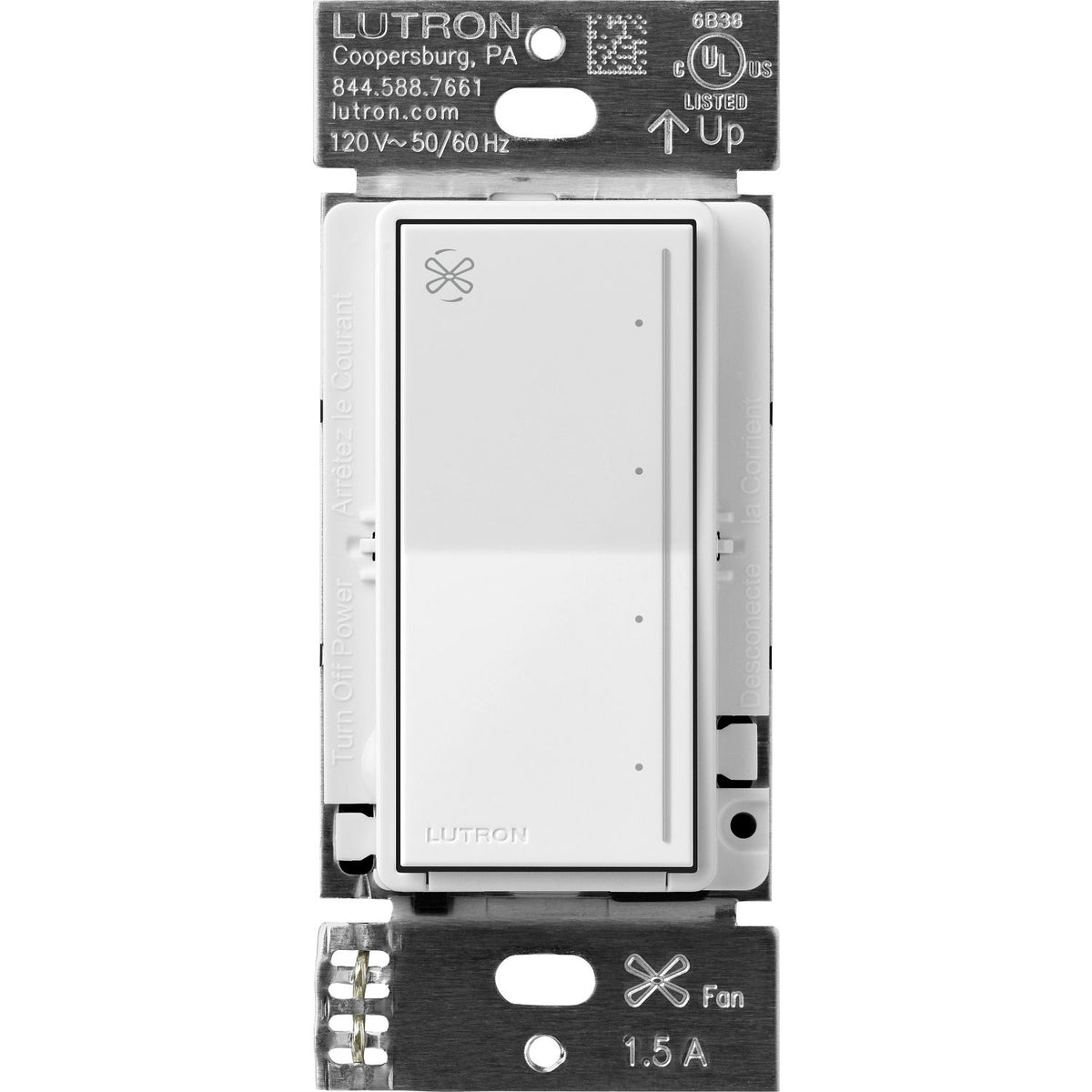

Lutron RadioRA 3 Sunnata RF Fan Speed Control - 1.5A 4-Speed Quiet Control (White) | RRST-ANF-WH

Lutron RadioRA 3 Sunnata RF Fan Control - White | RRST-ANF-WH

The Lutron RRST-ANF-WH is the RadioRA 3 Sunnata in-wall fan control for one paddle-type AC ceiling fan. It combines the clean Sunnata aesthetic with responsive 4-speed touch control, making it a strong specification choice for premium residential projects that need both refined design and dependable system integration.

This is the load-controlling fan control for the circuit - not a companion device. It is designed for single-pole applications, requires a neutral, and is rated for 120 V~ / 50-60 Hz / 1.5 A max.

Why Dealers Specify It

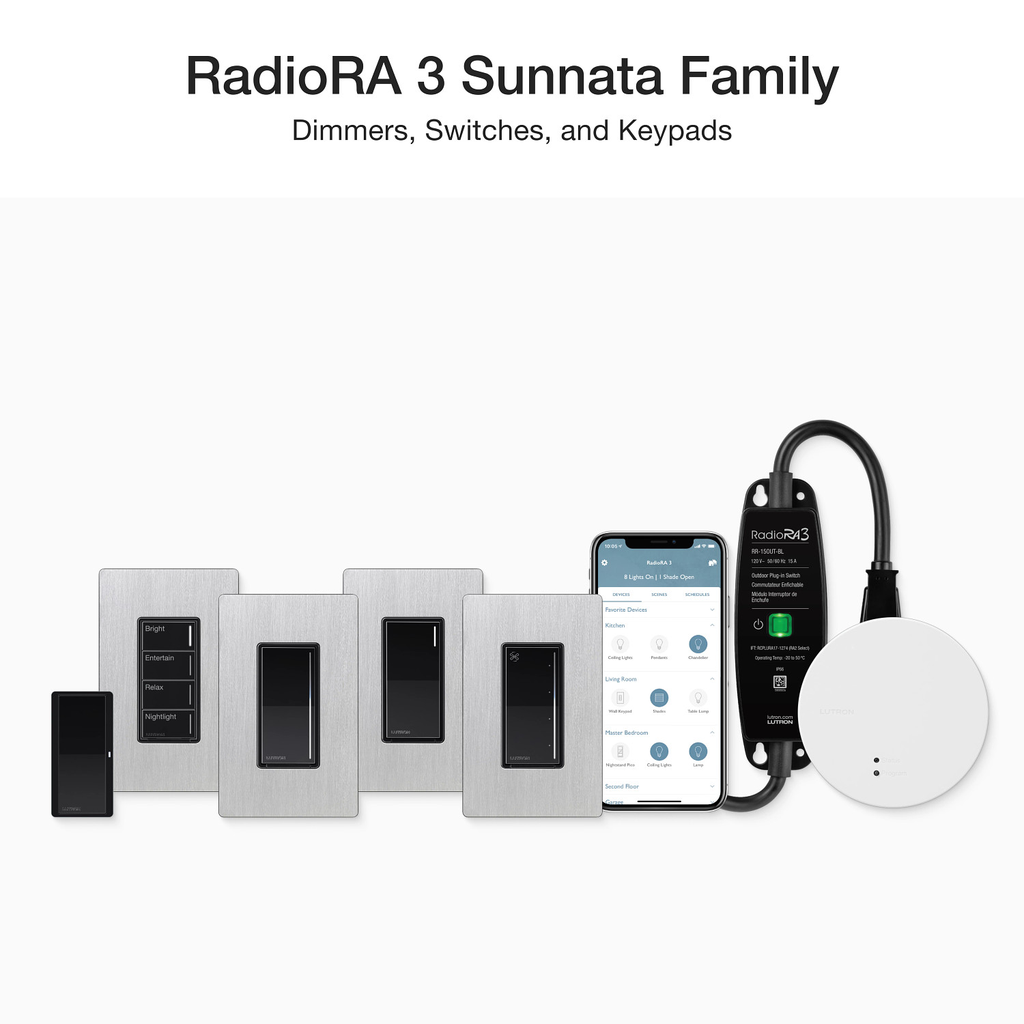

• Sunnata design language for a clean visual match with RadioRA 3 dimmers, switches, and keypads
• 4-speed touch control using the light bar for High, Medium-High, Medium, and Low
• Previous-speed resume when ON is pressed
• Double-tap to maximum speed for fast airflow on demand
• Clear Connect-Type X communication for RadioRA 3 system integration
• Advanced personalization for preset fan speed, light bar brightness, and indicator / locator light behavior
• Front Accessible Service Switch (FASS) for safe servicing and cleaning

Best-Fit Applications

RRST-ANF-WH is ideal for bedrooms, great rooms, living rooms, and other finished residential spaces where the client wants a premium wall control that visually matches the rest of the Sunnata package. It is especially well suited to professionally designed RadioRA 3 projects where the wall device needs to feel as polished as the rest of the system.

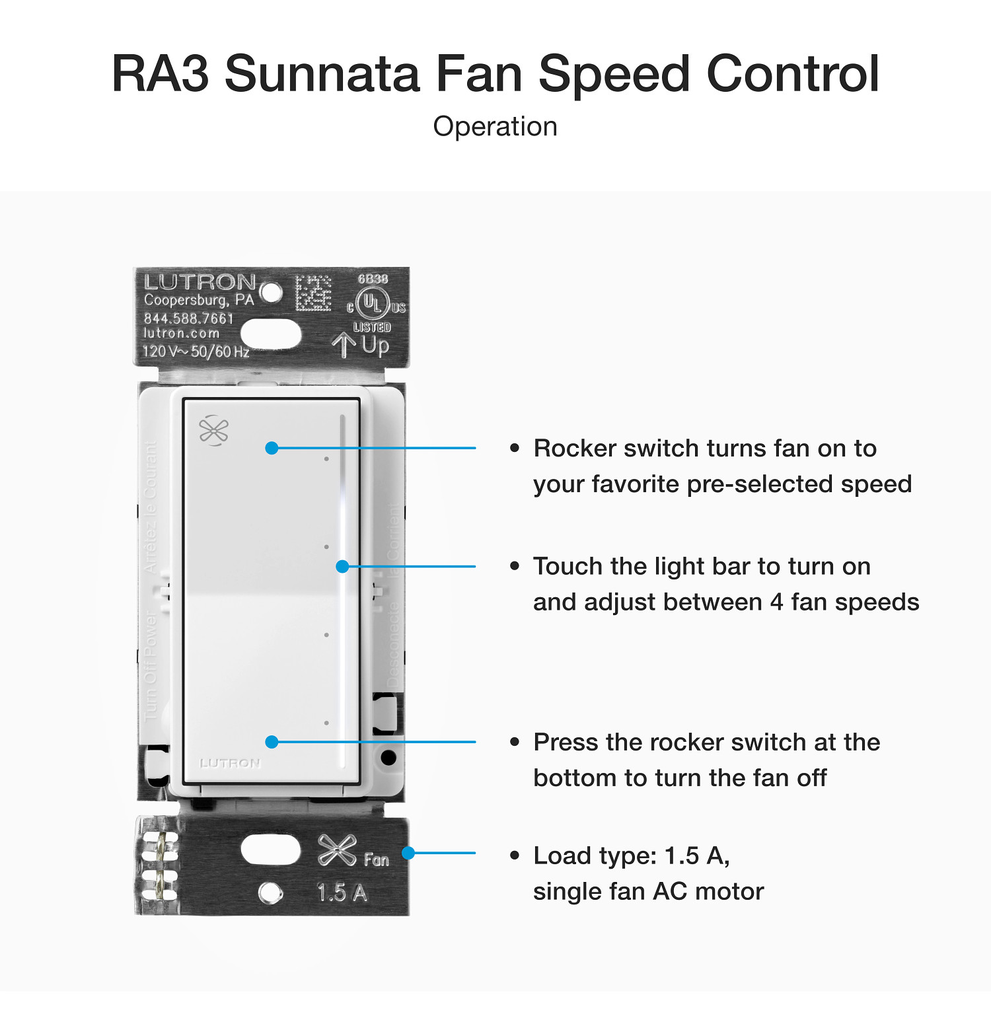

Control Experience

• Touch the light bar to select one of four fan speeds
• Press ON to return the fan to its previous speed
• Double-tap ON anytime to drive the fan to maximum speed
• Press OFF to turn the fan off
• Power-failure memory returns the control to its previous state when power is restored

Compatibility and Application Limits

• Single-pole only
• Neutral required
• For one permanently installed paddle-type AC ceiling fan only
• Not for use with DC motor fans
• Not for use with fans that have built-in remote control or Wi-Fi control, unless that integrated control is removed
• Not for use with bathroom or kitchen exhaust fans
• Not for use to control lighting loads on a fan
• Not compatible with Sunnata companion dimmers or switches

Installation Notes

• Electrical rating: 120 V~ / 50-60 Hz
• Load rating: 1.5 A maximum
• Requires a U.S. wallbox with 2.5 in. minimum depth
• For best setup, set the fan's pull chain to highest speed before installing the control
• Indoor use only
• For concrete or stone walls, a metal wallbox is recommended for best wireless performance

System and Personalization Notes

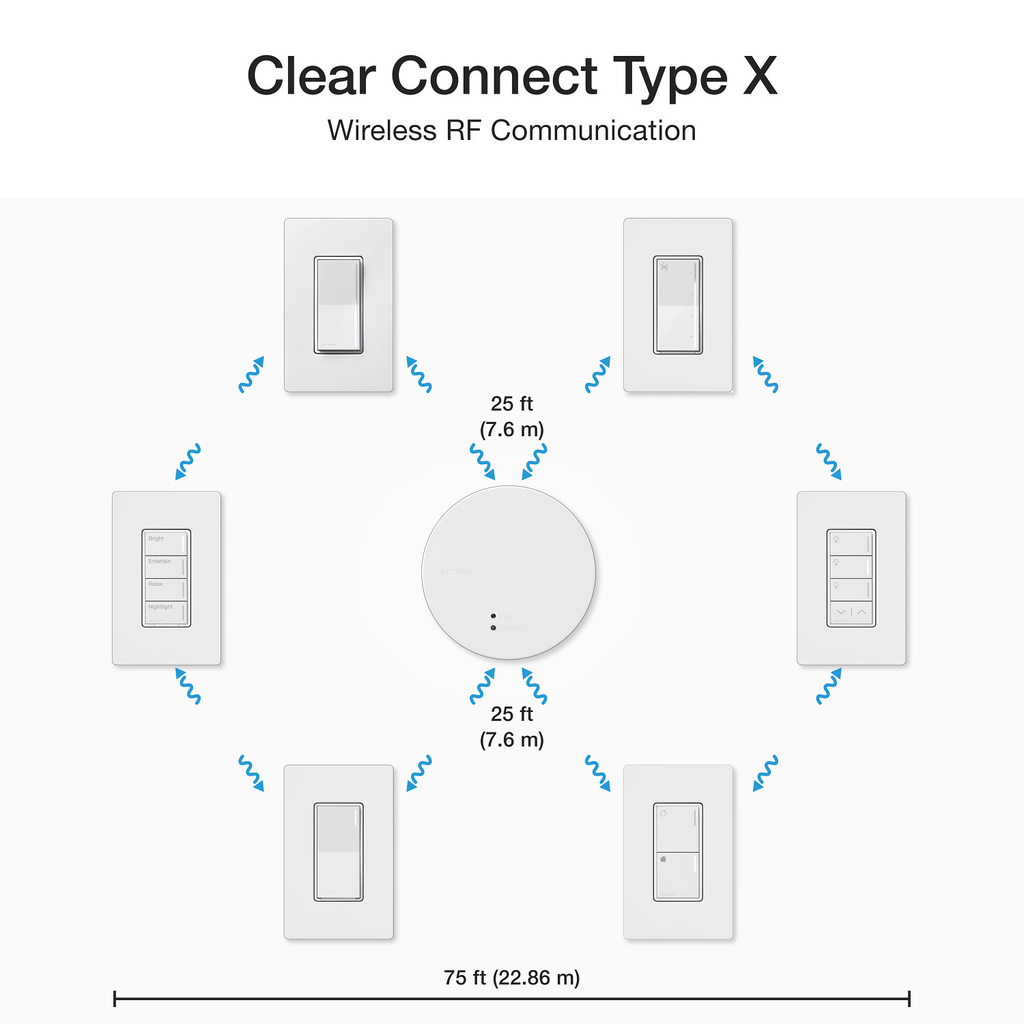

As part of the RadioRA 3 platform, the RRST-ANF-WH communicates using Clear Connect-Type X technology. It also supports Sunnata advanced feature settings, including preset fan speed, light bar brightness, and fan-speed indicator / locator light behavior. In commissioned system applications, those settings are governed by system programming.

Specifications

• Model: RRST-ANF-WH
• Series: RadioRA 3 Sunnata
• Device Type: RF fan control
• Color / Finish: White (WH), gloss
• Voltage: 120 V~
• Frequency: 50-60 Hz
• Max Load: 1.5 A
• Load Type: One paddle-type AC ceiling fan
• Typical Power Consumption: 0.5 W
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 0% to 90%, non-condensing
• Approvals: cULus, NOM, FCC, IC, IFT

Ordering Notes

• Wallplate sold separately
• Compatible with Lutron Claro wallplates and other designer-style wallplates

Dealer takeaway: RRST-ANF-WH is the correct RadioRA 3 Sunnata wall control when the job calls for a premium in-wall control for a single AC ceiling fan - with the right aesthetic, the right system fit, and clear installation boundaries that reduce field issues.
