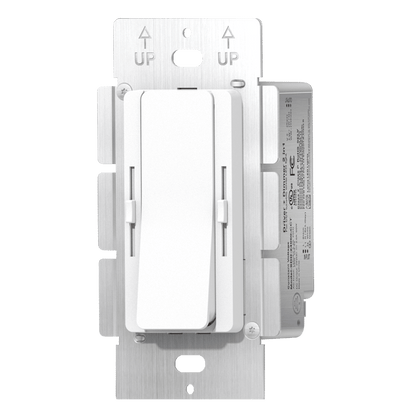

Lotus SDD-24060P-WLCCT-TWB 24V 60W Tunable White Smart Driver, Dimmer & CCT Controller | SDD-24060P-WLCCT-TWB
Lotus SDD-24060P-WLCCT-TWB 24V 60W Tunable White Smart Driver, Dimmer & CCT Controller | SDD-24060P-WLCCT-TWB
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24060P-WLCCT-TWB
The Lotus SDD-24060P-WLCCT-TWB is a compact 4-in-1 tunable white LED control solution that combines the driver, dimmer, manual CCT controller, and smart control into one electrical-box-ready unit. It is designed to simplify 24V tunable white tape light installations while reducing compatibility issues between separate drivers and dimmers.
Built for 24V DC tunable white LED applications, this controller delivers smooth 2700K to 5000K color tuning, deep 0.3% to 100% dimming, and convenient control by manual slide button or Smart Life (Tuya) / Bluetooth app. With single-pole or 3-way wiring, dry and damp location approval, and a compact form factor for electrical box installation, it is a strong choice for clean, flexible tunable white lighting control.
Why this controller sells
- 4-in-1 design: driver + dimmer + manual CCT controller + smart control
- Smooth tunable white adjustment: 2700K to 5000K
- Smart control: Smart Life (Tuya) app or Bluetooth control
- Manual on-device control: slide button for direct color adjustment
- Deep dimming: 0.3% to 100%
- Universal control flexibility: single-pole or 3-way wiring
- Electrical box installation
- No minimum load
- Fine output voltage adjustment: 24V to 26V +/- 0.5V
Recommended application
Designed for 24V DC tunable white LED installations with app control.
Compatible Lotus LED tape
Use with Lotus LED tape model LBL-COB-TW5CCT-IP20.
Key specifications
| Model | SDD-24060P-WLCCT-TWB |
|---|---|
| Device Type | Driver + Dimmer + Manual CCT Controller + Smart 4 in 1 |
| Application | 24V DC Tunable White LED installations with app control |
| Power | 60 W |
| Input | 120V AC 60 Hz |
| Output | 24V DC / 2.5A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Output Type | Constant Voltage PWM output |
| Min / Max Load | No minimum / 60 W |
| Dimming Range | 0.3% - 100% |
| Smart Dimming | Smart Life app (Tuya) or Bluetooth control |
| Wiring | Single Pole or 3-Way |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Efficiency | 91% at full load |
| Inrush Current | 50A, 150us @ 50% |
| Leakage Current | < 0.5mA |
| PWM Frequency | 16 KHz |
| Approved Location | Dry & Damp Locations |
| Working Temperature | -40°F (-40°C) to +140°F (+60°C) |
| Protection | Short circuit, over-voltage, over-heat, over-load |
| Safety Standards | c UL us Listed UL8750; CAN/CSA-C22.2 No.250.13 |
| Certifications | Class 2, UL Class P, FCC Part 15 Class B Subpart B |
| Net Weight | 0.55 lbs / 0.25 kg |
| Warranty | 5 Year |
Features & benefits
- Helps eliminate compatibility issues between drivers and dimmers
- Includes a separation plate for installing high and low voltage circuits in the same box
- Smooth control of light color from 2700K to 5000K
- Fine tuning of the output voltage for installation flexibility
- Supports both manual and smart control methods in one unit
Installation note
This unit is designed as a Class 2 power supply for electrical box installation.
- 4-in-1 driver, dimmer, manual CCT and smart control
- 24V DC, 60W constant voltage PWM output
- 2700K-5000K tunable white adjustment
- 0.3%-100% dimming performance
- Single-pole or 3-way wiring
- Smart Life (Tuya) / Bluetooth control
Frequently Asked Questions
What does the Lotus SDD-24060P-WLCCT-TWB do?
It combines the LED driver, dimmer, manual color temperature control, and smart control into one compact 4-in-1 device for 24V tunable white LED installations.
How do you control color temperature?
You can adjust tunable white output from 2700K to 5000K using the manual slide control or through the Smart Life (Tuya) / Bluetooth app.
What are the input and output ratings?
The unit accepts 120V AC 60 Hz input and provides 24V DC / 2.5A output, up to 60W.
Can it be used in a 3-way setup?
Yes. The spec sheet indicates support for single-pole or 3-way wiring.
Is there a minimum load requirement?
No. The listed minimum / maximum load is no minimum / 60W.
Where can it be installed?
The SDD-24060P-WLCCT-TWB is approved for dry and damp locations.
Which Lotus tape light is it designed to work with?
The spec sheet shows use with Lotus LED tape model LBL-COB-TW5CCT-IP20.
