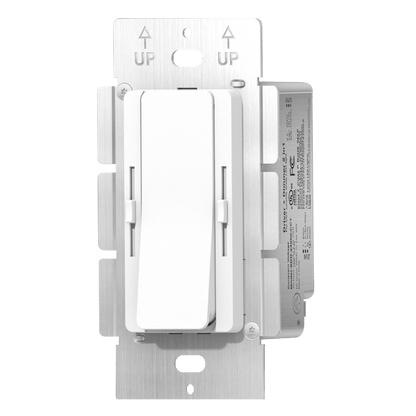

Lotus 24V 60W Tunable White Driver, Dimmer & Manual CCT Controller | SDD-24060-CCT
Lotus 24V 60W Tunable White Driver, Dimmer & Manual CCT Controller | SDD-24060-CCT
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24060-CCT

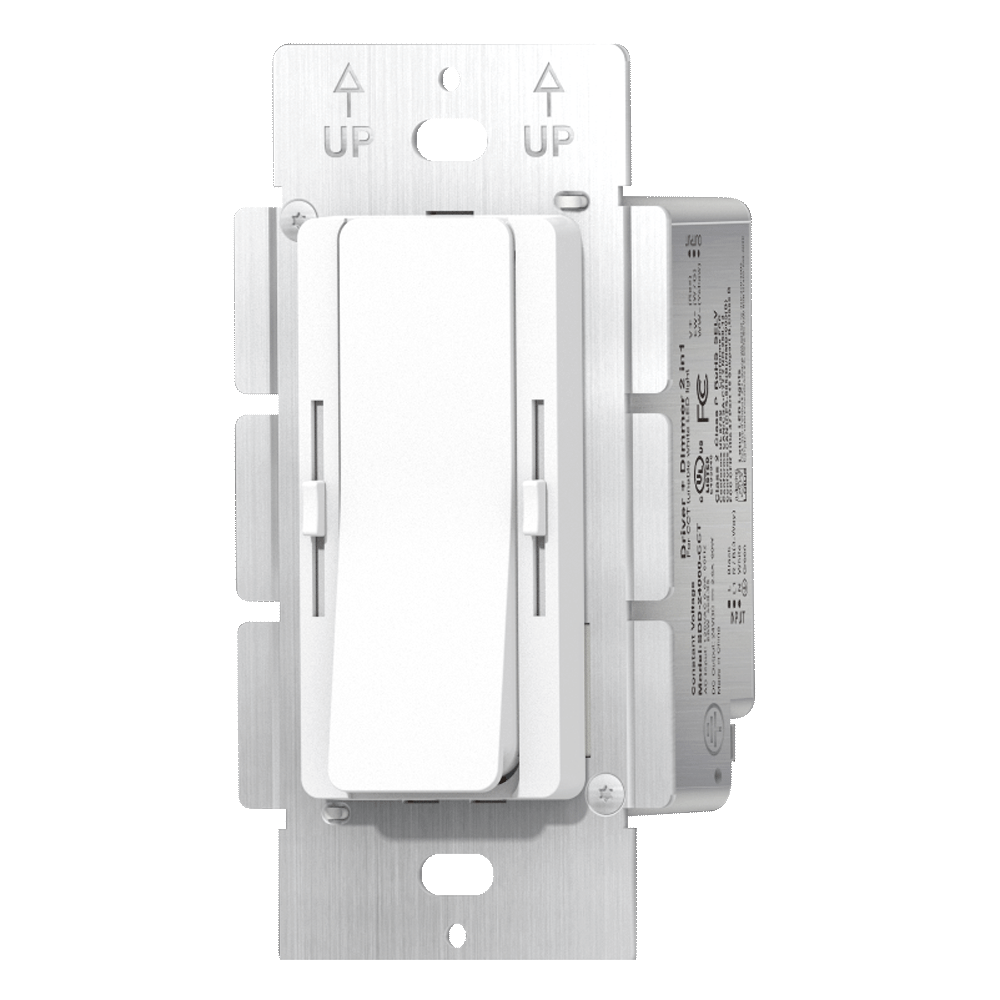

The Lotus SDD-24060-CCT is a compact 3-in-1 tunable white LED control solution that combines the driver, dimmer, and manual CCT controller into one wall-box-ready unit. It is designed to simplify 24V tunable white tape light installations while reducing compatibility issues between separate drivers and dimmers.
Built for 24V DC tunable white LED applications, this controller delivers smooth 2700K to 5000K color adjustment, deep 0.3% to 100% dimming, and easy manual control by slide button. With single-pole or 3-way wiring, dry and damp location approval, and a compact form factor for electrical box installation, it is a strong choice for clean, flexible tunable white lighting control.
Why this controller sells
- 3-in-1 design: driver + dimmer + manual CCT controller
- Smooth tunable white adjustment: 2700K to 5000K
- Manual slide control: direct color adjustment at the wall box
- Deep dimming: 0.3% to 100%
- Universal control flexibility: single-pole or 3-way wiring
- Electrical box installation
- No minimum load
- Fine output voltage adjustment: 24V to 26V +/- 0.5V
Recommended application
Designed for 24V DC tunable white LED installations.
Compatible Lotus LED tape
Use with Lotus LED tape model LBL-COB-TW5CCT-IP20.
Key specifications
| Model | SDD-24060-CCT |
|---|---|
| Device Type | Driver + Dimmer + Manual CCT Controller 3 in 1 |
| Application | 24V DC Tunable White LED installations |
| Power | 60 W |
| Input | 120V AC 60 Hz |
| Output | 24V DC / 2.5A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Output Type | Constant Voltage PWM output |
| Min / Max Load | No minimum / 60 W |
| Dimming Range | 0.3% - 100% |
| Wiring | Single Pole or 3-Way |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Efficiency | 91% at full load |
| Inrush Current | 50A, 150us @ 50% |
| Leakage Current | < 0.5mA |
| PWM Frequency | 16 KHz |
| Approved Location | Dry & Damp Locations |
| Working Temperature | -40°F (-40°C) to +140°F (+60°C) |
| Protection | Short circuit, over-voltage, over-heat, over-load |
| Safety Standards | c UL us Listed UL8750; CAN/CSA-C22.2 No.250.13 |
| Certifications | Class 2, UL Class P, FCC Part 15 Class B Subpart B |
| Net Weight | 0.55 lbs / 0.25 kg |
| Warranty | 5 Year |
Features & benefits
- Helps eliminate compatibility issues between drivers and dimmers
- Includes a separation plate that allows installation of high and low voltage circuits in the same box
- Smooth control of light color from 2700K to 5000K
- Manual slide button for tunable white adjustment
- Fine tuning of the output voltage for installation flexibility
Installation note
This unit is designed as a Class 2 power supply for electrical box installation.
- 3-in-1 driver, dimmer, and manual CCT controller
- 24V DC / 2.5A output, 60W max
- 2700K-5000K tunable white adjustment
- 0.3%-100% dimming performance
- Single-pole or 3-way wiring
- Wall-box-ready Class 2 installation
Frequently Asked Questions
What does the Lotus SDD-24060-CCT do?
It combines the LED driver, dimmer, and manual color temperature control into one compact 3-in-1 device for 24V tunable white LED installations.
How do you control color temperature?
You can manually adjust tunable white output from 2700K to 5000K using the built-in slide control.
What are the input and output ratings?
The unit accepts 120V AC 60 Hz input and provides 24V DC / 2.5A output, up to 60W.
Can it be used in a 3-way setup?
Yes. The spec sheet indicates support for single-pole or 3-way wiring.
Is there a minimum load requirement?
No. The listed minimum / maximum load is no minimum / 60W.
Where can it be installed?
The SDD-24060-CCT is approved for dry and damp locations.
Which Lotus tape light is it designed to work with?
The spec sheet shows use with Lotus LED tape model LBL-COB-TW5CCT-IP20.
